How to Use SKP900 Program Keys for VW

This article show a guide on how to use SuperOBD SKP-900 program new key for VW

Procesures:

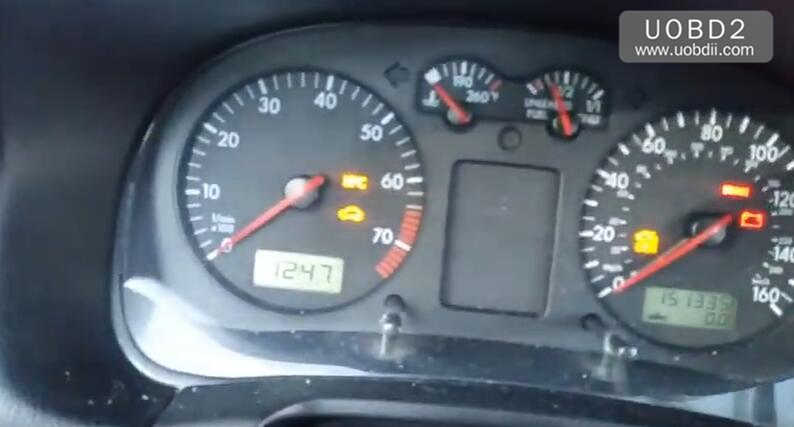

Connect SKP900 to vehcile by OBD,and enter the menu to select “VW” model

How to Use SKP900 Program Keys for VW (2)

Select “Read pincode”

How to Use SKP900 Program Keys for VW (3)

Wait for system loading

How to Use SKP900 Program Keys for VW (4)

PASSWORD READING SYS1

How to Use SKP900 Program Keys for VW (4)

Follow the screen prompt to choose OBDII adapter and turn ignition on,then click “Yes” to continue

How to Use SKP900 Program Keys for VW (6)

Communicating,please wait…

How to Use SKP900 Program Keys for VW (6)

Programming system please wait…

How to Use SKP900 Program Keys for VW (8)

After a few second waiting,you will get the pincode or password:4966

 Skip to main content Skip to toolbar      About WordPress     Key Cutting Machine     171 WordPress Update, 9 Plugin Updates, 7 Theme Updates     New     SEO      Howdy, Sales keycuttingmachine.org  Log Out WordPress 5.1 is available! Please update now. Add New Post Enter title here Permalink: http://www.keycuttingmachine.org/how-to-use-skp90…gram-keys-for-vw/ ‎ Add slider p Word count: 155 	Draft saved at 7:04:20 am. Preview (opens in a new window) Status: Draft Edit Edit status Visibility: Public Edit Edit visibility Publish immediately Edit Edit date and time Move to Trash      All Categories Most Used       368A Key Cutting Machine     Auto Key Programmer         Benz Key Programmer         BMW Key Programmer         CGDI key programmer         Ford/GM Key Programmer         Indian Car Key Program         Japan Car Key Programmer         JLR Key Programmer         Porsche Key Porgrammer         PSA Key Programmer         Universal Key Programmer         VW Key Programmer     Auto Locksmith Tool     Automatic V8/X6     HON66 Key Cutting Machine     Miracle-A7     SEC-E9 Key Cutting Machine     Uncategorized     Xhorse iKeycutter  + Add New Category Add New Tag  Separate tags with commas  Set featured image Post Formats Standard Aside Image Video Quote Link  Priority Leave empty for automatic Priority as configured on Settings > Reading.  Exclude from XML Sitemap  Access  Exclude from Google News Sitemap. Excerpt  Excerpts are optional hand-crafted summaries of your content that can be used in your theme. Learn more about manual excerpts.  These are the related entries for this entry. Updating this post may change these related posts.  No related posts. UPGRADE TO PRO VERSION  Preview Snippet | Key Cutting Machine http://www.keycuttingmachine.org/?p=10543  Title  characters. Most search engines use a maximum of 60 chars for the title.  Description  characters. Most search engines use a maximum of 160 chars for the description.  Keywords (comma separated)  NOINDEX this page/post  NOFOLLOW this page/post  Disable on this page/post   Thank you for creating with WordPress.	  Get Version 5.1	 Add Media Filter by type Filter by date Search Media  Attachment Details How-to-Use-SKP900-Program-Keys-for-VW-9.jpg February 22, 2019 30 KB 721 × 395 Edit Image URL Title Caption Alt Text Description Attachment Display Settings Alignment Link To Size 1 selected

Back to menu and select “KEY MATCH”

How to Use SKP900 Program Keys for VW (10)

Select “KEY Programm SYS1”

How to Use SKP900 Program Keys for VW (11)

Choose OBDII adapter and turn ignition on,then click “Yes” to Continue

How to Use SKP900 Program Keys for VW (11)

SKP900 will show the control unit computer informaiton:

How to Use SKP900 Program Keys for VW (13)

Select “Program Key”

How to Use SKP900 Program Keys for VW (13)

Input the password  read out before:4966

How to Use SKP900 Program Keys for VW (13) How to Use SKP900 Program Keys for VW (16)



Programming system please wait…

How to Use SKP900 Program Keys for VW (16)

CURRENT NO.OF KEYS:0,prss “YES” to continue

How to Use SKP900 Program Keys for VW (16)

Enter key number you want to program

How to Use SKP900 Program Keys for VW (19)

Check input value,and press “Yes” to continue

How to Use SKP900 Program Keys for VW (20)

Wait for system programming

How to Use SKP900 Program Keys for VW (21)

Use all mating keys to turn ignition on,and press “Yes” to continue

How to Use SKP900 Program Keys for VW (21)

Matching finished

How to Use SKP900 Program Keys for VW (23)

Done!

VW/Skoda 4th Immo All Key Lost Programming by Handy Baby 2

This article show you how to use JMD Handy Baby 2 to perform VW/Skoda 4th Immobilizer system all keys lost programming.Hope it is helpful to your work.



What You Need?

JMD Handy Baby 2

Handy Baby Assistant Adapter

JMD48 Chip



Related Content:

How to use Handy Baby II to copy Toyota /Lexus G key?

How to Register and Active Handy Baby 2 II



Article About VW 4th Immobilizer System Key Programming:

Lonsdor K518ISE and VAG OBD helper program VAG 4th via OBD

VAG OBD Helper & VVDI2 program VW 4th IMMO All Keys Lost via OBD

OBDSTAR X300 DP+ RFID Adapter program key VW 4th 5th IMMO OK

How to program vag 4th 5th IMMO by Xtool X100 PAD 2 full set?



Procedures:

Step 1:Collect Data

Insert new remote key (without chip) into ignition and lighten the dashboard

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (1)

Plug the Handy Baby assistant adapter on OBDII port.

When the assistant make a long beep for 2 seconds and stops for 1 second,the data is collected ,then pull out the assistant adapter.

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (2)



Step 2:Upload Data

Open the JMD APP and connect handy baby 2

JMD assistant sensing area sits on the identification antenna and reads the collected data.

After read successful,choose JMD APP upload

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (3)

Write VIN code

Choose VW or Skoda

Write token to payment (Purchase from a agent)

Upload success

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (4)



Step 3:Download Data and Program New Keys

Connect Handy Baby 2 to laptop and build connection between Handy Baby 2 and JMD Handy Baby Client

After connection built,select “ALL LOST CALC”

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (5)

The device has been connected to star collecting data…

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (6)

After the calculation is successful,the check code will be sent to the registered mailbox

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (7)

Download success!

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (8)

Now download the data to your handy baby 2,select “Download Data”–>”Download PC”

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (9)

Place “C-JMD 48 chip” into the coil,then click “OK” to copy new key

After first key program successfully,you can press “OK” to copy next key.

JMD Handy Baby 2 All Key Lost Programming for VWSkoda 4th Immobilizer (10)

Done!

How to use TMPro Add Key for VW 93C86 Keyless Continental

This article show a guide on how to use TMPro 2 to program keyless continental for VW 93C86.And you can use this method to apply on VW Touareg 2009,Phaeton 2010-2011,Bentley 2014,Porsche Cayenne 2009,Audi A8 2009



Preparations:

TMPro2 Programmer

Soldering Iron

Power Supply Unit

PCF7936 or Silca T14 – JMA TP12 transponder or original remote key



Procedures:

Remote the shell of VAG,Porsche Kessy Continental module

TMPro 2 Program Keyless Continental for VW 93C86 (1)

Then follow below connection diagram to locate the pin position

TMPro 2 Program Keyless Continental for VW 93C86 (2)

Then use the soldering iron to solder the wires as show on the above connection diagram

TMPro 2 Program Keyless Continental for VW 93C86 (3)

Connect the VAG,Porsche Kessy Continental module

TMPro 2 Program Keyless Continental for VW 93C86 (4) TMPro 2 Program Keyless Continental for VW 93C86 (4)



Connect the TMPro2 to laptop,and run the TMPro software

Click on “Select and Read Memory Device”

TMPro 2 Program Keyless Continental for VW 93C86 (6)

Select “93c86(200)” and click OK to continue

TMPro 2 Program Keyless Continental for VW 93C86 (7)

Wait for TMPro to load data

TMPro 2 Program Keyless Continental for VW 93C86 (8)

You will see the information once the TMPro is done calculating

TMPro 2 Program Keyless Continental for VW 93C86 (9)

Now you can create you key.Just put the chosen type of key and press the button.

Then program will finish job automatically.

TMPro 2 Program Keyless Continental for VW 93C86 (9)

Done!



How to use VAG OBD helper & VVDI2 to program MQB key?

VAG OBD helper reads out MQB IMMO data firstly, then use VVDI2 Commander to load the immo data and add new key successfully.

Part 1: How to use VAG OBD helper to read out MQB IMMO data?

  1. Hook VAG OBD helper up the vehicle.

  1. Click on “Read car info”to getmanufacture, VIN, immo type, power, key count, key ID etc.

  1. Enable the network connection and upload data to calculate.

The system is reading ECU type.

Click on “Online calculate immo data”.

  1. Online calculate immo data successfully and saved automatically, click on “Yes”.



Part 2: Generate MQB NEC35XX remote key

Need: VVDI2 and the immo data read out by VAG OBD helper

Click on “Key learn” – “MQB IMMO”, select NEC24C64 or NEC35XX (Mainland /VDO)

Generate dealer key with Immo data.

Load immo data, click “OK”.



If you will use the immo data to copy and generate dealer key, click “No”.

MQB is “Audi” option as default.

Tick on the first option, click on “Next”.

Click on “Yes”.

Click on “Yes”.

Put the original key into the coil of VVDI2, click on “Yes”.

Click on “Add key”.

Please make sure you have backup the EEPROM and IMMO data.

Choose the method to add key.

Option 3, load immo data, key number, next…

Tip:

Please make sure you follow the on-screen instructions to learn MQB key, even though it fails, don’t turn off ignition.

For Skoda MQB key learn, the coil has to be taken out.

VAG OBD cable software: Where to download + How to install/use

This article show a guide on how to install,how to use VAG OBD Assistant cable,and you can download the VAG OBD cable software here.



Free download VAG OBD Helper software, driver software, help files

https://mega.nz/#!5eJkDA5L!_SCyBL5Mov7q_Fx-WiMI4uLA7zyneJvemu1Wu3HELKw



How to install VAG OBD cable:

Unzip file “vag obd”to Desktop

vag-obd-helper-driver-software-download-1

3 files inside:

Folder “help”;

Folder “VAG OBD software”;

Driver software “Driver.exe”

vag-obd-helper-driver-software-download-2



First, install VAG OBD driver software

Then install the VAG cable to the USB port

Run VAGOBD.exe

vag-obd-helper-driver-software-download-3

The serial number can be detected automatically

Languages available: Chinese; English

The chinese interface

vag-obd-helper-driver-software-download-4

The english interface

vag-obd-helper-driver-software-download-5

Help files:

4th immo – appro help files

4th immo – mqb – Lonsdor k518 help files

4th immo – vvdi help files

5th immo – appro help files

mqb – vvdi help files

Note that all files are explained in Chinese.

But the English version help files will be released here soon.

vag-obd-helper-driver-software-download-6

Tokens: not free

You should pay for it at http://www.uobdii.com

VAG OBD Helper Assistant +VVDI2 program All Key Lost for VW 4th 5th

Online calculation:

In VAG OBD Helper

Reading immo data

vag-obd-cable-review-3

VW immo type: IMMO4 – Magnei Marelli Motorola

Select online key ID and then use online calculate immo data

vag-obd-cable-review-4



IMMO4 – NEC24C64 part immo data success

Save data

Attention 1: this immo data is not the full immo data. DON’T write it back to the car with other tools

Attention 2: you can prepare a new dealer key and learn key with this immo data in other immo device

Attention 3: press ok will auto open immo data folder

vag-obd-cable-review-6 vag-obd-cable-review-7



Done!

Otosys IM100 perform all keys lost programming for VW Golf 6 2015-2017

This article show a guide on how to use Otosys IM100 perform all keys lost programming for VW Golf 6 2015-2017



Instrument clusters using UDS protocols: VDO 24C64, VDO 24C32, JCI, MM, etc.

Models: Golf 6, Jetta, Passat B7, Polo, Tiguan, etc.



Key programming tool:Auro Otosys IM100 or IM600(Contact UOBDII Service for IM600)



Take Otosys IM600 and test with Golf 6:

otosys-im100-golf-6-all-keys-lost-1



Step 1: connect all the units and the car in a good way

Connect Otosys IM100 to UP400, J2534 programmer and the car via the OBD port

otosys-im100-golf-6-all-keys-lost-2 otosys-im100-golf-6-all-keys-lost-3 otosys-im100-golf-6-all-keys-lost-4 otosys-im100-golf-6-all-keys-lost-5



Step 2: select the car and function to do

Select the car: VW 2015-2017

And function: Immo 4 Instrument CAN – All keys lost

otosys-im100-golf-6-all-keys-lost-6 otosys-im100-golf-6-all-keys-lost-7 otosys-im100-golf-6-all-keys-lost-8 otosys-im100-golf-6-all-keys-lost-9 otosys-im100-golf-6-all-keys-lost-10 otosys-im100-golf-6-all-keys-lost-11



Step 3: Otosys Im100 (Im600) works for Golf 6 all keys lost

I.Read immo data

II.Make dealer key

III.Key adaptation to vehicle

otosys-im100-golf-6-all-keys-lost-12

In detail…

I.Read immo data

Please turn on the hazard warning flasher

If the vehicle has kessy

Please push down the Start/Stop button

If vehicle has no kessy

Please insert the blank key and then turn ignition

otosys-im100-golf-6-all-keys-lost-13 otosys-im100-golf-6-all-keys-lost-14 otosys-im100-golf-6-all-keys-lost-15 otosys-im100-golf-6-all-keys-lost-16

Calculation is completed!



IIMake dealer key

Put a blank key in the programmer key hole and then press OK

otosys-im100-golf-6-all-keys-lost-17 otosys-im100-golf-6-all-keys-lost-18 otosys-im100-golf-6-all-keys-lost-19 otosys-im100-golf-6-all-keys-lost-20

Make dealer key successfully

Go to generate the next key

Put a blank key in the programmer key hole and then press OK

otosys-im100-golf-6-all-keys-lost-21 otosys-im100-golf-6-all-keys-lost-22 otosys-im100-golf-6-all-keys-lost-23

Make dealer key successfully

III.Key adaptation to vehicle

The vehicle has no kessy

Communicating with the vehicle…

otosys-im100-golf-6-all-keys-lost-24 otosys-im100-golf-6-all-keys-lost-25 otosys-im100-golf-6-all-keys-lost-26 otosys-im100-golf-6-all-keys-lost-27

Learn key:

Please insert in sequence the keys that need to be learned into the ignition switch within 30 s and turn to ON. The keys should be changed at an interval of less than 5s

otosys-im100-golf-6-all-keys-lost-28 otosys-im100-golf-6-all-keys-lost-29 otosys-im100-golf-6-all-keys-lost-30 otosys-im100-golf-6-all-keys-lost-31

Numbers of the key learned: 2

Numbers of keys that need to be learned: 2

Key learning completed!

otosys-im100-golf-6-all-keys-lost-32

Turn ignition off and wait for 5 seconds

Turn ignition switch on

otosys-im100-golf-6-all-keys-lost-33

I.Read immo data: completed!

II.Make dealer key: completed!

III.Key adaptation to vehicle: completed!

otosys-im100-golf-6-all-keys-lost-34

Tested with the car…works good

otosys-im100-golf-6-all-keys-lost-35 otosys-im100-golf-6-all-keys-lost-36





Otosys IM100 (IM600) Golf car list:



Area Make Model Year Range Immobiler System Transponder Type PreCode
SA Vw Gol/Parati/Saveiro/Pointer 2004> 2009-2015 IMMO4_Instrument_UDS Megamos 48 Dealer Key
SA Vw Gol/Voyage/Saveiro 2009> 2009-2017 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf PLUS 2004 2009-2011 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf PLUS 2004 2011-2012 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf PLUS 2004 2012-2014 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf 1998> 1998-2007 IMMO3_Instrument_K Megamos 48 No
US Vw Golf 1998> 1998-2007 IMMO3_Instrument_K Megamos 48 No
SA Vw Golf 2008> 2008-2014 IMMO3_Instrument_K Megamos 48 No
US Vw Golf 2010> 2010-2011 IMMO4_Instrument_UDS Megamos 48 Dealer Key
US Vw Golf 2010> 2011-2012 IMMO4_Instrument_UDS Megamos 48 Dealer Key
US Vw Golf 2010> 2012-2014 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf 2009> 2009-2011 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf 2009> 2011-2012 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf 2009> 2012-2014 IMMO4_Instrument_UDS Megamos 48 Dealer Key
EU Vw Golf 6 ESTATE 2010> 2010-2012 IMMO4_Instrument_UDS Megamos 48 Dealer Key



VVDI MB V4.1.0 Newest Update:Benz W210 All Keys Lost

Your dream comes true! !! Mercedes Benz W210 all keys lost has solution, that is the newest version VVDI MB V4.1.0 plus one Power Adapter. This post goes for the details and instructions.

Your dream comes true! !! Mercedes Benz W210 all keys lost has solution, that is the newest version VVDI MB V4.1.0 plus one Power Adapter. This post goes for the details and instructions.

vvdi-mb-w210-all-keys-lost-01



Image source



Let’s start with VVDI MB V4.1.0 newest update:

*Pay more attention to the info in red color*

2018-07-13

*** Require firmware V4.0.0

************************************************************************

===== BENZ V4.1.0 =====

1This update no need update the firmware



2.Password calculation: Support calculate password for W202/W208/W210(KLine) EIS

a.No more need MCU’s de/soldering, very safe and quickl

b.Support add key and lost all key for password calculation

c.The procedure require about 25-30 minutes

d.The procedure need MB Power Adapter support

e.The procedure should work on the bench, not on car

3.Bugfix for load motorola EEPROM dump file in EIS window

4.Bugfix for activate BE key

5.Bugfix for read EIS W209

6.Bugfix

VVDI MB V4.1 free download:

https://mega.nz/#!jwZB2CwC!tYiYsbfvMU9_8NtyUtSEsfE30mNzFo7r9SIZdjKaWI0



How to use VVDI MB V4.1 with MB power adapter?

Firstly, got one extra MB power adapter like

vvdi-mb-tool-power-adapter-03

Image source



Connection of VVDI MB and power adapter:

vvdi-mb-tool-and-power-adapter-connection-04 vvdi-mb-tool-and-power-adapter-connection-05



Password calculation in 4 steps:

vvdi-mb-on-w210-all-keys-lost-06 vvdi-mb-on-w210-all-keys-lost-07



And more

vvdi-mb-on-w210-all-keys-lost-08 vvdi-mb-on-w210-all-keys-lost-09 vvdi-mb-on-w210-all-keys-lost-10 vvdi-mb-on-w210-all-keys-lost-12



What is the purpose of this MB power adapter?

1Mercedes-Benz power adapter can be used in the FB3 system all lost and gateway simulation, works: class C, E, CL, CLK, MK, GL, GLK and other models.

2Use the Mercedes-Benz power adapter to collect W210 W204, W207 all lost, only need 18 minutes. If you don’t use the Mercedes-Benz power adapter, it will take about 150 minutes. VVDI MB power connector will help you save nearly 2 hours.

3Use VVDI MB Tool power adapter to collect W210 W216, W164, 2009 + all lost, do not need to plug the infrared adapter. If without the Mercedes-Benz power adapter needs to plug 500 times, this adapter help you operate easily.

4Support gateway simulator function, without the gateway, you can get access to W210,W164, W164 2009 +, W209, W211 (need to use dedicated linear beam cable) directly by OBD way.

www.uobdii.com

CBAY Handy Baby For 46/48/4C/4D/G Chip

CBAY Handy Baby is a Car Key Copy Key Programmer Specially for 4D/46/48 Chips copy, JMD Assistant is an OBD model to help Handy Baby to read out data from Volkswagen cars.With JMD adapter, Handy baby can read ID48 96 chips online.

Handy Baby Hand-held Car Key Programmer for 4D/46/48 Chips Plus G Chip Copy Function

Handy baby and JMD Assistant update to new version,Audi 4th/5th generation keys cloning come ture,it is easy to do and have no risk,and JMD keys can use for cloning and program with other tools too.

Handy Baby Version V8.3.0 New Added Function:

1,Audi half keyless 754c clone;

2,Audi half keyless 754j clone;

3,Audi A6 ID8E clone;

4,Audi 4th generation ID48 clone;

5,BMW motorcycle 4D70-DST80 clone(online);

6,Chevorlet Lova 4D70–DST80 clone(online);

7,Great Wall H6(Diesel version) ID46 generate;

8,GM 4D70-DST80 genarate;

9,Fix bugs konwn.

Handy Baby V8.8.8 Newly released:

1. increase the main program 60 master key display matching password, distinguish between primary and secondary key function;

2. increase the Toyota smart card 40/80 bit unlock function;

3. increase the three-mode chip Wang copy Honda 47 function;

4. increase the blank 47 generation function (only support three-mode chip king);

5. increase hita AES / PRO chip read and write functions;

6. increase the 8A distinction between primary and secondary keys, P4 / 5/6/8/10 write, lock function;

7. increase hitag VAG unlock function (only support palm 754C, 754J);

8. Increase the 96-bit 48-chip online copy copy function, except for the blade key.

Handy Baby King Chip can be used as 46 Chip, 48 Chip, 4C/4D Chip, G Chip.

VVDI2 programs VW MQB NEC35XX smart keys instruction

VVDI2 programs VW MQB NEC35XX smart keys by following the step-by-step procedure.



Prepare:

1) Xhorse VVDI2 VAG V5.1.0

2) Original blank key or MQB key made by VVDI2

3) MQB Immobilizer function Authorization (User who hase the copy 48 (96 bit) authorization will get MQB license for free)



Step-by-step procedure:

Open VVDI2 V5.1.0, select the option “VAG”



The computer is communicating with the device, please wait…

VVDI2 programs VW MQB NEC35XX smart keys by following the step-by-step procedure. Prepare: 1) Xhorse VVDI2 VAG V5.1.0 2) Original blank key or MQB key made by VVDI2 3) MQB Immobilizer function Authorization (User who hase the copy 48 (96 bit) authorization will get MQB license for free) Step-by-step procedure: Open VVDI2 V5.1.0, select the option "VAG" The computer is communicating with the device, please wait... 图1 Turn on the dashboard 图2 Click on "Read EEPROM/FLASH", then NEXT. Picture means "Note: EEPROM needs to be read out for one time, the general user doesn't need to read out the FLASH which only supports a part of dashboard and will read for a long time. 图3 Follow the tip "After using the original working key to turn on the ignition, click "OK". If it is keyless entry system, please put the original working key close to the sensor coil and turn on the ignition. " Click on "OK" 图4 5 6 This is Smart key, click on "OK" 图7 Reading data, please wait...Both the EP data and IMMO data need to be read out. 图8 Read ep data successfully and save as name "ep" Please read the prompt: After the operation complete totally, please click on the option "Restore the dashboard" to active the dashboard. 图9 Click on "Read IMMO data", read successfully and save as name "fd". 图10 11 Follow the tip: After the operation complete totally, After the operation complete totally, please click on the option "Restore the dashboard" to active the dashboard, click "OK" 图12 Save IMMO data successfully Click on "restore the dashboard" and you can see restore successfully. 图13 14 Follow the tip "Use the original working key to turn on the ignition switch, click on "OK", if it is keyless entry system, please put the original working key close to the sensor coil and turn on the ignition.", click on "OK". 图15 Are visiting safely Before generating dealer key, firstly read the original key. Get the long message shown as below, Click on "ok" 图16 Generate common dealer key, click on "Next". 图17 Get message "Warning: the dealer key that is generated with the original key can't be replaced the Anti-start lock online, otherwise the following ECU will be affected: 01- Engine 02- Transmission 17- Combined dashboard 19- gateway system 2B - electronic steering column lock Advise you choose the option "OEM" to generate the OEM dealer key. Go on generating the common dealer key? Click on "Yes" to continue. 图18 Are you sure you want to generate Audi common dealer key? Please make sure the make is right, if you choose wrong, please return back to choose again. Click on "Yes" 图19 Put the original key into the VVDI2 antenna then click on "OK" to confirm. 图20 21 Please input the new key into the VVDI2. 图22 The dealer key generates successfully, please learn it to the car (2 pieces to learn). 图23 Get message: After the operation complete totally, please click on the option "Restore the dashboard" to active the dashboard.", click "OK" Click on "Add key" 图24 Get message "Note: before learning the key, please firstly save EEPROM and IMMO data (Important), if it saved please go on..." 图25 Enter the number of dealer keys you want to learn? enter "2", then click on "Load the IMMO data", choose "fd" file, click on "Next" 图26 27 Message " the current key is smart?", click on "Yes" 图28 Put the first key close to the sensor coil of the car, turn on the dashboard and go on. 图29 Are matching.... The first one key is learned successfully, you can see 1-2 on the dashboard. 图30 To learn the second key. Put the second new key close to the sensor coil of the car. 图31 Learn succeed, you can see 2- on the dashboard. 图32 You see the left corner status " learn succeed" This is the new key which is programmed, test the remote works. 图33 Take the original key out of the car, to start. 图34 Finally! VVDI2 programs VW MQB NEC35XX system smart keys successfully.



Turn on the dashboard

vvdi2-programs-vw-mqb-nec35xx-smart-keys-02



Click on “Read EEPROM/FLASH”, then NEXT.

Picture means “Note: EEPROM needs to be read out for one time, the general user doesn’t need to read out the FLASH which only supports a part of dashboard and will read for a long time.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-03

Follow the tip “After using the original working key to turn on the ignition, click “OK”. If it is keyless entry system, please put the original working key close to the sensor coil and turn on the ignition. ”

Click on “OK”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-04 vvdi2-programs-vw-mqb-nec35xx-smart-keys-05 vvdi2-programs-vw-mqb-nec35xx-smart-keys-09



This is Smart key, click on “OK”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-07



Reading data, please wait…Both the EP data and IMMO data need to be read out.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-08



Read ep data successfully and save as name “ep”

Please read the prompt: After the operation complete totally, please click on the option “Restore the dashboard” to active the dashboard.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-09



Click on “Read IMMO data“, read successfully and save as name “fd”.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-10 vvdi2-programs-vw-mqb-nec35xx-smart-keys-11



Follow the tip: After the operation complete totally, After the operation complete totally, please click on the option “Restore the dashboard” to active the dashboard, click “OK”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-12



Save IMMO data successfully

Click on “restore the dashboard” and you can see restore successfully.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-13

vvdi2-programs-vw-mqb-nec35xx-smart-keys-13

Follow the tip “Use the original working key to turn on the ignition switch, click on “OK”, if it is keyless entry system, please put the original working key close to the sensor coil and turn on the ignition.”, click on “OK”.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-15



Are visiting safely

Before generating dealer key, firstly read the original key.

Get the long message shown as below, Click on “ok”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-16



Generate common dealer key, click on “Next”.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-17



Get message “Warning: the dealer key that is generated with the original key can’t be replaced the Anti-start lock online, otherwise the following ECU will be affected:

01- Engine

02- Transmission

17- Combined dashboard

19- gateway system

2B – electronic steering column lock

Advise you choose the option “OEM” to generate the OEM dealer key.

Go on generating the common dealer key?

Click on “Yes” to continue.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-18



Are you sure you want to generate Audi common dealer key?

Please make sure the make is right, if you choose wrong, please return back to choose again.

Click on “Yes”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-19



Put the original key into the VVDI2 antenna then click on “OK” to confirm.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-20 vvdi2-programs-vw-mqb-nec35xx-smart-keys-21

Please input the new key into the VVDI2.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-22



The dealer key generates successfully, please learn it to the car (2 pieces to learn).

vvdi2-programs-vw-mqb-nec35xx-smart-keys-23



Get message: After the operation complete totally, please click on the option “Restore the dashboard” to active the dashboard.”, click “OK”



Click on “Add key

vvdi2-programs-vw-mqb-nec35xx-smart-keys-23

Get message “Note: before learning the key, please firstly save EEPROM and IMMO data (Important), if it saved please go on…”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-25

Enter the number of dealer keys you want to learn? enter “2”, then click on “Load the IMMO data”, choose “fd” file, click on “Next”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-26 vvdi2-programs-vw-mqb-nec35xx-smart-keys-27

Message ” the current key is smart?”, click on “Yes”

vvdi2-programs-vw-mqb-nec35xx-smart-keys-28

Put the first key close to the sensor coil of the car, turn on the dashboard and go on.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-29

Are matching….

The first one key is learned successfully, you can see 1-2 on the dashboard.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-30

To learn the second key.



Put the second new key close to the sensor coil of the car.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-31

Learn succeed, you can see 2- on the dashboard.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-32

You see the left corner status ” learn succeed”



This is the new key which is programmed, test the remote works.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-33

Take the original key out of the car, to start.

vvdi2-programs-vw-mqb-nec35xx-smart-keys-34



Finally! VVDI2 programs VW MQB NEC35XX system smart keys successfully.
