Done! W210 E55 AKL with w210 bench cable + mb power adapter + vvdi mb

Tested successfully! Mercedes W210 E55 akl using w210 bench cable and mb power adapter and vvdi mb tool

w210-moe-cable-vvdi-mb-e55-1 w210-moe-cable-vvdi-mb-e55-2 w210-moe-cable-vvdi-mb-e55-3 w210-moe-cable-vvdi-mb-e55-4 w210-moe-cable-vvdi-mb-e55-5 w210-moe-cable-vvdi-mb-e55-6



And Success read password?

after 15 min BOOM Password successful amigo.Working perfect



How much time should be calculated

maybe 15 min max 20min



What is the cable you are using?

It’s W210 Moe cable.



Where did you buy this cable?

I’m using the site: http://www.uobdii.com/wholesale/moe-w210-benz-ezs-cable.html

w210-bench-cable-for-sale

MB Key OBD2 Mercedes Key Programmer (DIAGSPEED) or VVDI MB tool?

If you are trying to decide if you should buy Diagspeed MB Key OBD2 Mercedes Key Programmer (DIAGSPEED) or VVDI MB Machine BGA Mercedes Key Programmer (XHorse). Read this post.



  1. Xhorse VVDI MB BGA TOOL users feedback:

– X Horse support is quite good but they also have created a lot of whats app/ messenger groups.

– vvdi mb bga tool its have best support and worth every paid money.



  1. Diagspeed MB Key OBD2 Mercedes Key Programmer feedback:

Diagspeed is more expensive with more coverage and better support with help books and classes. Where would vvdi get there info.

if it wasn’t for diagspeed, simmon touch, noimmo and others in the Mercedes market.



The diagspeed in the us has the best tech support you can call direct and speak with someone who understands mercedes cars very well and will guide you through any problem.



They had a class in las Vegas that was the best. A book was handed out with all your different system with dumps and key location circle in. I was not to share it with the forum but I could give out info.



Diagspeed is wicked roy or dustie will help you in usa or uk, also will log into computer if you cant sort the problem your having .I can vouch for roys tools its the best in merc.



Thanks ray-ray share.



Next question is where is good place to have one original DIAGSPEED MB Key OBD2 Mercedes Key Programmer?

During past days, its price cut down on www.uobdii.com and an increasing number customers email/message for details, and show their big interest.

DIAGSPEED MB Key OBD2 Mercedes Key Programmer for sale $1,749:

diagspeed-mb-key-obd2-benz-key-programmer-11

src: http://www.uobdii.com/wholesale/diagspeed-mb-key-obd2-benz-key-programmer.html

Xhorse VVDI MB BGA TOOL, $1,949

xhorse-vvdi-mb-bga-tool-18.1

src: http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

Bundle sale: VVDI MB BGA TooL Plus Power Adapter for Data Acquisition

VVDI MB Tool power adapter only need 18 minutes to data acquisition for W204, W207 all key lost; without this adapter will cost 150 minutes for data acquisition, save much time nearly 2 hours

Bundle sale:

VVDI MB BGA TooL Plus Power Adapter, $1,875 free shipping worldwide

VVDI MB BGA Tool for sale: $1,775

VVDI MB Tool Power Adapter for sale: $130

In total: $1905

So, save $30usd

Why buy VVDI MB BGA TooL Plus Power Adapter for Data Acquisition together

VVDI MB Tool Power Adapter features:

1.VVDI MB Tool power adapter only need 18 minutes to data acquisition for W204, W207 all key lost; without this adapter will cost 150 minutes for data acquisition, save much time nearly 2 hours

  1. VVDI MB Tool power adapter for W216,W164 2009- all key lost data acquisition, no need to replug IR adapter many times, without this adapter need to replug IR adapter 500 times
  2. VVDI MB Tool power adapter support gateway emulation function,

without real gateway you can use this adapter directly OBD communication with W164,164 2009-,W209,W211 (require special connection cables)

  1. VVDI MB Tool power adapter will keep updating more features.
  2. VVDI MB Tool power adapter contains all the features of Xhorse W164 Gateway Adapterfor Mercedes, can totally replace it.

How to connect & use VVDI MB Tool Power Adapter:

vvdi-mb-tool-power-adapter-for-data-acquisition-4

YouTube Video:

Xhorse VVDI MB BGA tool Functions:

  1. Support BE key, read password and prepare new key via IR.
  2. NEC V051,V057 support on board get password
  3. All NEC keys support on board write and erase
  4. Password calculate:support BGA keys,NEC keys (include 51,57version)etc.,work fast.
  5. Support renew EIS and ELV
  6. Support write EIS and ELV
  7. Support online generate key file
  8. Unlock ELV function will be released soon.
  9. Renew other control modules function will support soon

It Supports Password Calculator Function. Each time will cost 35USD.

Details here: http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

BGA TOOL Video on YouTube:

VVDI Benz read EIS for w166 w197 w204 w218 w246 Video:

https://www.youtube.com/watch?v=Q1pfc2xUXWI

How to do 212 AL KEY LOST with VVDI MB BGA Tool:

https://www.youtube.com/watch?v=Y4RTBj0JBcM

How to use VVDI MB TOOL to calculate Mercedes BGA key password:

https://www.youtube.com/watch?v=160hJXiyLQ4

Steps to add Benz bga key with Xhorse VVDI MB TOOL key programmer:

https://www.youtube.com/watch?v=Rq21U67XNOQ

How to Update Xhorse VVDI MB Tool:

http://www.uobdii.com/service/how-to-update-xhorse-vvdi-mb-tool-6757.html

VVDI MB BGA tool procedure, adapters, diagram, feedback, faq- all include:

http://blog.uobdii.com/xhorse-vvdi-mb-bga-tool-steps-adapter-diagram-feedback-faq-all-info-here/

Save

VVDI MB Tool Power Adapter Tested Review: Work Like a charm

Tested it’s true VVDI MB Tool Power Adapter can shorten W204 W207 W216 W164 all key lost data acquisition 2.5 h to 18 mins! Check pictures below!

REAL review by a trusted experienced professional at forum:

Tested it’s true VVDI MB Tool Power Adapter can shorten W204 W207 W216 W164 all key lost data acquisition 2.5 h to 18 mins! Check pictures below!

VVDI MB Tool Power Adapter Tested Review:

Tested this new Xhorse VVDI MB BGA tool POWER Adapter for faster reading data acquisition in case Mercedes W204 W207 W216 W164 ALL KEY LOST

Working like charm!

By W164/251/221/216 from 2009 and up:

NO more need so much times insert-remove-insert-remove IR adapter to and from EIS. It’s a great convenience for me!

By W204/207:

The data acquisition time shorted from 2.5 hours before to about 18-24 minutes now.

Really much time saved and time is money!

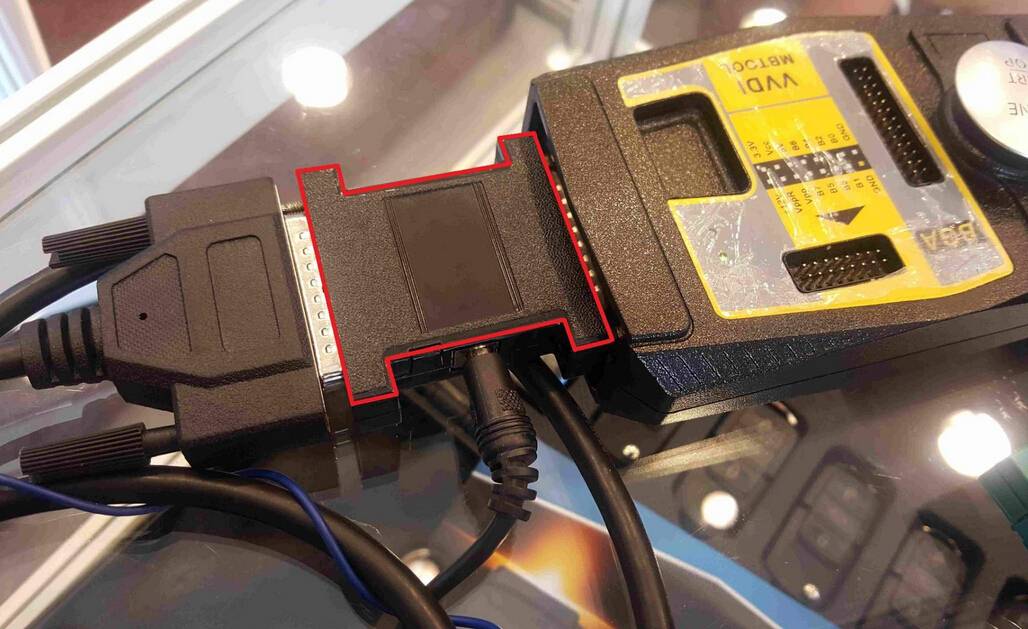

vvdi-mb-tool-power-adapter-review-read-w207-w207-data-acquisition-18-mins-1 vvdi-mb-tool-power-adapter-review-read-w207-w207-data-acquisition-18-mins-2 vvdi-mb-tool-power-adapter-review-read-w207-w207-data-acquisition-18-mins-3

In a word, I would recommend to get this useful VVDI MB BGA tool POWER Adapter if you often need to program Benz keys and deal with anything concerned.

vvdi-mb-tool-power-adapter-review-read-w207-w207-data-acquisition-18-mins-4

Who did this test and review?

An experienced Mercedes professional daxxer newly posted his review on DK forum.

Big thanks to daxxer! He let us know this new adapter better!

How to use VVDI MB Tool Power adapter for W204 W207 W216 W164 data acquisition?

Good news! The newest VVDI MB Tool Power adapter is designed to connect VVDI MB BGA tool for W204 W207 W216 W164 data acquisition, aiming to save much time and take convenience.

VVDI MB Tool Power adapter features:

  1. VVDI MB tool power adapter working on FBS3 type all key lost and gateway emulation, support C class, E class, CL, CLK, ML, GL, GLK types etc.

1.VVDI MB Tool power adapter only need 18 minutes to data acquisition for W204, W207 all key lost; without this adapter it will cost 150 minutes for data acquisition, save nearly 2 hours

  1. VVDI MB Tool power adapter for W216,W164 2009- all key lost data acquisition, no need to re-plug IR adapter many times, without this adapter need to replug IR adapter 500 times.
  1. VVDI MB Tool power adapter support gateway emulation function, without real gateway you can use this adapter directly OBD communication with W164,164 2009-,W209,W211 (require special connection cables)
  1. VVDI MB Tool power adpater will keep updating more features.

How does VVDI MB Tool Power adapter work?

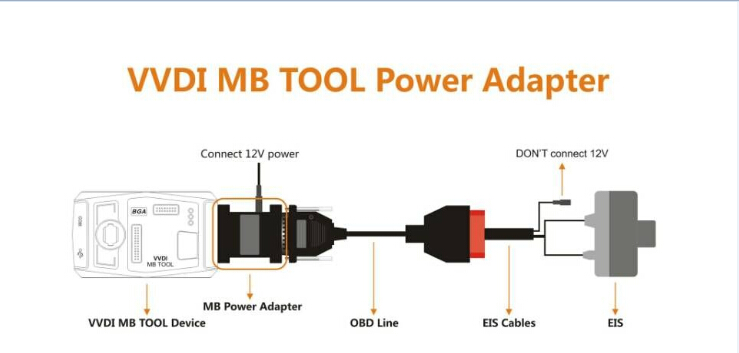

vvdi mb tool power adapter connection

Only 18 mins VVDI MB Tool Power Adapter read Benz EIS data OK

VVDI MB Tool Power Adapter read Mercedes EZS EIS data by for only 18 minutes instead of 150 minutes! How? Check below VVDI MB Tool Power Adapter connect diagram.

VVDI MB Tool Power Adapter read Mercedes EZS EIS data by for only 18 minutes instead of 150 minutes! How? Check below VVDI MB Tool Power Adapter connect diagram.

vvdi-mb-tool-power-adapter-connect-diagra-w204-w207-w164-216mercedes-1

How use VVDI MB Tool Power Adapter for Mercedes EIS Data Acquisition?

Step 1: Connect VVDI MB Tool Power Adapter with VVDI MB BGA Tool

vvdi-mb-tool-power-adapter-connect-diagram-2

Step 2: Connect VVDI MB Tool Power Adapter with the OBD line

vvdi-mb-tool-power-adapter-connect-diagram-3

Step 3: Connect the OBD line with EIS cable

vvdi-mb-tool-power-adapter-connect-diagram-4

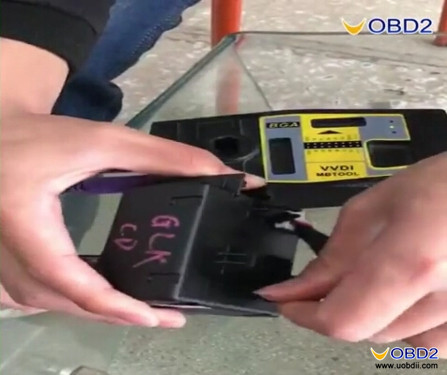

Step 4: Connect EIS cable with Mercedes EIS module

Note: Remember Not connect EIS with 12V power!

vvdi-mb-tool-power-adapter-connect-diagram-5

Step 5: Connect 12V power supply with VVDI MB Tool Power Adapter

vvdi-mb-tool-power-adapter-connect-diagram-6

In this way, you can save at least 2 hours when using VVDI MB Tool to program Mercedes W204 W207 W164 W216 keys!

vvdi-mb-tool-w204-w207-data-acquisition-by-vvdi-mb-tool-power-adapter-7

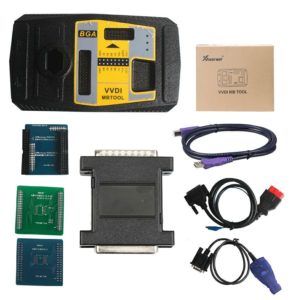

Tip: Now get VVDI MB Tool with VVDI MB Tool Power Adapter only $1875 free shipping!

http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool-plus-vvdi-mb-tool-power-adapter.html

vvdi-mb-tool-key-programmer-vvdi-mb-tool-power-adapter-8

At the end of article ,OBD2 enginner share operation video:

How to unlock & renew Mercedes W204 ESL by VVDI MB Tool?

As we know ESL easily get broken and a new ESL cost $500, so it is great if a blocked ESL can be renewed! So here you will know how use VVDI MB Tool to renew a blocked Mercedes W204 ESL!

As we know ESL easily get broken and a new ESL cost $500, so it is great if a blocked ESL can be renewed! So here you will know how use VVDI MB Tool to renew a blocked Mercedes W204 ESL!

vvdi-mb-tool-renew-blocked-w204-esl-1

Tools you need:

VVDI MB BGA Tool

vvdi-mb-tool-renew-blocked-w204-esl-2

VVDI MB NEC ELV adaptor

vvdi-mb-tool-nec-elv-adaptor-3

STEPS to unlock MB W204 ESL by VVDI MB

Step1. Open ESL emulator and take out the PCB. Desolder the IC chip form PCB and solder it to VVDI MB ELV adaptor.

vvdi-mb-tool-renew-blocked-w204-esl-4 vvdi-mb-tool-renew-blocked-w204-esl-5

Fix ELV adaptor to VVDI MB Tool.

vvdi-mb-tool-renew-blocked-w204-esl-6

Step2. Open VVDI MB software, choose “ESL Function: Adaptor” and “Chassis: W204, W207, W212” and click “Read ESL data”.

vvdi-mb-tool-renew-blocked-w204-esl-7

It will show ESL is locked, click OK to continue.

Step3. Click “Unlock W204 ESL”. Now VVDI MB Tool with NEC ELV adaptor is trying to unlock ESL. (This process may cost about 2~3 hours)

vvdi-mb-tool-renew-blocked-w204-esl-8

Step4. After that click “Read ESL data” then click “Check ESL damage”.

vvdi-mb-tool-renew-blocked-w204-esl-9

It will show ESL is unlocked (normal status), click OK and “Save ESL data”. Save this new bin file and rename it to distinguish it from the old one.

vvdi-mb-tool-renew-blocked-w204-esl-10

Step5. Now solder the IC chip back to ESL and connect ESL to VVDI. Click “ESL Tests”, set “ESL Function: OBD” and click “Read ESL data”, you can see ESL is renewed to normal status successfully!

vvdi-mb-tool-renew-blocked-w204-esl-11

(NEW UPDATE) VVDI MB TOOL V2.1.5 read old W209 W211 password directly

Newest XHORSE VVDI update notice for you: VVDI MB TOOL V2.1.5 is now available to download and use! This new version support read old type W209 W211 password directly via IR!

Newest XHORSE VVDI update notice for you: VVDI MB TOOL V2.1.5 is now available to download and use! This new version support read old type W209 W211 password directly via IR! Check below detailed info:

vvdi-benz-tool-1

Free download VVDI MB BGA TOOL V2.1.5 in mega:

https://mega.nz/#!m4Bw3AQB!B7dGqIkeWgLeJIVsXZXmkMDz9nHJS1dlThW124CD7OU

Password: 123456



VVDI MB TOOL V2.1.5 update information (2016-12-23):

Require firmware V2.1.5

BENZ V2.1.5

  1. Attention: All user update device to firmware v2.1.5, software v2.1.5
  2. Support read old type w209, w211 password via IR directly
  3. Support activate blank BGA key (0CF4)
  4. Bugfix for data acquisition in some old key version
  5. Language bugfix

User feedback on this new VVDI MB TOOL V2.1.5:

I read pass from old W211 EZS type working! It is old type EZS with 3K91D on PCB, I think HC12 MCU not ST_12 as described on PCB.

vvdi-mb-v2-1-5-read-w211-pass-2

I tested both HC_12 and ST_12 type. I think it’s very useful for users who dead MCU 3K91D or 0K50E with some bad t

Save

VVDI MB VS AVDI, choose which one to program Mercedes key?

This blog is going to answer a question: Choose VVDI MB Tool or AVDI for Mercedes keys? So if you’re also interested in this topic, check below it will help you make a best decision!

This blog is going to answer a question: Choose VVDI MB Tool or AVDI for Mercedes keys? So if you’re also interested in this topic, check below it will help you make a best decision!

Story is that a guy wants a tool VVDI or AVDI to program Mercedes keys and deal with ELV/ESL problems. Then people start arguing.

The final conclusion:

For Mercedes key/ELV/ESL, Xhorse VVDI MB BGA TOOL is better choice than AVDI.

VVDI is much cheaper than AVDI and VVDI is even better in some areas!

VVDI MB Tool price: $1799 free shipping

This blog is going to answer a question: Choose VVDI MB Tool or AVDI for Mercedes keys? So if you’re also interested in this topic, check below it will help you make a best decision!

4 reasons to demonstrate that:

  1. VVDI can write/erase cheapBE keys – AVDI no
  2. VVDI can repair fatal error on ESL 204 – AVDI no
  3. VVDI can read password from key V51 – AVDI no
  4. VVDI can renew key V51 without damaging radio bytes – AVDI no

VVDI MB BGA Tool Function Introduction:

Support BE keys, read password and prepare new key via IR

NEC V051, V057 support on board get password

All NEC keys support on board write and erase

Password calculate work fast: support BGA keys, NEC keys (include 51, 57version)

Support renew and write EIS/ ELV

Support online generate key file

Unlock ELV function will be released soon

Some people said VVDI need tokens but AVDI doesn’t need.

Yes, it’s true. But VVDI MB Tool needs tokens only for online key calculations. And you need to do online calculation only when EZS with NEC and BGA key.
