OBDSTAR F108 read pin by accessing to CAN lines, then cable pin out?

User feedback OBDSTAR F108 won’t read pin on Berlingo only Berlingo 2, so before your planning to own one F108, download TDB007 manual it tells you which models …

User feedback OBDSTAR F108 won’t read pin on Berlingo only Berlingo 2, so before your planning to own one F108, download TDB007 manual it tells you which models work via obd and which ones you would have to tap into the ecu wiring to get access to the CAN lines.

Then anybody got the pin out for these cables?

F108 cables

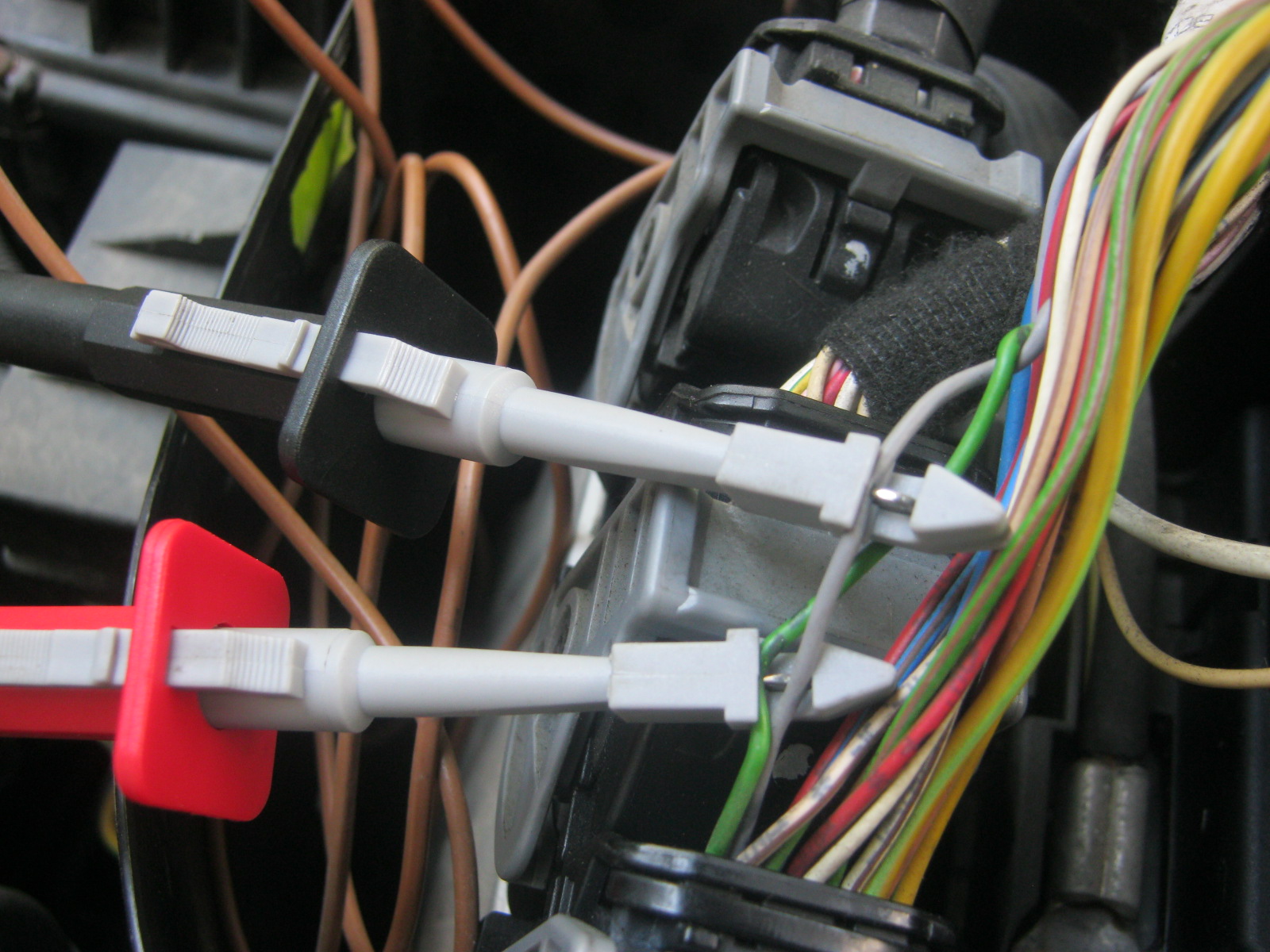

Answer: CAN H(pin 6) and CAN L(pin 14), Below is a sample how to connect(for example Peugeot 307 non CAN with Bosch EDC15C2). Red to green(CAN H) and Black to Grey(CAN L)

So really just need to be bothered to look at the pinout of all PSA ecu’s and get the colours of wires for CAN lines.

f108 pinout



OBDSTAR F108+ PSA pin code reader & key programmer for kline / canbus Questions and Answers

About OBDSTAR F108+ PSA pin code reader & key programmer, there mainly 3 frequently asked questions answers. Go on reading for details.

About OBDSTAR F108+ PSA pin code reader & key programmer, there mainly 3 frequently asked questions answers. Go on reading for details.

obdstar-f108-new-6

  1. Has anyone managed all keys lost with this tool?
  2. If all key lost, you need to get pin code from car service center and program auto key with F108.

Eeprom adapter can read partial pin code for Peugeot/Citroen/DS

Q: Has anybody read a pin by direct connection to ECU?

A: Yes, F108 reads the pin with ecu, also from BSI; it depends on the car models.

Q: was it the ad one or this one?

Should be easy enough to rig a couple of cables for can and kline

A: F108 usually supports vehicles (with CAN line) after 2008.

Now OBDSTAR F108+ is f108 upgrade and with both k-line for older cars and canbus for new cars after 2008.

Q: it s safe to read pin with this tool? need a charger batery when read pin code

i sow a video it s need ignition on-off and after 5-10 minutes it s code pin

A: yes its safe, I have extracted pin from over 20 cars, all fine.Not necessary to connect charger to car as it doesn’t put Bsi in service mode like psa bsi tool, or avdi where windscreen wipers would activate etc. About the time of reading pin code, it depends on car type, such as its immo chip, algorithm, on average 5 to 8 minutes, although a 508 and a 2008 I did it found code almost instantaneously.

Now F108+ is the f108 upgrade but with both k line for older cars and canbus for newer car.

Just added a few components on main card

Obdstar tools are good but too many new products

F108 works well for pin extraction on CAN cars.

f108-pcb-board

OBDSTAR F108+ read PSA pin codes & program keys OK on post 2008 cars

OBSDTAR F108 update version obdstar f108+ has been rolled out nowadays. And uobdii technicians have been tested to read PSA pin codes and program keys without issues.

OBSDTAR F108 update version obdstar f108+ has been rolled out nowadays. And uobdii technicians have been tested to read PSA pin codes and program keys without issues.



OBDSTAR-F108+-pin-code-readerHere is the test report of the new OBSDTAR F108+ key programmer.

f108+ version: fw: v4.04 sw: v06.08

OBDSTAR-F108+-version

Tested language: English (obdstar f108+ only with English available)

OBDSTAR-F108+-English



Tested procedures:

(it’s very easy to operate, even for the green hand)

-> connect OBDSTAR F108+ programmer with the car

-> select FUNCTION-> IMMOBILIZER

-> select PEIUGEOT/CITREON/DS V31.09

-> read security code

-> turn on ignition switch, then turn off ignition switch, then turn on ignition switch

-> reading security code…

-> read security code SUCCESS!



Here are some photos taken in the test.

OBDSTAR-F108+-key-programmer-1 OBDSTAR-F108+-key-programmer-2 OBDSTAR-F108+-key-programmer-3

Vehicles tested ok:

Here is the Peugeot, Citroen and DS car list includes all models tested without any issues.

Peugeot 1007

Peugeot 206

Peugeot 207

Peugeot 208

Peugeot 2008

Peugeot 301

Peugeot 306

Peugeot 307

Peugeot 308

Peugeot 3008

Peugeot 406

Peugeot 407

Peugeot 4007

Peugeot 508

Peugeot 5008

Peugeot 607

Peugeot 806

Peugeot 807

Peugeot Bipper

Peugeot Expert

Peugeot Partner

C2

C3

C3 Picasso

C3 Pluriel

C4 Cactus

C4 Picasso

C5

C8

C-Elysee

Xsara Picasso

Berlingo 2

Berlingo 3

Jumper

Jumpy

DS3

DS4

DS5



Note:

models above are the post-2008. Pre-2008 models has been tested.

So OBDSTAR F108+ is verified to work ok on post-2008 models only

OBDSTAR F108 PSA read Peugeot Citroen DS Pin Code fast

Half month ago I noticed OBDSTAR F108 PSA, a pin code reader& key programmer for Peugeot and Citroen. $199 on a website uobdii.com made me interested and purchased one…

Half month ago I noticed OBDSTAR F108 PSA, a pin code reader& key programmer for Peugeot and Citroen. $199 on a website uobdii.com made me interested and purchased one. Here I share my good experience with OBDSTAR F108 read pin code for Peugeot 508, Citroen C5 and DS5.

Good impression at first! This tool has simple but robust frame, it is hand-held with a 16-pin connector.

Now I will show you how I read out Peugeot 508 pin code:

Start form the main menu, I choose Function, Immobilizer, Peugeot/ Citroen/ DS V31.09. It is initializing and authoring, then I choose Peugeot.

obdstar-f108-read-pin-code-peugeot-citroen-ds-1 obdstar-f108-read-pin-code-peugeot-citroen-ds-2



When go to Read Security Code, it tells me to turn on ignition and turn off then turn on it again.

obdstar-f108-read-pin-code-peugeot-citroen-ds-3 obdstar-f108-read-pin-code-peugeot-citroen-ds-4



OK OBDSTAR F108 pin code reader read out 2011 Peugeot 508 security code immediately!

obdstar-f108-read-pin-code-peugeot-citroen-ds-5



I also tried it on a 2011 Citroen C5, read out pin code in 3 minutes. And on Citroen DS5 pin code read out in 1 minute. I think the reading speed may vary from different cars, but in my view it is fast.



After use OBDSTAR F108 to read pin code2011 Peugeot 508, 2011 Citroen C5 and DS5, I can say the menu and instruction English is clear and simple to understand. So this pin code reader is easy to use. As to its key programming function I haven’t add key, so this function wait for test. In the end, I hope my experience can help you!

Save

Save

Save

Free download & install OBDSTAR Software One Key upgrade tool

Are you still worried about updating so much software of OBDSTAR products(include:obdstar x100 pro,obdstar x300 pro3,obdstar x300m,obdstar f108,obdstar f102,obdtar vag pro).

Are you still worried about updating so much software of OBDSTAR products(include:obdstar x100 pro,obdstar x300 pro3,obdstar x300m,obdstar f108,obdstar f102,obdtar vag pro).Here I will offer “One key upgrade tool” which is much more convenient for users to update OBDSTAR software. Hope it helps.



Free download:

Login the website www.obdstar.com and click [One Key upgrade]

obdstar-software-one-key-upgrade-tool-01



How to install “One Key upgrade”?

Step1: Remove the TF card from your device

Insert your TF card into computer

Format your TF card and ensure it is empty

Step2: Install “One Key upgrade”. You will see this software on the desktop

obdstar-software-one-key-upgrade-tool-02

Step3: Open the application and input your username and password. Then select [End User] and click [Log in]

obdstar-software-one-key-upgrade-tool-03



Step4: Input your S/N and click [Select all] and click [Upgrade]

obdstar-software-one-key-upgrade-tool-04 obdstar-software-one-key-upgrade-tool-05

Step5: Wait until the Upgrade completed

obdstar-software-one-key-upgrade-tool-06 obdstar-software-one-key-upgrade-tool-07

Step6: Open your TF card. You will see these files.

obdstar-software-one-key-upgrade-tool-08



Step7: Remove the TF card from the computer. Insert your TF card into the device.

Update succeeds!

Below is OBDSTAR X300 Pro3 Software Installation and Update detail:

OBDSTAR X300 Pro Software Installation and Update

Save

Save

Save

Save

OBDSTAR F100 F108 X100 pro X300 PRO3 X300M, which key programmer for me?

[Comparison table] recently, the OBDSTAR firm release several key programmer and mileage adjustment tool, some for specialized brands, some for multi-brands.

[Comparison table] recently, the OBDSTAR firm release several key programmer and mileage adjustment tool, some for specialized brands, some for multi-brands. Here lists a comparison tables of OBDSTAR F100 for Ford&Mazda, F108 for Peugeot&Citreon, X100 pro, X300 PRO3,  X300M for odometer correction.



Product OBDSTAR F100 OBDSTAR F108 OBDSTAR X100 PRO OBDSTAR X300 PRO3 OBDSTAR X300M
Image  obdstar-f-100-mazda-ford-auto-key-programmer  obdstar-f-108-peugeot-ds-auto-key-programmer  obdstar-x-100-pro-auto-key-programmer-c-d-type  obdstar-x300-pro3  obdstar-x300m-for-odometer-adjustment-and-obdii
Price $169 $209 $339 $579 $259
Language English English English, Chinese English English
OBDII  √  √  √
Read pin code No need read pin code  √  √
IMMO

(program key)

 √  √  √  √
Odometer correction  √  √  √  √
EEPROM / PIC  √  √
Program ECU  √  √
Full configuration



EPB,

oil service reset,

battery matching



standard configuration,

EPB,

oil service/reset,

battery matching

Vehicle Ford,

Mazda,

Jaguar;

Lincoln &

Land Rover (not immo)

Peugeot,

Citroen,

DS

multi-brand models multi-brand models multi-brand models
Conclusion F100 Ford Mazda: wins at key programming for Ford,Mazda,Land Rover, jaguar

OBDSTAR F100 Magic Wand Programm key Focus 2015

OBDSTAR F100 program Ford Fiesta 2013 new key in 3 steps

===================================================

Obdstar f108: good at key programming for Peugeot, Citroen, DS

OBDSTAR X100PRO: same as x300 Pro key master, best for both key making and odometer mileage

obdstar X300M: only for mileage on a multi-brand models

Obdstar x300 Pro3 key master: include all and best for garage progfessional master.



Save

Save

Free Download OBDSTAR F108 Function List & Model List

OBDSTAR F108 key programmer for Peugeot, Citroen, DS vehicles is good at reading PIN code and programming keys.

OBDSTAR F108 key programmer for Peugeot, Citroen, DS vehicles is good at reading PIN code and programming keys.

 OBDSTAR F108 basic info:

1- language: English;

2- update: FREE update for 1 year at the official website, with a TF card

3- function: PIN code reader and auto key programmer 2 in 1

                    (no need other readers for PIN codes)

 obdstar-f108-psa-pin-code-reading-and-key-programming-tool-2

 NOTE: Just enter “Ctrl +F” to search whether the car model you plan to test is workable



Function List & Model List:

PEUGEOT

Select from vehicle Africa

206(VF32)

BSI2

Asia

China Immobiliser

206

207

Type 1

Type 2 2008 3008 301 307

Type 1

Type 2

308

308S

4007

407

408

508

807 Remote

Smart key system 508

Replace engine ECU Other

207CC(VF3W)

407(VF36)

508

Proximity Partner

-2008 BSI2

2008-

PSA CAN system

Euro

106(VF31)

1007(VF3PM) 2005-2014

1007(VF3K) 2003-2005 2005-2007 2007-

206(VF32) BSI1(46 chip)

207(VF3W)

208(VF3C)

2008(VF3C)

306(VF37) Immobiliser

CPH 307(VF33)

BSI1

PSA CAN system

308

2007-2013(VF34)

2013-(VF3L)

Non Proximity 3008(VF30)

PSA CAN system 406(VF37)

CPH1

406(VF38)

BSI2

BSI3 BSI4(46 chip)

406 double seat CPH1

407(VF36)

4007(VF3V) Gas

Proximity Non Proximity

Diesel 508(VF38)

Proximity Non Proximity

5008(VF30)

607(VF39) -2005

BSI2 2005-

806(VF3A)

Immobiliser2

CPH 807(VF3E)

BSI1

PSA CAN system Expert(VF3X)

//Immobiliser1//3&8

Immobiliser2

Immobiliser3

CPH 2007-

Partner(VF3G/VF35)

Immobiliser1

Immobiliser2

BSI1

BSI2

CPH

Partner(VF37)

PSA CAN system Ranch

//Immobiliser1Immobiliser1//3&8

Immobiliser2

Rcz(VF34)

PSA CAN system South America

206

207

2008-208(VF3C) 308

2011-

3008

407(VF36D)

408

508(VF38) Proximity

Select from type Immobiliser Type 1 Type 2 Type 3 Type 4

 Type 5

Type 6

Remote

Smart key system

Type 1

Replace engine ECU

Read security code



 CITROEN

Select from vehicle

Africa

C2(VF7J)

Asia

Immobiliser

C2

Type 1

Type 2

C3

C3

C3-XR

C4

C5

C6

C8

Elysee[ELYSEE]

New Elysee

Picasso[PICASSO]

Thiomphe[TRIOMPHE]

C-CROSSER

C-Quatre

Remote

Smart key system

C4 L

Replace engine ECU

Euro

Berlingo(VF7M)

Immobiliser1

Immobiliser2

BSI1

BSI2

CPH

Berlingo(VF7G)

BSI1

Immobiliser3

Berlingo3(VF77)

C-Crosser(VF7V)

Gas

Proximity Non Proximity

Diesel C1(VF7P) C2(VF7J)

Type 1

Type 2 C3(VF7F)

-2006 2006-C3 Aircross 2006-

C3 Picasso(VF7S)

C3 PLURIEL

2002-C4(VF7L/U) C4(VF7N)

Proximity Non Proximity

C5(VF7D)

BSI1

BSI2

BSI3

C5(VF7R) Type 1 Type 2 Type 3

C6(VF7T)

C8(VF7E) Type 1 Type 2

Dispatch(VF7B)

CPH Immobiliser1 Immobiliser2 Immobiliser3

Dispatch(VF7X) Evasion

CPH Immobiliser1

Immobiliser2

Jumpy(VF7B)

CPH

Immobiliser1

Immobiliser2

Immobiliser3

Jumpy(VF7X)

Nemo(VF7A)

Type 1

Type 2

Relay

Relay2

Immobiliser

Relay3(VF3Y)

Saxo(VF75)

Immobiliser1

Synergie

CPH

Immobiliser1

Immobiliser2

Xantia(VF7X)

CPH

Immobiliser1

Immobiliser2

Xsara(VF7N)

CPH

BSI1

BSI2

BSI3

Xsara PIC(VF7C)

BSI1

BSI2

South America

C3

2003-2013

2014-

Select from type

Immobiliser

Type 1

Type 2

Type 3

Type 4

Type 5

Remote

Smart key system

Type 1

Replace engine ECU

Read security code

DS

Select from vehicle

Asia

Immobiliser

DS5

Remote

Smart key system

Euro

DS3(VF7S)

DS4(VF7N)

Proximity

Non Proximity

DS5(VF7KF)

CPH

Immobiliser1

Immobiliser2

Select from type

Immobiliser

Type 1

Type 2

Type 3

Type 4

Type 5

Remote

Smart key system

Type 1

Read security code



F108 obdstar workable specific models list.

Peugeot 1007

Peugeot 206

Peugeot 207

Peugeot 208

Peugeot 2008

Peugeot 301

Peugeot 306

Peugeot 307

Peugeot 308

Peugeot 3008

Peugeot 406

Peugeot 407

Peugeot 4007

Peugeot 508

Peugeot 5008

Peugeot 607

Peugeot 806

Peugeot 807

Peugeot Bipper

Peugeot Expert

Peugeot Partner

C2

C3

C3 Picasso

C3 Pluriel

C4 Cactus

C4 Picasso

C5

C8

C-Elysee

Xsara Picasso

Berlingo 2

Berlingo 3

Jumper

Jumpy

DS3

DS4

DS5

Save

Save
