Done! W210 E55 AKL with w210 bench cable + mb power adapter + vvdi mb

Tested successfully! Mercedes W210 E55 akl using w210 bench cable and mb power adapter and vvdi mb tool

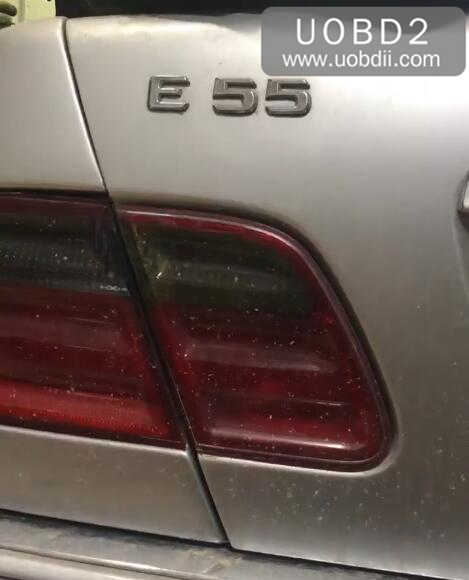

w210-moe-cable-vvdi-mb-e55-1 w210-moe-cable-vvdi-mb-e55-2 w210-moe-cable-vvdi-mb-e55-3 w210-moe-cable-vvdi-mb-e55-4 w210-moe-cable-vvdi-mb-e55-5 w210-moe-cable-vvdi-mb-e55-6



And Success read password?

after 15 min BOOM Password successful amigo.Working perfect



How much time should be calculated

maybe 15 min max 20min



What is the cable you are using?

It’s W210 Moe cable.



Where did you buy this cable?

I’m using the site: http://www.uobdii.com/wholesale/moe-w210-benz-ezs-cable.html

w210-bench-cable-for-sale

How to Use VVDI MB tool get password for Benz W176 2012 All keys Lost

2012 Mercedes A-Class W176 All keys Lost, get password with VVDI MB tool.



Guide:

Connection of EZS

vvdi-mb-get-password-for-w176-2012-all-keys-lost-01 vvdi-mb-get-password-for-w176-2012-all-keys-lost-02



Tick on “EIS W212, 218, 166, 197, 117, 246”, then choose “Collection data from EZS”.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-03



Insert special key.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-04



Read the special Data will take 8 minutes, please wait until 100% ok.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-05



Remove special key from EZS before save data.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-06



Please select a Folder to store Dump file.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-07



Click on “Load to server”.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-08 vvdi-mb-get-password-for-w176-2012-all-keys-lost-09



Password received from server successfully.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-10



File loaded to server successfully.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-11



Get password.

vvdi-mb-get-password-for-w176-2012-all-keys-lost-12



Done.



Thanks to VVDI MB BGA tool for its contribution.



www.uobdii.com

VVDI MB: How to get points + exchange points to BGA tokens

New VVDI MB users:

if you are buying Xhorse BE keys, you can exchange points to bga tokens

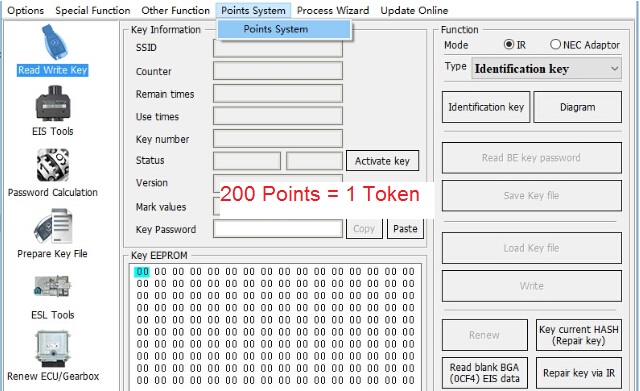

each key contain 200 Points = 1 BGA Token

vvdi-mb-points-to-tokens

procedure to get the points:

open your vvdi mb

click on points system

verify the key

then upload points

after that, if you have vvdi key tool, connect it to your mobile and open xhorse app and exchange it. At the same time, the device should be combined to upload the points and exchange it kind regards

vvdi-mb-newbies vvdi-mb-newbies-2

procedure to exchange points into tokens:

Combine all the Xhorse tools with Upgrade Kit

Select a device and click on Binding

Enter your phone number to login

vvdi-mb-points-to-tokens-1

Log in and link your VVDI MB Tool to your account

vvdi-mb-points-to-tokens-2

Use Key Tool application to exchange points for tokens

vvdi-mb-points-to-tokens-3

Key tool application download for iOS and Android:

Scan the QR code to download app

For iOS mobiles:

vvdi-mb-points-to-tokens-4

For Android mobiles:

vvdi-mb-points-to-tokens-5

Done!

VVDI MB Tech Support: http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

How to add VVDI MB BGA tool tokens after use up?

VVDI MB BGA tool calculates password will cost tokens, this post write a detailed instructions on how to add the tokens after use up. Even you will get big surprise in the second paragraph.

VVDI MB BGA tool calculates password will cost tokens, this post write a detailed instructions on how to add the tokens after use up. Even you will get big surprise in the second paragraph.

!!!HOT NEWS!!! Two months unlimited tokens

From December 25th, 2017 to February 25th, 2018, Everyone who has VVDI MB TOOL will enjoy two months unlimited tokens, besides 99% success calculation rate within 20 seconds.

VVDI MB BGA tool calculates password will cost tokens, this post write a detailed instructions on how to add the tokens after use up. Even you will get big surprise in the second paragraph.

4 steps to add VVDI MB BGA tool tokens

Step 1: Buy tokens

Option 1: have condor xc-mini or cond XC-002, then you can bind it with your VVDI MB tool to get one-tine free token every day.

Option 2: Have no condor xc-mini or cond XC-002, then you need to buy tokens at the price of 30USD/ per token, 145USD/ 5 tokens and 380USD/one year.

Step 2: Please provide VVDI MB Tool serial number when you place order.

Step 3: Wait for the tokens add, usually it will take 24hours to 48 hours.

Step 4: After the tokens adding successfully, start MB tool software, click “Password Calculation” and you can see tokens number, if it doesn’t add successfully, you can see 0 times for calculation.

vvdi-benz-tokens-add

Done.



The newest version VVDI MB TOOL V3.6.0 update make a great improvement in the password calculation success rate and time.

Details….

  1. Improve the success rate of BAG key password, erase password and enable key password

1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)

2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation

3) The server have 99% success rate for erase password and enable key password now

4) Add some old version NEC key for password calculation

5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password



To compare the time it cost you to calculation password in the past days in working key mode and lost all key mode.

WORKING KEY MODE NEED PAY 1 TIME FOR SUCCESS CALCULATION. LOST ALL KEY NEED PAY 2 TIMES
FOR SUCCESS CALCULATION
Password calculation – working key: can get key password through EIS and
working key (online)
CAN protocol EIS all support password calculation
Support BGA keys and other NEC keys
Support calculate password for NEC v51, v57 keys. No soldering, safe method.
Data acquisition time depends on the key version. It needs about 3.5 – 13 minutes
BGA version need about 5 minutes, some versions only need 3.5 minutes
Calculate time in server: 30 seconds – 1 minute
Password calculation – lost all key: support W166, W212, W246, W212(old with ELV)
EIS for password calculation while lost all working key
Lost all key data acquisition time depends on EIS type, It needs about 3.5-8 minutes
Lost all key calculate time in server: 30 seconds – 1 minute



Tech support supplied by www.uobdii.com

Assemble the case with VVDI BE key Pro improved version board

This post shows the general guide on how to assemble VVDI BE Key Pro imrpoved version with the Smart Key Shell 3 Button for Mercedes Benz.

This post shows the general guide on how to assemble VVDI BE Key Pro imrpoved version with the Smart Key Shell 3 Button for Mercedes Benz.

1.Put the VVDI BE key Pro improved version PCB into the case.

vvdi be key assamble- 1

2.Cover the bottom case.

vvdi be key assamble- 2

3.Insert the battery and cover the case.

vvdi be key assamble- 3

4.Push the metal strips on both sides into the right position.

vvdi be key assamble- 4

If the rear metal component is first assembled, then the metal strips on both sides won’t be able to pushed into the right position.

5.Here rearmetal button.

vvdi be key assamble- 5

6.Put into the small key and start button.

vvdi be key assamble- 6

If you want to disassemble the case, please do it from the last step to the first step.
vvdi be key assamble- 7



Note: If the rear metal component is firstly assembled, then the metal strips on both sides won’t be able to put into the right position.

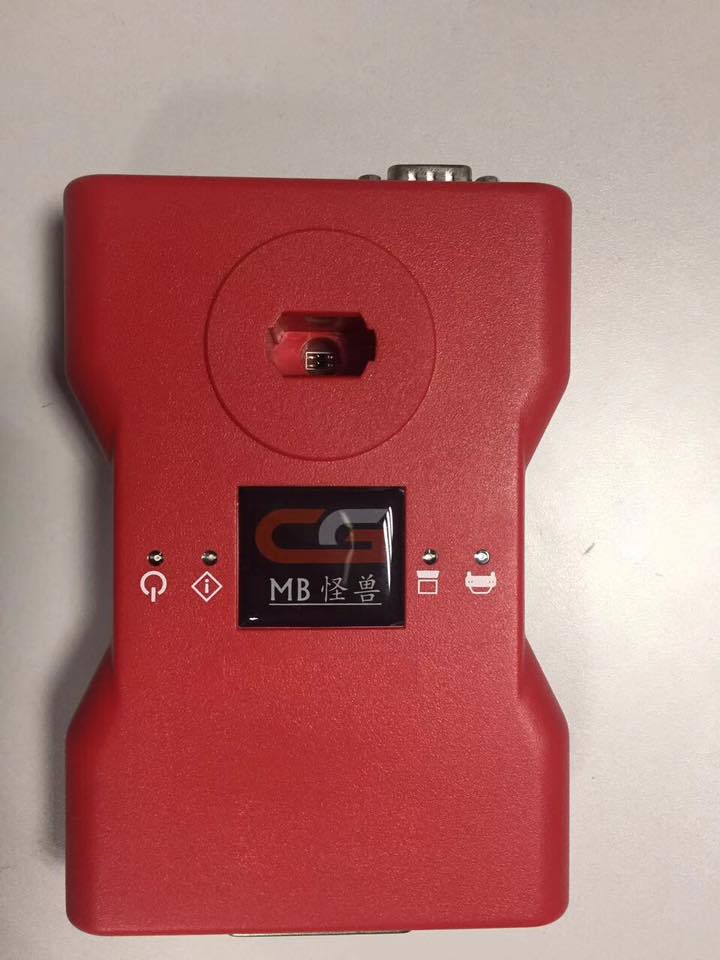

CGDI PROG MB Compare with VVDI MB TOOL

CGDI PROG MB Compare with VVDI MB TOOL,which one is better? Check the below table,find the tool that is better for you.

CGDI Prog MB Xhorse VVDI MB TOOL
Image cgdi mb compared with Xhorse vvdi mb
Brand CG100 XHORSE
Price 699USD, much cheaper 1849USD
Language English English
Update Lifetime Free, update by download link or official website Lifetime Free, update online
Function password calculation,add keys on Mercedes Benz, program a new key even all keys lost key reading and writing,EIS tools,password calculation,key file preparing,ESL tools,ECU/Gearbox renew and many special functions
Password Calculation Speed collection time 1’50s, password calculation time 40s,the fastest key programming tool to calculate the password at present Normal
Token free two tokens each day within 6 months Nedd to buy separately(SK185-S, SK185-S1), or if you have SL273, SL355, you can get one token free each day
Activate Need Activation, please send the serial number to Customer Service for activation No need to activate
Program Old Vehicales No need dissemble, can use OBD directly May need dissemble EIS
Summary CGDI MB has similar fucntion with Xhorse vvdi mb.
CGDI MB is much cheaper than VVDI MB, but of course VVDI MB has better quality.
If you have budget, CGDI MB is highly recommended! Working also great!

How to renew EIS from W204 using VVDI MB TOOL?

This post starts with a question ” How to clone EIS from W204 from broken to used” then follows with solutions.

This post starts with a question ” How to clone EIS from W204 from broken to used” then follows with solutions.

Q: How to clone EIS from W204 from broken to used?

I have VVDI MB tool and I can read broke and save file (2files saved)

But when I connect my used and open file from broken I cant write…

If I change to IR then I can write but it ask for Key pass….

Hm… dont understand…. how do I get this pass?

From original key from broken EIS OrFrom key to used EIS?

A: Have you renewed your used eis? If you haven’t, you have to do that first. Then password from original key when you write..



Q: Ok!I need to renew used EIS, and for that I need key pass from USED key?Then I need key pass to write original info to USED and to do that I need Key pass from broken?Who to get Key pass with VVDI MB Tool?Desolder mcu and read or by VVDI MB Tool online for 35USD/key pass?

A: Yes. That is right. You need key pass from used key if you have, or use all lost function.Depending on what key you are dealing with. Rom57 I can desolder.

Q: How to renew EIS using VVDI MB TOOL?

renew eis-01 renew eis-02

A: you need key pass to renew.key pass from key rom v51 or v57 eprom or as “NO KEY” online calc. first tell us if you have Key from that EIS or not.

Q: I have key! But on key-pcb only bga mcu…So online key password calculation.

Then read EIS “OBD not IR” pres get erase pass and wait, paste key pass and save file.

Next press renew EIS but this on “IR not OBD”.



A: Hm… 35usd for that…

one token for sale 35usd:

http://www.uobdii.com/wholesale/vvdi2-bga-mbtool-benz-password-calculation-token.html

5 tokens for sale 160usd:

http://www.uobdii.com/wholesale/5pcs-vvdi2-mb-bga-tool-benz-password-calculation-token.html

3

BENZ Password Calculation Token using tips:

For customer with Condor machine, factory provide one day one time service for free.



2.Support type



W164

W164 2009-

W166, 197, 212, 218, 246

W169, 209, 211

W172, 204, 207

W216

W221

W639 2009-



  1. Functions



Mode: OBD and IR adaptor, mode use for communicate with EIS

Chassis: Select chassis number, you can detect it with auto detect in EIS Tools

Data Acquisition:

Press“Data Acquisition”, it will continue with following steps automatically

1) Insert working key to ignition, waiting 15 seconds

2) Insert working key to device IR reader, verify key and car

3) Data acquisition

4) Insert working key to ignition, waiting 30 seconds

5) Insert working key to device IR reader, wait end…

6) Save acquisition data

Upload Data: Upload saved acquisition data to server for calculate password.

Attention:Once success calculate password for one SSID, the server will not accept calculate the acquisition data with same SSID in 2 hours. After 2 hours, acquisition data with same SSID upload to server will start with a new task

Query result: Query server calculation result. The password will fill in key password area automatically after success calculation. Use “Copy” copy password to clipboard

Auto reflash: Program will auto re-flash server result until there’s no task for this device.You can start data acquisition once more while auto reflash starting

Stop acquisite after success: If you are run data acquisition while auto reflash running,program will stop the acquisition progress when find correct password



  1. About query result status



Query result support query calculation result in 24 hours, others don’t support Query result will display Time, SSID, Status, Filename (name when upload to server)

Status has the following types:

1) Queuing: number x, require about y minutes, means your task need y minutes

2) Processing: requires 1 minutes, means your task need 1 minute to finish

3) Password: xxxxxxxxxxxxxxxx (Free), means success find password, “Free” show this task is calculated for free or this task already success calculated before

4) Discard: Once you success calculate the password, in 2 hours, the upload acquisition data with same SSID will discard

5) Already upload: means the server already have this file in queuing

6) Pay for password calculation before upload: means your device doesn’t have authorize for calculation. Contact your dealer and pay for password calculation

7) Failed: means this task failed to get password, you can run data acquisition again. Failed task is always free

How to program Mercedes BGA key ML250 W166?

Are you searching for a full guide for VVDI MB Tool Mercedes BGA key programming?

Are you searching for a full guide for VVDI MB Tool Mercedes BGA key programming?

Below you will know: How to program a new BGA key for Mercedes ML250 W166 by VVDI MB Tool step by step!

All you need:

A Mercedes new BGA key blank

Xhorse VVDI MB BAG Tool or VVDI MB Tool with VVDI MB Tool Power Adapter (Save much time for data acquisition)

vvdi-mb-tool-key-programmer-vvdi-mb-tool-power-adapter

Step 1

Connect VVDI MB Tool Mercedes key programmer with car via OBD line.

Open VVDI MB Tool software, go to “EIS Tools”, choose chassis “W166,197,212,218,246” then click “Read EIS data”.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-1

After reading complete, click “Save EIS data”. (Save both the bin file and the HC05 format)



Step 2

Go to “Password Calculation”, select chassis “W166,197,212,218,246” then click “Data Acquisition”.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-2

Follow the instruction:

Insert the original working key into car EIS then press “OK”.

Insert the original working key into VVDI MB Tool IR reader (the coil) then press “OK”.

Then wait about 5 minutes.

Insert the key into car EIS and wait 30 seconds.

Insert the key back into IR reader then press “OK”.

After that, save data file.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-3

Step 3

Click “Upload Data” and choose the data file to open.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-4

Upload success, wait 1 minute to finish.

Check “Auto reflash” and “Stop acquisite after success” boxes.

Click “Query result” then it calculate the key password, click “Copy”.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-5

Step 4

Back to “EIS Tools” and click “Read EIS data” again.

Paste the key password.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-6

Click “Save EIS data” and choose to overwrite the original EIS file.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-7

Step 5

Go to “Prepare Key File”, click “Load EIS file” and load the new EIS file with key password.

On the Step 2 area, uncheck the “v041” and “v011” boxes.

Click “Prepare key file”.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-8

After that, select position to save the key file.

Then it will prepare all keys and complete.



Step 6

Go to “Read Write Key”.

Put the new blank Mercedes BGA key into VVDI MB Tool IR reader (the coil) and click “Identification key”.

You can see the key status is blank and unused.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-9

Click “Load key file” and select the key 3 bin file to open. (Since the key 1 and key 2 are already used)

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-10

Click “Write” to start write new key.



Step 7

After writing success, click “Identification key” to check the new key status.

New Mercedes BGA key status 04FC, key number turn to 3.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-11

Now the last thing is to synchronize the new key to car.

Insert the new key to turn on car ignition.

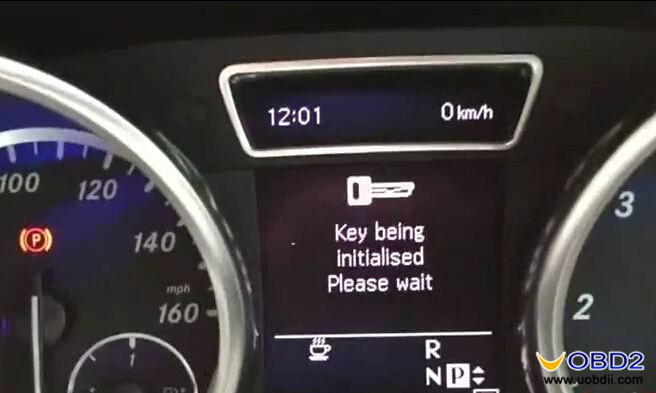

Key being initialized, wait the process complete.

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-12

VVDI MB Tool successfully program Mercedes W166 BAG key! New key remote control OK!

vvdi-mb-tool-program-mercedes-bga-key-w166-ml250-guide-13
