How to Use CG Godzilla Machine Cut Honda HON66 Key

In this post keycuttingmachine.org will show you guide on how to use CG Godzilla machine to cut key for Honda HON66.



Procedures:

Put the working HON66 key on clamp

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-1

Select “Learning”,CG Godzilla will start decode

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-2 How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-3



Key learning successfully

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-4

Now remove original key,and put the a blank key on clamp

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-5

Then press “Cutting”,and click “Continue”

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-6 How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-7



Now wait for cutting

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-8 How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-9



After one side cutting finishing,please change the other side to cut

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-10 How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-11 How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-12



Both side cutting completely,clean clamp and key

How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-14 How-to-Use-CG-Godzilla-Machine-Cut-Honda-HON66-Key-15



2M2 Tank “Left side is not equal to right side” Trouble Solution

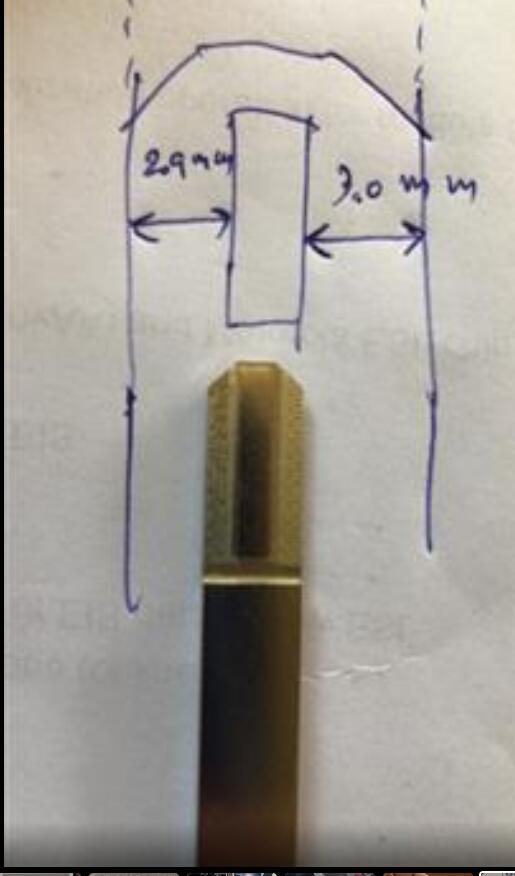

One 2M2 Magic Tank user feedback he has HON66 [No.25] to cut, but he has the confusion that : aafter calibrating the left side ,the right side is not equal (Left side=2.9mm, Right side =3.0mm).

2m2-magic-cut-hon66-01 2m2-magic-cut-hon66-02 2m2-magic-cut-hon66-03



2M2 chief engineer replied:

Please ignore the number of calibration, the position of cutter and tracer depend upon the number after calibration, so the number has a little tolerance that is normal. The most important is to put the blade 25# into the right position. that is okay.

2m2-magic-cut-hon66-04

Video on HON66 Key Cutting by 2M2 Tank Magic Key Machine:

2M2 Tank Machine tech support: www.uobdii.com

Honda Accord Key Cutting by Alpha Key Cutting Machine

Here keycuttingmachine.org show you guide on how to use Alpha key cutting machine to cut key for Honda Accord.



Procedures:

3 Ways to enter Honda Accord Key Data

1.Manufacturer,Model,Year

2.Key Blank Number

3.ID Number



1.Manufacturer,Model,Year

Click “Automobile” button and select “Honda”–>”Accord”–>”2010-0″–>”K001-M999,N001-N7″ to enter key data.

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-1 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-2 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-3 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-4 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-5





2.Search by Key Blank Number

Click “Search” button,input “HON66″–>”13416-{6-6}”

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-6 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-7





3.Search by ID Number

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-6 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-8





Fix a new key blank on the tip level of Side B

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-9

Click “Cut” button to start cutting (Close the shield)

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-10

Start cutting

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-11 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-12



Repeat work for the other side,after cutting done.

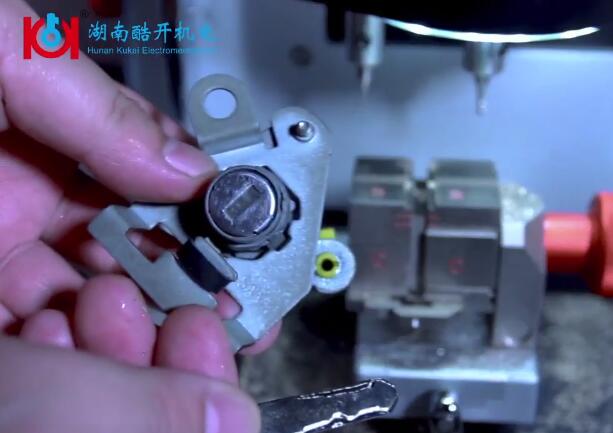

Open the shield to get the new key (clean shavings)

Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-13 Honda-Accord-Key-Cutting-by-Alpha-Key-Cutting-Machine-14



http://www.uobdii.com/wholesale/alpha-automatic-key-cutting-machine.html

Xhorse Doliphin Duplicate Honda Key in 5 Minutes

This is a feedback by a real Xhorse Dolphin XP005 machine user on Honda key cutting.

Build connection between mobile phone and Dolphin XP005,then select “Honda” and duplication function.Put the original key on the clamp to get the key code number

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (1) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (2) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (3)

When decoding completing,remove the original key from Dolphin xp005 and put new key on the clamp

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (4)

The press “Cut” button to start cutting work

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (5) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (6) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (7)



After first side cutting work complete,just put it on the other side to cut

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (8)

After then test it on the door lock

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (9) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (10)



Done!

http://www.uobdii.com/wholesale/xhorse-condor-dolphin-key-cutting-machine.html

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key

In this instruction,I will show you the procedures on how to use Xhorse Condor Dolphin Key Cutting machine to cut key for Honda HON66.



Related Contents:

Honda Acura HON66 key cutting guide with Condor XC-MINI

How to use HON66 key cutting machine for Honda all key lost

How to use SEC-E9 to cut HON66 key by search key blank?

Hon66 Key Cutting by X-horse Condor XC-MINI Master



Procedures:

Build connection between Condor Dolphin and your mobile by bluetooth

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (1)

Select “All Key Lost”

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (2)

Honda

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (3)

Input “K730”,then press [QUERY]

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (4)

Select “HON66EHP”

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (5)

Install clamp M2-A

Clear metal fillings and use your finger to press the blank key on the clamp and make sure it is flat.Then press [OK] to continue

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (6)

Press [Cutting Key] to continue

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (7)

Follow the instruction,then press [Continue]

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (8)

Then Condor Dolphin will start cutting work.

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (9) How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (10) How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (11)



Cutting process finishing

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (12)

Now you can test it on the lock.

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (13)

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting

Here keycuttingmachine.org share the testing on how to use Xhorse Condor Dolphin to cutting key for Honda Activa 5G key.

Procedures:

Build connection between your mobile phone and Xhorse Condor Dolphin

Then select “Vehicle Database”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (1)

Select “Honda (Cycles)”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (2)

Select Honda 5G

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (3)

Follow the software instruction,then click “OK” to continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (4)

Select “Decode Key”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (5)

Click “Continue”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (6)

Now the Condor Dolphin will start decoding key for Honda Activa 5G

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (7)

Decode key success

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (8)

Select “Find Bitting”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (9)

Code and Bitting show as below

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (10)

Put a new blank key on the clamp

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (11)

Select “All Key Lost”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (12)

Select “Honda (Cycles)”,then enter the code:XE14 and click “Query”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (13)

Select “OK” to continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (14)

Select “Cutting Key”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (15)

Continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (16)

Now Dolphin machine will start cutting key

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (17)

Honda Activa 5G Key cutting finishing

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (18)

Test the new key on the lock,work fine!

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (19)
