Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting

Here keycuttingmachine.org share the testing on how to use Xhorse Condor Dolphin to cutting key for Honda Activa 5G key.

Procedures:

Build connection between your mobile phone and Xhorse Condor Dolphin

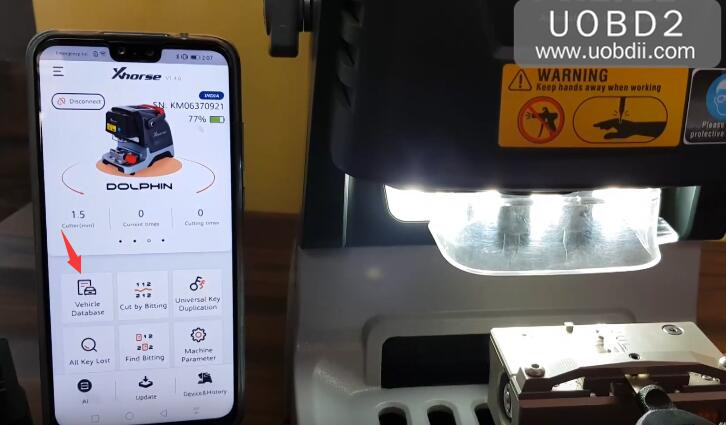

Then select “Vehicle Database”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (1)

Select “Honda (Cycles)”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (2)

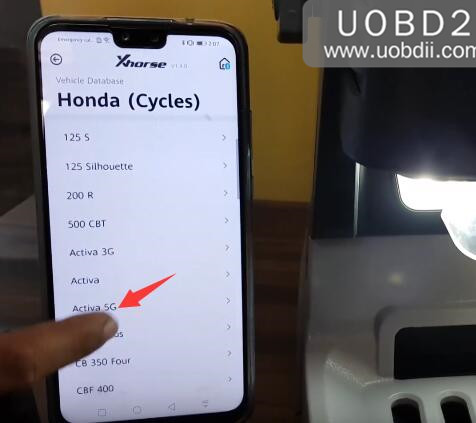

Select Honda 5G

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (3)

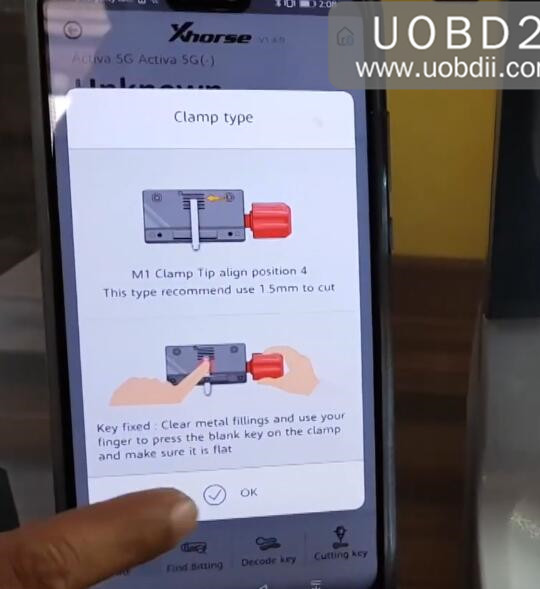

Follow the software instruction,then click “OK” to continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (4)

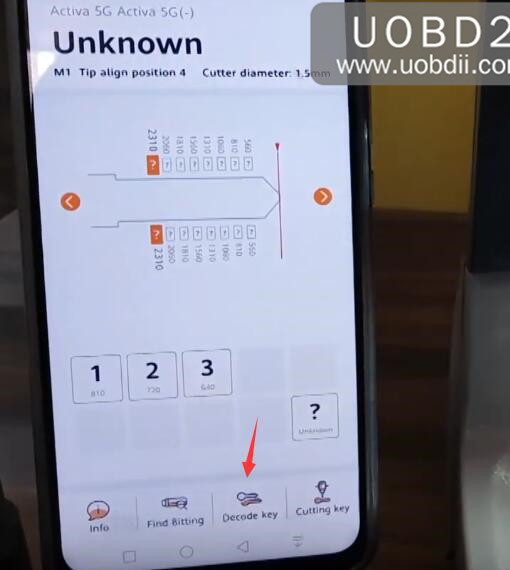

Select “Decode Key”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (5)

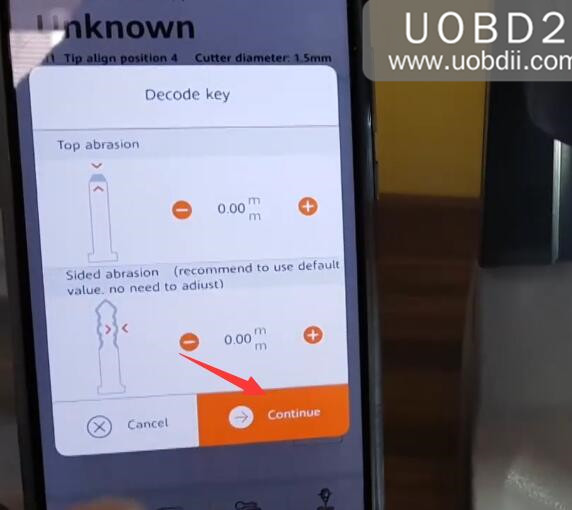

Click “Continue”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (6)

Now the Condor Dolphin will start decoding key for Honda Activa 5G

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (7)

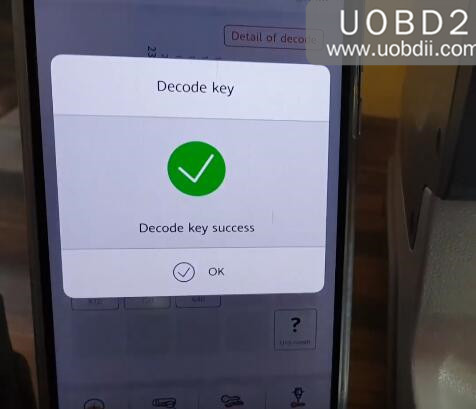

Decode key success

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (8)

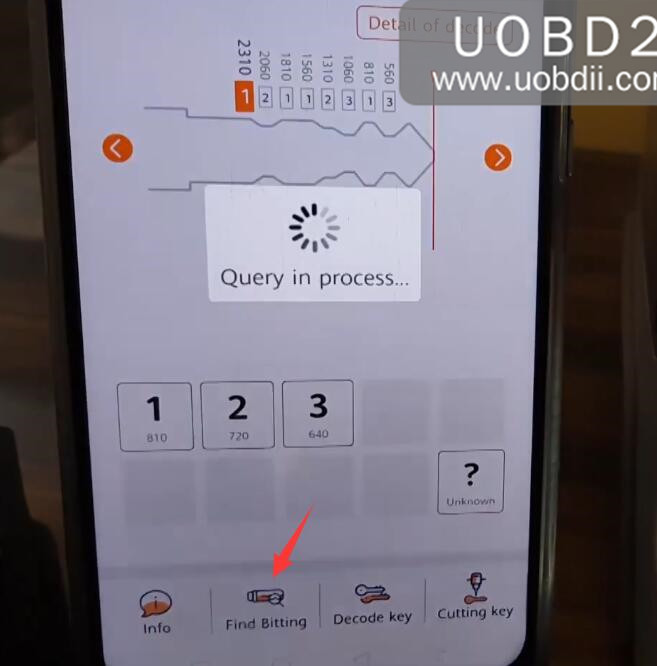

Select “Find Bitting”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (9)

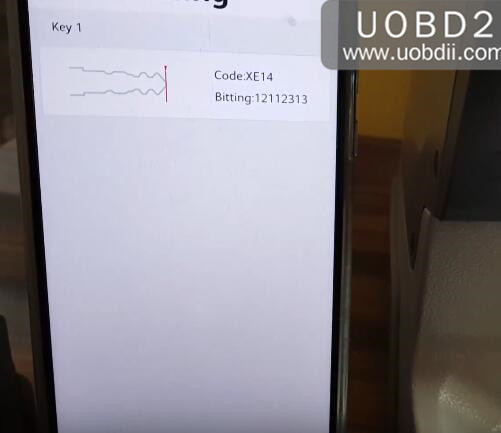

Code and Bitting show as below

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (10)

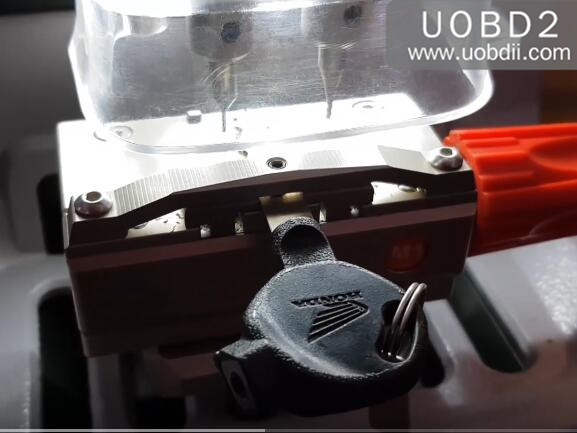

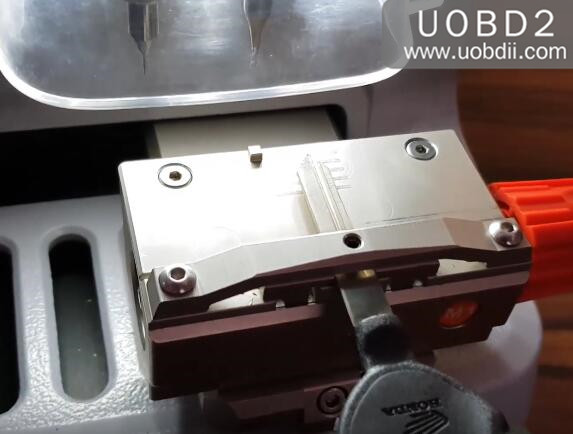

Put a new blank key on the clamp

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (11)

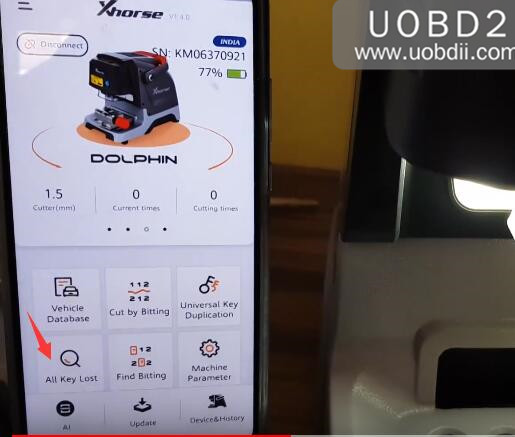

Select “All Key Lost”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (12)

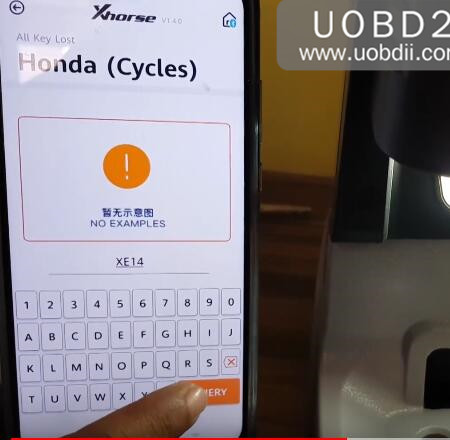

Select “Honda (Cycles)”,then enter the code:XE14 and click “Query”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (13)

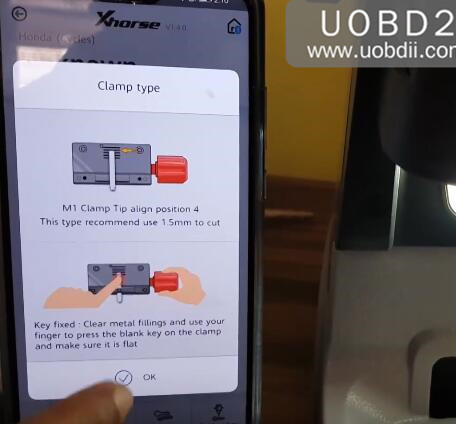

Select “OK” to continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (14)

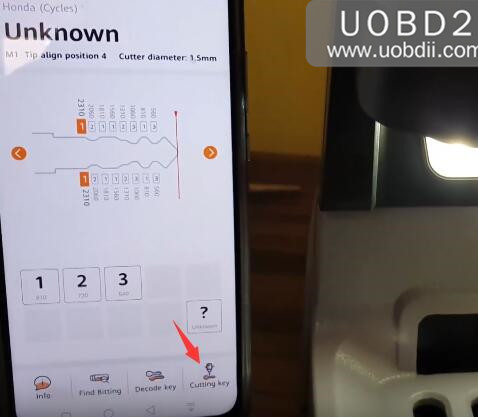

Select “Cutting Key”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (15)

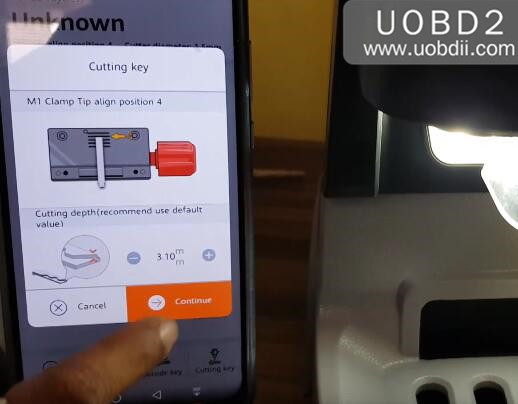

Continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (16)

Now Dolphin machine will start cutting key

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (17)

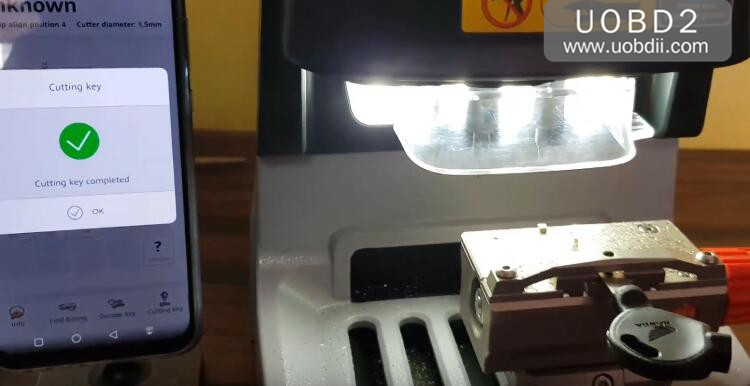

Honda Activa 5G Key cutting finishing

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (18)

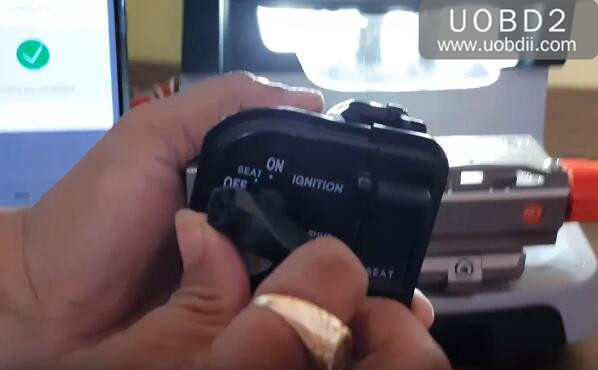

Test the new key on the lock,work fine!

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (19)
