2020 Top 4 BMW Key Programming Tools Review

Put together all the best buy for BMW key programming tools based on real users’ reviews, incl. yanhua mini acdp BMW, vvdi2 for BMW, Autohex, Autel IM608 etc.

1.Yanhua mini acdp BMW

yanhua-bmw-fem-key-programmer

I am using yanhua mini acdp. Tested very much times, never failed for me. Very comfy to work from phone, now I always read eeproms by yanhua just from phone.

And with yanhua 0 soldering. Even though it’s easy to folder to cas, it still takes 3min. With yanhua its 30 sec.

2. VVDI2 for BMW

1)  I use vvdi2 for BMW and used to remove eeprom off the board to read, until i had an accident with one!
Have since been reading in circuit using vvdi prog and dropping Vcc down to 3.3v for reading.
So far so good…

2) I have VVDI2 and use this for BMW FEM keys. I was desoldering 95128 chip from FEM and had an accident with one. Managed to get it sorted in the end when someone with Autohex unlocked a used FEM (without key) for me.

I still used my VVDI2 but read the 95128 in circuit using VVDI Prog (dropped the Vcc down to 3.3v) and even Carprog original (again read at 3.3v), read multiple times, verify and compare files. Everything went fine.
It was so much easier and quicker.

3) I have VVDI2 but I used it only once on Mini to read ECU EDC1722 ISN by OBD because autohex fail to read it.
2 days ago I programmed F30 AKL without desoldering with autohex

4) Last week I did F20 akl without desoldering with VVDI2

 3.Autohex for BMW

19121715766488101941

1) Depends how many BMW you do. Autohex works great on them but its not cheap.

2) Autohex it’s a good tool to invest!
I don’t use it much but I know if something goes wrong autohex will save my assess?

3) If you have only locksmith version and you try to program petrol CAS3+ with Continental ECU by OBD you will be very surprised

4) I’ve started with Autohex II BMW Lite Locksmit  but been forced to update to AutohexII BMW Full Version.
If don’t have full, it’s a bit useless!

5) E70 AKL is the same! Cannot be done even if they are saying “all e and f series”.
Also fem/bdc, 99% of them need update before unlock. Can be done from advanced functions but not always!

But worth having full!
Many BMW on the road and are not the best cars..

6)

Good think about AH – it will notify you when clip is not connected. You won’t go any further without that. I use AH a lot and since 2 years now never fail on me so far.
Only bad but I can say is CAS4. You won’t do even spare key with OBD if you don’t have ISN.

4. Autel IM608

IM608

I bought im608 few weeks back..
So I’m testing this tool on bmw..
It has a lot functions…so I’m testing as I go…
Waiting on for the g-box2 couse cant work on bench without it…
Trying to read ISN on edc17c06 by obd ..cas3+..
Cas ok but it takes long for ecu to read isn so im not sure does it work or is just take longer…

More operation guide on Autel IM608 BMW(CAS1/CAS2/CAS3/CAS4/FEM/BDC)

To be upgrading…

Thanks to all users of DK forum.

Yanhua Mini ACDP Program Keys for Porsche 1N35H BCM

Recently,Yanhua team launch new product—Yanhua Mini ACDP Porsche Module.It can suppot add new keys & all keys lost for Porsche vehicle.Here UOBD2 show the guide on how to use it to add new keys for Porsche 1N35H BCM.Hope our auto locksmiths can gain good deal of enlightenment from this operation.

Note:Yanhua Mini ACDP Porsche module support Porsche models from 2010-2018 new keys adding and all key lost!

Procedures:

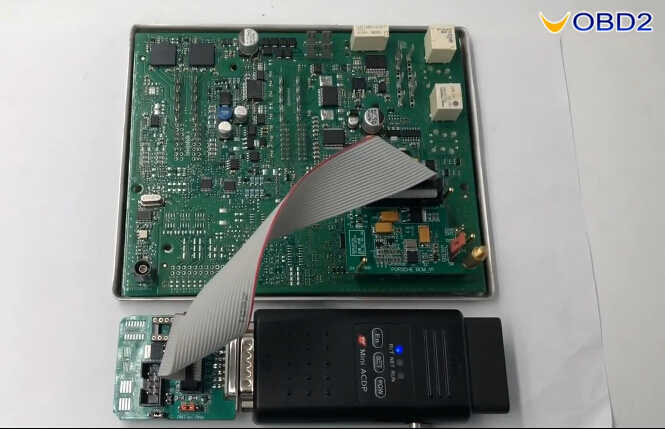

Connect Yanhua Mini ACDP module to the Porsche BCM

https://www.eobdtool.co.uk How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (2) How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (3) How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (4)



Run Mini ACDP software,enter the main menu to select “Porsche”

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (5)

Add key for New Porsche

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (6)

ICP IMMO

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (7)

MC9S12XEP100(Mask 1N35H)

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (8)

Add key (auto mode)

9

Note:

1.Please prepare OBP+ICP adapter,BCM interface board,BCM module,BAV adapter and blank key.

2.It is forbidden to cut ACDP power off during the process of adding a key,otherwire adding the key will be error.

3.Please store the original and programmed EEPROM/DFLASH data as prompt.

Click “OK” to continue

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (10)

Check the note massage below,and then click “OK” to continue

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (11)

Checking pin,please wait…

It will show the pin detection status,if all of them have good connection,click ”Continue”

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (12)

Configuring adapter,please wait…

It is detected that the BCM module chip has been encrypted,Do you want to continue?

Click “Continue”

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (13)

Configuring adapter,please wait…

Reading PFLASH data,please wait…

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (14)

Now you need to save the PFLASH data file,click “OK”

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (15) How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (16)



It will show you the PFLASH data file save path as below

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (17)

Read EEPROM/DFLASH data,please wait…

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (18)

Please save the original EEPROM data file,click “OK” to continue

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (19)

It will show you the EEPROM data file save path as below

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (20)

Please save the original DFLASH data file.

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (21)

It will show you the EEPROM data file save path as below

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (22)

Then Yanhua Mini ACDP Porsche software will show the IMMO information (please make sure that information is correct),click “Continue”

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (23)

Check the note massage,and follow the operation to connect the ACDP device to the BAV-KEY adapter and put the key correctly in the BAV-KEY adapter.Then click “OK” to continue

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (24) How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (25)



Reading key information,please wait…

Current key ID:6BFF1423

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (26)

You can now select a number for adding a key(the gray number is not optional,that mean this key number is already used or current key is already exit)

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (27)

Programming key,please wait…

Please store the DFLASH data file after adding a new key.

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (28)

It will show you the EEPROM data file save path

Check note massage below,and then click “OK” to continue

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (29)

Checking pin,please wait…

Also it will detect the pin status,click “Continue”

Click “Continue”

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (30)

Now it show the immo information as below,and you will see the key number 06

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (31)

Then it Yanhua acdp mini will perform adapter configuring,chip decrypting,EEPROM/DFLASH data writing and chip data verifying,just wait…

Finally,it will prompt you adding key completed.

Install the BCM module back to vehicle,and test the key you just adding.

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H BCM (32)

Done!



And here is the video guide:

How to Use Yanhua Mini ACDP Add Keys for New Porsche 1N35H

Mart Tool,Lonsdor,Yanhua ACDP,Which is The Best for JLR Key Prog

Jaguar Land Rover IMMO programming 3 options: Mart tool, Lonsdor JLR IMMO key programmer, Yanhua ACDP + Module9 Jaguar LandRover Key Programming.



  1. Mart Tool Key Programmer for Land Rover and Jaguar 2015-2018 KVM Keys with Number FK72 HPLA.



Mart tool functions:

Mart Tool is designed to add new keys and program new keys when all keys lost for Landrover and Jaguar KVM keys with Number FK72 HPLA.

mart-tool-

How to use Mart tool?

Firstly You need to use other devices (like VVDI Prog) to read out the D-Flash and EEE data in the KVM, then use Mart tool to generate new key and data, finally write back to KVM.

mart-tool-software

Mart Tool Range Rover FK72 All Key Lost Programming



Mart tool free download and install:

Mart Tool Software Free Download:

https://mega.nz/#!GwVxiKrb!w35DkiwRaDmMN1E0CYQsUVRXNxTsmUrLjtm5QIFWUJA



Installation tips:

  1. Connect Mart Tool to laptop and install driver well;
    2. When you first use this device, it will ask for registration, just click yes to continue. After registration, device will bind to your laptop and can’t change to work on other laptops. Please make sure your laptop connects to internet and close anti-virus software;
    3. If your laptop damaged and have to change another one, please give us device serial number for second registration;
    4. If you have “Network Error” after install the software, please download the Mart Tool Clientand run, it will be solved.

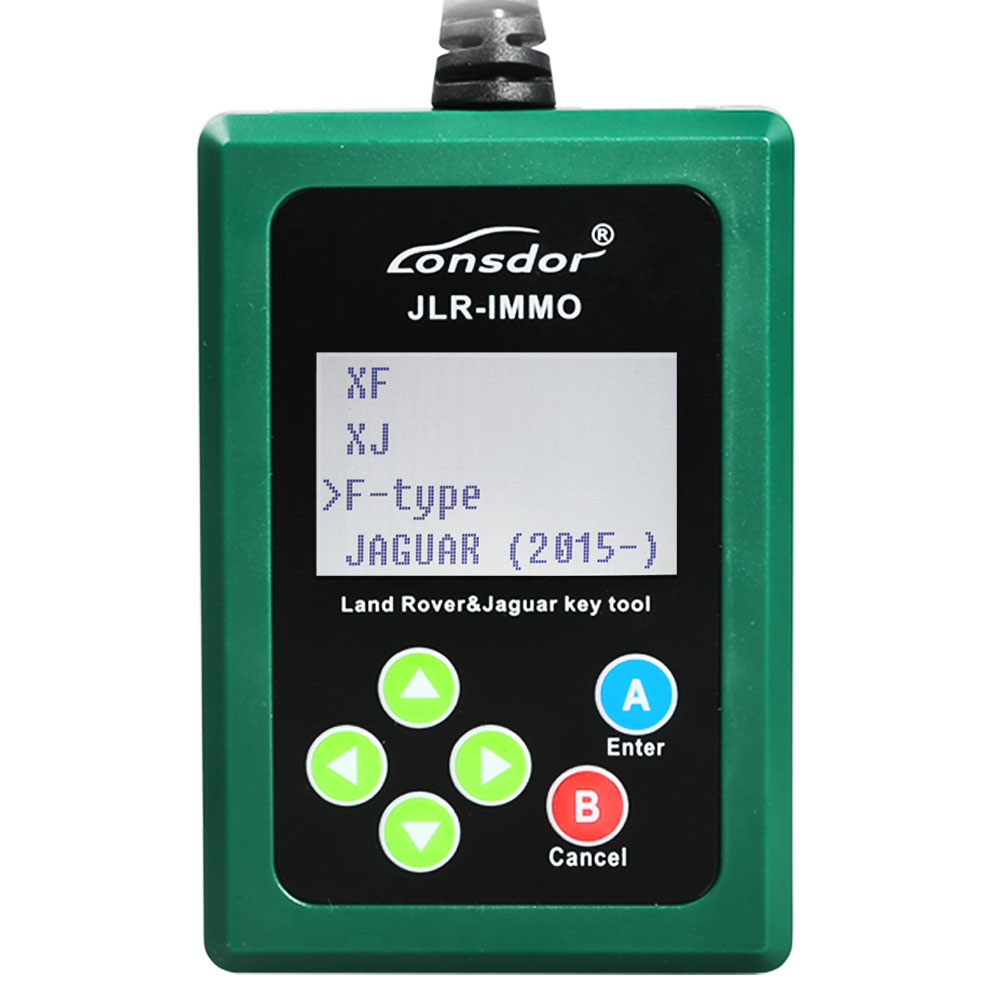

  1. Lonsdor JLR IMMO Key Programmer by OBD Add KVM and BCMupdate online



Src: http://www.uobdii.com/wholesale/lonsdor-jlr-immo-key-programmer.html



Lonsdor JLR IMMO Key Programmer functions:

  1. Program car keys for above 95% of Jaguar and Land Rover models(VPW protocols of Jaguar’s old model is unsupported).
    2. Can support key programmer by OBD for newest Jaguar and Land Rover after year 2016, part of Land Rover can support to year 2018
    3. Support more than 50 software versions for KVM, most of KVM no need soldering, can be programmed via OBD directly



Lonsdor JLR IMMO Key Programmer car list:

  1. LandRover 2008-: Immobilizer and smart key
    2. LandRover Discovery3: Immobilizer
    3. LandRover Freelander: Immobilizer and smart key
    4. LandRover Freelander2: Immobilizer and smart key
    5. LandRover Discovery4: smart key
    6. LandRover Evoque: smart key
    7. LandRover Defender: remote
    8. LandRover new models  KVM case’s software version: FK72
    9. LandRover new models  KVM case’s software version: HPLA
    10. Jaguar XF: smart key
    11. Jaguar SJ: smart key
    12. Jaguar F-TYPE: smart key
    13. Jaguar X-TYPE: Immobilizer
    14. Jaguar Soverign: Immobilizer
    15. Jaguar XJ6: Immobilizer
    16. Jaguar XJ8: Immobilizer
    17. Jaguar XJR: Immobilizer
    18. Jaguar XK: remote
    19. Jaguar XKR: remote
    20. Jaguar new models  KVM case’s software version: FK72
    21. Jaguar new models  KVM case’s software version: HPLALonsdor JLR IMMO add KVM and BCM.
    KVM&BCM
    KVM : FK72-14C104-BF
    BCM : BJ32-14C184-AC
    KVM : DPLA-14c104-CA (without reflash, working directly without degrade or upgrade)KVM:
    DPLA-14C104-C NEW
    FK72-14C104-BA NEW
    FK72-14C104-BB NEW
    FK72-14C104-BC NEW
    FK72-14C104-BD NEW
    FK72-14C104-BE NEW
    FK72-14C104-BF NEW
    BH42-14C184-AA NEW
    FK72-14C104-AF
    FK72-14C104-AHBCM:
    DPLA-14C184-AM NEW
    BJ32-14C184-AC NEW
    CPLA-14C184-AE NEW
    CPLA-14C184-AF NEW
    GX73-14C184-AJ
    GX73-14C184-AK
    GX73-14C256-AH

lonsdor-jlr-immo-key-programmer-02 lonsdor-jlr-immo-key-programmer-03 lonsdor-jlr-immo-key-programmer-04 lonsdor-jlr-immo-key-programmer-05



Lonsdor JLR IMMO Key Programmer update:

Update on the official site: http://u.lonsdor.com

Download the “update tool kit”. Then follow the instructions in the tool kit to update JLR_IMMO device program.



Before update, you need to register a member and active on the Lonsdor Server.

(1) Please enter the site: http://u.lonsdor.com/jlrimmo/login
① Login
Users with an account of a Lonsdor tool: input account, password and verification code to login.
Users without  a Lonsdor account: click on [Register] and follow prompt messages to complete registration, then log in.
② Device bound to an account
After login success, check system prompts when device boots. Input the device No. & registration code as per prompts, and set up a password for the device. Click on [Submit] to bind to the device.

(2) After bind device successfully, enter the site: http://u.lonsdor.com
① Click on the JLR-IMMO button, click on [Get activation code], confirm that device No. shown on the webpage is consistent with actual device No. Click on [Submit] to get activation code.
② Input device No. on webpage to the device to activate it.



  1. Yanhua ACDP + Module9 Jaguar LandRover Key Programming

Yanhua Mini ACDP Module9 Land Rover Key Programming Support KVM from 2014-2018 Add Key & All Key Lost.

yanhua-acdp-on-landrover-kvm-mc9s12xeq384-3m25j-08 yanhua-acdp-on-landrover-kvm-mc9s12xeq384-3m25j-09 yanhua-acdp-on-landrover-kvm-mc9s12xeq384-3m25j-10 yanhua-acdp-on-landrover-kvm-mc9s12xeq384-3m25j-11 yanhua-acdp-on-landrover-kvm-mc9s12xeq384-3m25j-12



How to use Yanhua ACDP + Module9 Jaguar LandRover Key Programming?

1). Tools & adapters to use

  1. Yanhua ACDPbasic module with OBP + ICP adapter
  2. LandRover KVM module
  3. BDM adapter
  4. BAV key adapter

yanhua-mini-acdp-connect-land-rover-kvm-module-01 bav-key-adapter-02





2). Procedure:

in this post:

http://blog.uobdii.com/yanhua-acdp-program-key-on-land-rover-kvm-mc9s12xeq384-112pin/

in Youtube:



In conclusion

All of the above JLR key programmers are reliable made by branded Company.

They differ from each other in:

1). Price

If only program JLR key: Mart tool < Lonsdor JLR key programmer< Yanhua ACDP Module 9



2). Operation

Mart tool: need to installation, need to work with other device i.e VVDI Pro .

Lonsdor JLR key programmer: Handheld with display screen, need no installation.

Yanhua ACDP Module 9: No need remove component or soldering.

Yanhua ACDP Keys Programming for Land Rover KVM 2014-2018

Land Rover KVM (MC9S12XEQ384 112Pin) IMMO has solution now ,it is Yanhua Mini ACDP plus one mobile phone or a PC.



Device and module to use:

  1. Yanhua Mini ACDPwith OBP+ ICP adapter, BDM adapter.

yanhua-acdp

Image source

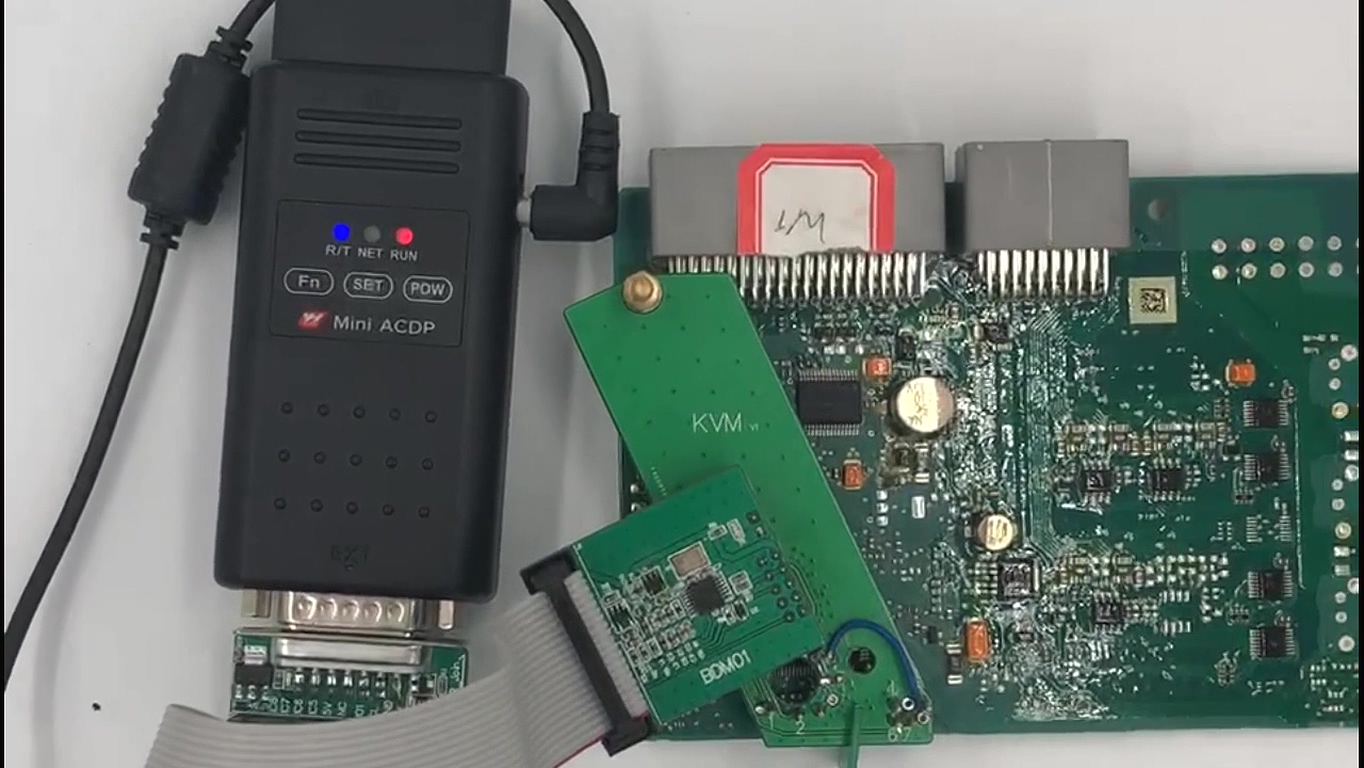

  1. Land Rover KVM module and authorization

yanhua-mini-acdp-connect-land-rover-kvm-module-01

  1. One mobile phone or a PC

IOS system

1) System Version: 9.0 or more

2) Cell phone Models: iphone6 or more

3) Running Memory RAM:> 2G

4) Storage Space ROM:> 1.5G 3)



Android System:

1) System Version: 5.0 or more

2) Running Memory RAM:> 2G

3) Storage Space ROM:> 1.5G

  1. Bluetooth and WIFI



*Related help files

Yanhua Mini ACDP IOS App Installation Instruction
Yanhua Mini ACDP Android App Installation Instruction
Yanhua Mini ACDP IOS Version Import Data to PC Instruction
Yanhua Mini ACDP Android Version Import Data to PC Instruction



How to use Yanhua ACDP program key for Land Rover KVM (MC9S12XEQ384 112Pin)

Follow the guide to connect Yanhua ACDP basic module and Land Rover KVM module.

Wait the indicator turn red then green.

yanhua-mini-acdp-connect-land-rover-kvm-module-02



Pay attention the pin connection.

yanhua-mini-acdp-connect-land-rover-kvm-module-03



Click on “LandRover” option.

mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-01

 Click on ” KVM (MC9S12XEQ384 112Pin)”.

mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-02

 Click on “IMMO”.

mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-03

 Come to the main menu:

MC9S12XEQ384_0M12S

MC9S12XEQ384_1M12S

MC9S12XEQ384_2M25J

MC9S12XEQ384_3M25J

mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-04 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-05 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-06 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-07 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-08



What can Yanhua Mini ACDP do on KVM (MC9S12XEQ384 112Pin) IMMO:

Add key auto mode

Add key single step mode

Delete key

Disable key

Enable key

Detect key

Read / Write EEPROM /DPFLASH data

Read / Write PFLASH data

KVM module unlock

KVM module lock

Open HEX Editor

mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-09 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-10 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-11 mini-acdp-land-rover-kvm-mc9s12xeq384-112pin- functions-list-12

 Here a Youtube Video on KVM MC9S12XEQ384_3M25J key programming procedure:



www.uobdii.com

Why NEWBIES should have an ACDP Mini for BMW programming?

Here are notes shared by real professionals working for uobdii.com. 3 features of Yanhua ACDP Mini are highlighted for BMW CAS and FEM/BDC programming, esp. for newbies.



  1. Require no soldering experience:

ACDP application with Help file – how to connect

ACDP-Mini-NO-Soldering-Wiring-1 ACDP-Mini-NO-Soldering-Wiring-2

  1. Less risk when you do programming:

Automatic test of adapters connection, will help avoid data lost because of bad communication.

(cannot go to the next step if the connection is not in a good way)

ACDP-Mini-NO-Soldering-Wiring-3



  1. No worries of data lost!



Easy to program FEM without soldering:



For BMW with a good FEM module,



FEM module data restore:

ACDP can be used with FEM module in a good condition but with data issues.

No worries! No module data lost.

Note: You’d better know the data version. If not, choose the newest.

Then the matching should be synchronized with the original device.

Data cannot be as expensive as before coz data now can be restored.



For BMW with a replacement of FEM modules,



FEM module data backup and write:

ACDP is used when there is something wrong with the FEM module.

You should have a working FEM module to write data that’s read from the old and bad FEM.



ACDP has its own adapter for CAS3+/CAS4+:



Recommendation: disassemble the CAS3+/CAS4+ module for programming

ACDP has its adapter for CAS3+/CAS4+ programming.

If done via OBD2, it’s a must to lower the version with ALL tools.

And in the process of downgrading, The data might get lost or leave historical issues that fault cannot be cleared.

So, you’d better disassemble the CAS3+/CAS4+ module and connect it via an specialized adapter for programming.

Please clear some contact points if with thick three anti-paint.

No need soldering chips and wiring





Tips of using ACDP App via a mobile:

Bluetooth turns ON on a mobile, search BT and find out ACDP, then connected

Note: DO NOT manually pair Bluetooth connection.

If you fail to find out ACDP BT, turn on location service, usually in Settings, security and privacy



WiFi is connected with a router or a location service

All data communication is done via WiFi

Note: If you fail to match the key in the process, check the WiFi signal is good or not and also check the WiFi name (NO Chines or other special characters! Only English and numbers available) and password (correct?)

5G cannot be supported!





ACDP-Mini-NO-Soldering-Wiring-4

Videos: How to use Yanhua ACDP Mini for BMW programming?

Yanhua Mini ACDP CAS4 Programing Without Welding

<iframe width=”854″ height=”480″ src=”https://www.youtube.com/embed/ZRa_dU-g3JI” frameborder=”0″ allow=”autoplay; encrypted-media” allowfullscreen></iframe>



BMW CAS3+ Programing by Yanhua Mini ACDP Without Welding

<iframe width=”854″ height=”480″ src=”https://www.youtube.com/embed/4jvLDg24yzE” frameborder=”0″ allow=”autoplay; encrypted-media” allowfullscreen></iframe>



Yanhua Mini ACDP for BMW FEM All Key Lost without soldering welding

<iframe width=”854″ height=”480″ src=”https://www.youtube.com/embed/xXt2jlAOLuc” frameborder=”0″ allow=”autoplay; encrypted-media” allowfullscreen></iframe>

Using Tips for Yanhua Mini ACDP APP

As the Yanhua Mini ACDP released their own APP, many users have tried to install the ACDP APP on their phones. And there are some notes for you when installation after we collected the feedback of our users.



Install the ACDP from APP Store:

Both IOS and Android system could download ACDP APP through the code above.



  1. Fail to install with a note ”Untrusted Enterprise Developer”

Solution: you should do the trusting step before install. Find Setting -> General -> Manage Device -> choose Nanning yanhua. Only when trusting the APP, can the phone begin to install it.



  1. Fail to download

ACDP Fail to download base resources with a note below, after tap Yes, ACDP still continues to download but fail again.

Solution:

  1. WIFI, check the network
  2. ACDP don’t support background download, keep the APP downloading
  3. ACDP won’t download when hibernation mode, keep the screen on.



Yanhua Mini ACDP Key Programmer now is available in eobdtool.co.uk: €209

http://www.eobdtool.co.uk/wholesale/yanhua-acdp-bmw-key-programmer.html



How to use Yanhua Mini ACDP program BMW CAS3+ without soldering?

Yanhua Mini ACDP programs BMW CAS3+ without soldering

Yanhua Mini ACDP programs BMW CAS3+ without soldering

Tool to use:
Yanhua Mini ACDP basic module plus BMW CAS1- 4+ authorization with module
SRC: http://www.uobdii.com/wholesale/yanhua-mini-acdp-basic-configuration-with-bmw-cas1-cas4-plus.html

Procedure in words and images:
1. Install the supporting column.
yanhua-mini--acd--program-bmw-cas3+--without-soldering-01

2. Install the BMW CAS3+ interface
yanhua-mini--acd--program-bmw-cas3+--without-soldering-02
Enlarge it to see it clearly shown as below.

Note: D, D2, D3 and D4 must be aligned to the corresponding thimble, and then can be locked.
3. Use the stud lock the interface board.

yanhua-mini--acd--program-bmw-cas3+--without-soldering-03

4. Connect the OBP+ICP adapter to the BDM adapter.
yanhua-mini--acd--program-bmw-cas3+--without-soldering-04

5. Plug the BDM adapter into the CAS3 interface.
yanhua-mini--acd--program-bmw-cas3+--without-soldering-05

6. Connect to the ACDP unit.
yanhua-mini--acd--program-bmw-cas3+--without-soldering-06

www.uobdii.com

Tool to use:

Yanhua Mini ACDP basic module plus BMW CAS1- 4+ authorization with module

SRC: http://www.uobdii.com/wholesale/yanhua-mini-acdp-basic-configuration-with-bmw-cas1-cas4-plus.html



Procedure in words and images:

  1. Install the supporting column.

图1



  1. Install the BMW CAS3+ interface

图2

Enlarge it to see it clearly shown as below.



Note: D, D2, D3 and D4 must be aligned to the corresponding thimble, and then can be locked.

  1. Use the stud lock the interface board.



图3



  1. Connect the OBP+ICP adapter to the BDM adapter.

图4



  1. Plug the BDM adapter into the CAS3 interface.

图5



  1. Connect to the ACDP unit.

图6



www.uobdii.com

Yanhua Mini ACDP optional adapter + authorization + package list

Yanhua Mini ACDP IMMO +ODO programming master optional BWM and Fujitsu CPU MB91F adapter + authorization related info incl. functions, price, package list etc.



Part 1. Optional adapter + authorization functions and price

Item No. Adapter + authorization Functions Price (free shipping) Note
SK247 Programmer Built-in programmer 8pin IC chip and partial CPU read & write function. $249
SK247-1 Adapter 1 +Authorization BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ IMMO Key Programming and Odometer Reset $359 Not include the Programmer, for the new user please firstly buy the progframmer and then the adapter + authorization; For the old user, just buy the adapter + authorization.If you buy all (SK247 +SK247-1 to SK247-5), the price is 1479USD free shipping by DHL, anyway buy more you will save more.
SK247-2 Adapter 2 +Authorization BMW FEM/BDC IMMO Key Programming, Odometer Reset, Module Recovery, Data Backup and write $415
SK247-3 Adapter 3 +Authorization Read BMW DME ISN Code by OBD when all keys lost $249
SK247-4 Adapter 4 +Authorization BMW 35080, 35160DO WT EEPROM Read & Write $129
SK247-5 Adapter 5 +Authorization Fujitsu CPU MB91F Read & Write $109

Best source: https://www.uobdii.com/wholesale/yanhua-mini-acdp-programming-master.html



Yanhua Mini ACDP Nice features:

  1. Powerful but sales at cheap pricecompare the similar tools which can cover BMW CAS1-CAS4+, MSV80, FEM/BDC etc. Even you buy all it is less than $1500.
  2. No need to remove chip/ soldering/ cut the line / lift the pin
  3. With help file, please refer to the wiring diagram.



Part 2.All adapters package list.

1) ACDP programming master configuration list

No

Adapter name


1

ACDP Programmer

ACDP Programmer-01

2

OBP+ICP adapter

OBP+ICP adapter-02

3

Puncture socket

Puncture socket -03

4

P8P ribbon cable

P8P-ribbon-cable-04(600)

5

8Pin cable

8Pcable-05

6

20P cable

20P cable-06

7

P CAN cable set

P CAN cable-07

8

12V power adapter

12V power adapter-08

9

3pcs of paint surface cleaning needles (1.0mm,0.8mm,0.5mm)

needles-09

2) CAS1-CAS4+ Configuration list

ACDP CAS1-CAS4+ Configuration list
No Adapters Image
1 BAV-KEY adapter  bav-key-01
2 BDM01 adapter  BDM01 adapter-02
3 BMW-CAS3 board  BMW cas3 board-03
4 BMW-CAS4 board  bmw cas4 board-04
5 BMW CAS2/3/4 board  BMW CAS2 3 4 board-05
6 CAS3 firmware package  CAS3 firmware package-05



3) FEM BDM Configuration list

No Adapter name
1 FEM bridge  FEM bridge-01
2 BDC bridge  BDC bridge-02
3 Desktop OBD transfer board  BMW FEMBDC test platform-04
4 BMW FEM/BDC test platform  BMW FEMBDC test platform-04
5 Single-pin double-head cable  Single-pin double-head cable-05
6 FEM bridge firmware package  FEM bridge firmware package-07
7 BDC bridge firmware package FEM bridge firmware package-07



4) DME ISN configuration list

ACDP module 3 DME ISN configuration list
No Adapter name Image
1 BMW-N13 port board  BMW-N13 port board-01
2 N20 caliper for opening the hole of shell  n20 shell hole depth 1mm positioning caliper-02
3 N13 firmware package of interface board  N13 firmware package of interface board-03

5) BMW 35080, 35160DO WT EEPROM Read & Write package list

Coming soon



6) Fujitsu CPU MB91F Read & Write package list

Coming soon

src:http://www.uobdii.com/wholesale/yanhua-mini-acdp-programming-master.html

Newest Yanhua Mini ACDP programming master

New Yanhua Mini ACDP programming master!!!

Radical change!

Subversion

Tesla car NO longer needs engines

YANHUA car keys programming NO longer need soldering iron

Car locksmith NO longer needs soldering work.

The first in the world

Programming no need soldering



BMW: CAS4/FEM/BDC/16ODOWT

Yanhua Mini ACDP programming master bmw cas4 fem bdc

Solder-free programming Data safety

WIFI connection Free connection

  1. Overturn the traditional work mode

Single operation is changed to team cooperation

  1. Change of operation mode

PC operation is changed to mobile phone operation

  1. Change of test connection mode

Electric soldering iron is changed to no-solder dedicated

connector

  1. Change from artificial observation to intelligent monitoring

Artificial observation / trying is changed to automatic

detection algorithm, grap hical in dication the relability

of connection. Ensure the data is not damayed and lost

  1. Change of service mode:

Offline service is changed to online synchronous service



IMMO/Mileage Programming

No need to remove chip

No need soldering



Functions

  1. Memory programming:

Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming and parts of Freescale/ NEC MCU in circuit programming(ICP).



  1. BMW module programming:

(1) Support cas1-cas4+and FEM/BDC IMMO key programming, mileage reset, program recovery.

(2)BMW engine ECU data reading and ISN code reading



  1. VW module programming.

MMC instrument

  1. Instrument mileage and airbag ECU reset/maintenance isunder development.
  2. BENZ. BMW Audi and various models are upgradedsuccessively

Yanhua Mini ACDP programming master function



ICP: Memory and MCU programming In Circuits

Yanhua Mini ACDP programming master icp

MCU programming in Circuits

Yanhua Mini ACDP programming master mcu

No need to cut the line

No need to lift the pin



Yanhua Mini ACDP programming master user manual + wiring diagram



Pre-order Yanhua Mini ACDP programming master

http://www.uobdii.com/wholesale/yanhua-mini-acdp-programming-master.html

E-Mail:Sales@UOBDII.com

Skype: uobd2net@live.com
