How to Use Xhorse XC-Mini Cut Key for GMC B102 Key

Here keycuttingmachine.org will show the procedures on how to use Xhorse XC-Mini to cut GMC B102 key.Now this key cutting machine is stop production,the replacement is Xhorse Condor XC-MINI Plus



Steps:

Select Car Maker “GMC”,then click Confirm

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (1)

Input key code:S591B

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (2)

S000A-S999K

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (3)

Use Clamp M1

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (4)

Put the blank key on the clamp M1

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (5)

proceed cutting work

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (6) How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (7) How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (8) How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (9)



it will start next side cutting working

How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (11) How to Use Xhorse XC-Mini Cut Key for GMC B102 Key (12)

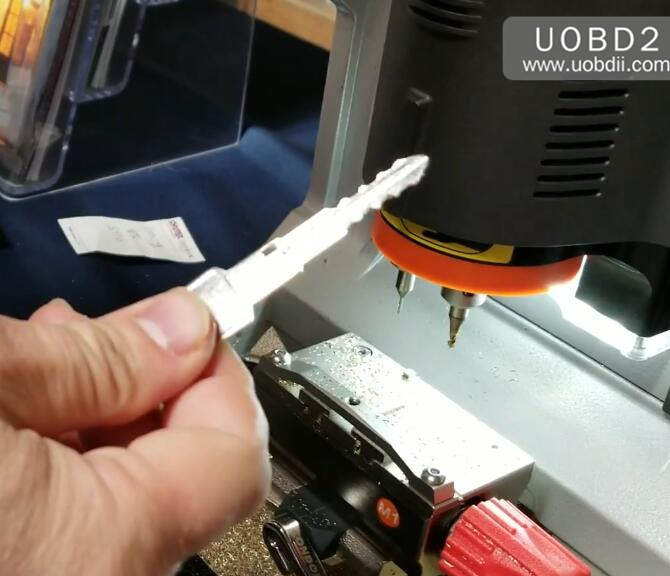

Cutting done!

SEC-E9 or Xhorse condor for Cutting new 2016 yaris blade

(Quoted) a 2016 yaris all key lost,  I manage to unlock it with va6 lishi and read the barrel but i can’t turn the ignition with va6 lishi. then I bought va8 lishi and voila you can pick and read the ignition. I have sec-e9 cutting machine and I can’t cut the blade.
the only option is 2016 corolla in sec-e9…..8 wqafers depths 1, 2, 3, 4, but I still can’t cut the blade because what I read from the va8 lishi doesn’t match.

sec-e9-key-machine-enter-key-data-ic-card-1

Finally, used silca futura machine to cut the blade, the job is done now. but it will be difficult for me to call my buddy just to cut the blade every time. The silca futura is bloody expensive. The next parts answer a question: how to cut this new blade with sec-e9 or other machine?



  1. I have the xhorse condor. There is a CustomKeyTools.
    Create your own key file, and load that in your machine.

Have a look at the condor keycutter thread.

series exists in instacode if your machine can work with instacode or if you can make your own cutting card .





  1. @Manta1600 (DK forum) made quick tutorial how to create new key on SEC-E9z please check it:

http://blog.uobdii.com/how-to-create-new-key-in-sec-e9z-va8-toyota-for-example/



Question: I tested with sec-e9 toy51 add manually key turn on door but not ignition ! Have you an idea ?? Please



Answer: 1. you have wrong cuts somehow
2. ignition has been changed
3. door has been changed

I just copy with manual cutting machine most new blades.



For your information: va8? va6? any difference?
When the va6 and the va8 tools were made there was no specific reference for these , all 3 use the same VA2 keyblade .

yes the va8 is for the 1234Q5678H series with 8 cuts , it will also do the daf cf series 7 cut lock as well , it will also do the VA6 6 cut models though will be sloppy decode due to extension .

the question was what key blade as va8 not listed in silca which it wont be as a lishi reference not a key blank reference , the blade is va2 all are listed under VA2 in instacode ;

ic : 1049 for the 6 cut ABCDEF series
IC : 1125 for 6 cut 1234Q5678H series
IC : 1126 for 6 cut 1234Q5678H series
IC : 1423 for 8 cut 1234Q5678H series

not all lishi tool refrences relate to silca references as quite often a tool is developed long before silca assign a key blank reference to it , good examples are ‘

HU100R
vag2015 8 , 9 and 10 cut
va6
va8



H & Q have no meaning to you if reading lock with a lishi tool , they are values that are used in the dealer code under certain conditions .

when 2 x 4 cuts sit next door to each other they change them to QQ , 2 x 8 cuts sat next door to each other change to HH , a 4 cut and an 8 cut sat next door to each other change to Q and H .

so if you read a lock as 673784 , the manufacturers code would read QH7376 , if entering direct cuts you reverse this to 6737HQ or 673784 both cut the same key

so you can enter Q or 4 and you can enter 8 or H it will still cut the same



www.uobdii.com

How to Use Xhorse Condor Mini & M4 Clamp Cut House Keys

This article focus on how to use Xhorse Condor Mini and M4 clamp to cut house single and double sided & crucifix keys.



how-to-install-and-use-xhorse-m4-clamp-01



Part 1: Install M4 Clamp

1Clock M4 clamp on the Condor mini.

how-to-install-and-use-xhorse-m4-clamp-02



Please note: Try to put the cutter and probe on top so that they won’t be broken, because the M4 clamp is higher than M1 and M2 clamps.



2 Insert the key.

Firstly turn the handle backwards to release it

Insert key, you can use a sheet to withstand (following image 1)

Turn the handle forwards to fasten it

how-to-install-and-use-xhorse-m4-clamp-03



Or Firstly turn the handle backwards to release it

Insert key, you can use a sheet to help (following image 2)

Turn the handle forwards to fasten it

how-to-install-and-use-xhorse-m4-clamp-04 how-to-install-and-use-xhorse-m4-clamp-05



Part 2: Cut house key

1.Click on “Key copy”.

how-to-install-and-use-xhorse-m4-clamp-06



2.Choose ” universal profile”.

how-to-install-and-use-xhorse-m4-clamp-07



3.Choose the key type.

M4 clamp supports single/double sided & crucifix keys.

how-to-install-and-use-xhorse-m4-clamp-08



4.Will tell you what clamp you can use, then you can understand what is for M1 or M4.

how-to-install-and-use-xhorse-m4-clamp-09



5.Switch to M4 clamp, and choose “Key Learn”.

how-to-install-and-use-xhorse-m4-clamp-10

6.Cut key.

how-to-install-and-use-xhorse-m4-clamp-11

Done.

Why Condor Mini cannot decode Lexus TOY48 TOY40 keys?

This is the reason why you cannot decode Lexus by Condor mini-xc key cutting machine..

This is the reason why you cannot decode Lexus by Condor mini-xc key cutting machine..

Condor MINI usually decode/cut key as the standard thickness 3mm, if the key is single side(thickness no more than 3mm, such as 2.5mm or 2mm)

then you should add a shim(such as business card) under the key, let the key thickness more than 3mm (around 3mm).

condor-mini-Lexus-TOY48-TOY40-key-1 condor-mini-Lexus-TOY48-TOY40-key-2 condor-mini-Lexus-TOY48-TOY40-key-3



Credits to Samic



Cheap Chinese key cutting machine: Condor or 368A?

This poster highly recommend 3 Cheap Chinese key cutting machines including Xhorse XC-002, Defu 368A, Condor XC-min, Condor mini plus, Condor XC-009, etc.

This poster highly recommend 3 Cheap Chinese key cutting machines including Xhorse XC-002, Defu 368A, Condor XC-min, Condor mini plus, Condor XC-009, etc.



Recommendation 1: Xhorse XC-002

– I recommend Xhorse XC-002. Cheap and reliable machine. If you want key from code machine Condor XC-mini.



– I recommend you buy Xhorse Condor xc002, for this money it is best machine and work with it is pleasure, it has stiffness of construction, good jaws and good bearings and high precision.

condor-xc002

Image source

Price: $1,099 free shipping



Recommendation 2: Xhorse ikeycutter condor Mini

– With a little more from 2000 a very good choice would be xhorse condor mini. it cuts most keys I’ve needed it to do.



– Condor xc mini provides stable function…Unless you are willing to spent 7000-8000euro’s for silca’s futura.



Xhorse XC-002 VS Condor XC-mini on basic info:

Xhorse Condor cutting machines Condor XC002 Condor XC-MINI
Apparence XC-002 XC-MINI
Quality Made by Xhorse Made by Xhorse
Automatically/ Mechanically Mechanically/Manually Automatically
Lost key Not support Support
Touch screen No screen 7″ Capacitive
Cut key for car Yes Yes
Cut house key Can cut a small part of house key No
Internal software NO Yes
Language It is mechanical, no specific language Portuguese/Spanish/French/Germany/Russian/Czech/Arabic/Turkish/Dutch/Polish/Bulgarian/Norway/Slovakia/Italian/English/Chinese (English is the default language, after receive the machiche, send SN to seller for reset other language)
Stand-alone Yes, no need connect to computer Yes, no need connect to computer
Input Voltage 220VAC 90V–264VAC
Input Frequency 50Hz 47~63Hz
Consume 200W 200W
Packing Dimensions L595*W550*H375mm L450*W450*H350mm
Machine Dimensions L298*W445*H525mm L265*W362*H301mm
Display 1024*600
Spindle Speeds 8000-10000rpm 9000rpm
USB USB2.0
Working Temperature 0~50℃ 0~50℃
Humidity 10~90% 10~90%
Net Weight 23Kg 18Kg
Gross Weight 28Kg 22.9Kg
Price $779 + shipping cost $2,799 free shipping
Warranty 3 years 3 years

condor mini

Condor mini image source

Recommendation 3: condor Mini plus

Condor Mini plus Improvement!!

1) Space between cover and key is bigger…. for XC-MINI many keys with casings like VW flip key will not allow you to close the cover .
2) The screen is designed with adjustable angle. Many time the machine is on a higher / desk and it’s then difficult to operate and see what’s on the screen.
3) Mounting support – to make it easier when mounting the machine on a Mobile unit as you don’t want it flying around in the back of your VAN….

4) The motor has a higher rpm with a lower cutting noise.

Condor Mini Plus-01



Image source:

Took by www.uobdii.com worker at 518 Chinese locksmith Meeting in Xiamen.



Recommendation 4: Condor XC-009

Xhorse Condor XC-009 is designed to cut single-sided keys and double-sided keys.

Condor XC-009 Advantage:

Small volume, light weight, easy to carry.



High Precision:

With adapters guide equipment, guarantee high cut precision.



Wide Applicability:

Equipped with 4-side clamp, flexible exchange among 4-side. Different sides for different features keys, cut kinds of special keys, wide applicability.



Safe & Low Noise:

Emergency switch is able to turn off the power in emergency and start the machine while it’s safe.

Low noise DC brushless motor.



Super Long Endurance Ability:

Build-in six 63W.h (2500mA.h) battery cut 60-100 keys continuously.



Solid & Durable:

Aluminum structure, processed by DMG precise machine which is imported from Germany.



Humanized Design:

Battery value remind function, hidden hand wheel, big clamp space, cut the big plastic cover keys that don’t need to tear down, streamline handrail design, comfortable operation experience.



Support Service:

One year warranty, lifelong technical support for free, professional online service provides remote instruction and assistance.

condor-xc009

Image source

Price: 520USD



Recommendation 5: Defu 368A

1.) Success list

– $79, Defu 368A work fine on ” laser key ” , ordering cutter 2 , 2.5 & 3 mm too .



– If you got manual skills you can make good key copy on 368a.



– With new market Chinese ” key case + blade” to cutting , mine never fail one copy !



lot of locksmith hesitate to buy 368a , they lost lot of money for nothing .
2 philosophy , $ 3000 automatic key cutting ( never money back ) and manual key cutting ( $ 150 to 800 ) to fast money back .

CONDOR XC-MINI for $ 100 price / cutting ( emergency all key lost )
xc002 for $30 price / cutting
368a for $10 price / cutting
Depend of your business



– Really cheap and it works good on many types of key.



– works like a rocket with titanium drill (bought from ali)



– no problems as long as you use good quality cutter, NOT the ones that come with it. I use hss instead of carbide with it, seems to work better. As an aside, I am trying to attach space and depth micrometers to it to cut keys by dimension without depth keys. Not a priority, but would be nice to be able to do that.



– I’ve done lots of keys with it. bought the carbide cutters and needed 3 of them for cutting a key. not good at all.

But with titanium cutter is good. I am using it for mobile cutting only. Worth all the money.



– use only for hobi and satisfied with this machine.



– I think is ok. I own one and I modified the engine. Now it works at 12 v dc



– can copy normal key like toyota mitsubishi, and flat keys like bmw and vag etc. check defu key cutter on youtube. For some keys you may need additional clamps like tibbe etc but search defu key cutting and you will see.



– I made key for kia pocanto. It is smooth I also ordered separate clamps for tibbe keys and a full set pf cutters.



-Doing double sided flat keys buy a universal key clamp and cut it up as in picture 1. (universal clamp won’t do these keys)
drill 2.5 mm holes for clamp screws and use 3mm tap to run threads picture 2.

cut some shims from the supplied steel shims picture 3.

Pictures 4 and 5 perfect working key

Brilliant machine for the money

386a-makes-double-sided-flat-keys-01 386a-makes-double-sided-flat-keys-02 386a-makes-double-sided-flat-keys-03 386a-makes-double-sided-flat-keys-03 386a-makes-double-sided-flat-keys-05



2) Failure list:

Defu 386A DOES NOT DO “all keys lost”

368A Key Cutting Machine

Image source

Price: $79



Conclusion:

Car key cutting machines depend on budget and on how many keys it will cut a day , some machines are light use , some are medium use and some are heavy duty use , some are better suited to the back of a van than others , some are built to last forever , some are start up machines with limited life.



www.uobdii.com

iKeycutter Condor mini cut FO21 tip

Use Condor mini to cut FO21, there is some spacing , this photo is cut with 412443.

Use Condor mini to cut FO21, there is some spacing , this photo is cut with 412443.

condor-cut-fo21-02

This is the maximum that i can do

bty

Correct way:

adjust the screw in the back
and tap back of key with plastic hammer like bump hammer to make sure it is fully seated against stop.



Finally, i did hammer the key to fully enter and now Xhorse Condor Mini cuts well !

Xhorse Condor mini instacode card user guide

Xhorse official claim: only the Xhorse Condor Mini with serial number KM03 **** has the Bluetooth module and can use the Instacode card.

Xhorse official claim: only the Xhorse Condor Mini with serial number KM03 **** has the Bluetooth module and can use the Instacode card. The ones with serial number KM02 ****has no Bluetooth module and can’t use the Instacode card.



User guide on how to use the Instacode card with Condor Mini?

Enable the phone’s Bluetooth(the condor’s Bluetooth is not needed to set),search the condor on the phone Bluetooth setting, the condor is displayed with XhorseBTKM******** ,



Install instacode live app on your phone, then search the bittings, then cutting(the condor status must be on the main menu)



Where to have Instacode card?

Whatsapp: +86-13995696053

Skype: uobd2net@live.com

E-Mail: Sales@UOBDII.com

www.uobdii.com

Tip: The code valid period is 1 year.

instacode



Condor xc mini cut Megane blade is not ok (Solved)

Problem with Condor xc mini:

Megane blade is not ok

condor xc mini cut Megane blade

Solution:

Please download the tool Upgrade Kit in the attached file link to upgrade the condor to V4.0.2,engineer fix the Renault data in this version.

https://mega.nz/#!W0JzATbA!4NMR0sreLyS2leIB8W19WZJVFCOohyjZkC9oaTujBTs

15.3 MB

No virus

100% tested by Xhorse support

Many thanks to Xhorse tech support

Many thanks to Laurance (www.uobdii.com member) collect this Condor xc mini issue and solution.

Good luck.

Cut Ford Tibbe F021 key M8 with Condor XC-Mini key cutter

I have Condor XC-Mini key cutter, at first I have problem with Ford Tibbe F021 key M8 ….

I have Condor XC-Mini key cutter, at first I have problem with Ford Tibbe F021 key M8 ….

Machine makes a hell off a humming noise after last cut and jams into the tool ….

So I make cutting first side till it is completed.

Stop the machine ..

Then turn the key around.

Restart cutting from beginning . So not to damage my machine…

If need to fix this you will have cut away back part off tool holder till there is nothing left on it

(Interesting that demo video only shows first side off key being cut)

Finally. update on my machine and problem with F021 key seems solved . parameter info was 1.08 before ..update ..

F021 key solved with condor key cutter
