How to Choose Automative Key Cutting Machine,SEC-E9 or Alpha?

Alpha key cutting machine is the newest all in one automatic key cutting machine for standard keys, laser keys and dimple keys in the international market. What’s the difference with SEC-E9 key cutting machine? Check the comparison list below.

Details SEC-E9 Alpha
Image 2019-android-version-sec-e9-key-cutting-machine all-in-one-alpha-key-cutting-machine
Appearance Industrialize Modernize
Screen E9: 7″ Touch Screen (Without Battery)
EP&EB&EU: 8″ Tablet (With Battery)
EA: 7″ Android Screen (Without Battery)
7″ Android Screen (Without Battery)
Size 255(W)*360(H)*340(D)mm 305(W)*300(H)*400(D)mm
Weight 19.5kg 16kg
Main Jaw One Jaw to support car keys (including double standard keys and laser keys) 4-way Jaw to support car keys (including double standard keys and laser keys), special car keys( HU66,HU64, VA2, TOY2, BW9, SIP22, HU162T) and dimple keys
Optional House Jaw Dimple key jaw, Single sided key jaw, Tubular key jaw Single sided key jaw, Tubular key jaw
Optional Car Jaw HU66,HU64, VA2, TOY2, BW9, SIP22, HU162T, FO21, LDV FO21
Accuracy High Higher
Engraving Function Serial Number starting by E9,EP, EU only Yes
Duplicating Function Double sided keys, Single sided key, Tubular keys Double sided keys, Single sided key, Tubular keys, Single external groove keys, Double external groove keys, Internal groove keys,
Key Code Function Yes Yes, but have detailed key code range and classification based on car brand list.
Progression Function Serial Number starting by EP, EB, EU, EA only Yes, and support to search bitting numbers of ignition lock based on those of door lock for HU162T (Vice Versa)
Create Key Profile Function Yes Yes
Cutting History Function Yes Yes
Favorite Function Yes Yes
Software Upgrade Way WIFI and USB WIFI and USB
Communication Way USB and Bluetooth for different versions USB and Bluetooth for different versions
Extra Function LED light LED light & 2 Tool boxes for putting decoders/cutters/calibration block/stopper
Launched Time 2014 2019
Warranty 1 year 2 years


Price:

All in one Alpha automatic key cutting machine: €2,799.00 free shipping

Source: http://www.cardiagtool.co.uk/alpha-automatic-key-cutting-machine.html

2019 Android version SEC-E9 tablet automated jet cutting machine: €1,995.00 free shipping (was €2,210.00)

Source: http://www.cardiagtool.co.uk/alpha-automatic-key-cutting-machine.html

In conclusion:

1.Screen: SEC-E9> Alpha

SEC-E9 has more choices, you can buy anyone from the three types.

2.Main Jaw: Alpha> SEC-E9

Alpha has 4-way jaw to not only support double standard keys and laser keys SEC-E9 contains, but also support special car keys ans dimple keys.

3.Optional House Jaw: SEC-E9> Alpha

SEC-E9 supports dimple key jaw while Alpha cannot.

4.Optional Car Jaw: SEC-E9> Alpha

SEC-E9 are available with HU66,HU64, VA2, TOY2, BW9, SIP22, HU162T, FO21, LDV, but Alpha only supports FO21.

5.Accuracy: Alpha> SEC-E9

6.Duplicating Function: Alpha> SEC-E9

Alpha can support single external groove keys, Double external groove keys, Internal groove keys while SEC-E9 cannot.

7.Key Code Function: SEC-E9> Alpha

Alpha has this function as same as SEC-E9, but have detailed key code range and classification based on car brand list.

8.Progression Function: Alpha> SEC-E9

Serial Number starting by EP, EB, EU, EA only by SEC-E9

9.Warranty: Alpha> SEC-E9

10.Best price: SEC-E9>Alpha

If you want to buy a cheaper key cutting machine, you can choose SEC-E9, if not, buy the one based on your need.

Good luck!

SEC-E9 or Xhorse condor for Cutting new 2016 yaris blade

(Quoted) a 2016 yaris all key lost,  I manage to unlock it with va6 lishi and read the barrel but i can’t turn the ignition with va6 lishi. then I bought va8 lishi and voila you can pick and read the ignition. I have sec-e9 cutting machine and I can’t cut the blade.
the only option is 2016 corolla in sec-e9…..8 wqafers depths 1, 2, 3, 4, but I still can’t cut the blade because what I read from the va8 lishi doesn’t match.

sec-e9-key-machine-enter-key-data-ic-card-1

Finally, used silca futura machine to cut the blade, the job is done now. but it will be difficult for me to call my buddy just to cut the blade every time. The silca futura is bloody expensive. The next parts answer a question: how to cut this new blade with sec-e9 or other machine?



  1. I have the xhorse condor. There is a CustomKeyTools.
    Create your own key file, and load that in your machine.

Have a look at the condor keycutter thread.

series exists in instacode if your machine can work with instacode or if you can make your own cutting card .





  1. @Manta1600 (DK forum) made quick tutorial how to create new key on SEC-E9z please check it:

http://blog.uobdii.com/how-to-create-new-key-in-sec-e9z-va8-toyota-for-example/



Question: I tested with sec-e9 toy51 add manually key turn on door but not ignition ! Have you an idea ?? Please



Answer: 1. you have wrong cuts somehow
2. ignition has been changed
3. door has been changed

I just copy with manual cutting machine most new blades.



For your information: va8? va6? any difference?
When the va6 and the va8 tools were made there was no specific reference for these , all 3 use the same VA2 keyblade .

yes the va8 is for the 1234Q5678H series with 8 cuts , it will also do the daf cf series 7 cut lock as well , it will also do the VA6 6 cut models though will be sloppy decode due to extension .

the question was what key blade as va8 not listed in silca which it wont be as a lishi reference not a key blank reference , the blade is va2 all are listed under VA2 in instacode ;

ic : 1049 for the 6 cut ABCDEF series
IC : 1125 for 6 cut 1234Q5678H series
IC : 1126 for 6 cut 1234Q5678H series
IC : 1423 for 8 cut 1234Q5678H series

not all lishi tool refrences relate to silca references as quite often a tool is developed long before silca assign a key blank reference to it , good examples are ‘

HU100R
vag2015 8 , 9 and 10 cut
va6
va8



H & Q have no meaning to you if reading lock with a lishi tool , they are values that are used in the dealer code under certain conditions .

when 2 x 4 cuts sit next door to each other they change them to QQ , 2 x 8 cuts sat next door to each other change to HH , a 4 cut and an 8 cut sat next door to each other change to Q and H .

so if you read a lock as 673784 , the manufacturers code would read QH7376 , if entering direct cuts you reverse this to 6737HQ or 673784 both cut the same key

so you can enter Q or 4 and you can enter 8 or H it will still cut the same



www.uobdii.com

How to create new key in SEC-E9z for VA8 Toyota?

First thanks to @Manta1600 made this SEC-E9z key cutting machine tutorial based on VA2 1049 but it must be based on VA2 1423. Second thanks to @ Rob H about information for VA8.



Key cutting machine SEC-E9z VS SEC-E9:

SEC-E9z key cutting machine is only for Cars.

SEC-E9 key cutting machine includes all the functions of SEC-E9z, plus Civilian key cutting performance.

Pictures mean a lot:

Tap “My Key Info”.

sec-e9z-create-new-key-for-va8-toyota-01



Create New.

sec-e9z-create-new-key-for-va8-toyota-02



Add.

sec-e9z-create-new-key-for-va8-toyota-03



VA8 Toyota.

sec-e9z-create-new-key-for-va8-toyota-04



Next.

sec-e9z-create-new-key-for-va8-toyota-05 sec-e9z-create-new-key-for-va8-toyota-06



OK.

sec-e9z-create-new-key-for-va8-toyota-07



Next.

sec-e9z-create-new-key-for-va8-toyota-08



Add new.

sec-e9z-create-new-key-for-va8-toyota-09



Channel Track, then “Next”.

sec-e9z-create-new-key-for-va8-toyota-10



My key profile.

sec-e9z-create-new-key-for-va8-toyota-11



Add new Model.

sec-e9z-create-new-key-for-va8-toyota-12



Next.

sec-e9z-create-new-key-for-va8-toyota-13 sec-e9z-create-new-key-for-va8-toyota-14 sec-e9z-create-new-key-for-va8-toyota-15 sec-e9z-create-new-key-for-va8-toyota-16 sec-e9z-create-new-key-for-va8-toyota-17 sec-e9z-create-new-key-for-va8-toyota-18



Year from 2014 -2019.

sec-e9z-create-new-key-for-va8-toyota-19



Tap “V” to search.

Continue…

sec-e9z-create-new-key-for-va8-toyota-20 sec-e9z-create-new-key-for-va8-toyota-21 sec-e9z-create-new-key-for-va8-toyota-22 sec-e9z-create-new-key-for-va8-toyota-23 sec-e9z-create-new-key-for-va8-toyota-24 sec-e9z-create-new-key-for-va8-toyota-25 sec-e9z-create-new-key-for-va8-toyota-26



I made above tutorial based on VA2 1049 but it must be based on VA2 1423 so I added some new pictures.

sec-e9z-create-new-key-for-va8-toyota-27 sec-e9z-create-new-key-for-va8-toyota-28 sec-e9z-create-new-key-for-va8-toyota-29 sec-e9z-create-new-key-for-va8-toyota-30



www.uobdii.com

How to Calibrate Tubular Key Clamp for SEC-E9 Key Cutting Machine

This instruction show you guide on how to calibrate tubular key clamp for SEC-E9 key cutting machine.And i wrote SEC-E9 dimple key clamp calibration before,check it here if you need: How to Calibrate SEC-E9 Dimple Key Clamp



SEC-E9 Tubular Key Clamp Calibration:

Install automobile key clamp on SEC-E9

Calibrate Tubular Key Clamp for SEC-E9 (1)

Insert two decoders into the machine

Calibrate Tubular Key Clamp for SEC-E9 (2) Calibrate Tubular Key Clamp for SEC-E9 (3)



Press “Setup” and “First step” button to enter the “clamp calibration” interface

Calibrate Tubular Key Clamp for SEC-E9 (4) Calibrate Tubular Key Clamp for SEC-E9 (5) Calibrate Tubular Key Clamp for SEC-E9 (6)



Prepare tip aligned laser key

Fix calibration block on the top level of clamp and pay attention to the postion

Calibrate Tubular Key Clamp for SEC-E9 (7)

Calibrate Tubular Key Clamp for SEC-E9 (8)



Click picture to continue

Calibrate Tubular Key Clamp for SEC-E9 (9)

Now SEC-E9 Key Cutting Machine will start to calibrate

Calibrate Tubular Key Clamp for SEC-E9 (10)

Then click the picture to continue

Calibrate Tubular Key Clamp for SEC-E9 (11) Calibrate Tubular Key Clamp for SEC-E9 (12)



Take out automobile key clamp

Calibrate Tubular Key Clamp for SEC-E9 (13)

Install tubular key clamp

Calibrate Tubular Key Clamp for SEC-E9 (14)

Press “Tubular key clamp”

Calibrate Tubular Key Clamp for SEC-E9 (15) Calibrate Tubular Key Clamp for SEC-E9 (16)



Back to press “Decoder” button and choose “Turbular key Clamp” to calibrate the decoder length

Calibrate Tubular Key Clamp for SEC-E9 (17) Calibrate Tubular Key Clamp for SEC-E9 (18)

Calibrate Tubular Key Clamp for SEC-E9 (19)



Remove the right decoder and insert a cutter

Calibrate Tubular Key Clamp for SEC-E9 (20) Calibrate Tubular Key Clamp for SEC-E9 (21) Calibrate Tubular Key Clamp for SEC-E9 (22)



Pres “Cutter” button and choose “Tubular key clamp” to calibrate the cutter length

Calibrate Tubular Key Clamp for SEC-E9 (23) Calibrate Tubular Key Clamp for SEC-E9 (24) Calibrate Tubular Key Clamp for SEC-E9 (25)



Calibrate tubular key clamp done!

http://www.uobdii.com/wholesale/sec-e9-cnc-automated-key-cutting-machine.html

How to Use SEC-E9 Cutting New Schlage Household Key

Schlage is a standard single sided household keys,SEC-E9 quick function of “Standard” can cut most standard keys in the market.You you can use “Standard” function to cut other standard household keys.

Before start,you should do calibration for #3 Jaw-Single Sided Key,to ensure the precision for the process of calibrating and cutting.

Power on SEC-E9 key machine,and select “Standard”

How to Use SEC-E9 Cutting New Schlage Household Key (1)

Press “S” to search “Schlage” in SEC-E9 database

How to Use SEC-E9 Cutting New Schlage Household Key (2)

Select “871 [5,6]”

How to Use SEC-E9 Cutting New Schlage Household Key (3)

Press “5”

How to Use SEC-E9 Cutting New Schlage Household Key (4)

Check original key and test on cylinder

How to Use SEC-E9 Cutting New Schlage Household Key (5)

Click “Decoder” to see the big picture instruction

How to Use SEC-E9 Cutting New Schlage Household Key (6) How to Use SEC-E9 Cutting New Schlage Household Key (7) How to Use SEC-E9 Cutting New Schlage Household Key (8)



Fix the original key correctly,then click the small picture to continue

How to Use SEC-E9 Cutting New Schlage Household Key (9) How to Use SEC-E9 Cutting New Schlage Household Key (10)



Click the image of “Single Sided Key Clamp”

How to Use SEC-E9 Cutting New Schlage Household Key (11)

SEC-E9 key cutting machine is now decoding the original key data

How to Use SEC-E9 Cutting New Schlage Household Key (12)

Press “Cut” to enter cutting page.Select “Nkl-silver” as speed

How to Use SEC-E9 Cutting New Schlage Household Key (13) How to Use SEC-E9 Cutting New Schlage Household Key (14) How to Use SEC-E9 Cutting New Schlage Household Key (15)



Fix a new blank key on #3 Jax-Single Sided Key Clam.

Please pay attention to the key position

How to Use SEC-E9 Cutting New Schlage Household Key (16)

Click the image of “Single Sided Key Clamp” to start cutting a new key.

Please remember to close the safe gate

How to Use SEC-E9 Cutting New Schlage Household Key (17)

Now SEC-E0 will start cutting work for Schlage key

How to Use SEC-E9 Cutting New Schlage Household Key (18) How to Use SEC-E9 Cutting New Schlage Household Key (19)



Cutting done!

Open the safe cover and clean the clamp & the new key.

Take out the new key

How to Use SEC-E9 Cutting New Schlage Household Key (19)

Test new key on cylinder

How to Use SEC-E9 Cutting New Schlage Household Key (21)

http://www.uobdii.com/wholesale/sec-e9-cnc-automated-key-cutting-machine.html

3 Ways to Get Auto Key Information with SEC-E9 Cutting Machine

In this instruction, key cutting machine blog will show the how to get car key information from SEC-E9 key cutting machine.

Key data can be gor by:

IC card

car model

key blank



in detail…



How to get key data by IC card on SEC-E9 key machine:

1 go to “search” on the home page

sec-e9-key-machine-enter-key-data-ic-card-1

2 press “KCode” and input the IC card you know, then “search”

sec-e9-key-machine-enter-key-data-ic-card-2

3 go to “Menu” and read “Info”

sec-e9-key-machine-enter-key-data-ic-card-3

4 check the data if they are what you want or not

sec-e9-key-machine-enter-key-data-ic-card-4



How to get key info by model on SEC-E9 machine:

1 go to “Automobiles”

sec-e9-key-machine-enter-key-data-model-1

2 select a car make – model – year

sec-e9-key-machine-enter-key-data-model-2 sec-e9-key-machine-enter-key-data-model-3 sec-e9-key-machine-enter-key-data-model-4



3 read key info

sec-e9-key-machine-enter-key-data-model-5



How to get key data by key blank on SEC-E9 key cutting machine

1 go to “Search”

sec-e9-key-machine-enter-key-data-key-blank-1

2 input the key blank, then search

sec-e9-key-machine-enter-key-data-key-blank-2

3 then you can get the key data

sec-e9-key-machine-enter-key-data-key-blank-3



How to cut the R.O.C key with New SEC-E9 Android Version

How to cut the R.O.C key using the tubular key clamp on SEC E9 key cutting machine Andriod version? Here is the step-by-step guide for you.

Press Tubular> “R” “R.O.C”

Click the image

Enter the key data

The original key can open cylinder

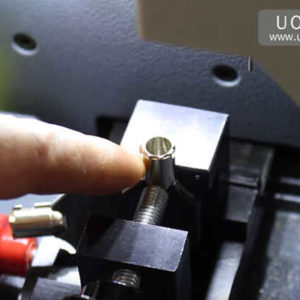

Put the original key into the tubular key clamp

Tighten the holder

Press “decode” button to start decoding original key and get the key numbers

Press “Cut” button

Take out the original key

Fix a new key blank at the clamp

Then tighten the holder

Press “cut” button to start cutting a new key, please remember to close the safe gate

Cutting is done, open the safe gate

Clean the clamp & the new key

Then take out the new key

The new key is working very well, amazing!

More SEC-E9 Test: http://blog.eobdtool.co.uk/tag/sec-e9/

How to Calibrate SEC-E9 Dimple Key Clamp

This instruction show you the guide on how to calibrate dimple key clamp for SEC-E9 Key cutting machine.



Procedurs:

Install automobile key clamp on SEC-E9

How to Calibrate SEC-E9 Dimple Key Clamp (1)

Insert two decoders into the machine

How to Calibrate SEC-E9 Dimple Key Clamp (2)

Press [Setup] and [First Step] button to enter the “clamp calibration” menu

How to Calibrate SEC-E9 Dimple Key Clamp (3) How to Calibrate SEC-E9 Dimple Key Clamp (4)

Press [Start] button to calibrate the distance between decoder and cutter.

How to Calibrate SEC-E9 Dimple Key Clamp (5)

Then it will prompt you to prepare tip aligned laser key

How to Calibrate SEC-E9 Dimple Key Clamp (6)

Fix calibration block on the top level of clamp and pay attention to the position

How to Calibrate SEC-E9 Dimple Key Clamp (7)

Press the screen to continue

How to Calibrate SEC-E9 Dimple Key Clamp (8) How to Calibrate SEC-E9 Dimple Key Clamp (9)

Change tool to decoder Reader?

Click the picture to continue,and wait…

How to Calibrate SEC-E9 Dimple Key Clamp (10) How to Calibrate SEC-E9 Dimple Key Clamp (11) How to Calibrate SEC-E9 Dimple Key Clamp (12)

Take out automobile key clamp

How to Calibrate SEC-E9 Dimple Key Clamp (13)

Install dimple key clamp on SEC-E9

How to Calibrate SEC-E9 Dimple Key Clamp (14)

Press [Dimple key clamp]

How to Calibrate SEC-E9 Dimple Key Clamp (15)

Fix calibration block on the top level of clamp and pay attention to the position

How to Calibrate SEC-E9 Dimple Key Clamp (16)

Click the picture to continue

How to Calibrate SEC-E9 Dimple Key Clamp (17) How to Calibrate SEC-E9 Dimple Key Clamp (18) How to Calibrate SEC-E9 Dimple Key Clamp (19)

Click “Back” button to enter the home page

How to Calibrate SEC-E9 Dimple Key Clamp (20)

Press [Setup]à[Decoder] button

How to Calibrate SEC-E9 Dimple Key Clamp (21)

Remove the two decoder and install a dimple decoder and dimple cutter

How to Calibrate SEC-E9 Dimple Key Clamp (22) How to Calibrate SEC-E9 Dimple Key Clamp (23) How How to Calibrate SEC-E9 Dimple Key Clamp (25)

Now the dimple decoder and dimple cutter have installed

How to Calibrate SEC-E9 Dimple Key Clamp (26)

Press [Dimple key clamp] button to start calibrate the decoder length

How to Calibrate SEC-E9 Dimple Key Clamp (27) How to Calibrate SEC-E9 Dimple Key Clamp (28)

Press [Cutter] button

How to Calibrate SEC-E9 Dimple Key Clamp (29)

Then press [Dimple key clamp] button to calibrate the cutter length

How to Calibrate SEC-E9 Dimple Key Clamp (30) How to Calibrate SEC-E9 Dimple Key Clamp (31)

Done!
