TJECU CN900 Mini: How-to instructions, update, comparison (all here)

  1. Update:

CN900 Mini V5.18 Update:
TJECU MINI900 TOYOKEY OBD is newly confirmed to be able to write Toyota Smart card via OBD, it supports 3370-5290-A433-F433 types.
(Update notice: TJECU next update plan is to initialize Toyota 0020 type of 8A smart card with all key lost)

CN900 Mini 6 languages available:

Arabic, Portuguese, Japanese, Turkish, Russian, Spanish

cn900 mini language

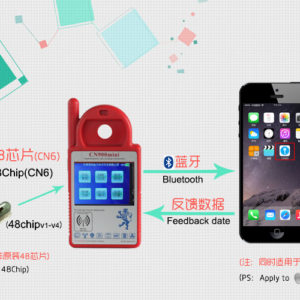

CN900 mini will update to copy 48 chip

CN900 mini copy 48 chip

  1. CN900MINI UPDATE DOWNLOAD

http://www.cn900.net/software/



  1. How-to instructions:

How to: TJECU ND900 Mini & TOYO key adapter Program Toyota G H chip All key lost

How to renew/ virgin used Toyota smart key by CN900 MINI?

ND900 mini clear 4D 71 chip to re-match Toyota Lexus smart key

How to copy BMW F800GS Motorcycle ID46 key by CN900 MINI?

CN900 MINI copy Mitsubishi Lancer ID46 key

CN900 Mini 1.22.2.15 writes 4C success with new CN1

Top 5 working Toyota G chip copy machines available at uobdii.com

How to register TOYO KEY OBD II?



  1. Video instructions:
  1. Video instructions:

ND900 CN900 Mini & TOYO OBDII Program Toyota 72G All Key Lost

https://www.youtube.com/embed/KQovUF2uqtk



ND900 Mini & TOYO OBDII Program Toyota G chip All key lost:

https://www.youtube.com/embed/z2m4_gI4g8Y

  1. Comparison:

Mini CN900 and MINI ND900, which one is not original from TJECU Company?

Clone car keys, HANDY BABY CBAY OR CN900 MINI?

How to program key on Toyota G chip all lost by Mini900 TOYOKEY Bluetooth?

With one Mini900 (ND900mini) and TJECU TOYOKEY Bluetooth adapter, you can program new key when Toyota G chip all lost..

With one Mini900 (ND900mini) and TJECU TOYOKEY Bluetooth adapter, you can program new key when Toyota G chip all lost..

mini900-TJECU-01

Steps:

Step 1: insert TOYOKEY into the Toyota OBDII diagnostic socket, and it will communicate with mini900 (ND900mini) by Bluetooth connection.

insert-toyot-key-obdii-02

Step 2: Turn on TJECU mini900 and click “OBDII Comm” on the function menu.

mini900-click-obdii-comm-03

Step 3: Select the option “id72(g) immo reset”.

click-id72(g)-immo-reset-04

Step 4: It displays “1. Please insert the key into the ignition switch, and then turn it to ON. 2. Please insert TOYOKEY to the OBDII. “, please do as the prompt, then back to the screen of Mini900click and click on “OK”;  then it displays “searching toyo key” then another “Connected TOYOKEY”, finally pull the key out of the ignition switch.

instruction-05 insert-key-06

click-ok-07 connected-toyokey-09

Step 5: insert the key into the ignition switch, then after connected TOYOKEY, pull the key out of the ignition switch.

Step 6: One more time, insert the key into the ignition switch, then after connected TOYOKEY, pull the key out of the ignition switch.

Done

You could add more than one piece of key; I add the second and the third key successfully.

the-second-key-12 the-third-key-13

Here is video guide:

Mini CN900 and MINI ND900, which one is not original from TJECU Company?

Good news, MINI ND900 (or MINI900) accept booking at www.uobdii.com at a nice price 185USD. Accordingly, some diyers and locksmiths asked a same question “MINI CN900 and MINI ND900…

Good news, MINI ND900 (or MINI900) accept booking at www.uobdii.com at a nice price 185USD. Accordingly, some diyers and locksmiths asked a same question “MINI CN900 and MINI ND900, which one is not original from TJECU Company? “ the answer is both MINI CN900 and MINI ND900 are both original TJECU tool.

They differ from each other in following two points:

  1. MINI ND900 and MINI ND900 are distributed to different dealers, so they have different outlook.

PS: please note the JTECU logo is marked on the front side.

This is mini CN900:

mini-cn900-key-programmer-7

This is MINI ND900:

nd900-mini-key-programmer-7

  1. They both can update online but on different site.

Their update file differs from each others.

Mini CN900 official site: www.cn900.net

Mini ND900 official site: www.mini900.cn

They are the same in the following points:

  1. Built with same firmware V1.13, same PCB.

cn900-mini-and-nd900-mini-pcb

  1. Both mini CN900 and MINI ND900 can copy 11/12/13/33/T5/4C/4D/42/46/48/72G chip.
  2. USB2.0, Bluetooth4.0
  3. GSM/GPRS SIM
  4. Support same frequency 850/900/1800/1900MHZ

RFID identifly 125KHZ  134.2KHZ  13MHZ

RF data reception 27-900MHZ

RF radio frequency identification,support all kinds of remote controls

RF Data transmission, supports all kinds of remote control simulation test

  1. Update online and have same update procedure, procedures as bellow.

1) Browse CN900 MINI/ ND900 official site, register & login and then download the update file.

2) Delete the older update file.

3) Open the newest update V1.9 setup.exe.

4) Click on the “Update” button.

5) The firmware main module is updating. Wait until it complete.

cn900-mini-v1-3-1

Using MINI ND900 Key Programmer Copy Nissan March 46 chip

This blog is written to share a successful experience of using MINI ND900 to program key for my Nissan March 2015.

This blog is written to share a successful experience of using MINI ND900 to program key for my Nissan March 2015.



With the recommendation of my best friend, a car enthusiast, a few days ago I bought the MINI ND900 Transponder Key Programmer online, just wanted to have a try as a DIYer because it was not so expensive.

nd900-mini-copy-nissan-chip46-1



And this morning I use this ND900 to copy my Nissan March 46chip, I will show the detailed steps below:

My car is Nissan March 2015

Tool I used: MINI ND900 Key Programmer

Firstly, I put the original ID46 transponder key into the slot of Mini ND900 (Remind: don’t move the key). After that it showed Identifying Models.

nd900-mini-copy-nissan-chip46-2 nd900-mini-copy-nissan-chip46-3



Secondly, I clicked “COPY”. It asked me to insert the original key, yes, I clicked “OK”.

nd900-mini-copy-nissan-chip46-4 nd900-mini-copy-nissan-chip46-5



Thirdly, it asked me to insert TPX3/4 to copy. I put the new ID46 chip into the slot of Mini ND900 and clicked “OK”.

nd900-mini-copy-nissan-chip46-6

Then, it showed me success. Click “OK” to exit.

nd900-mini-copy-nissan-chip46-7

At last, I put the copied ID46 chip into a new transponder key, and I inserted the new key to turn ignition on, it worked well!

nd900-mini-copy-nissan-chip46-8

Now I own 2 transponder keys for my Nissan March 2015.

nd900-mini-copy-nissan-chip46-9

The whole process only takes a few minutes, very easy to operate!

Save

Save

ND900 mini clear 4D 71 chip to re-match Toyota Lexus smart key

This is how to clear Toyota Lexus 4D 71 chip original data using ND900 mini key programmer, to re-match the smart key to the car.

This is how to clear Toyota Lexus 4D 71 chip original data using ND900 mini key programmer, to re-match the smart key to the car.



4D-71 Chip:

toyota-71-chip-smart-key

4D-71 Chip for Toyata/Lexus Smart Key

P1 Data: 34, 54, 74, 94, B4



Smart keys compatible:

toyota-4d71-chip-nd900-mini-(1)



Why need to erase the chip?

Erase the original data so that it can be re-matched to the car

reason-for-chip-erasing



How to clear Toyota 4D-71 Chip using ND900 mini key programmer?

Put the chip into the transponder area

toyota-4d71-chip-nd900-mini-(2) toyota-4d71-chip-nd900-mini-(3)



Select SPECIAL

toyota-4d71-chip-nd900-mini-(4) toyota-4d71-chip-nd900-mini-(5)



Then SMART KEY

toyota-4d71-chip-nd900-mini-(6)

Then CLEAR BYTE

toyota-4d71-chip-nd900-mini-(7)

Confirm the chip ID, then clear it

toyota-4d71-chip-nd900-mini-(8)

Don’t remove the chip when clearing byte

toyota-4d71-chip-nd900-mini-(9)

ND900 mini transponder clear 71 chip success!

toyota-4d71-chip-nd900-mini-(10)

toyota-4d71-chip-nd900-mini-(11)

Save

Save

How to Use VVDI2 and ND900 Generate Buick Enclave Special Chip?

This post is about how to use Xhorse VVDI2 key programmer to generate special chip for Buick Enclave, and ND900 clone machine is used to recognize car key type.

Tools to use:

ND900 clone machine- used to recognize key type.

VVDI2 key programmer by Xhorse – used to generage special chip.

One original key and one new key

Step-by-step operate instruction:

This is Buick Enclave car.

Buick Enclave-01

See following picture, the left on in the hand is car owner’s original key, and the right one is the key that is programmed.

Just now a peer put a common 46 chip into the key and then program without success, actually, it is special chip.

original key and key made-02

Next, I will use VVDI2 key programmer by Xhorse to generate special chip.

Firstly, insert the key with common 46 chip into the coil of ND900, the chip type is recognized as “46 brand new unused”, see picture as follows.

46chip-03

Now I use VVDI2 to generate it as special chip.

Open VVDI2 Quick Starter, click on icon “Key Chip programming”.

vvdi2 key programmer function-04

Click “Generate Special Chip”, select “ID46 Chevry Circle Plus – PCF7936”, click “Generate”, special chip is generated

succefully, confirm it.

PCF7936-05

Agian put the key with special chip into the coil of ND900, the chip type is recognized as “Encrypted 46, brand new unused, encrypted mode”



encrypted 46-06

Next is to get on the car and program key manually.

Firstly, insert original key into ignition, turn on, wait till the immobilizer light off.

Then, insert the new key into ignition, turn on, wait till the immobilizer light off. Then the new key can start the car.

After the key is tested working, again put the new key into the coil of ND900, you will find “brand new unused” after “Encrypted 46” disappear.

finally-07

Done!

Wish it helps!
