How to Use OBDSTAR X300 DP Read PIN Code on Hyundai Kia

Before reading out the security code of Hyundai Kia (46 smart chip) using obdstar X300 DP pad, you have to firstly read out the 12 digits code using JMD ND900 or CN900 Mini.

Before reading out the security code of Hyundai Kia (46 smart chip) using obdstar X300 DP pad, you have to firstly read out the 12 digits code using JMD ND900 or CN900 Mini.



Guide:

Part 1. How to use JMD ND900 mini / CN900 Mini read out the 12 digits code of Hyundai Kia (46 smart chip)?

Mini900 / CN900 mini reads out the 12 digits code for the following 2 types of models:

  1. the model with card slot;
  2. the model with one-key start.



1) Procedure on how to read the 12 digits code on the model with card slot(shown as picture I):

Remove the card slot shell first (shown as picture II), because MINI900 cannot receive the vehicle signal directly for the limitation of card slot design. If the first time failed, please repeat for several times.

nd900-mini-reads-out-12digits-code-of-46-smart-chip-01

(Picture I)

nd900-mini-reads-out-12digits-code-of-46-smart-chip-02

(Picture 2)

2). Procedure on how to read out the 12 digits code on the model with one-key start:

Directly read the 12 digits code with the MINI900 device put close to the start button. Shown as below.

nd900-mini-reads-out-12digits-code-of-46-smart-chip-03



Notice: When reading 12 digits code of the smart card, please remove the battery and then operate as above.



Finally, the 12 digits code is read out and display on the screen, the last two digits in the P2 row + all digits in the P1 row are the 12digits code, that is 63 4B 69 4D 82 52. Shown as below.

nd900-mini-reads-out-12digits-code-of-46-smart-chip-04



Par 2. Use obdstar X300 DP Pad to read the security code of Hyundai Kia (46 smart chip).

1). Select the vehicle model and the latest software version.

obdstar-x300-dp-reads-security-code-of-46-smart-chip-05

2). Select “Read PinCode” option.

obdstar-x300-dp-reads-security-code-of-46-smart-chip-06

3). Select “Read PinCode(46 Smart Card)”.

obdstar-x300-dp-reads-security-code-of-46-smart-chip-07

4) Enter the 12 digits code acquired by MINI900 / CN900 mini.

 obdstar-x300-dp-reads-security-code-of-46-smart-chip-08

5) Confirm the value is correct.

obdstar-x300-dp-reads-security-code-of-46-smart-chip-09



6). Read the security code successfully.

obdstar-x300-dp-reads-security-code-of-46-smart-chip-10



Done.

It’s nice!!!

http://www.uobdii.com

Volvo Key Programmer,Which is Highly Recommend?

There are top 3 Volvo key programmers which covers all Volvos that Tango & tmpro2 don’t cover, they are: OBDSTAR X300 DP, OBDSTAR X300 Pro3 and Lonsdor K518ISE etc.

There are top 3 Volvo key programmers which covers all Volvos that Tango & tmpro2 don’t cover, they are: OBDSTAR X300 DP, OBDSTAR X300 Pro3 and Lonsdor K518ISE etc.

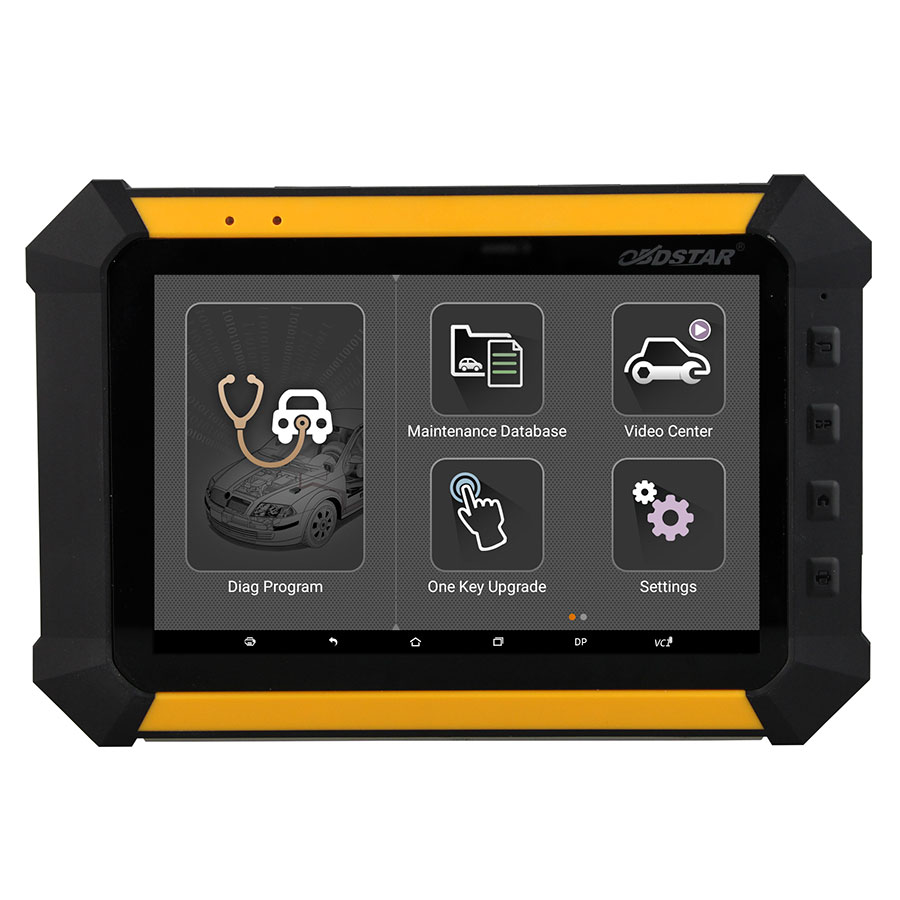

OBDSTAR X300 DP & OBDSTAR X300 Pro3 on Volvo IMMO

OBDSTAR X300 DP or X300 Pro3 support Volvo Semi smart key programming all keys lost and add keys, and no need to disassemble CEM / KVM.

OBDSTAR Volvo IMMO list:

S60 (2011 – 2017)

S80 (2009 -2016)

V40 (2012 – 2017)

V60 (2011 -2016)

V70 (2009 -2016)

X C60 (2009-2017)

XC70(2007-2016)

Keep updating……

obdstar volvo immo update



Reliable source of OBDSTAR X300 DP / X300 Pro3 with Volvo IMMO functions:

OBDSTAR X300 DP full package: free to upgrade Volvo IMMO function

OBDSTAR X300 DP standard package: pay 60USD to upgrade Volvo IMMO function

OBDSTA X300 Pro3 full package: pay 60USD to upgrade Volvo IMMO function

OBDSTA X300 Pro3 standard package: pay 60USD to upgrade Volvo IMMO function



OBDSTAR X300 DP IMMO & remote vehicle coverage & OBDSTAR X300 PRO3 IMMO & remote vehicle coverage:

visit http://en.obdstar.com/ then “Carlist” -> “Function List”-> “Immobilizer”, then click the specific car model to have details.

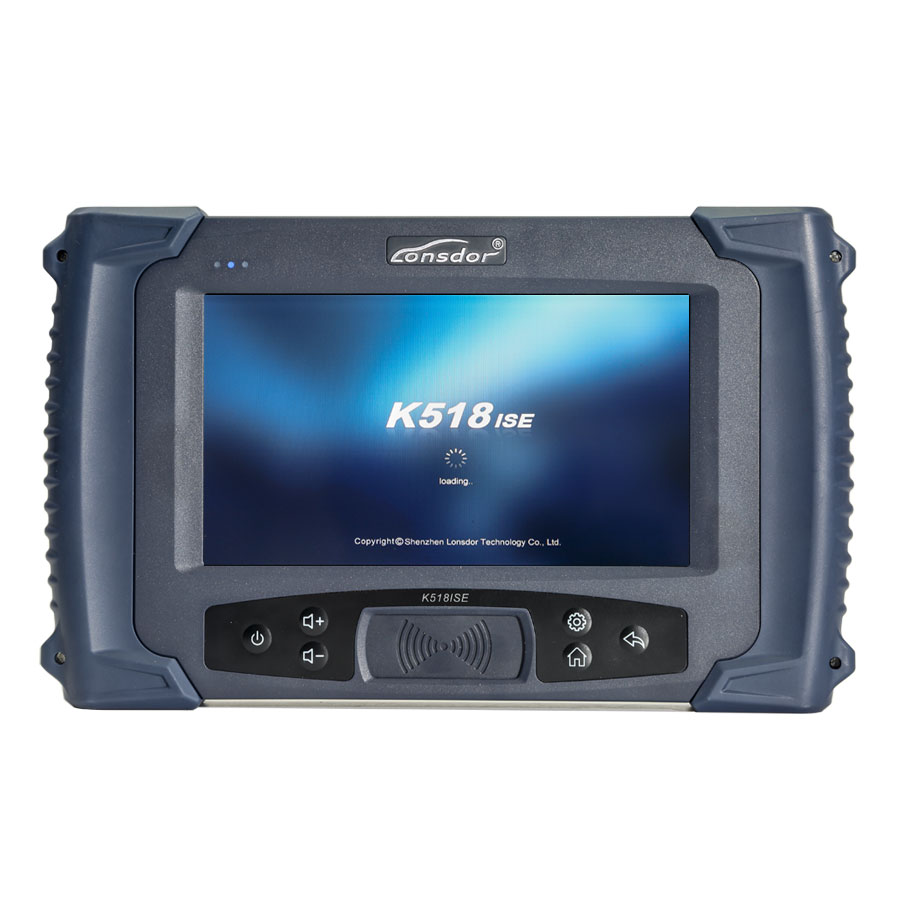

Lonsdor K518ISE Programmer

Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming best choice is Lonsdor K518ISE.

 lonsdor-k518ise



Lonsdor K518ISE Volvo Coverage:

Series     Origin     Year     Fuel Type     Function

S60        Other      Other    Other         Proximity Key[insert key to start]

S60        Other      Other    Other         Smart Key[one-button start]

S80        Other      09-      Other         Smart Key[one-button start]

XC60       Other      09-      Other         Smart Key[one-button start]

S80        Other      09-      Other         Proximity Key[insert key to start]

XC60       Other      09-      Other         Proximity Key[insert key to start]

S40        Other      Other    Other         Smart Key

S40        Other      Other    Other         Key Programming

S80        Other      -09      Other         Proximity Key[insert key to start]

V40        Other      Other    Other         Proximity Key[insert key to start]

C30        Other      Other    Other         Key Programming

C30        Other      Other    Other         Smart Key

V40        Other      Other    Other         Smart Key[one-button start]

S80        Other      -09      Other         Smart Key[one-button start]

V60        Other      Other    Other         Proximity Key[insert key to start]

V60        Other      Other    Other         Smart Key[one-button start]

XC60       Other      -09      Other         Proximity Key[insert key to start]

XC60       Other      -09      Other         Smart Key[one-button start]

XC90       Other      Other    Other         Flip Key

C70        Other      Other    Other         Key Programming

C70        Other      Other    Other         Smart Key

V70        Other      09-      Other         Proximity Key[insert key to start]

V70        Other      09-      Other         Smart Key[one-button start]



Lonsdor K518ISE real test results:

Lonsdor K518ISE-Volvo S60 Smart Key-half-keyless

Lonsdor K518ISE program Volvo XC60 smart key via OBD

Lonsdor K518ISE program Volvo S40 key and remote key



Lonsdor K518ISE key programmer car list

Lonsdor K518ISE mileage correction car list

For newest car list, better visit the official site: http://en.lonsdor.com/



Update:

Update firmware & software on official site: http://en.lonsdor.com/.



To sum up:

Both Lonsdor K518ISE and OBDSTAR can work on Volvo IMMO & remote.

Lonsdor K518ISE work out Volvo key programming for half an year, and OBDSTAR is newly updated.



Lonsdor K518ISE is more expensive than OBDSTAR, while they have a different vehicle coverage (see the car list details), for which one to go for, it depends on what more car brands you want to work with.

VW Amarok Odometer Correction 2711 check fail by OBDSTAR X300 DP

Several days ago,one of obdstar tool customers sent e-mail to ask how to correct odometer for VW Odometer.And he get into trouble of “2711 check fail!” when correcting odometer for VW Amarok by OBDSTAR X300 DP .

Customer:

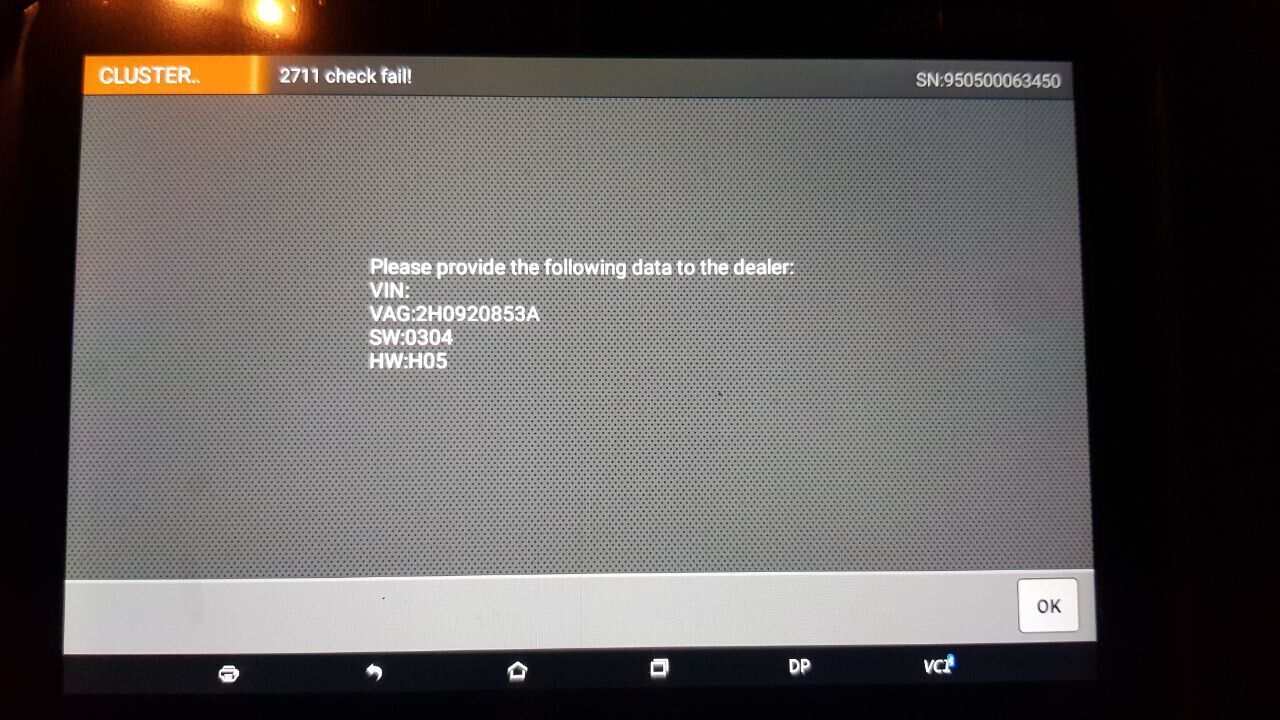

I tried doing mileage adjustment on the VW Amarok, however it gives me the error as in the picture

Solution:VW Amarok Odometer Correction 2711 check fail

Here obdstartool engineers share the method to solve this problem.

Solution:

If you ever wonder, to adjust the VW Amarok Odo, you need to choose Golf, NEC+24C64, then VDO-12 and it will complete change.

OBDSTAR Tech Advice:

For VW mileage correction, engineer said it depends on cluster model more than the car model

More support,pls contact:

http://www.obdstartool.com

AutoProPad vs Obdstar X300 DP

Found an interesting discussion in a Facebook group. Copied here for all. Hope it helps.

Found an interesting discussion in a Facebook group. Copied here for all. Hope it helps.

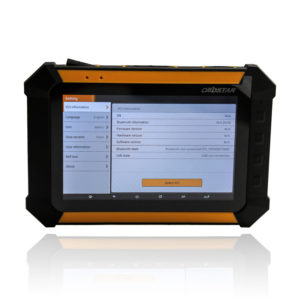

OBDSTAR DP PAD

Bid thanks to Kin Lee and Andrew Cuillo



Topic: AutoProPad and Obdstar X300 DP key master, which one should you have?



Kin Lee: That AutoProPad’s the same platform as X-100 Pad 2 & double the cost, after 1st year will cost $900 a year where OBDSTAR’s only $170 a year for updates. Anytime a USA company takes over expect the price to pay much more with promises of good things to come, but will it come?



Andrew Cuillo: I have had autopropad and I haven’t had any problems they have tech support in us and team helping the us market add more cars nissan Smart keys are super quick



Kin Lee: Plus I seen AutoProPad do a 5 into 4 pin Nissan system & you need to read BCM write it down then enter it manually back into it then it’ll gave old & new pin where’s ODBSTAR does all this with 1 push



Andrew Cuillo: did u know the person who made ikey used to work for xtool



Andrew Cuillo: This is nissan



Kin Lee: ok used too so he no longer does



Kin Lee: what’s that pic of Toy or Nissan 20 pin?



Andrew Cuillo: Nissan Smart keys 4digit pin

Unlocks goes into programming just insert key and done



Kin Lee: every good Chinese tool does Nissan 20 pin Smart keys super fast & IKEY does it the fastest I ever used



Andrew Cuillo: And autopropad can do some bmws too



Kin Lee: http://obd2-diag.blogspot.com/2018/02/obdstar-x300-dp-bmw-fembdc-key.html

OBDSTAR X300 DP BMW FEM/BDC smart key…



Andrew Cuillo: here is our group for it

https://m.facebook.com/groups/110842182807563

AutoProPAD USA-(AutoProPad-LITE)



Kin Lee: what you doing after the 1st year? Paying $900?



Andrew Cuillo: $1000 a year



Kin Lee: http://www.lockpicks.com/…/autopropad-1-year-updates…/



AutoProPAD 1 Year Updates & Support Subscription -by XTool



Kin Lee: $1000



Kin Lee: I just read Ray-Ray said $900 in a group



Andrew Cuillo: yes they give u one year for free Carey at American Key is the master distributor



Kin Lee: I know the 1st year is free with every tool & I’m talking about after that!



Andrew Cuillo: $1000 a year

Amanda has one



Kin Lee: that’s my point!! $1k after the 1st year OBDSTAR’s only $170, it’s just like Launch charges $900 after the 1st year & MyTab’s only $150



Kin Lee: I think your missing my point here, AutoProPad cost $2700 to buy & $1k after the 1st year, X300 DP cost $800 to buy & cost $170 the next year, so tell me how much better does $2700 get you in 2 years?



Kin Lee: And in 2 years X300 DP is still have faster CPU, bigger RAM, long lasting battery and higher resolution.



Andrew Cuillo: Kin Lee I see what your saying I got mine in the beginning for $1800 when there is something wrong I have someone to call and get the software fixed if there is a problem



Kin Lee: on top of all that OBDSTAR’s leading the way on VAG’s right now, look at their OBDSTAR H110 I added a key to an 10 A6 in under 2 min as well as a 16 Jetta, can Autopropad do that too?



Andrew Cuillo: I know the other one is cheaper and faster I haven’t tried it yet maybe my next programmer will be x300 dp



Kin Lee: I’m looking for my next tablet to buy & all my research is pointing to OBDSTAR



Kin Lee: If I wanted a high dollar tablet that claims to be the best but running on a old platform I would have waiting a few more months & traded in my MVP for the Dumb Pro!



Kin Lee: The bottom line’s no 1 tool will ever do it all & I’m always looking for the best BANG for the $$, so I don’t mind having multi tools to get the jobs done without spending a lot & I’m pretty good @ that!!



Kin Lee: I just saved over $200 a years on auto insurance & got much more coverage from $25k/$50k to $100k/$300k & renters insurance for less $$ & I now pay $30 less a month with lots more coverage!! This is what I’m talking about paying more don’t always get you more in life!!

OBDSTAR X300 DP PAP BMW FEM BDC Programming Function Update

Breaking news!

OBDSTAR X300 DP Pad tablet standard package & full version package update: : BMW FEM BDC key programming is tested working great.

BMW FEM/BDC  Key Programming

Function:

BMW FEM/BDC

1.Key Programming

  • Key Information
  • Key Programming Preprocessing

Step 1: Code data backup

Step 2: EEPROM Original Data Backup

Step3: Service Mode Data Generation

Step 4:Service Mode Writing

Step 5: FEM/BDC Module Programming

Step 6: EEPROM Original Data Recovering

Step 7: Code Data Recovering

  • Key Adding
  • Key Delecting
  • Function Introduction
  • Operation Guide
  1. Other Function
  • Key enable
  • Key disable
  • Key status
  • Key frequency
  • INS reading
  • DTC reading
  • DTC delecting



BMW FEM/BDC key Programming Supported list:

Series Chassis Year

1 F20/F21 2011-2017

2 F22/F23/F45/F46 2014-2017

3/GT F34/F35 2012-2017

4 F30/F31/F32/F33/F36 2014-2017

X5 F15 2014-2017

X6 F16 2014-2017

BMW FEM/BDC key programming update applies to the original OBDSTAR X300 DP Pad tablet. Now just to update to the newest version by following this update instruction.

www.uobdii.com

OBDSTAR X300 DP PAD All Key Lost Programming for FORD Everset 2015

Guide on how to program FORD Everset 2015 all keys lost with OBDSTAR X300 DP PAD. It is very simple to operate.

Guide on how to program FORD Everset 2015 all keys lost with OBDSTAR X300 DP PAD. It is very simple to operate.



Tools to prepare:

2 orginal new keys

1 OBDSTAR X300 DP

Guide on how to program FORD Everset 2015 all keys lost with OBDSTAR X300 DP PAD. It is very simple to operate. Tools to prepare: 2 orginal new keys 1 OBDSTAR X300 DP 图1 Procedure: 1. Use the two keys to try to turn on the ignition, they are blank new one. 2. Open X300 DP PAD, go to option: Immobilizer Ford 图2 Immobilizer 图3 Select car model and year 图 5 6 7 2015- 图8 Type 1 图9 All keys lost 图10 Confugring the systerm, please wait... 图11 Switch ignition off 12 Press Emergency flasher switch 13 Open the driver door 14 Then close the driver door. Confugring the systerm, please wait... 15 You have to complete the following procedure, engine can be started: 1. Switch ignition off. 2. Switch ignition on with key 1 or 3 second and then switch off and remove the key. 3. Switch ignition on with key 2 or 3 second and then switch off and remove the key. 4. If you want to add more keys, please repeat procedure 3. complete. 16 FORD Everset 2015 all keys lost key programming done with BDSTAR X300 DP PAD. Tehch support by obdstar engineers. Have original obdstar X300 DP PAD on the authorized dealer www.uobdii.com. Tip: the following pictures are green Key Master DP, actually it is as the same as X300 DP PAD, the only difference is the outlook.



Procedure:

  1. Use the two keys to try to turn on the ignition, they are blank new one.
  2. Open X300 DP PAD, go to option:

Immobilizer



Ford

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-02

Immobilizer

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-02

Select car model and year

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-05 ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-06 ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-07

2015-

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-08

Type 1

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-09

All keys lost

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-10

Confugring the systerm, please wait…

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-11

Switch ignition off

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-12

Press Emergency flasher switch

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-13

Open the driver door

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-14

Then close the driver door.

Confugring the systerm, please wait…

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-15

You have to complete the following procedure, engine can be started:

  1. Switch ignition off.
  2. Switch ignition on with key 1 or 3 second and then switch off and remove the key.
  3. Switch ignition on with key 2 or 3 second and then switch off and remove the key.
  4. If you want to add more keys, please repeat procedure 3. complete.

ford-everset-2015-all-keys-lost-key-programming-with-obdstar-x300-dp-pad-16

FORD Everset 2015 all keys lost key programming done with BDSTAR X300 DP PAD.



Tehch support by obdstar engineers.

Have original obdstar X300 DP PAD on the authorized dealer www.uobdii.com.

Tip: the following pictures are green Key Master DP, actually it is as the same as X300 DP PAD, the only difference is the outlook.

OBDSTAR Program All Key Lost for Toyota H Chip via OBDII

Recently,OBDSTAR company launch the G chip & H chip(American type and Middle East) all key lost function on OBDSTAR X300 Key Master and X300 DP PAD.Here I show this mini guide on how to use OBDSTAR X300 Key Master to perform key programming for Toyota H chip all key lost.



Note:I put the UOBD2 Official Youtube video operation at end of article,you would better to watch the video for more details.



Procedures of Toyota H chip all key lost programming:

Toyota H Chip All Key Lost Programming (11)

Connect the OBDSATR X300 Key master to vehicle by OBD port.

Enter the menu to select “IMMOBILIZER”

Select “TOYOTA/SCION/LEXUS”

Toyota H Chip All Key Lost Programming (1)

Select “TOYOTA/SCION/LEXUS V31.27”

Toyota H Chip All Key Lost Programming (2)

Loading…

Initializing…

Authorizing…

Select “Immobilizer”

Toyota H Chip All Key Lost Programming (3)

Select “Type 3(With H 8A/8E)”

Toyota H Chip All Key Lost Programming (4)

Select “USA”

Toyota H Chip All Key Lost Programming (5)

Select “Reset immobiliser(All keys lost)”

Toyota H Chip All Key Lost Programming (6)

Then follow the software prompt to operate.

Prompt “Please make sure that the door stays open during the matching process”

Toyota H Chip All Key Lost Programming (7)

Switch ignition off

Toyota H Chip All Key Lost Programming (8)

Switch ignition on

Toyota H Chip All Key Lost Programming (9)

Communicating

Switch ignition off and remove the key

Toyota H Chip All Key Lost Programming (10)

Configuring the system,please wait…

Switch ignition on

Configuring the system,please wait…

Switch ignition off and remove the key

IMMO light off

Toyota H Chip All Key Lost Programming (12)

Toyota H chip all key lost video guide:

Is Lonsdor k518ISE better coverage than obdstar X300 DP (key master DP)?

Lonsdor k518ISE differs from obdstar X300 DP (key master DP) in vehicle coverage and price.



  1. vehicle coverage

obdstar X300 DP (key master DP) feedback: I have the Key Master and its Ok works 50% of the time and the rest it fails to communicate.

Lonsdor K518ISE Key programmer vehicle coverage has no feedback yet, this one looks interesting but only time will tell. From what you’ve read, you will find this Lonsdor k518ISE is a little better than AVDI for a lot less the money. It is also twice the money of OBDStar X300 DP and Xtool tablets.

It claims to work on Volvo, LR, BMW FEM and CAS4, VAG IMMO5, etc…

There are some videos on the most used European cars from Ford, PSA, Fiat, Opel, VAG, Renault…as well as American cars, Asian cars etc, judging from CI600 reputation K518ISE should work.

Lonsdor K518ISE video channel:

https://www.youtube.com/playlist?list=PL1esLdNj9gcmUi_U-DYpZVaRU_ChhdA68

  1. Price

obdstar X300 DP (key master DP) price: more than $800 and less than $900 (google search you will find)

Lonsdor K518ISE Key programmer price: about $1200 for the first batch of 500pcs.

obdstar-x300dp-vs-lonsdor-k518ise

Conclusion:

So if you want to cover more cars you should choose between k518ise.

OBDStar doesn’t seem to offer an adequate alternative for the Android tablet products.

Toyota Corolla LE 2005 key program when all keys are lost

Topic: Toyota Corolla LE 2005 key program when all keys are lost

Vin : INXBR32E35Z373232

It’s an 2005 model year.

Where can I locate immobiliser?
What is the transponder ID chip type?

Please help to program. Thanks

Good tip:  Transponder info is stored in the key ecu which relays information to the ecm.
it’s behind the dash.

Reply 1: you need Toyota techstream or mastertech Toyota tool to do all keys lost but you will need a seed code, have had some luck with launch to reset without seed code on those older ones.

Reply 2: There are many ways todo it that model year. Get the key ecu out and read the prom. Install a new key ecu. Buy a cheap programming device via many Chinese websites. Toyota Techstream and the list may go on.

Reply 3: Can successfully programmed with Autel maxidas 708

Reply 4: I have success with OBDSTAR X300 DP on Toyota Corolla 2010 G Chip. Maybe you can have a try.

EIDT: I checked the menu this morning, your Collora ‘2005 is listed

Upload pictures here:

Connect OBDSTAR X300 DP key Master via OBD:
Select IMMOBILIZER

obdstar-x300-dp-toyota-corolla-1
Select Toyota

obdstar-x300-dp-toyota-corolla-2
Select Toyota/Scion/Lexus V31.11
Select from vehicle, press OK

obdstar-x300-dp-toyota-corolla-3
Select vehicle make: Toyota

obdstar-x300-dp-toyota-corolla-4
Select Toyota Region, for example Asia

obdstar-x300-dp-toyota-corolla-5
Select Toyota model: Corolla

obdstar-x300-dp-toyota-corolla-6
Select model year:2010-

obdstar-x300-dp-toyota-corolla-7
Select Immobiliser

Select key chip type: Type 1(With G 72)
Select function: Reset immobiliser (All keys lost)

obdstar-x300-dp-toyota-corolla-9
Switch ignition off
Switch ignition on
Switch ignition off and remove the key
Switch ignition on
Switch ignition off and remove the key

The system pops up the tutorial of key programming with X300 DP Obdstar:

obdstar-x300-dp-toyota-corolla-10
“program keys as the following steps within 120 seconds:

A: program 2 master keys and 1 sub key

1- program the first master key, turn on the ignition and wait for 5 seconds

2- insert the second master key, turn on the ignition switch and wait for 5 seconds

3- insert the third sub key, turn on the ignition switch and wait for 5 seconds. The security light turns off and programming is finished.

B: program 1 master key (here, we should follow this guide)

1- insert the first master key, turn ignition on and wait for 5 seconds”

2- insert the second sub key, turn on the ignition switch and wait for 5 seconds

3- turn on the ignition switch quickly for 5 times. The security light turns off and programming is finished.

C: program 1 master key:

1- insert the master key, turn on the ignition switch and wait for 5 seconds

2- turn on the ignition switch quickly for 5 times. The security light turns off and programming is finished.”
