SKP1000 key programmer sales for $499 last 100 pieces

SKP1000 key programmer on sale for $499 last 100pcs of the first batch of 500 pieces.After the left 100pcs sell out, the price will rise up.

SKP1000 key programmer on sale for $499 last 100pcs of the first batch of 500 pieces.

After the left 100pcs sell out, the price will rise up.

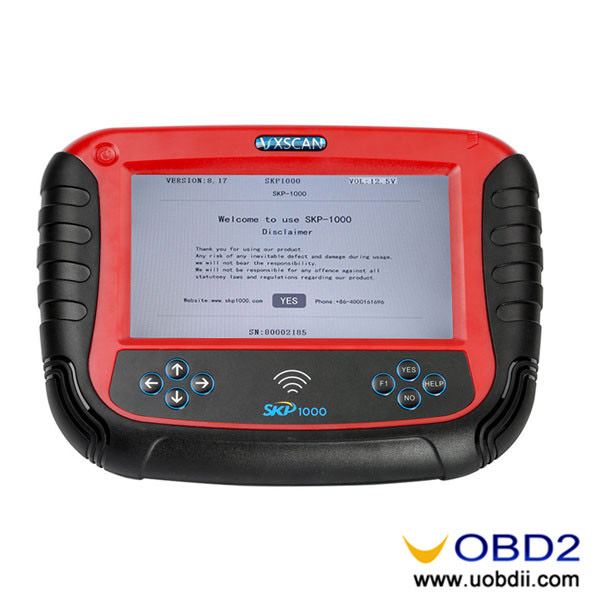

skp1000-tablet-auto-key-programmer-1.3

Source: http://www.uobdii.com/wholesale/skp1000-tablet-auto-key-programmer.html

New to SKP1000 key programmer?

I think you won’t miss learning details of SKP1000 key pro including user manual, update, review in words and video.

1) SKP1000 key programmer user manual incl. firmware update & software update, immobilizer car list, settings, etc.

Watch Youtube Video:

2) SKP1000 Key Programmer Video Demo

3) SKP1000 key programmer blog (all include)

https://skp1000-programmer.blogspot.com/

Tips of SKP1000 program 2013 Maserati Gran Turismo smart key

Used SKP1000 key programmer to program 2013 Maserati Gran Turismo smart key, at first the new key can start the car but the remote fail to open the door.

Finally, I found the reason and it worked great.

It’s not a long story, hope it helps.



Go on with the above-mentioned problem, after that I tried to enter “Remote System”, tap “Maserati” but received prompt “Connection fail”.

Screenshots helps a lot to understand what I say.

skp1000-program-2013-Maserati-gran-turismo-smart-key-01 skp1000-program-2013-Maserati-gran-turismo-smart-key-02 skp1000-program-2013-Maserati-gran-turismo-smart-key-03 skp1000-program-2013-Maserati-gran-turismo-smart-key-04 skp1000-program-2013-Maserati-gran-turismo-smart-key-05 skp1000-program-2013-Maserati-gran-turismo-smart-key-06

With a new key to turn.

skp1000-program-2013-Maserati-gran-turismo-smart-key-07

I didn’t believe it’s true, then I tried one more time, this time I did it, the remote works fine.

Tip for sharing: After complete programming key, do not wait for some time but immediately complete remote, then the remote will open the door successfully.



Many hanks the online tech support of www.uobdii.com.

Lonsdor K518ISE / SKP1000, SuperOBD skp900 and OBDSTAR X300 PRO3

The above 5 universal key programmers differ from each other in manufactories, vehicle coverage, function and price.

  1. Manufactories/ Update:

K518ISE: by Lonsdor Company, official site: http://en.lonsdor.com, update online

CI600 plus: by Lonsdor, Chinese version, official site: http://www.gpobd.com/,update online

SKP1000 tablet: a rebadged Lonsdor CI600 Plus (Chinese version), Lifetime free update software and firmware

SuperOBD skp900: by superobd Company, official site: http://superobd.com/, update online

OBDSTAR X300 PRO3: made by OBDSTAR, official site: http://www.obdstar.com, update online

2.Vehicle coverage & function:

Generally speaking, they all works on a wide range of vehicles in the world and perform key add and key programming when all key lost.

Here we go one by one.

1) Lonsdor K518ISE has a wide range of vehicle coverage, incl. the luxury cars i.e BMW, Volvo, Ferrari, Bentley, Lamborghini as well as Volkswagen 4th 5th IMMO,Toyota/Lexus smart key all key lost via OBD etc.

attach a picture on K518ISE supported car makes:

lonsdor k518ise supported car models-01 lonsdor k518ise supported car models-02 lonsdor k518ise supported car models-03

For specific models and supported functions, browse

http://en.lonsdor.com/html/function then click on the car logo for details.

Generally speaking, K518ISE can add new key and program new keys when all key lost.

Take VW models for example, here attach the workable models, functions:

lonsdor k518ise on VW models-04 lonsdor k518ise on VW models-05

One more example: Toyota car models.

The above 5 universal key programmers differ from each other in manufactories, vehicle coverage, function and price. 1. Manufactories/ Update: K518ISE: by Lonsdor Company, official site: http://en.lonsdor.com, update online CI600 plus: by Lonsdor, Chinese version, official site: http://www.gpobd.com/,update online SKP1000 tablet: a rebadged Lonsdor CI600 Plus (Chinese version), Lifetime free update software and firmware SuperOBD skp900: by superobd Company, official site: http://superobd.com/, update online OBDSTAR X300 PRO3: made by OBDSTAR, official site: http://www.obdstar.com, update online 2.Vehicle coverage & function: Generally speaking, they all works on a wide range of vehicles in the world and perform key add and key programming when all key lost. Here we go one by one. 1) Lonsdor K518ISE has a wide range of vehicle coverage, incl. the luxury cars i.e BMW, Volvo, Ferrari, Bentley, Lamborghini as well as Volkswagen 4th 5th IMMO,Toyota/Lexus smart key all key lost via OBD etc. attach a picture on K518ISE supported car makes: 传(图1-3)合成图 For specific models and supported functions, browse http://en.lonsdor.com/html/function then click on the car logo for details. Generally speaking, K518ISE can add new key and program new keys when all key lost. Take VW models for example, here attach the workable models, functions: 传(图4-5)合成图 One more example: Toyota car models. 传(图6-7)合成图 Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator. SKE-LT Smart Key Emulator in 4 colors: Black, red, green, blue 图8 Click for Lonsdor K518ISE test reports with video. Good source to have Lonsdor K518ISE at good price: http://www.uobdii.com/wholesale/lonsdor-k518ise-key-programmer.html 2) CI600 plus is Chinese version, and won't be mentioned here. 3) SKP1000 tablet key programmer has nearly the same vehicle coverage as SuperOBD skp900. SKP1000 wins SuperOBD skp900: In special functions: OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read. In newest car coverage since SKP1000 will update software and firmware. In user-friendly design (with stand at the back, touch pen ,Haima 7pin adapter, power adapter, TF card, TF card reader). SKP1000 limit: 1. SKP1000 can only enable/disable the key of BMW and Benz, this is same as SKP900. 2. TOYOTA G and H chip: add key ok, all key lost fail. 3. VAG 4th 5th IMMO, some ok some fail. Click for SKP1000 Tablet Key pro car list & user manual SKP1000 at good price: Click for SKP1000 test reports 4) Superobd skp900 vehicle coverage Here official skp900 car list This only for reference since SKP900 update frequently, better browse official site for newest update. Here Superobd skp900 yes and no test reports. take some for example (update to November 29, 2016): For USA cars: 2013 CHRYSLER 200 – WORKS FINE 2008 DODGE CHARGER – WORKS FINE Dodge charger 2009 fobik lost key, pulled pin and added key ok 2013 FORD EDGE – WORKS FINE 2011-2013 FORD F-150 – WORKS FINE 2013 MUSTANG – WORKS FINE 2012 JEEP COMPASS – WORKS FINE 2008 JEEP WRANGLER – WORKS FINE 2014 KIA RIO – WORKS FINE 2013 KIA SOUL – WORKS FINE 2013 KIA FORTE – WORKS FINE 2009 TOYOTA CAMRY – WORKS FINE, REMOTE + TRANSPONDER SEPERATE PROCEDURE BOTH WORKS 2012-2013 TOYOTA CAMRY – WORKS FINE, REMOTE + TRANSPONDER SEPERATE PROCEDURE BOTH WORKS 2013 TOYOTA HIGHLANDER – WORKS FINE, REMOTE + TRANSPONDER SEPERATE PROCEDURE BOTH WORKS 2002 VOLKSWAGEN GTI – WORKS FINE 2005 – NISSAN 350Z – WAS ABLE TO PULL BCM BUT COULD NOT PROGRAM KEY. I THINK JUST NEED TO PLAY WITH IT LONGER Kia in USA is transponder optional and most do not have it still. SKP900 is to program the remote. This car used a flip key. 2013 Mustang – WORKS FINE. 10 minute security wait. Everything works perfect. There is option for Mustang 2011-2013 on my device. UK models and other area models———– Successful: 2015 HONDA ACCORD LOST ALL KEY WORKS AAAAA.. 2x Honda civic 2008 (can) 2015 CIVIC SMART KEY ALL LOST WORKS AAAAA 2014 CRV SMART KEY ALL LOST WORKS AAAA.. 2015 ODYSSEY SMART KEY ALL LOST WORKS 2012 ALTIMA SMART KEY ALL LOST WORKS 2004 CARAVAN LOST KEY WORKS land rover discovery 3 works 100%, Freelander 2 doesn’t work. 2x Landrover Discovery 3 add key program smart key for ford explorer with all key lost. need two smart key after reseting. works 100% Program smart key for ford explorer with all key lost, need two smart key after reseting. works 100% 2008 focus petrol uk model – WORKS FINE VW transporter year 2000 and vw transporter 2007 read pin code and program the key ok. Mazda 3 2007 lost keys Jaguar X-type 2005 lost keys Jaguar XJ 2006 lost key Peugeot 407 2006 add key 2013 Mazda 3 Toyota smart key Transit with blue key takes minutes to work Toyota landcruiser 2009 add key ok. In adding key USA and Europe toyota are the same way ,it on all keys lost that they are both totally differents ! One can be reseted by OBD and you can do also OBD for some kind of toyota europe but there is a risk to corrupt dump or steering lock ,for europe best solution in my point of view is eeprom and dump way. 2015 Maserati ghibli read pin ok Key programming ok 2013 Acura added keys on range rover 2010..ok did a hyundai 2011 remote via ix35 OK! I did 2013 ford Ranger work good ford focus 2008, OK program remote AUDI a4 2005 ok transit mk7 does them in seconds, both with and without working key i try skp900 on a Mazda cx-7 smart key system and worked perfectly Mazda 2 2010 – Regular key – worked perfectly. Focus 2006 id63 all OK S-max 2008 id 63 all OK Citroen DS4 2012 mechanical key all OK with known pin Kia ceed 2009 id 46 read pin and programmed transp and remote Citroen DS4 2012 mechanical key all OK with known pin -A 2013 Citroen c4 and a Peugeot 508 all keys lost, both fine. I used the OBDSTAR F108 to get pin for the C4. THe 508 the customer got the key code and pin from dealer, for the C4 the F108 gave me the pin, took around 6-7 minutes. The peugeot 508 all keys lost no problem. Customer got pin code and physical key code from dealer, I made 1 remote key with urg200 machine, and also 1 manual key with no remote. I did hyundai i20 after the update to v4.5 and it was fine Good source to have superobd SKP900 at good price: http://www.uobdii.com/wholesale/superobd-skp-900-auto-key-programmer-ship-from-us.html 5) OBDSTAR X300 Pro3 vehicle coverage / functions: Browse: www.obdstar.com, click on "Testable", then "Immobilizer", you could have a wide range of car models. Nice features: - VAG 4th 5th generation IMMO ...OK by working with a OBDSTAR RFID Adapter - Can add key on Toyota G chip, firstly connect it to the EEPROM PIC 2-in-1 adapter, secondly take apart the immobilizer box and initialize data to add key. Take 93C66 for example, find out the exact chip e.g 93C66 to connect with X100 pro, click option 93C66then put back the chip and go on add key. For the detailed OBDSTAR X100pro and X300 pro3 covers Toyota G chip models, click obdstar official site, click ‘Testable’, find out X-100 Pro – EEPROM ADATPER – press Ctrl + F enter Toyota. Data initialization Toyota/Lexus Immobilizer initialization VIOS immobilizer(with G) Key chip 4D60(93C66) Help Camry immobilizer With G 89780-60380(93C66) Without G 89780-06020(93C66) Help Corolla immobilizer 89780-02070(93C66)(Without G) Help RAV4 immobilizer (with G) 89780-0R040(93C66) Help Tundra immobilizer (with G) 2014 89780-0C051(93C66) Help Other immobilizer (with G) Data initialization(93C66) Help Click for OBDSTAR X300 Pro3 IMMO & Remote Feedback (For your information: OBDSTAR X 100 pro IMMO & Remote vehicle coverage is the same as X300 Pro3.) Here take some example (old back to 12/14/2016) Maruthi Suzuki key programming in 2 min , Hyundai I 20 key programming done , Hyundai verna fludic remote done in few seconds. Yes, it can do key lost and also u can add. Honda cars,both making a spare and all key lost and remote programming,so far never failed. -Mitsubishi Pajero 2014. All key lost OK. Hyundai i 10 Key ok… Hyundai i 10 remote ok . Hyundai i 10 grand remote in 2 min ok honda crv 2008 remote and key ok jeep cherokee 2008 remote and key ok mazda cx9 2009 smart key ok Ford Eecosport 2015 Flip key programming ok… Suzuki Ignis 2003 all lost key, programming new key OK. Hyundai GETS 2007 KEY OK HONDA ACCORD 2008 KEY AND REMOTE OK Range rover sport hse 2012 start button , all key lost OK 2013 Elantra remote OK 2007 VW Rabbit add key and remote OK 2012 Town&County smart key OK 2002 Jetta add key FAIL (vehicle not supported msg, cant even read pin code) 2007 Quest add key OK 2008 Accord add key OK 2016 Subaru Forester add keys OK, remote program FAIL Range rover sport 2007 add key ok subaru outback 2008 add key ok infinity fx 2009 smart key ok Audi a4 2006 rb8 dash diesel engine read pin from ecu Ok Mazda 2 2009 all ok job done in seconds Tucson 2014 .. key and remote programing ok GMC ACADIA 2008 CAN’T ADD KEY…YOU SHOULD DO ALL KEY LOST …. 12 MINUTES … JOB COMPLETE ford raptor 2012 key programing ok at least 2 keys must have ford expedition 2011 all key lost ok accent 2012 key programing pin read ok i10 2012 read pin and swap ecu (ecm neutrelize) ok all ok prado txl and gx 2013 smart key programing ok \ prado 2012 ignition key programing ok \ -Good tool for Honda. transponder + smart even all keys lost. -Nissan leaf,Xtrail both are ok -Toyota Hilux add g chip key easily. did one for all keys lost with eeprom adapter too. -Toyota innova key added Ok -2010 Ford Ranger,4D63.. all key lost OK. -Mitsubishi pagero 2012 yes -Mazda cx9 2011 programmed smart key ok -Renault v30.50 pin code read logan 2008 OK To be continued... Source: http://www.uobdii.com/wholesale/obdstar-x300-pro3-key-master-english-version.html Conclusion: All of the above universal key programmers are good, which one is better, it depends on how deep you will use the tool to access the vecles, budget and how much you like the manufacturer. lonsdor k518ise on toyota models-07

Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator.

SKE-LT Smart Key Emulator in 4 colors: Black, red, green, blue

lonsdor-k518ise-emulator-key-08

Click for Lonsdor K518ISE test reports with video.

Good source to have Lonsdor K518ISE at good price:

http://www.uobdii.com/wholesale/lonsdor-k518ise-key-programmer.html

lonsdor-k518se-key-programmer



2) CI600 plus is Chinese version, and won’t be mentioned here.

3) SKP1000 tablet key programmer has nearly the same vehicle coverage as SuperOBD skp900.



SKP1000 wins SuperOBD skp900:

In special functions: OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read.

In newest car coverage since SKP1000 will update software and firmware.

In user-friendly design (with stand at the back, touch pen ,Haima 7pin adapter, power adapter, TF card, TF card reader).

SKP1000 limit:

  1. SKP1000 can only enable/disable the key of BMW and Benz, this is same as SKP900.
  2. TOYOTA G and H chip: add key ok, all key lost fail.
  3. VAG 4th 5th IMMO, some ok some fail.

Click for SKP1000 Tablet Key pro car list & user manual

SKP1000 at good price:

obdstar-x300-pro3

Click for SKP1000 test reports

4) Superobd skp900 vehicle coverage

Here official skp900 car list  This only for reference since SKP900 update frequently, better browse official site for newest update.

Here Superobd skp900 yes and no test reports. take some for example (update to November 29, 2016):

For USA cars:

2013 CHRYSLER 200 – WORKS FINE

2008 DODGE CHARGER – WORKS FINE

Dodge charger 2009 fobik lost key, pulled pin and added key ok

2013 FORD EDGE – WORKS FINE

2011-2013 FORD F-150 – WORKS FINE

2013 MUSTANG – WORKS FINE

2012 JEEP COMPASS – WORKS FINE

2008 JEEP WRANGLER – WORKS FINE

2014 KIA RIO – WORKS FINE

2013 KIA SOUL – WORKS FINE

2013 KIA FORTE – WORKS FINE

2009 TOYOTA CAMRY – WORKS FINE, REMOTE + TRANSPONDER SEPERATE PROCEDURE BOTH WORKS

2012-2013 TOYOTA CAMRY – WORKS FINE, REMOTE + TRANSPONDER SEPERATE PROCEDURE BOTH WORKS

2013 TOYOTA HIGHLANDER – WORKS FINE, REMOTE + TRANSPONDER SEPERATE PROCEDURE BOTH WORKS

2002 VOLKSWAGEN GTI – WORKS FINE

2005 – NISSAN 350Z – WAS ABLE TO PULL BCM BUT COULD NOT PROGRAM KEY. I THINK JUST NEED TO PLAY WITH IT LONGER

Kia in USA is transponder optional and most do not have it still. SKP900 is to program the remote.

This car used a flip key.

2013 Mustang – WORKS FINE. 10 minute security wait. Everything works perfect. There is option for Mustang 2011-2013 on my device.

UK models and other area models———–

Successful:

2015 HONDA ACCORD LOST ALL KEY WORKS AAAAA..

2x Honda civic 2008 (can)

2015 CIVIC SMART KEY ALL LOST WORKS AAAAA

2014 CRV SMART KEY ALL LOST WORKS AAAA..

2015 ODYSSEY SMART KEY ALL LOST WORKS

2012 ALTIMA SMART KEY ALL LOST WORKS

2004 CARAVAN LOST KEY WORKS

land rover discovery 3 works 100%, Freelander 2 doesn’t work.

2x Landrover Discovery 3 add key

program smart key for ford explorer with all key lost.

need two smart key after reseting. works 100%

Program smart key for ford explorer with all key lost, need two smart key after reseting. works 100%

2008 focus petrol uk model – WORKS FINE

VW transporter year 2000 and vw transporter 2007 read pin code and program the key ok.

Mazda 3 2007 lost keys

Jaguar X-type 2005 lost keys

Jaguar XJ 2006 lost key

Peugeot 407 2006 add key

2013 Mazda 3

Toyota smart key

Transit with blue key takes minutes to work

Toyota landcruiser 2009 add key ok. In adding key USA and Europe toyota are the same way ,it on all keys lost that they are both totally differents !

One can be reseted by OBD and you can do also OBD for some kind of toyota europe but there is a risk to corrupt dump or steering lock ,for europe best solution in my point of view is eeprom and dump way.

2015 Maserati ghibli read pin ok

Key programming ok

2013 Acura

added keys on range rover 2010..ok

did a hyundai 2011 remote via ix35 OK!

I did 2013 ford Ranger work good

ford focus 2008, OK

program remote AUDI a4 2005 ok

transit mk7 does them in seconds, both with and without working key

i try skp900 on a Mazda cx-7 smart key system and worked perfectly

Mazda 2 2010 – Regular key – worked perfectly.

Focus 2006 id63 all OK

S-max 2008 id 63 all OK

Citroen DS4 2012 mechanical key all OK with known pin

Kia ceed 2009 id 46 read pin and programmed transp and remote

Citroen DS4 2012 mechanical key all OK with known pin

-A 2013 Citroen c4 and a Peugeot 508 all keys lost, both fine. I used the OBDSTAR F108 to get pin for the C4. THe 508 the customer got the key code and pin from dealer, for the C4 the F108 gave me the pin, took around 6-7 minutes. The peugeot 508 all keys lost no problem. Customer got pin code and physical key code from dealer, I made 1 remote key with urg200 machine, and also 1 manual key with no remote.

I did hyundai i20 after the update to v4.5 and it was fine

Good source to have superobd SKP900 at good price:

http://www.uobdii.com/wholesale/superobd-skp-900-key-programmer.html

 superobd-skp-900

5) OBDSTAR X300 Pro3 vehicle coverage / functions:

Browse: www.obdstar.com, click on “Testable”, then “Immobilizer”, you could have a wide range of car models.

Nice features:

– VAG 4th 5th generation IMMO …OK by working with a OBDSTAR RFID Adapter

lonsdor-k518se-key-programmer

– Can add key on Toyota G chip, firstly connect it to the EEPROM PIC 2-in-1 adapter, secondly take apart the immobilizer box and initialize data to add key. Take 93C66 for example, find out the exact chip e.g 93C66 to connect with X100 pro, click option 93C66then put back the chip and go on add key.

For the detailed OBDSTAR X100pro and X300 pro3 covers Toyota G chip models, click obdstar official site, click ‘Testable’, find out X-100 Pro – EEPROM ADATPER – press Ctrl + F enter Toyota.

Data initialization

Toyota/Lexus

Immobilizer initialization

VIOS immobilizer(with G)

Key chip 4D60(93C66)

Help

Camry immobilizer

With G

89780-60380(93C66)

Without G

89780-06020(93C66)

Help

Corolla immobilizer

89780-02070(93C66)(Without G)

Help

RAV4 immobilizer (with G)

89780-0R040(93C66)

Help

Tundra immobilizer (with G)

2014

89780-0C051(93C66)

Help

Other immobilizer (with G)

Data initialization(93C66)

Help

Click for OBDSTAR X300 Pro3 IMMO & Remote Feedback (For your information: OBDSTAR X 100 pro IMMO & Remote vehicle coverage is the same as X300 Pro3.)

Here take some example (old back to 12/14/2016)

Maruthi Suzuki key programming in 2 min , Hyundai I 20 key programming done , Hyundai verna fludic remote done in few seconds. Yes, it can do key lost and also u can add.

Honda cars,both making a spare and all key lost and remote programming,so far never failed.

-Mitsubishi Pajero 2014. All key lost OK.

Hyundai i 10 Key ok…

Hyundai i 10 remote ok .

Hyundai i 10 grand remote in 2 min ok

honda crv 2008 remote and key ok

jeep cherokee 2008 remote and key ok

mazda cx9 2009 smart key ok

Ford Eecosport 2015 Flip key programming ok…

Suzuki Ignis 2003 all lost key, programming new key OK.

Hyundai GETS 2007 KEY OK

HONDA ACCORD 2008 KEY AND REMOTE OK

Range rover sport hse 2012 start button , all key lost OK

2013 Elantra remote OK

2007 VW Rabbit add key and remote OK

2012 Town&County smart key OK

2002 Jetta add key FAIL (vehicle not supported msg, cant even read pin code)

2007 Quest add key OK

2008 Accord add key OK

2016 Subaru Forester add keys OK, remote program FAIL

Range rover sport 2007 add key ok

subaru outback 2008 add key ok

infinity fx 2009 smart key ok

Audi a4 2006 rb8 dash diesel engine read pin from ecu Ok

Mazda 2 2009 all ok job done in seconds

Tucson 2014 .. key and remote programing ok

GMC ACADIA 2008 CAN’T ADD KEY…YOU SHOULD DO ALL KEY LOST …. 12 MINUTES … JOB COMPLETE

ford raptor 2012 key programing ok at least 2 keys must have

ford expedition 2011 all key lost ok

accent 2012 key programing pin read ok

i10 2012 read pin and swap ecu (ecm neutrelize) ok all ok

prado txl and gx 2013 smart key programing ok \

prado 2012 ignition key programing ok \

-Good tool for Honda. transponder + smart even all keys lost.

-Nissan leaf,Xtrail both are ok

-Toyota Hilux add g chip key easily. did one for all keys lost with eeprom adapter too.

-Toyota innova key added Ok

-2010 Ford Ranger,4D63.. all key lost OK.

-Mitsubishi pagero 2012 yes

-Mazda cx9 2011 programmed smart key ok

-Renault v30.50 pin code read logan 2008 OK

To be continued…

Source: http://www.uobdii.com/wholesale/obdstar-x300-pro3-key-master-english-version.html

Conclusion:

All of the above universal key programmers are good, which one is better, it depends on how deep you will use the tool to access the vecles, budget and how much you like the manufacturer.

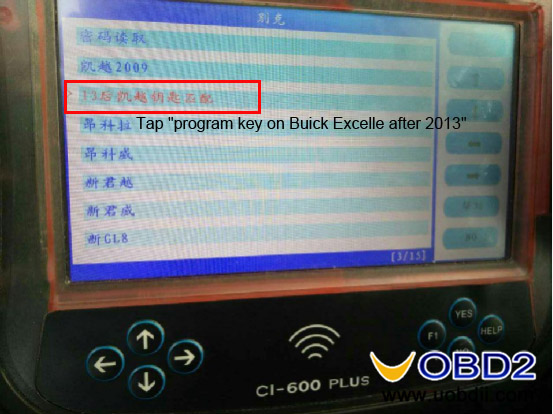

SKP1000 programs 2015 Buick Excelle XT/GT Remote Key

Topic: How to use SKP1000 tablet key pro program 2015 Buick Excelle XT/GT remote key.

Topic: How to use SKP1000 tablet key pro program 2015 Buick Excelle XT/GT remote key.

Chip model: 70 big capacity

remote control frequency: 433MHZ

Unlock direction: Counterclockwise

OBD position: under the steering wheel

Comes with another NO.1 & NO.2 ignition lock: NO

Able to copy: No

Need pin code: Yes (get from 4s store or the service station, it is incorrect by reading the password on Chassis)

The remote control is able to generate: Yes

Chip Programmer: SKP1000 tablet key programmer

Remote control match tool: manually



Part 1: Program key with SKP1000 tablet key programmer

Choose “Immobilizer”, then “GM”

skp1000-program-2015-buick-excelle-xt-gt-remote-01

Tap “2015 Excelle XT/GT Key”

skp1000-program-2015-buick-excelle-xt-gt-remote-02

Electronic immobilizer system

skp1000-program-2015-buick-excelle-xt-gt-remote-03

Tap “Add key”, another option is “All key lost”. Iif you want the lost keys unable, choose “All key lost”.

skp1000-program-2015-buick-excelle-xt-gt-remote-04

SKP1000 detect the original car has two pieces of working keys, tap “Yes” to continue.

skp1000-program-2015-buick-excelle-xt-gt-remote-05

Please input the password.

skp1000-program-2015-buick-excelle-xt-gt-remote-06 skp1000-program-2015-buick-excelle-xt-gt-remote-07

Initializing system, please wait…

skp1000-program-2015-buick-excelle-xt-gt-remote-08

Configuring system, please wait for 10 minutes.

skp1000-program-2015-buick-excelle-xt-gt-remote-09

Turn off the ignition switch, pull out the key, tap “Yes” to continue.

skp1000-program-2015-buick-excelle-xt-gt-remote-10

Configuring system, please wait…

skp1000-program-2015-buick-excelle-xt-gt-remote-11

Again insert the key and turn on the ignition and keep for 5 seconds until the double flashing lights on, then tap “Yes” to continue.

skp1000-program-2015-buick-excelle-xt-gt-remote-12

Turn the ignition switch to the OFF position, use the new key to start the car to test if the key can work, tap “No” to continue.

skp1000-program-2015-buick-excelle-xt-gt-remote-13

Part 2: Remote control match

The chip is programmed successfully and the key generated automatically.

Done.

Thanks to the engineer working for http://www.uobdii.com.

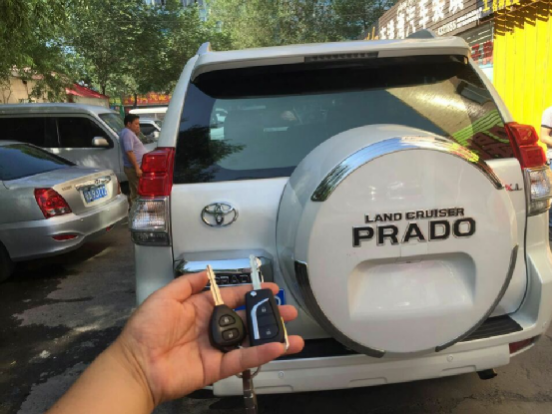

Toyota Land Cruiser Prado 2016 add remote key with SKP1000 programmer

Topic: Have Toyota Land Cruiser Prado 2016 remote key, firstly use SKP1000 programmer to match 72 (with G) 433MHZ, then match the remote key manually

Topic: Have Toyota Land Cruiser Prado 2016 remote key, firstly use SKP1000 programmer to match 72 (with G) 433MHZ, then match the remote key manually



Chip model: 72 (with G)

remote control frequency: 433MHZ

Unlock direction: Clockwise

Key embryo: NO. 02

OBD position: under the steering wheel

Comes with another NO.1 & NO.2 ignition lock

Able to copy

No need Pin code

The remote control is able to generate

Chip maker: SKP1000 tablet key programmer

Remote control match tool: manually

toyota-land-cruiser-prado-2016-add-remote-key-01

Here we go!

Part 1: Chip 72 (with G) 433MHZ match with SKP1000 programmer

Tap ” Toyota” then “Immobilizer system 2”

toyota-land-cruiser-prado-2016-add-remote-key-02 toyota-land-cruiser-prado-2016-add-remote-key-03

Please choose: OBDII socket, and turn on the ignition, press “Yes” to continue, and “NO” to back.

toyota-land-cruiser-prado-2016-add-remote-key-05

Tap “add key”

toyota-land-cruiser-prado-2016-add-remote-key-05

Please enter the key you want to add, do not turn on the ignition, press “Yes” to continue.

toyota-land-cruiser-prado-2016-add-remote-key-06

Wait until the immobilizer indicator light turn off, the chip 72(with G) match successfully, press “NO” to back.

toyota-land-cruiser-prado-2016-add-remote-key-07

Part 2: Remote key match manually

Procedure:

  1. Close all car doors, insert the key, open the main door, pull out the key.
  2. Insert the key into the ignition and pull out for two times.
  3. Close and open the side door for two times.
  4. Insert the key into the ignition and pull out for one time.
  5. Close and open the side door for two times.
  6. Insert the key into the ignitionswitch, close the door.
  7. the ignitionswitch ON-OFF for one time is the “add” mode, ON-OFF for two time is the “Reset” mode.
  8. Pull out the key from the ignition switch, at this time the door lock should move for 2 times, meanwhile hold the “LOCK” and “UNLOCK” buttons for one second then release, after 1 second repeat the same action. At this time, the central lock will automatically unlock and lock for one time. Move for one time means success and for two times means failure.
  9. Reset the other remote control, repeat the step 8.

If failure manually, recommend CI-pro to match the remote key.

How does SKP1000 program 2015 Buick Excelle remote key?

This post is on how to use SKP1000 tablet key pro to program 2015 Buick Excelle remote key.

This post is on how to use SKP1000 tablet key pro to program 2015 Buick Excelle remote key.

Buick Excelle after 2013 comes with 70 big capacity chip which needs security code to program key.

The way to get security code is on the frame which is as the same as new Lacrosse and new Regal.



Step by step procedure:

Please be informed: the pictures comes from the Chinese version Lonsdor CI600 plus, and the words on the pictures are Chinese. Acutally the SKP1000 engineer ensure SKP1000 can perform the same as CI600, and the instructions on the screen are translated as the title.



Tap “program key on Buick Excelle after 2013”

skp1000-program-2015-buick-excelle-remote-key-01

Tap ” Immobilizer”

skp1000-program-2015-buick-excelle-remote-key-02

There are 3 options : delete key (to disable the lost key), add key and program remote controller

skp1000-program-2015-buick-excelle-remote-key-03

Tap “add key”, the original car has 2 working keys.

skp1000-program-2015-buick-excelle-remote-key-04

Turn off ignition for 5 seconds then turn on, press “Yes” to continue.

skp1000-program-2015-buick-excelle-remote-key-05

The security code is: 8352

skp1000-program-2015-buick-excelle-remote-key-06

Indentifying the security code, 5 minutes left.

skp1000-program-2015-buick-excelle-remote-key-06

Configuring system, please wait 10 minutes.

skp1000-program-2015-buick-excelle-remote-key-08

Turn off ignition, press “Yes” to continue.

skp1000-program-2015-buick-excelle-remote-key-09

Turn on ignition

skp1000-program-2015-buick-excelle-remote-key-10

Please pull off the key, press “Yes” to continue.

skp1000-program-2015-buick-excelle-remote-key-11

Configuring system, please wait 45 seconds.

skp1000-program-2015-buick-excelle-remote-key-12

Add key on 2015 Buick Excelle successfully with SKP1000 tablet key pro.

skp1000-program-2015-buick-excelle-remote-key-13

After the chip program successfully, back to tap “program remote controller”, it also needs the security code and the procedure is as the same as to program the chip.

SKP1000 Tablet Key pro compare with Superobd SKP900

Newest 2017 SKP1000 Tablet Key pro claims to replace Superobd SKP900. That means SKP1000 can do what SKP900 does and can do more that SKP900 cannot do.

Newest 2017 SKP1000 Tablet Key pro claims to replace Superobd SKP900. That means SKP1000 can do what SKP900 does and can do more that SKP900 cannot do. Reading below comparison table to have a better understand.



SKP1000 Key pro Superobd SKP900
MUX skp1000-tablet-auto-key-programmer-a120 superobd-skp-900-180
Back Design skp1000-tablet-auto-key-programmer-a4 superobd-skp-900-hand-held-hand-held-key-programmer
Capability key programming + special functions key programming
OBD mileage adjustment Yes No
remote controller Yes No
oil/service reset Yes No
ETC Yes No
EPB Yes No
EEPROM chip read Yes No
Pin code calculation Yes, support more models than SKP900, i.e Ford and Nissan Yes, support a little part models
Support BMW Enable/disable the key Enable/disable the key
Support Benz Enable/disable the key Enable/disable the key
Software Update Support Support
Firmware update Support Support
Newest car coverage Yes Yes, if it always updates
with touch pen Yes No
with Haima 7pin adapter Yes No
with power adapter Yes No
with TF card Yes No
with TF card reader Yes No



Attach more:

SuperOBD SKP-900 SKP900 key pro car list

http://www.uobdii.com/upload/pro/skp-900-supported-car-model.pdf

SKP1000 Tablet Key pro car list:

http://www.uobdii.com/upload/pro/skp1000-tablet-key-programmer-user-manual.pdf

SKP1000 is multifunctional, so the workable vehicles differs from one function to another.



To sum up, SKP1000 Tablet Key pro wins

– in multifunction

– in user-friendly design (with stand at the back, 1* touch pen 1* Haima 7pin adapter, 1* power adapter, 1* TF card, 1* TF card reader)

– in Newest vehicles

– In Firmware update

SKP1000 Key Programmer Best Price: Amazon or Ebay?

Where to buy Lonsdor SK1000 auto key programmer at the best price & of high quality?

Topic: SK1000 best price

Where to buy Lonsdor SK1000 auto key programmer at the best price & of high quality?

SK1000 key programmer Amazon: $$599.99

skp1000-key-programmer-amazon

SK1000 key programmer Ebay: $$499.00

skp1000-key-programmer-ebay

SK1000 key programmer at uobdii.com: $479.00

skp1000-key-programmer-in-us

Source: http://www.uobdii.com/wholesale/skp1000-tablet-auto-key-programmer.html

skp1000-auto-key-programmer

skp1000-key-programmer-PCB-1 skp1000-key-programmer-PCB-2

Sk1000 features:

skp1000-auto-key-programmer-function-list

Clear key memory
Program keys, proximity keys, smart key, flip keys;
Program after-market and OEM keys;
Read keys from immobilizer memory
New mechanical key number programming;
Vehicle identification key programming;
Reset ECU& Reset immobilizer;
New remote controller programming;
Immo PINCODE reader for many vehicles

no need pincode when programming keys for many vehicles
Mileage adjustment via OBD;
With full and strong database for the most important vehicle makes
Remote assistance
EEPROM chip read and immobilizer initialization;
EPB(Electric park brake);
throttle body adjustment
Oil/Service reset;
EEPROM/PIC adapter

SKP1000 car list:

http://www.uobdii.com/wholesale/skp1000-tablet-auto-key-programmer.html

SKP1000 user manual:

http://www.uobdii.com/upload/pro/skp1000-tablet-key-programmer-user-manual.pdf

SKP1000 programmer add smart key on Hyundai SONATA 8 successfully

Post topic: Step -by -step procedure on how to use SKP1000 tablet key programmer to program smart key on Hyundai SONATA 8 successfully.

Post topic: Step -by -step procedure on how to use SKP1000 tablet key programmer to program smart key on Hyundai SONATA 8 successfully.

Not familiar with SKP1000 tablet key programmer? click for details.Post topic: Step -by -step procedure on how to use SKP1000 tablet key programmer to program smart key on Hyundai SONATA 8 successfully.

Firstly connect the main cable to the machine, then plug the OBDII adapter to the car.

Power on the SKP1000 machine, until you see the LOGO, press [YES] to main menu, Choose “Immobilizer”, press “Confirm” to vehicle list.

skp1000-key-programmer-on-hyundai-sonata-8-01

Choose model: Hyundai, press “Confirm” to enter.

skp1000-key-programmer-on-hyundai-sonata-02

Choose “Smart card”, press “Yes” to enter.

skp1000-key-programmer-on-hyundai-sonata-8-03

Choose ” by car model”, press “Yes” to enter.

skp1000-key-programmer-on-hyundai-sonata-8-04

Choose “SONATA 8 (with card slot), press “Yes” to enter.

skp1000-key-programmer-on-hyundai-sonata-8-05

Choose “Smart card (with card slot), press “Yes” to enter.

skp1000-key-programmer-on-hyundai-sonata-8-06

Follow the tip to turn off ignition, press “Yes”

skp1000-key-programmer-on-hyundai-sonata-8-07

Follow the tip to open the door and close for one time, press “Yes”.

skp1000-key-programmer-on-hyundai-sonata-8-08

Choose smart card to match, press “Yes”

skp1000-key-programmer-on-hyundai-sonata-8-09

Follow the tip, insert the smart card into the slot, and you can hear alarm sound, turn off the ignition, press “Yes”.

skp1000-key-programmer-on-hyundai-sonata-8-10

Input the password

skp1000-key-programmer-on-hyundai-sonata-8-11

Check if the password is correct, press “Yes” to confirm.

skp1000-key-programmer-on-hyundai-sonata-8-12

The first smart card program successfully, and it will ask you if you program the next one, press “Yes” to confirm.

skp1000-key-programmer-on-hyundai-sonata-8-13

Insert the second smart card into the slot, you can hear the alarm sound, press “Yes”.

skp1000-key-programmer-on-hyundai-sonata-8-14

Program successfully, press “No” to back.

With two new smart card keys, you could start the car, if you need to add more keys, just repeat the above steps.

Done.

Any question, please contact your supplier www.uobdii.com
