BMW CGDI Prog Real Customer Feedback and FAQs From Forum

Here UOBDII service collect many customers feedback for BMW CGDI on what can work and frequently asked questions and answers. Hope it can make you a deep understand on this BMW key programmer.

CGDI BMW

CGDI BMW Feedback 1:

1.11-02-2018 update

CGDI works good CAS2 takes 2min CAS3 most of the time Downgrade 10-15min, no solderind all via OBD, as for INS i think it can only do 8HP i have not tried it, but i tried to read the INS from CAS3 and it did no problem.



2.10-10-2018 update

I just got the CGDI for BMW based on reading good reviews for their Mercedes tool. Have not seen much info for the BMW tool so I thought Id give a quick run down from my experience so far with the tool.

For making keys it has worked great. I have made about 7 keys so far all CAS types except CAS4.

I tried to read ISN on 3 cars and failed. I think it may only read ISN from MSV80/85 ecu’s. Will try on the MSV80 soon and will update. All done by OBD.



I have BMWExplorer and have used Autohex as well, but if you only need to program keys and your not concerned with ISN for DME swaps, I would buy the CGDI before those tools.

Its supposed to do ISN but the advertising wording can be misleading. It may only be able to read ISN of 2 types of DME. So far thats how its looking. Will contact my vendor to verify and see if there is an update preventing ISN reads.

For the money its worth it just to be able to program the CAS3 keys. It works super fast literally less than 2 minutes beginning to end. Faster than BMWExplorer for sure. I have yet to successfully do FEM key with Explorer so as far as Im concerned it has the same key programming capability as the CGDI.



3. 09-17-2017 update

yes i have CGDI BMW …at this time works good ,,,,cas3+ ,,,can read isk code ,,,,and you have to pay more for fem activation but can work ,,,,the best tool for bmw is autohex II but is very expensive than cgdi , cgdi is good option

Source: http://mhhauto.com/



CGDI BMW Feedback 2:



1.19-03-2018

Excellent tool so far. no bricks or problems.
extremely fast for cas1, 2 & 3

for cas3+ if need downgrade 10 minutes and seems safe, ISN read from DME 10 minutes does not support all DME is down side.
make sure you have proper power on the car



2.19-03-2018

cas4 F10 – ok (new key)
cas4+ F10 – ok (new key) isn from org key or dump DME

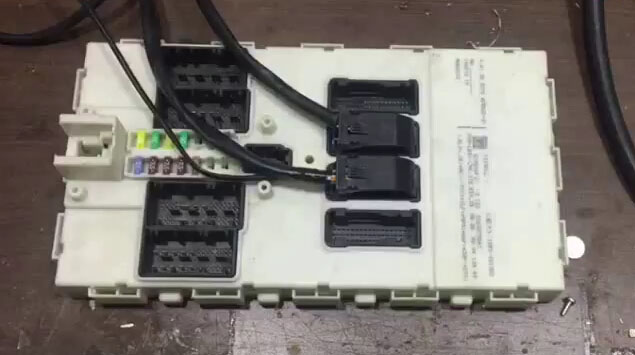

fem/bdc F31 – ok – reset mileage, change isn, change vin, make keys with oryginal key and with dump from DDE
cas3+ E60- ok , downgrade and make key with isn from org key



Feedback 3. 24-08-2018

Mine CGDI BMW has activated no issues, updates and everything fine. this programmer has been very good and ive never had an issue. i havnt need to contact support yet.



Feedback 4. 25-08-2018

So far i tried it to read ISN form MSV80 result OK
read and wright ISN cas 3 result OK



Feedback 5 08-09-2018

Did a 2008 E60 528i it asked for DownGrade it took around 10min no error codes this time all perfect key works.

Source: https://cartechnology.co.uk/showthread.php?tid=33808&highlight=CGDI+Prog



CGDI BMW FAQ

Q1: on CGDI BMW info it says supports bmw key unlock, does that mean i can reuse a old key and reprogram it?

also how safe if downloading for cas3+, i only ran into this issue one time and i did not downgrade as worried mess things up. im curious how well this programmer works.



A1: Yes, you can reuse an old key and reprogram it.
and yes it is safe if downgrade for CAS3+.

Q2: how do you unlock the key and reuse did you try this?

A2: there is a button that says unlock key. i tried and worked with aftermarket key, did not try on a original bmw key to unlock(tested on e60 cas2)



Q3: Key programming steps for cas4 I have f10

A3: Cas4 can only be done by reading DFlash from Freescale cpu then load into programmer software and generade key. It can no ne done by obd.
You need xprog or vvdi prog to read the dflash.



Q4: CGDI BMW need to pay every 6 month subscription same as CGDI Mercedes ?

A4: No



Q5: I have cgdi for bmw. Got a key and the cas module. Is there any1 familiar with how to program the key. I want to do bench programming without obd2 I have an obd2 to cas adapter and cgdi but cant communicate with cas unit. Is this even possible?

A5: You could try through a KGM body module or a JBBE junction box.
These modules act as the CAN hub for the car.

Update! CGDI BMW Prog Version 2.2.0 Adds New Functions

CGDI BMW Prog key programmer version 2.2.0 add BMW F Series Coding, restore coding and backup coding, add BMW EGS, add read/write BMW CAS ISN. For more details, please go ahead.





CGDI BMW Update Note:
1. Increase the new functions of BMW F Series Coding, restore coding and backup coding
2. Add BMW EGS new function
3. Add read/write BMW CAS ISN (4 bytes) feature
4. Modify software auto-activation display, increase user interaction
5. DEM wiring diagram optimization provides full-screen display
6. BMW OBD key matching and FEM/BDC compatible small screen display
7. Modify CAS4 key matching key whether display error
8. Fix bugs

cgdi-bmw-update

Free Download CGDI BMW F series programming database

uobdii.com engineer share a piece of free CGDI BMW F series programming database.

uobdii.com engineer share a piece of free CGDI BMW F series programming database.

1.CGDI BMW: BMW F series programming database download:

https://pan.baidu.com/s/1sm1wIAx

After you complete download, the file is like this:

cgdi-bmw-f-series-programming-database-01

  1. Unzip it.

cgdi-bmw-f-series-programming-database-01

This folder contains these files shown as below.

cgdi-bmw-f-series-programming-database-03

  1. Right click the CGDI icon on the desktop, choose the option “Open the location of the folder”.

cgdi-bmw-f-series-programming-database-03



  1. Copy or cut the folder ” psdzdata” and paste it into the category. Now you are ready to use F series programming functions.

cgdi-bmw-f-series-programming-database-05



Please enjoy!

CGDI BMW F series programming feedback:

  1. Program F30 326 2013 FEM smart key…OK
  2. program F31 smart key FEM…OK

More…

  1. CGDI PROG bmw f20 2014 mileage reset OK
  2. read ISN DME MSD80 OK 5WK93628
  3. the CAS Plug from BMW Multi Tool will work with CGDI, because CAS and OBD connector are BMW standard protocol.

www.uobdii.com

CG Pro immo data reading & KM adjustment user manual

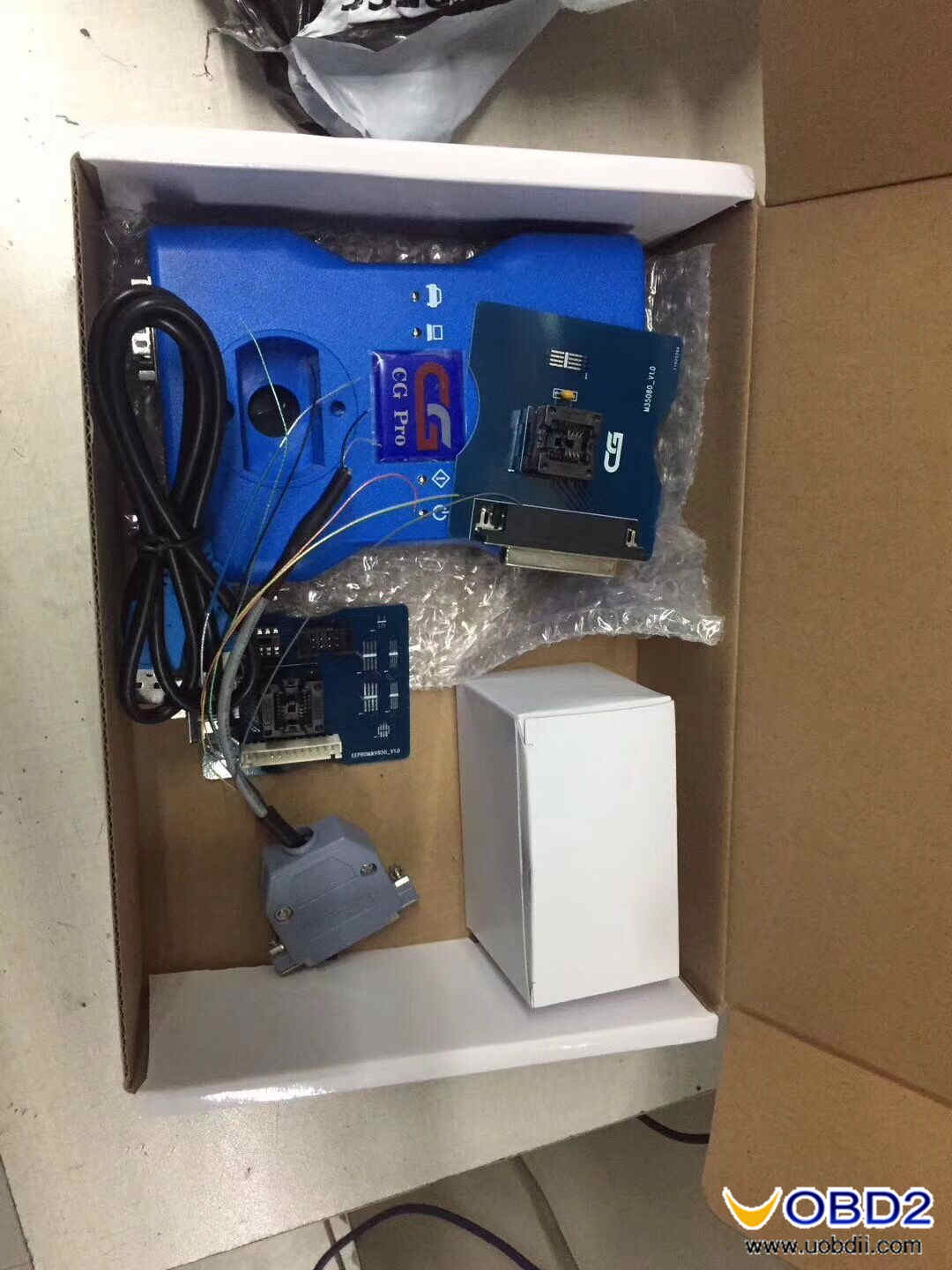

CG Pro 9S12 immo data reading & KM adjustment tool user manual: workable models/chips, driver software download, installation and how to use.



Tip: CG Pro is the upgraded generation of CG100, it works on BMW Porsche and archives immo data import & key generation; it works on Benz and do immo data reading but doesn’t generate Benz key so you are disallowed to click “Key” after the Benz immo data is imported.

 cg-pro-9s12-1

CG Pro car list and chip list

Support ECU IMMO List:
BMW:
CAS4+     5M48H/1N35H    (9S12XEP100)
CAS4    1L15Y    (9S12XDP512)
CAS3    0L15Y/0M23S    (9S12XDP512 including CAS3+ series)
CAS3    0L01Y    (9S12DG256)
CAS2    0L01Y/2K79X    (9S12DG256)
CAS2/E66    0L01Y/2K79X    (9S12DG256)
CAS1    0K50E    (912DT128A Write FLASH data online)
EWS4    0L86D/1L86D/2L86D    (9S12DJ64)
EWS3    0D46J/2D47J    (MC68HC711EA9)
EWS2    1D47J    (MC68HC711EA9)
( Support read/write data above for mileage correction and immobilizer reset )

BENZ:
EIS   211  ST12 3L40K/1L59W/4L40K/1L85D/0L85D/2L85D/
EIS   211  HC12  0K50E/3K91D
EIS   209  ST12   3L40K/1L59W/4L40K/1L85D/0L85D/2L85D/
EIS  209  HC12  0K50E/3K91D
EIS   215  ST12   3L40K/1L59W/4L40K/1L85D/0L85D/2L85D/
EIS   215  HC08  2J74Y/4J74Y/1J35D(Can directly reset EIS data with 08 adapter;and read write EEPROM without extra adapter)
EIS    220     HC05
0D53J/0D59J/0D62J/0D69J/0F62J/0F82B/0G47G/
0H51A/1D59J/1D69J/1H52A/2D20J/2D59J
EIS   210     HC05
0D53J/0D59J/0D62J/0D69J/0F62J/0F82B/0G47G/
0H51A/1D59J/1D69J/1H52A/2D20J/2D59J
EIS      203  HC08  1J35D/2J74Y/4J74Y
EIS       164  ST12   3L40K/4L40K/1L59W/0L85D/1L85D/2L85D
EIS       169  ST12   3L40K/4L40K/1L59W/0L85D/1L85D/2L85D
EIS       639  ST12   0L01Y
EIS      639  HC08  0L02M/1L02M/4J74Y/1J35D/2J74Y
EIS       199  ST12   3L40K/4L40K/1L59W/0L85D/1L85D/2L85D
EIS       230  ST12   3L40K/4L40K/1L59W/0L85D/1L85D/2L85D
(Support all above data read/write for mileage correction and immobilizer reset)

Roewe:
Roewe 750 IMMO   0M89C  (Read/Write)

Land Rover:
EWS  ST12   3L40K/4L40K/5L40K
RFA   9S12XEQ384      (1M12S 2M12S 1M53J 2M53J ) 9S12XET512  ( 3M53J  2M53J 1M53J)

Support Dash Type:
Benz
BMW
Domestic cars 9S12 dash
Land Rover
Mini

Audi:
Audi        A4/A5/Q5-BCM      NEC               D70F3634/D70F3380
Audi        ELV      HC08GR        4L35K

Key Programming:
BMW             CAS3             YES
BMW            CAS3+           YES
BMW        CAS4            YES
BMW         CAS4+           YES
BMW            EWS4
BMW          EWS3
BMW          EWS2
Porsche 911               BCM              YES
Porsche Boxster        BCM              YES
Porsche Cayman       BCM              YES
Porsche Panamera        BCM          YES
Porsche Cayenne          BCM          YES
Porsche Macan             BCM           YES
(Program key via eeprom data)

Support Chip List:
Microcontroller:
Motorola:
9S12 series:
9S12XDP512-0L15Y
9S12XDP512-1L15Y
9S12XDP512-0M23S
9S12XEP100-1N35H
9S12XEP100-5M48H
9S12XEx512-2M25J
9S12XEx512-3M25J
9S12D64-2L86D
9S12DJ64-0M89C
9S12DT128-1L59W
9S12DT128-4L40K
9S12DT128-1L85D
9S12DG128-3L40K
9S12DG256-0L01Y(CAS)
9S12DG256-2K79X
9S12XHZ384-1M80F

HC912 serie:
HC912DG128-0K50E
HC912DG128A-0L05H
HC912DG128A-3K91D

HC908 series:
HC908AZ60-4J74Y
HC908AZ60-1J35D
HC908GR16-4L35K

HC711 series:
HC711EA9-2D47J

HC705 series:
HC705-0D69J
HC705-0D53J

NEC:
D70F3634
D70F3380

CPU:
ST:
35080DQ
35160DQ
35080_3/6
35080VP/V6

8-foot chip:
24C01
24C02
24C04
24C08
24C16
24C32
24C64
24C128
24C256
24C01A
24C01B
24C02B
24LC01A
24LC01
24LC02
24LC04
24LC16
24LC32
25010
25020
25040
25080
25160
25320
25640
25128
25256
93C46
93C56
93C66
93C57
93C76
93C86
93A86
93CS56
93CS66
93S56
93LC46
93LC56
93LC66
93LC76
93LC86
95010
95020
95040
95080
95160
95320
95640
95128
95256

AMD:
AM29BL802CB
AM29F200
AM29F400
AM29F800



CG Pro 9S12 price

$359 like

http://www.uobdii.com/wholesale/cg-pro-9s12-freescale-programmer.html



CG Pro 9S12 driver software download on Win7

https://mega.nz/#!QMgUzbwR!YHQjkHDBFYG0m-FAMTnrP4Ni9bF5EmXo7X4ySTWvqEM

Works on Win7

Attention: you must Run CG Pro 9S12 as administrator



CG Pro 9S12 driver installation and user guide




On the desktop right click “CG Pro 9S12”, select “Run as administrator“.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-01

Begin to setup CG Pro.



Click on “Install”.

CG Pro setup complete.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-03

Device driver Installation Wizard.

Agree the agreement

cg-pro-9s12-read-immo-data-adjust-km-user-manual-04 cg-pro-9s12-read-immo-data-adjust-km-user-manual-05

Finish the Device driver Installation Wizard

cg-pro-9s12-read-immo-data-adjust-km-user-manual-06

Connect the CG PRO 9S12 to the computer.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-07 cg-pro-9s12-read-immo-data-adjust-km-user-manual-08 cg-pro-9s12-read-immo-data-adjust-km-user-manual-09

cg-pro-9s12-read-immo-data-adjust-km-user-manual-10 cg-pro-9s12-read-immo-data-adjust-km-user-manual-11

Go to the CGPRO 9S12 menu.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-12

Installing device driver software.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-13

You device is ready to use after the driver setup successfully.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-14

Right click on “My computer”, then “Manage” and “device manager”, if you can see “USB serial port (COM4)” that means the CGPRO 9S12 established a good communication with the computer

cg-pro-9s12-read-immo-data-adjust-km-user-manual-14

Right click the purple icon “CG Pro” then “Run as administrator”.

Reset the language as “English”

Click on “Upgrade firmware” to see if the newest firmware is available.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-17

You have two car brands option: BMW and Benz at the left column and can archive Anti-theft & Dashboard, the supported model lists follow.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-18

BMW dashboard function list.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-19

Benz Anti-theft function list.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-20 cg-pro-9s12-read-immo-data-adjust-km-user-manual-21

Also CG Pro can read BMW Benz immo data via chips.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-22 cg-pro-9s12-read-immo-data-adjust-km-user-manual-23 cg-pro-9s12-read-immo-data-adjust-km-user-manual-24 cg-pro-9s12-read-immo-data-adjust-km-user-manual-25

Read BMW dashboard V4 (35080VP/v6)

cg-pro-9s12-read-immo-data-adjust-km-user-manual-26 cg-pro-9s12-read-immo-data-adjust-km-user-manual-27

Exit the CG Pro software, run as administrator, select BMW dashboard V4 (35080VP/v6), click on “Open” to choose “BMW original eprom 23500KM.bin” to open.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-28

Click on “Adjust mileage” and write a new value, click on “OK”.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-29

CG Pro 9s12 system is built-in with Diagram for immo, take CAS4-1L15Y for example.

Click the option “Diagram”.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-30 cg-pro-9s12-read-immo-data-adjust-km-user-manual-31

Click on “Open” to open the corresponding file.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-32

When click on the current KM, you get message “Please enter the kilometers value, then click “OK” to adjust a new value.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-33

Click on the “Key” to have an overview.

cg-pro-9s12-read-immo-data-adjust-km-user-manual-34

load the original file

cg-pro-9s12-read-immo-data-adjust-km-user-manual-35



Done



CG Pro 9s12 software user manual supplied by http://www.uobdii.com engineer.

CGDI Prog MB software V2.0.0.0 update on 11th Nov 2017

Benz Monster updated software V2.0.0.0 on 11th Nov 2017:

add content:

  1. Calculate the erase password function (including the engine computer, ISM computer, EGS computer, ELV)
  1. Calculate the key to enable the password function (you can directly use the disable key)
  1. Erase the lock function (support CAN protocol, K-line protocol)

4. write lock data function

  1. Write frame number function
  1. Activate the lock function
  1. Clear the TP protection function
  1. Calculate the key current track code function
  1. Add to determine whether the dealer lock
  1. Fix problems that can cause the program to crash under certain conditions
  1. Optimization part pop-up prompt box to enhance the stability of the program
  1. increase some tips, the operation experience more accurate

CGDI Prog MB test reports:

http://blog.uobdii.com/cgdi-pro-mb-mercedes-benz-programmer-review-all-key-lost-ok/

CGDI Prog MB user manual

http://www.uobdii.com/upload/pro/cgdi-benz-programmer-user-manual.pdf

CGDI Prog MB Aliexpress or Amazon?

It’s up to you, if you have a trustworthy supplier to trade with, that’s nice. If not, recommend you goes through a sales site who claims their CGDI Prog MB is original with after-sales service.

CGDI Prog MB for sale on this site:

http://www.uobdii.com/wholesale/cgdi-prog-mb-benz-key-programmer.html



CGDI PROG BMW program F31 smart key FEM

CDDI PROG can program keys to BMW CAS1, CAS2, CAS3, CAS3+, FEM, BDC. Here, i will display how to use CGDI PROG BMW for F31 FEM remote programming

CDDI PROG can program keys to BMW CAS1, CAS2, CAS3, CAS3+, FEM, BDC. Here, i will display how to use CGDI PROG BMW for F31 FEM remote programming.

Remote: 868

Chassis: F020

BMW F31 FEM

CDDI PROG can program keys to BMW CAS1, CAS2, CAS3, CAS3+, FEM, BDC. Here, i will display how to use CGDI PROG BMW for F31 FEM remote programming.   Remote: 868 Chassis: F020  BMW F31 FEM 1 Voltage test platform 2 CGDI PROG BMW  (this tool supports key matching and new key programming (when all keys are lost) of BMW CAS1, CAS2, CAS3, CAS3+, FEM, BDC) 3  The procedure:  Run CGDI PROG BMW software after finish all connection Go to FEM/BDC key match 4 The current FEM BDC needs update the ECU program before performing key matching. Please ensure that the car battery has enough power. The programming process, please keep the equipment cable connection 6 Please remove the FEM BDC and then use the programmer to read and save data from the 95XXX EEPROM chip on FEM BDC computer board 7 Read the original car EEPROM data file 8 The 95128 EEPROM chip  9-11 CGDI BMW is reading the chip data 12-15 Save data 16 Use the programmer to write the calculated new data to the 95XXX EEPROM chip , then put the FEM BDC back into the car 17.18 Write M95128 19 Check the FEM connection 20 Voltage test platform is on 21 Use the programmer to write the calculated new data to the 95XXX EEPROM chip , then put the FEM BDC back into the car 22 The ECU is being programmed... 23-25 Again, write M95128 26 Again, write M95128 27 Voltage test platform should be on 28 The FEM  29 Please remove the FEM BDC and then use the CGDI programmer to write the original car EEPROM data back to 95XXX EEPROM chip and FEM BDC back into the car 30 Coding is successful!!!! 32 33 Job’s done.

Voltage test platform

cgdi-prog-bmw-f31-key-program (2)

CGDI PROG BMW

(this tool supports key matching and new key programming (when all keys are lost) of BMW CAS1, CAS2, CAS3, CAS3+, FEM, BDC)

cgdi-prog-bmw-f31-key-program (3)

The procedure:

Run CGDI PROG BMW software after finish all connection

Go to FEM/BDC key match

cgdi-prog-bmw-f31-key-program (4)

The current FEM BDC needs update the ECU program before performing key matching. Please ensure that the car battery has enough power. The programming process, please keep the equipment cable connection

cgdi-prog-bmw-f31-key-program (4)

Please remove the FEM BDC and then use the programmer to read and save data from the 95XXX EEPROM chip on FEM BDC computer board

cgdi-prog-bmw-f31-key-program (7)

Read the original car EEPROM data file

cgdi-prog-bmw-f31-key-program (8)

The 95128 EEPROM chip

cgdi-prog-bmw-f31-key-program (8) cgdi-prog-bmw-f31-key-program (10) cgdi-prog-bmw-f31-key-program (11)

CGDI BMW is reading the chip data

cgdi-prog-bmw-f31-key-program (12) cgdi-prog-bmw-f31-key-program (13) cgdi-prog-bmw-f31-key-program (14) cgdi-prog-bmw-f31-key-program (15)

Save data

cgdi-prog-bmw-f31-key-program (16)

Use the programmer to write the calculated new data to the 95XXX EEPROM chip , then put the FEM BDC back into the car

cgdi-prog-bmw-f31-key-program (17) cgdi-prog-bmw-f31-key-program (18)

Write M95128

cgdi-prog-bmw-f31-key-program (19)

Check the FEM connection

cgdi-prog-bmw-f31-key-program (20)

Voltage test platform is on

cgdi-prog-bmw-f31-key-program (21)

Use the programmer to write the calculated new data to the 95XXX EEPROM chip , then put the FEM BDC back into the car

cgdi-prog-bmw-f31-key-program (22)

The ECU is being programmed…

cgdi-prog-bmw-f31-key-program (23) cgdi-prog-bmw-f31-key-program (24) cgdi-prog-bmw-f31-key-program (25)

Again, write M95128

cgdi-prog-bmw-f31-key-program (25)

Again, write M95128

cgdi-prog-bmw-f31-key-program (27)

Voltage test platform should be on

cgdi-prog-bmw-f31-key-program (28)

The FEM

cgdi-prog-bmw-f31-key-program (29)

Please remove the FEM BDC and then use the CGDI programmer to write the original car EEPROM data back to 95XXX EEPROM chip and FEM BDC back into the car

cgdi-prog-bmw-f31-key-program (30)

Coding is successful!!!!

cgdi-prog-bmw-f31-key-program (31) cgdi-prog-bmw-f31-key-program (32)



Job’s done.

New! CGDI Prog offers BMW FEM BDC key program free of charge

CGDI Prog is offering and will offer BMW FEM BDC key programming function for free of charge and the users can save up to $175 meanwhile CGDI PRO won’t increase

CGDI Prog is offering and will offer BMW FEM BDC key programming function for free of charge and the users can save up to $175 meanwhile CGDI PRO won’t increase price.

cgdi-pro-bmw-msv80-key-programmer

  1. CGDI Prog BMW FEM BDCkey programming function:

CGDI V1.1.0.0 Add content:

  1. Increased F-system FEM key preparation (including increased total throw)

CGDI V1.1.2.0 Add content:

  1. Repair OBD key match load engine data or enter ISN code match key can not find the problem.
  2. Repair some CAS3 read data suggest the need to downgrade the problem. (This model is: CAS3 CPU 0L01Y)
  3. Optimize (FEM) key matching process

CGDI V1.1.10 version update content

  1. Increase the FEM using the key bit deletion function
  2. Increase (F) Start / disable key function
  3. Mileage reset function,

4.FEM increase read car mileage, chassis model function

  1. Repair activation device, authorization function appears bug!
  1. BMW FEM BDC Dismantling key Learning Location:

bwm-fem-bdc-authorization-for-cgdi-prog-bmw-msv80-pic-1 bwm-fem-bdc-authorization-for-cgdi-prog-bmw-msv80-pic-2 bwm-fem-bdc-authorization-for-cgdi-prog-bmw-msv80-pic-3 bwm-fem-bdc-authorization-for-cgdi-prog-bmw-msv80-pic-4

  1. Click for CGDI Prog BMW programmer supported IMMO systems.

You must read this post: How CGDI Prog programms key on BMW MSV80 CAS4/CAS4+ all key lost?



  1. 2017 BMW FEM BDC key programmers advice:

1) VVDI2 BMW FEM & BDC Functions Authorization Service,$800 (if you have Ikeycutter Condor, save up to $600)

vvdi-bmw-v4.3.0-fem-bdc-function-06 vvdi-bmw-v4.3.0-fem-bdc-function-07

2) Yanhua BMW FEM Key Programmer, $549

yanhua-bmw-fem-key-programmer-04 yanhua-bmw-fem-key-programmer-pic-05

3) BMW explorer, 2000 euro — Module Write keys FEM/BDC (F seria)

Read related post: BMW FEM/BDC key programmer wanted, which one better?

4) CGDI Prog BMW programmer, $629 & FEM BDC function for free.

www.uobdii.com

User manual for CGDI MB on W166 all keys lost

Mercedes Benz W166 all keys lost and program new keys, CGDI MB Pro is good choice, here share user manual with pictures.

Mercedes Benz W166 all keys lost and program new keys, CGDI MB Pro is good choice, here share user manual with pictures.

Guide:

Select Lock(EIS)

cgdi-mb-w166-all-keys-lost-01

Click on “Read EIS data” then “Computer password”

cgdi-mb-w166-all-keys-lost-02

Click on “Copy key without key” then “Collect Data”.

cgdi-mb-w166-all-keys-lost-03

Prepare to collect data, please wait…

cgdi-mb-w166-all-keys-lost-04

Please insert the simulation key into the lock in 30 seconds.

cgdi-mb-w166-all-keys-lost-05

CGDI MB programmer is collecting data.

cgdi-mb-w166-all-keys-lost-06 cgdi-mb-w166-all-keys-lost-07

Data acquisition succeed, save it by default.

cgdi-mb-w166-all-keys-lost-08

Click on “Upload data” then open the data you saved.

cgdi-mb-w166-all-keys-lost-08

Upload data successfully.

cgdi-mb-w166-all-keys-lost-10

Click on “Query password”

cgdi-mb-w166-all-keys-lost-11

Wait for 2 minutes, query password succeed.

cgdi-mb-w166-all-keys-lost-12

Click on “Lock (EIS)” then CGDI MB display password, copy it.

cgdi-mb-w166-all-keys-lost-13

Click on “Paste password”

cgdi-mb-w166-all-keys-lost-14

To be updated……



CGDI BMW FEM BDC key learn in the dismantling method

CGDI BMW FEM BDC key learn is in the dismantling method instead of OBD method. Then you have to know the FEM/BDC system location, 95128 IC location, 95256 IC location and Key learning position, read the detail in the below parts.

CGDI BMW FEM BDC key learn is in the dismantling method instead of OBD method. Then you have to know the FEM/BDC system location, 95128 IC location, 95256 IC location and Key learning position, read the detail in the below parts.

  1. BMW FEM/ BDC installation location.

bmw-fem-bdc-key-learn-01

  1. 95128 IC location

bmw-fem-bdc-key-learn-02

  1. 95256 IC location

bmw-fem-bdc-key-learn-03

  1. Key learning position

bmw-fem-bdc-key-learn-04

That’s all.

Value bundle:

CGDI Prog BMW MSV80 plus BWM FEM/BDC Authorization.
