2M2 Tank “Left side is not equal to right side” Trouble Solution

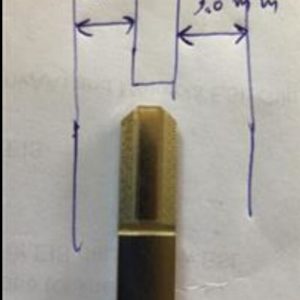

One 2M2 Magic Tank user feedback he has HON66 [No.25] to cut, but he has the confusion that : aafter calibrating the left side ,the right side is not equal (Left side=2.9mm, Right side =3.0mm).

2m2-magic-cut-hon66-01 2m2-magic-cut-hon66-02 2m2-magic-cut-hon66-03



2M2 chief engineer replied:

Please ignore the number of calibration, the position of cutter and tracer depend upon the number after calibration, so the number has a little tolerance that is normal. The most important is to put the blade 25# into the right position. that is okay.

2m2-magic-cut-hon66-04

Video on HON66 Key Cutting by 2M2 Tank Magic Key Machine:

2M2 Tank Machine tech support: www.uobdii.com

How to Use 2M2 Tank Magic Cut Ford FO21 Key Automatically

2M2 Magic Tank is a innovation automobile key cutting machine,it can cut Ford FO21 key automatically,no need to any extra operations.Here UOBD2 tech team will show you the procedures.

2M2 Tank Magic Cut Ford FO21 Key Automatically (1)

Procedures:

Run 2M2 Tank App on mobile phone

2M2 Tank Magic Cut Ford FO21 Key Automatically (2)

Input FO21 to search

2M2 Tank Magic Cut Ford FO21 Key Automatically (3)

Select “FO21.T6”

2M2 Tank Magic Cut Ford FO21 Key Automatically (4) 2M2 Tank Magic Cut Ford FO21 Key Automatically (5)



Follow the instruction:

Loosen the screw

Remove the standard fixture

Remove the probe

Install the FO21/TEB1 fixture

2M2 Tank Magic Cut Ford FO21 Key Automatically (6)



Tighten the screw

Insert new blank key

Align the red line of the axis to the red line on the right

2M2 Tank Magic Cut Ford FO21 Key Automatically (7)



Turn the blank key off the horizontal position

Tighten the nut by hand at first

Use the fixed block to locate the key blank

Pull the key blank towards the arrow

Rotate the nut and tighten it.

2M2 Tank Magic Cut Ford FO21 Key Automatically (8)



Use the red spanner to fix the axis,and use the blue spanner to tighten the nut.

Move the fixed block away

2M2 Tank Magic Cut Ford FO21 Key Automatically (9)



Now 2M2 Key Cutting machine will start cutting work

2M2 Tank Magic Cut Ford FO21 Key Automatically (10) 2M2 Tank Magic Cut Ford FO21 Key Automatically (11) 2M2 Tank Magic Cut Ford FO21 Key Automatically (12)



Clear the clamp and remove FO21 key

2M2 Tank Magic Cut Ford FO21 Key Automatically (13) 2M2 Tank Magic Cut Ford FO21 Key Automatically (14) 2M2 Tank Magic Cut Ford FO21 Key Automatically (15)



Test it on lock.

2M2 Tank Magic Cut Ford FO21 Key Automatically (16)



http://www.uobdii.com/wholesale/2m2-magic-tank-car-key-cutting-machine.html

How Many Key Type 2M2 Tank Machine Support?

2M2 Magic Tank car key cutting machine can cut a wide range of car blade from worldwide,

2M2 Magic Tank car key cutting machine can cut a wide range of car blade from worldwide, this article is available with the Key Blade chart.

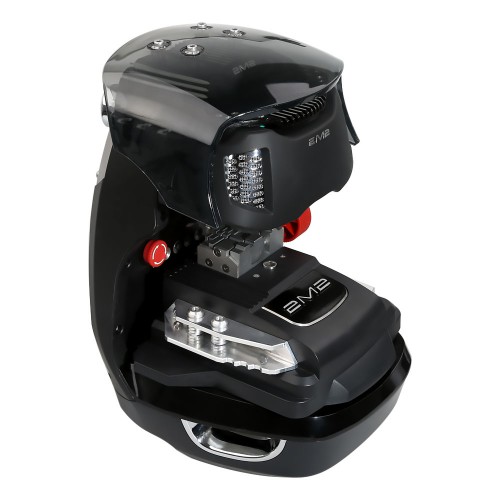

2M2 Tank Key Cutting Machine

Chart 1: European car makes key blades

European Cars
Car Make Plain Mill End Mill End Mill Internal Tooth Ball Mill Inner Milling Unilateral
ALFAROME GT15.D99 SIP22.H8
GT16.D66
AUDI HU49_246.D77 HU66.H8
HU49_256.D77
WT7_246.D77
WT7_256.D77
BMW HU50.D00 HU100R.H8
HU50.D11 HU92.H8
HU58.N66
CITROEN NE73.D66 HU83-L.H7
SX9_A.D44 HU83.H7
SX9_A.D55 SIP22.H8
VA2-1049.H3
VA2.H6
FERRARI GT16.D66 HU66.H8
FIAT GT10.D66 SIP22.H8
GT10.D77 VA2-1049.H3
GT15.D99 VA2.H6
SX9_A.D44
SX9_A.D55
FORD HU101.M10 FO21.T6
HU66.H8
HOLDEN FO38.D88 GM45.M8
FO40.D88 HU100T12.H8
MIT2.D66 YM27.M10
SZ12.D88
TOY27.D66
YM28.D00
IVECO GT10.D66
GT10.D77
JAGUAR FO21.T6
TBE1.T8
LANCIA GT10.D66 SIP16.M9
GT10.D77 SIP22.H8
GT15.D99
GT18.D99
SX9_A.D44
SX9_B.D55
LANDROVE NE75.D00 HU92.H8
MAN HU83-L7.H7
HU83-L8.H8
HU837.H7
HU838.H8
MASERATI YM308.M8
YM30.M8
MERCEDES-BENZ HU39.N88 HU41.M10
HU72.D00 HU64.M10
YM15.D00
MINI HU92.H8
OPEL GM15.D88 HU100.H8
HU46.D00 HU43.M10
HU87.D00 YM27.M10
NE73.D66
YM28.D00
PEUGEOT NE72.D66 HU83-L.H7
NE73.D66 HU83.H7
NE78.N55 VA2-1049.H3
SX9_A.D44 VA2.H6
SX9_B.D55
PORSCHE HU49_246.D77 HU66.H8
HU49_256.D77
RENAULT NE72.D66 VA2-1049.H3
NE73.D66 VA2-ABCD.H6
VAC102.D66 VA2.H6
VA6-1234.H6
VA6-ABCD.H6
VA6-DECO.DE
ROVER NE77.D00 HU92.H8
SAAB B99.D00 YM30.M10
GM40.D00
NSN14.D00
NSN15.D00
SEAT HU49_246.D77 HU66.H8
HU49_256.D77
SKODA HU49_246.D77 HU66.H8
HU49_256.D77
SK22.S6
VAUXHALL GM15.D88 HU100.H8
HU46.D00 HU43.M10
HU87.D00 YM27.M10
NE73.D66
YM28.D00
VOLKSWAG HU49_246.D77 HU66.H8
HU49_256.D77 YM15.D00
WT7_246.D77
WT7_256.D77
VOLVO HU56.M8
NE51.D00 NE66-A.N44
NE66-B.N44
NE66-C.N44



Chart 2: Japanese car makes key blades

Japanese Cars
Car Makes Plain Mill End Mill End Mill Internal Tooth Ball Mill Inner Milling Unilateral Remarks
ACURA HON58.D88 HON66.N66
NE77.D00
DAIHATSU DH4R.D88
HONDA HON58.D88 HON66.N66
HON65.D88
NE77.D00
INFINITI NSN11.D88
NSN14.D00
LEXUS TOY40.L88 Long
TOY48-8-.L44 Short
TOY48(80.L44 Short
TOY48.L55 Short
MAZDA FO21.T6
MITSUBIS CY24.D77 HU56.M8 MIT14.L88
HYN11.D88 TOY40.L88
HYN6.D88
MIT11.D88
MIT8.D88
MIT9.D88
NISSAN NI02.D00 Long
NSN11.D88 Short
NSN14.D00 Long
NSN15.D00 Short
NSN16.D88 Short
SUBARU DAT11.D66 DAT17.N55
HU87.D00 Long
NSN11.D88 Short
NSN14.D00 Long
NSN19.D00
SZ12.D88
SUZUKI HU87.D00
SZ11.D88
SZ12.D88
TOY43.D00
TOY43.D88
TOYOTA TOY25.D66 VA2-1049.H3 TOY48.L55
TOY27.D66 VA2.H6
TOY38.D88
TOY40(80.L44
TOY40.L88
TOY41.D88
TOY42.D88
TOY43.D00
TOY43.D88
TOY46.D77
TOY47.D99



Chart 3: Korean car makes key blades

Korean Cars
Car makes Plain Mill End Mill End Mill Internal Tooth Ball Mill Inner Milling Unilateral Remarks
Hyundai HYN10.D88 KIA7.L66
HYN11.D88 TOY40.L88
HYN12.D88
HYN14.D00
HYN14.D88
HYN15.D88
HYN6.D88
HYN7.D88
HYN8.D88
HYN9.D77
KIA FO32.D00 TOY40.L88
FO34.D00 KIA7.L66 Short
HYN14.D88
HYN7.D88
KIA1.D77
KIA2.D77
KIA3.D88
KIA4.D77
MAZ20.D00
SSANGYON HYN10.D88
SSYI.D77
SSY2.D77
SSY3.D88



Thanks.



www.uobdii.com

2M2 Magic Tank automatic key cutting machine Review

2M2 Magic Tank automatic car key cutting machine can be used for European, American, Japanese and Korean vehicles via Bluetooth on Android phone without battery. Here collected test reports on FIAT/ OPEAL/ CHEVROLET/ FORD and LAND ROVER.



2M2 Magic Tank automatic key cutting machine review:

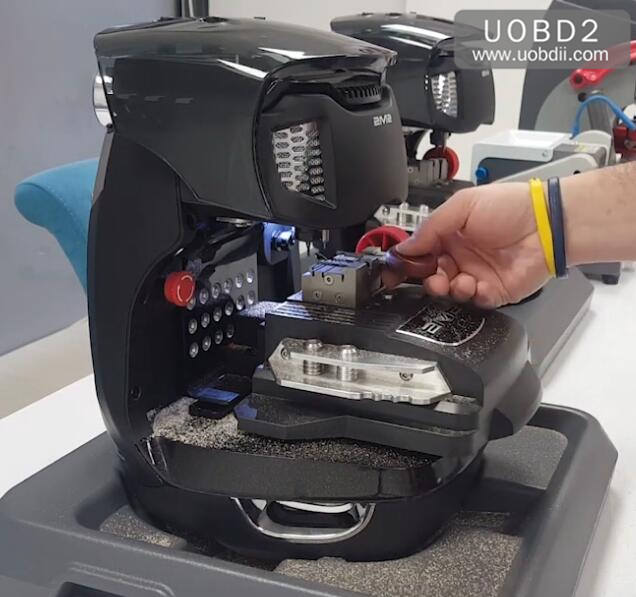

2M2 Magic Tank cut FIAT GT15: Success!

2M2 Magic Tank cut Opel/ Chevrolet HU100: Success!

2M2 Magic Tank cut Ford/ Land Rover HU101: Success!

Prepare:

2M2 Magic Tank key cutting machine and FIAT GT15

2M2 Magic Tank key cutting machine and Opel/ Chevrolet HU100

2M2 Magic Tank key cutting machine and Ford/ Land Rover HU101
