How to use TMPro Add Key for VW 93C86 Keyless Continental

This article show a guide on how to use TMPro 2 to program keyless continental for VW 93C86.And you can use this method to apply on VW Touareg 2009,Phaeton 2010-2011,Bentley 2014,Porsche Cayenne 2009,Audi A8 2009



Preparations:

TMPro2 Programmer

Soldering Iron

Power Supply Unit

PCF7936 or Silca T14 – JMA TP12 transponder or original remote key



Procedures:

Remote the shell of VAG,Porsche Kessy Continental module

TMPro 2 Program Keyless Continental for VW 93C86 (1)

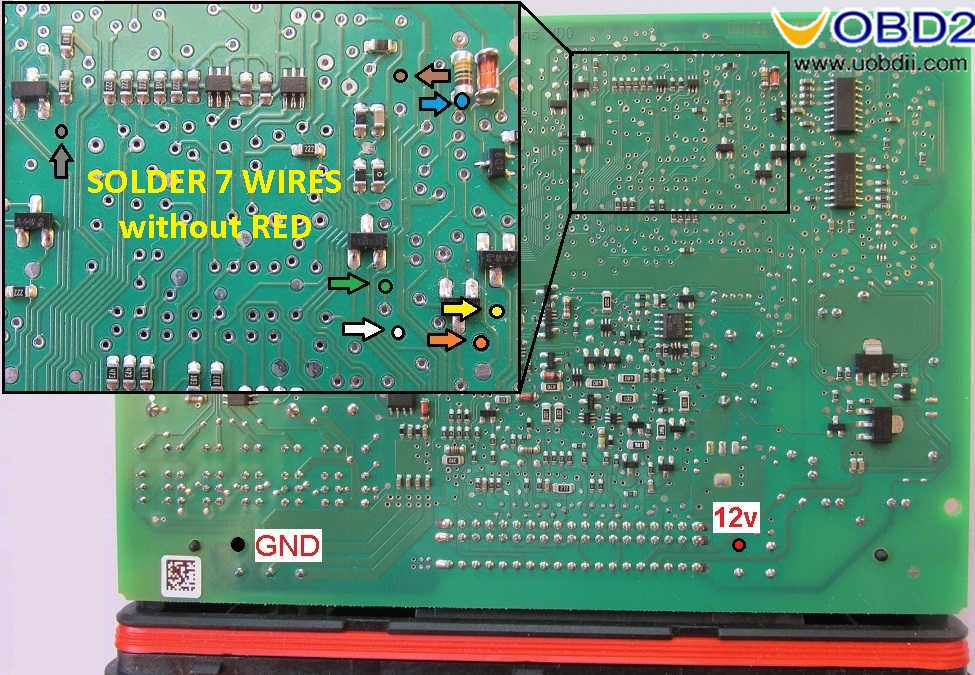

Then follow below connection diagram to locate the pin position

TMPro 2 Program Keyless Continental for VW 93C86 (2)

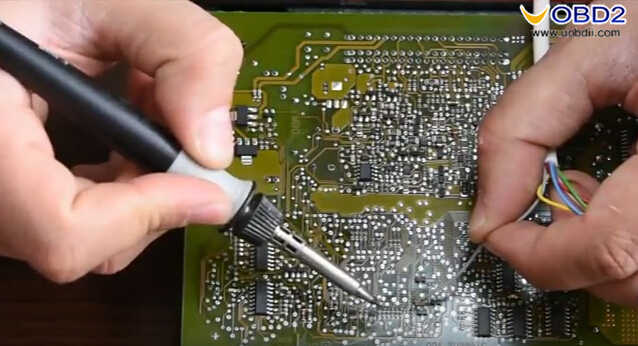

Then use the soldering iron to solder the wires as show on the above connection diagram

TMPro 2 Program Keyless Continental for VW 93C86 (3)

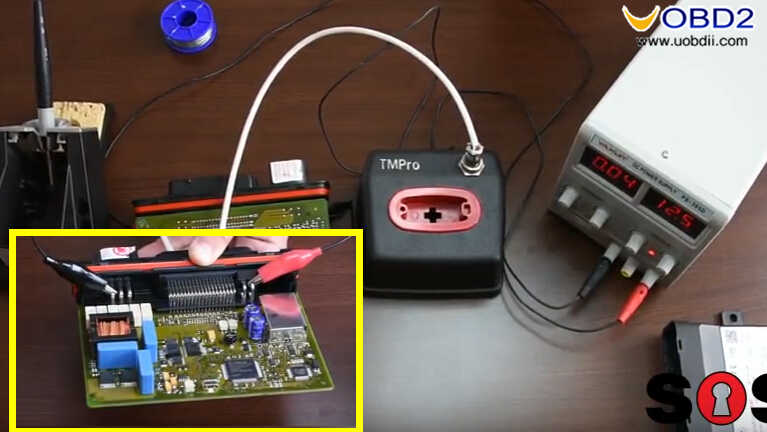

Connect the VAG,Porsche Kessy Continental module

TMPro 2 Program Keyless Continental for VW 93C86 (4) TMPro 2 Program Keyless Continental for VW 93C86 (4)



Connect the TMPro2 to laptop,and run the TMPro software

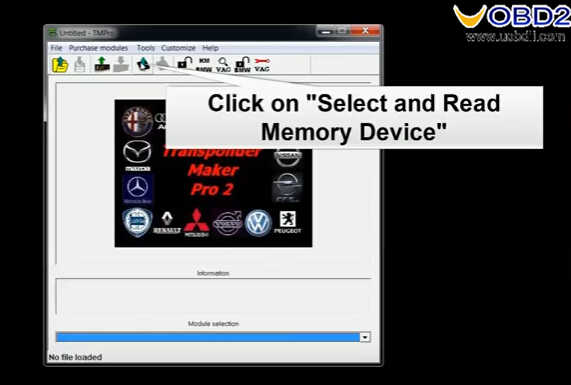

Click on “Select and Read Memory Device”

TMPro 2 Program Keyless Continental for VW 93C86 (6)

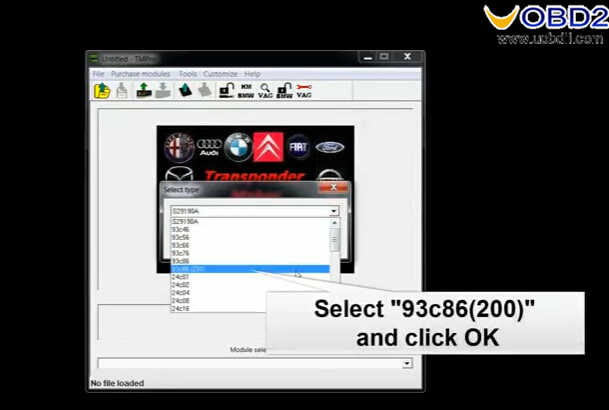

Select “93c86(200)” and click OK to continue

TMPro 2 Program Keyless Continental for VW 93C86 (7)

Wait for TMPro to load data

TMPro 2 Program Keyless Continental for VW 93C86 (8)

You will see the information once the TMPro is done calculating

TMPro 2 Program Keyless Continental for VW 93C86 (9)

Now you can create you key.Just put the chosen type of key and press the button.

Then program will finish job automatically.

TMPro 2 Program Keyless Continental for VW 93C86 (9)

Done!
