VVDI Key Tool+OBDSTAR X300 Plus Program Remote for Chevrolet Duramax

This post show a guide on how to use OBDSTAR X300 Plus to program remote for Chevrolet Trailblazer Duramax 2013

Purpose: generate remote -> read pincode > program remote

Car model: Chevrolet Trailblazer Duramax 2013



Tools need:

VVDI Key tool : used to generate remote firstly

OBDSTAR DP plus: used to program remote, read pincode

Reason to use them: Via OBD. no dismantling and desoldering the immobilizer box.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-01

PS: OBDSTAR DP plus = OBDSTAR key master DP plus, their difference is the outlook.



Part 1: use VVDI Key tool to generate remote

Generate remote -> Remote program -> Remote key

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-02 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-03

America ->Chevrolet -> Trailblazer

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-04

Use XN remote (chip ID 46 7937E)

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-05

Put battery and press [Gen].

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-06

Burn succeed.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-07

Setup remote module into remote shell.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-08

Part 2: Use OBDSTAR key master DP plus to program Chevrolet Trailblazer Duramax 2013 key

PS: it is very easy to do by following the on-screen message.

  1. Read Pin code

Turn on ignition with programmed key.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-09

Read pincode.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-10

There is Pincode in Service Booklet: 9465

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-10

If no service booklet, then you can find by OBDII.

Tap “Enter” – GM 31.15 -> Read security Code.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-12 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-13 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-14

By OBDII -> BCM system -> Auto

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-15 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-15 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-15

Please ensure the internet connection is fine.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-18 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-19

Read Pincode — Logging…

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-20 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-21

Pincode: 9465

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-22

  1. Program Chip

Back to tap: GM 31.15 -> Immobilizer-> Select from type -> Type3

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-23 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-24

Check key data: 2 keys.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-25

Clear DTC.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-26

All keys lost -> fill pin code:9465

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-26 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-28

Switch off for 5 seconds, then switch on.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-29

System configuration, please wait for 10 minutes.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-30

After 10 minutes.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-31

Switch off and pull the key out.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-32 chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-33

Open and close driver door.

Switch on.



Whether to program next key? [Yes].

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-34

Switch off and pull the key out.

Insert new key and switch on.

Switch off and pull the key out.

Open then close driver door.

Switch on.

Whether to program next key? [NO] only 2 keys.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-35

Switch off and pull the key out.

Open then close driver door.

Switch on

Switch off

Switch on

Program successfully.

Security light go off.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-36

Start engine ok.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-38

Test remote ok.

chevrolet_trailblazer_duramax_2013_generate_remote_read_pincode_and_program-39



Done.

Thanks for reading.

VVDI key tool and OBDSTAR DP plus are really good match. It is really easy to do by following the on-screen message, no dismantling and desoldering the immobilizer box.

How to Use OBDSTAR X300 DP Plus Do Ford Escort 2018 All Key Lost Programming

This article show a guide on how to use OBDSTAR Key Master DP Plus to program new keys for Ford Escort 2018 all keys lost.

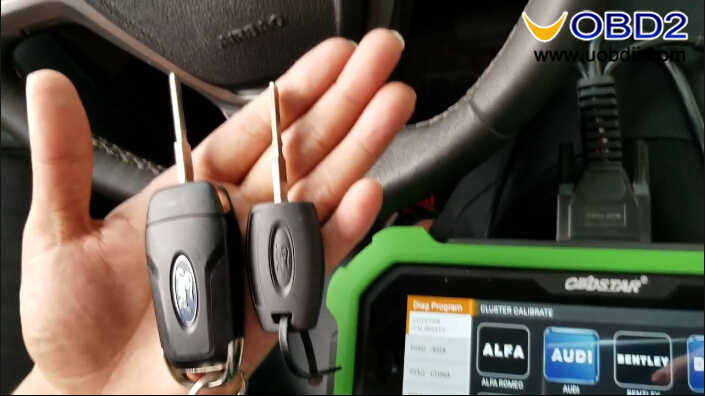

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (1)





Here is OBDSTAR Key Master DP Plus Do 2018 Ford Escort All Keys Lost Video Guide:





Procedure With Pictures and Texts:

Connect OBDSTAR X300 DP Plus to Ford Escort by OBD port

Enter main menu–>Diag Program–>Immobiliser–>Ford Lincoln

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (2)

Select “FORD/LINCOLN V32.23” then click “Enter” to continue

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (3)

Select “FORD”

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (4)

Select “Immobiliser”

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (5)

ESCORT

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (6)

Select year after 2017 “2017-”

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (7)

Select “Erase Keys”

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (8)

Instruction:

All keys will be erased

Min keys are required:2

Press Enter to continue

Turn the ignition to ON position,then click “Enter” to continue

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (9)

You need to wait a minute for system reading data…

When the system configuration completing,it will prompt to follow below operations:

1.Switch ignition off

2.Switch ignition on with key 1 for 3 seconds,then switch off and remove the key

3.Swtich ignition on with key 2 for 3 seconds,then switch off and remove the key

4.If you want to add more keys,please repeat procedure 3,complete

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (10)

Press “Enter” to continue

Test programmed keys on the vehicle

Ford Escort 2018 All Key Lost Programming by OBDSTAR X300 DP Plus (11)

Done!

How to Use OBDSTAR X300 DP Plus Read Fiat Delphi 93c66 PIN Code

This article show a OBDSTAR X300 DP Plus test case on Fiat Delphi 93C66 PIN code reading.If you want to get more test case,check here:OBDSTAR X300 DP Plus test cases.

This article show a OBDSTAR X300 DP Plus test case on Fiat Delphi 93C66 PIN code reading.If you want to get more test case,check here:OBDSTAR X300 DP Plus test cases.



Procedures:

Connect OBDSTAR X300 DP Plus to Fiat,then enter the menu to select “FIAT V32.00”

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (1)

After waiting a moment for system build connection and configuration

Tap “Pre-Coding”

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (2)

Select “DELPHI 93C66(B)(ID48)”

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (3)

Vehicle equipped with this unit:

Albea,Doblo(2000-2010),Punto,Palio,Strada

Tap “Yes” to continue

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (4)

OBDSTAR X300 PAD2 will give the massage:

This function is available by connecting the server,please ensure the internet connection is normal

Tap “Enter” to continue

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (5)

After then you need to select “Read EEPROM(93C66)”,the tap “Enter” to continue

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (6)

Follow the screen prompt to switch ignition on

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (7)

Switch ignition off

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (8)

Then switch the ignition on again

Logging,please wait about 5 minutes…

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (9)

Please enter a filename to save

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (10) OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (11)



Now you can get the PIN code

OBDSTAR X300 DP Plus Read PIN Code for Fiat Delphi 93c66 (12)

Done!



How to Use OBDSTAR X300 DP Plus Read Fiat Delphi 93C66 PIN Code

OBDSTAR X300 DP Plus All Keys Lost Programming for Toyota 2016

This article show a guide on how to use OBDSTAR X300 DP Plus to perform all keys lost programming for Toyota 2016,It is tested 100% ok.



What you need?

OBDSTAR DP Plus (Any of A package or B package or C package is ok)

Which contains P001 programmer and the simulated card in Red  (applies to the vehicle with 88/A8 type of smart key)



Image source

Main Procedures:

Read EEPROM

Make simulated card

Add Smart key

Erase smart key



Connect OBDSTAR DP Plus (OBDSTAR X300 PAD2)to the Toyota OBD port (Directly charge via the vehicle)



Press the “Start” button and you can see the yellow warning light flashes for 3 times (Means detecting no keys).

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-01 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-02



Enter into DP Plus function menu, tap “Toyota / Scion / Lexus”

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-03



Initializing MCU data

Loading

VCI is upgrading.. (VCI is built-in)

Initializing

Loading

Initializing diagnostic data

Authorizing…

* 5 seconds done… DP plus is running fast

Tap “Smart key system”

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-05



Tap “Type 5 (All smart keys lost)”

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-05



Tap “Read eeprom”.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-06

Read in on-screen guide :

  1. This function can read (backup) vehicle EEPROM data;
  2. After read (backup) of vehicle eeprom data, the simulated card is generated with this data;
  3. Using simulated card attach start button to illuminate instrument, and instead of original car key to [Add smart keys].

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-07

Communicating…

Reading data…

Please reenter the file name to save.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-08 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-09

This vehicle EEPROM data backup was successful. Please execute the [Make Simulated Card] function!

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-10



Tap “Make Simulated Card”.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-12

This function can generate an simulated card with all keys lost.

Use this simulated card instead of the original car key to approach the start button and turn on the instrument, and perform the [Add Smart key] operation.

Make sure the simulated card is fully charged, otherwise the [Add Smart key] operation may fail.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-12 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-13

This function is available by connecting the server, please ensure the internet connection is normal.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-14

Connecting to the server.

Connect P001 programmer to diagnostic tool.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-15 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-16

Put NO.3 simulated card (Red) into P001 programmer.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-18

Insert the battery and turn on the switch.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-18 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-19

Put the simulated card (88/A8 type in Red) into P001 programmer.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-20

Only one seconds later, get message:

Generating simulated card successfully.

Move the simulated card close to the start button and try to light the meter. If you can light up the meter normally, use the simulated card instead of the original car key for the [Add smart key] operation.

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-21 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-22 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-23



Go on [Add smart key] operation.

Done
