Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017

In this instruction,keycuttingmachine.org will show you guide on how to use Lonsodr K518 to do all keys lost programming for Nissan X-trail 2017.

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (1)

Procedures:

Connect Lonsdor K518 programmer to Nissan X-trail obd port,then enter menu to select [Nissan]

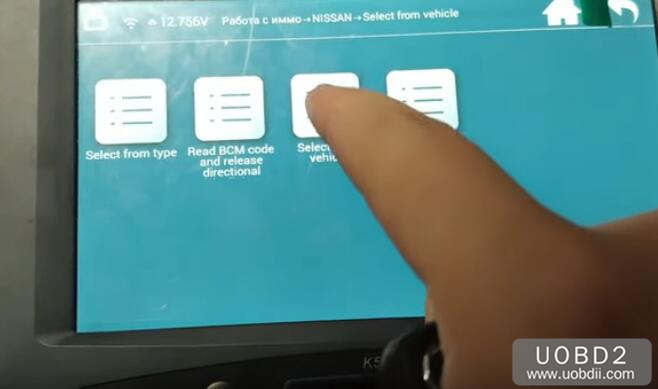

After then enter key programming option and select [Select from vehicle]

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (2)

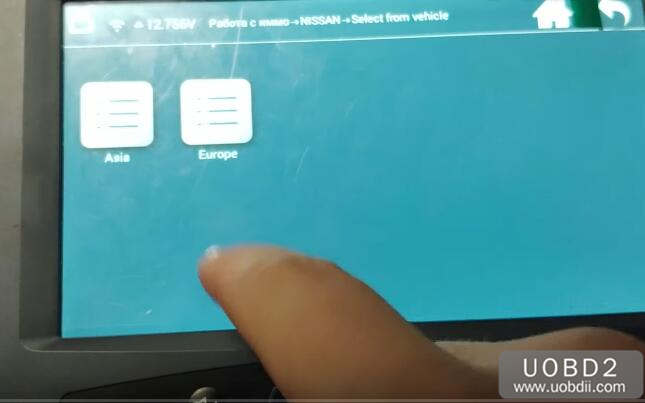

Select [Europe]

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (3)

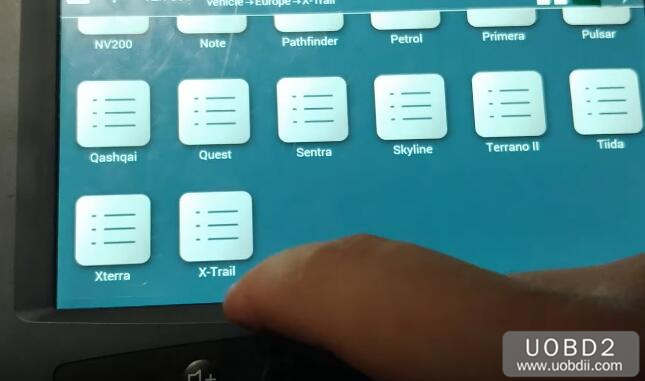

Select [X-Trail]–>[T32]

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (4) Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (5)



Select [Proximity smart]–>[Program smart key]

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (6) Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (7)



It will prompt you with notice massage:

“Do not perform key programming on the BCM with Part NO.284B1-4CB1A…”

Press [OK] to continue

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (8)

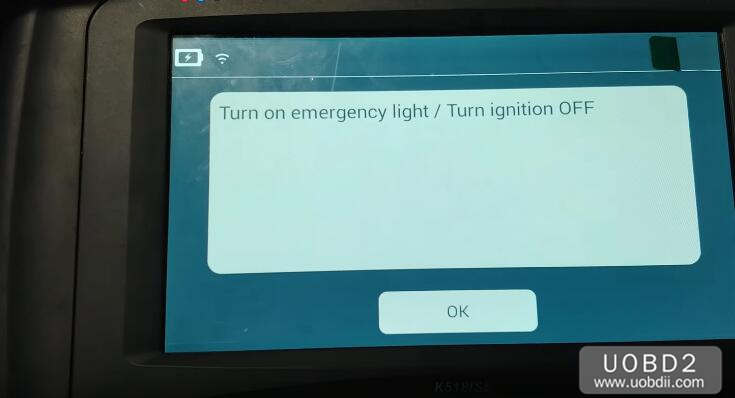

Turn on emergency light/Turn ignition OFF,then click [OK] to continue

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (9)

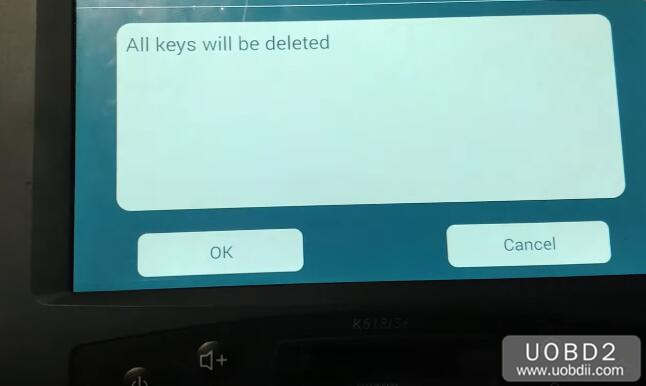

All keys will be deleted,press [OK] to continue

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (10)

Wait for system connecting

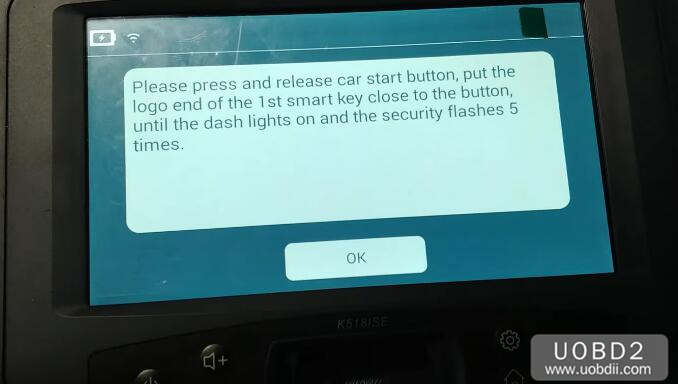

Now please press and release car start button,put the logo end of the 1st smart key close to the button,until the dash lights on and the security flashes 5 time,then click [OK] to continue

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (11)

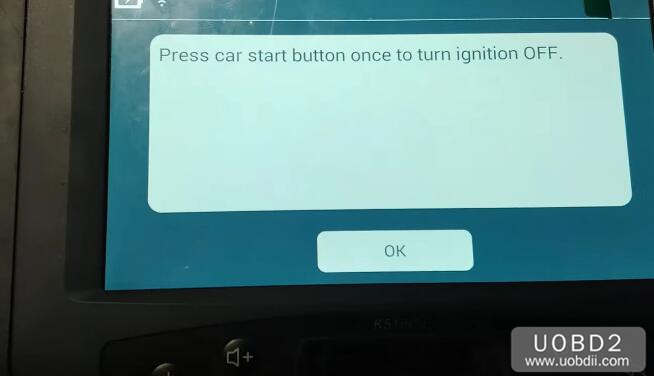

Press car start button once to turn ignition OFF,then click [OK] to continue

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (12)

Programming complete,Program next key?

Press [OK] to proceed.

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (13)

Repeat operation

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (11)

After complete,it will prompt you with massage

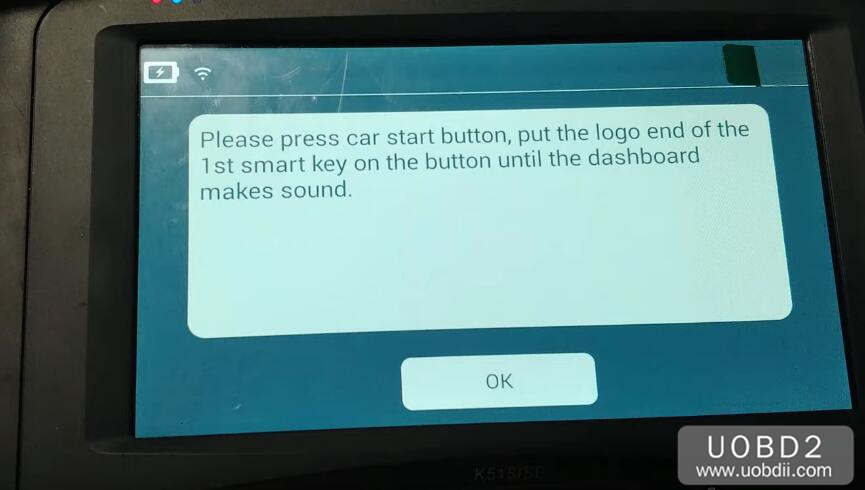

“Please press car start button,put the logo end of the 1st smart key on the button until the dashboard makes sound”

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (14)

Press car start button once to turn ignition OFF

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (15)

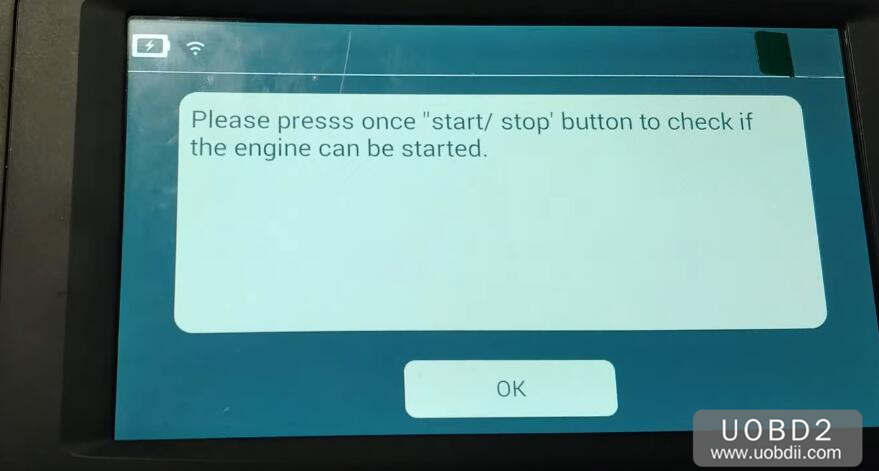

Please press once “start/stop” button to check if the engine can be started,then press [OK] to proceed.

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (16)

Programming complete

Lonsdor K518 All Key Lost Programming for Nissan X-trail 2017 (17)

Now you can test the new key on Nissan X-trail.
