JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus

Recently,OBDSTAR Tech team test Jeep Compass 2018 key programming by OBDSTAR X300 Key Master Plus.So here keycuttingmachine.org show the procedures,hope it helps!

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (1)



First Video Guide Here:



Procedures:

Connect OBDSTAR X300 DP Plus(Key Master Plus) to JEEP Compass 2018 OBD port

Enter menu to select “CHERYSLER/DODGE/JEEP”,then select “Enter” to continue

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (2)

Select “JEEP”

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (3)

And region select “USA-CANADA”

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (4)

Compass(2017-2018)

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (5)

PROXIMITY,and enter to continue

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (6)

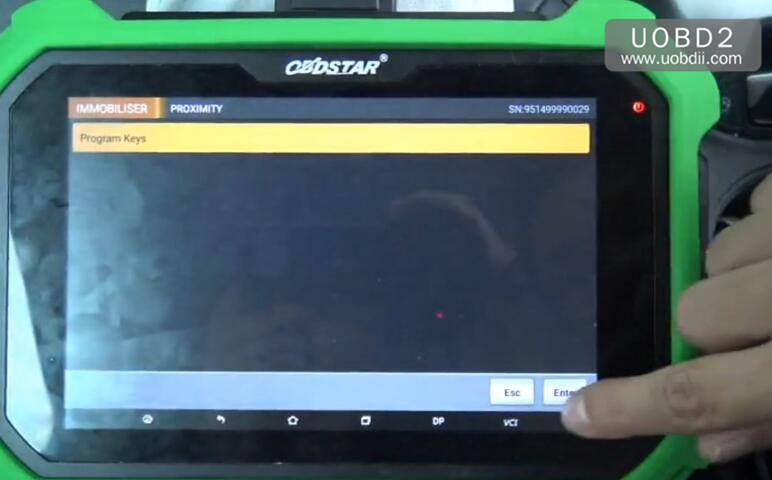

Program Keys

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (7)

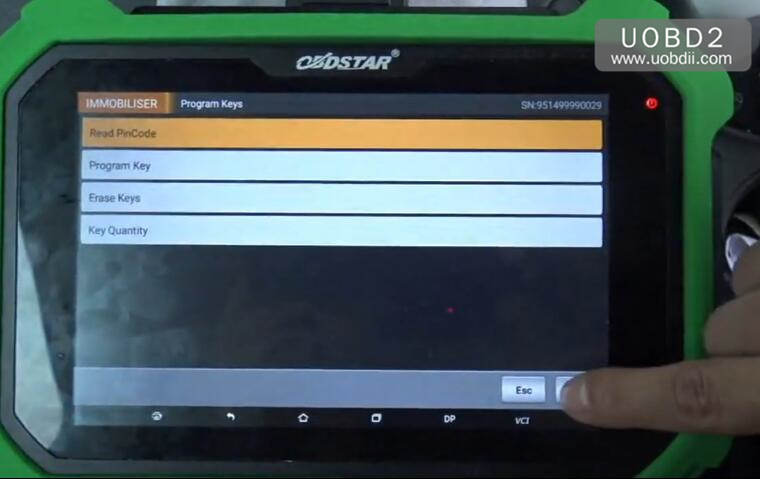

Select “Read PinCode”

This function is available by connecting the server,please ensure the internet connection is normal.

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (8)

Switch ignition off,press emergency flasher switch

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (9)

Pin code read successfully

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (10)

Back to press “Key Quantity” to check key number

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (11)

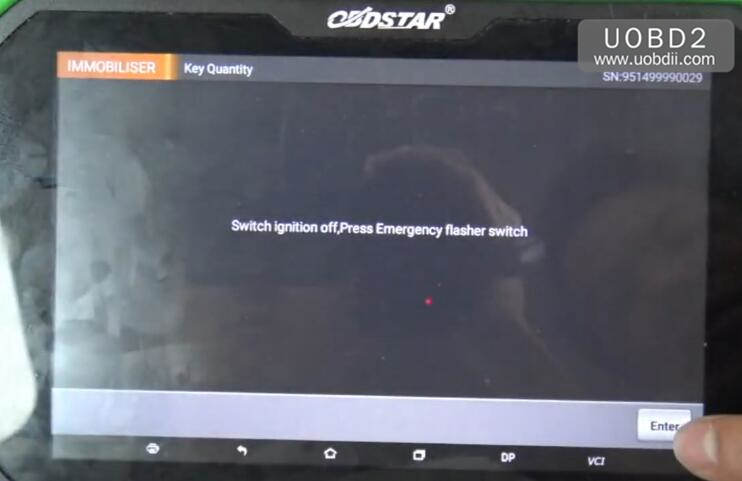

Switch ignition off,Press emergency flasher switch

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (12)

It show you the key number

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (13)

Back menu to erase key,and follow X300 DP Plus to erase keys.

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (14)

When it come to this step:

Put the smart key to be added in the central control position,press and release the unlick key once within 30 seconds.

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (15)

Press and release again the unlock button once within 30 seconds

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (16)

Now a key have been added sussessfully

JEEP Compass 2018 Key Programming by OBDSTAR Key Master Plus (17)

And you can back to menu to press “Program Keys” to program next key.
