How to Use V8/X6 Key Cutting Machine to Cut New Key for VW HU66

In this article,auto key cutting machine blog will show you how to use V8/X6 key cutting machine to cut new key for VOLKSWAG HU66.



Procedures:

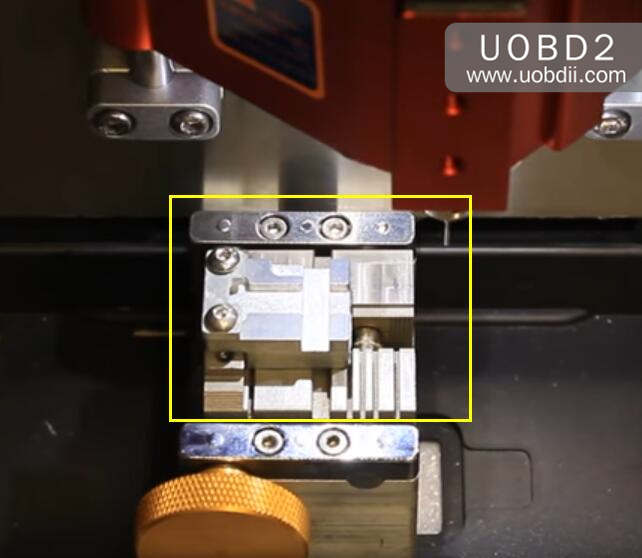

Install VW HU66 Fixture

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (1)

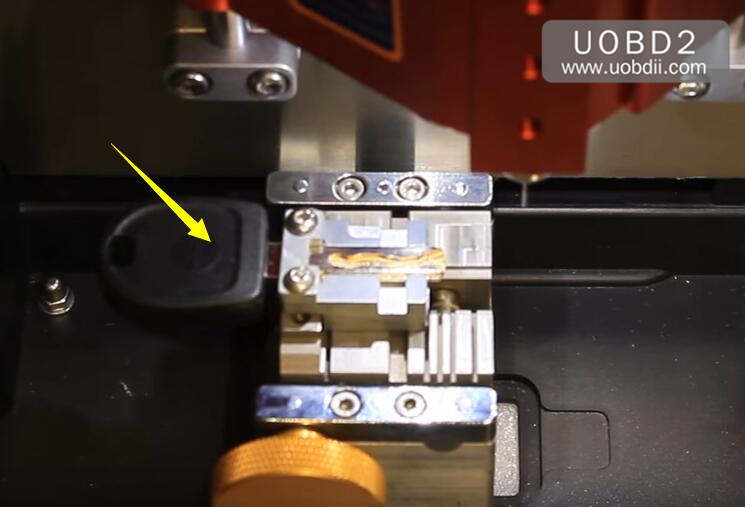

Input original key on the HU66 clamp

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (2)

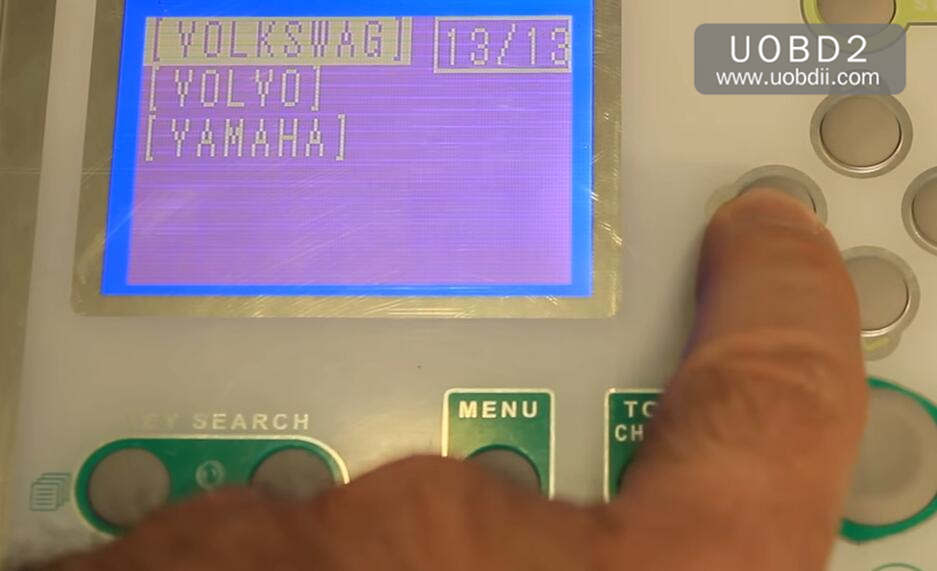

Use “Key Search” button to select key type—>VOLKSWAG

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (3)

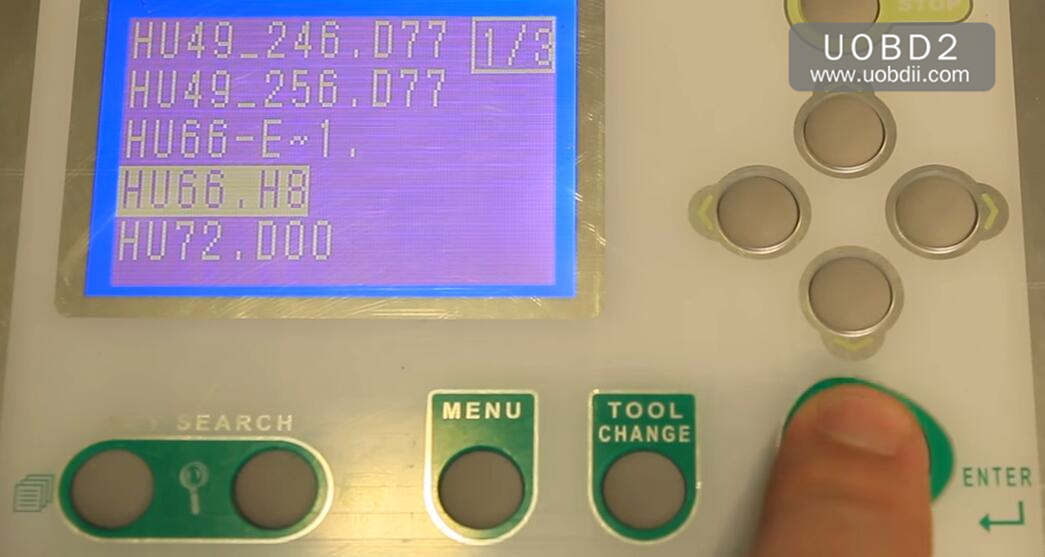

Select “HU66.H8”

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (4)

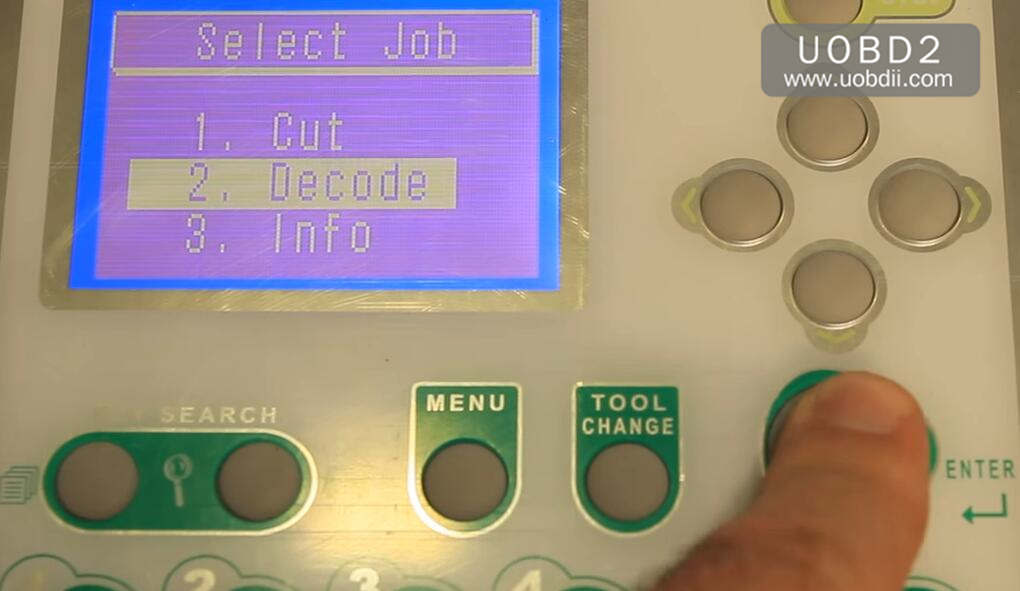

Select “Decode”

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (5)

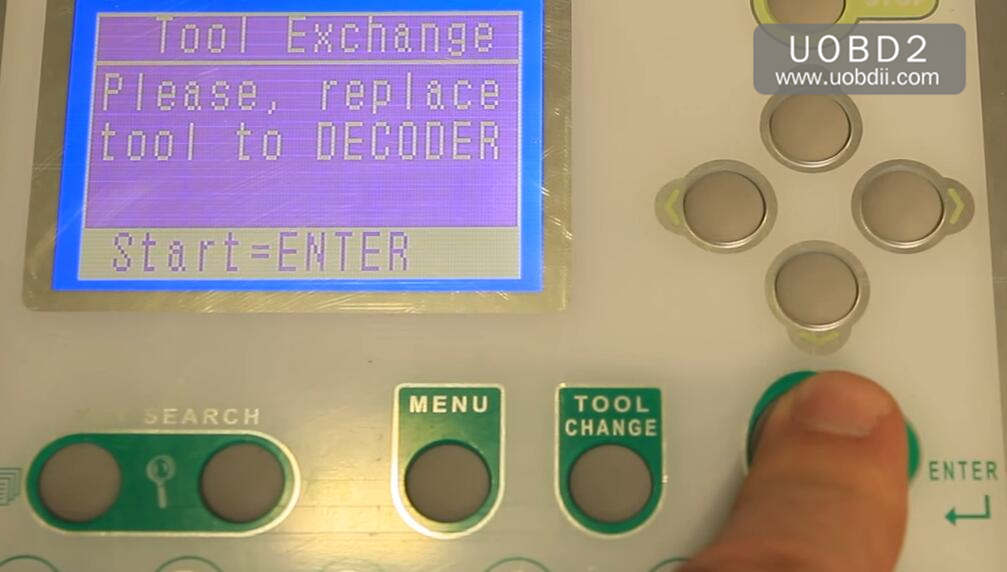

Press “Enter” button to start decode

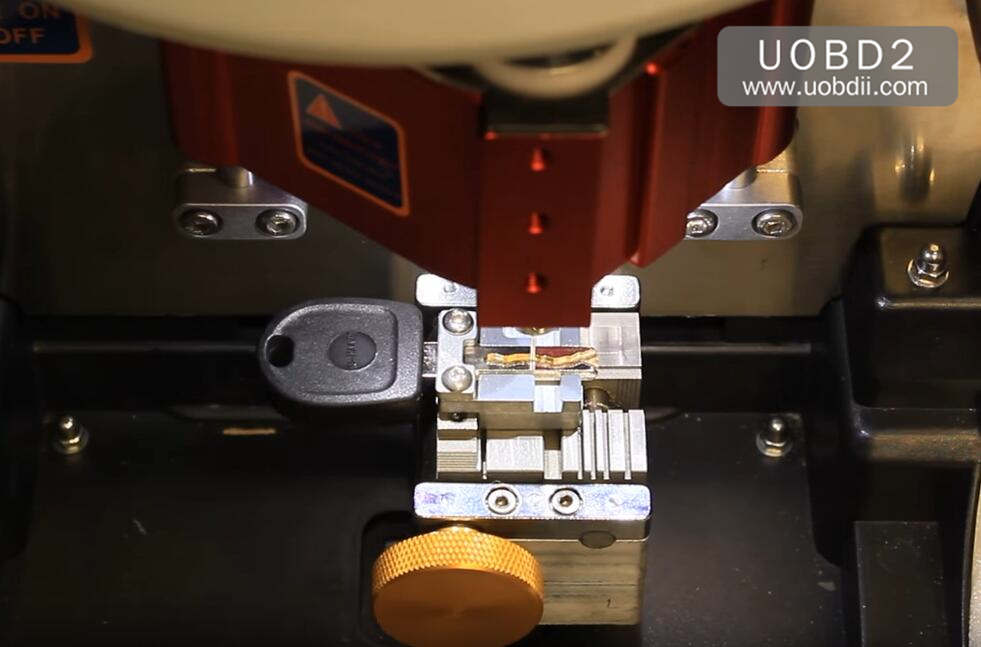

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (6) How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (7)

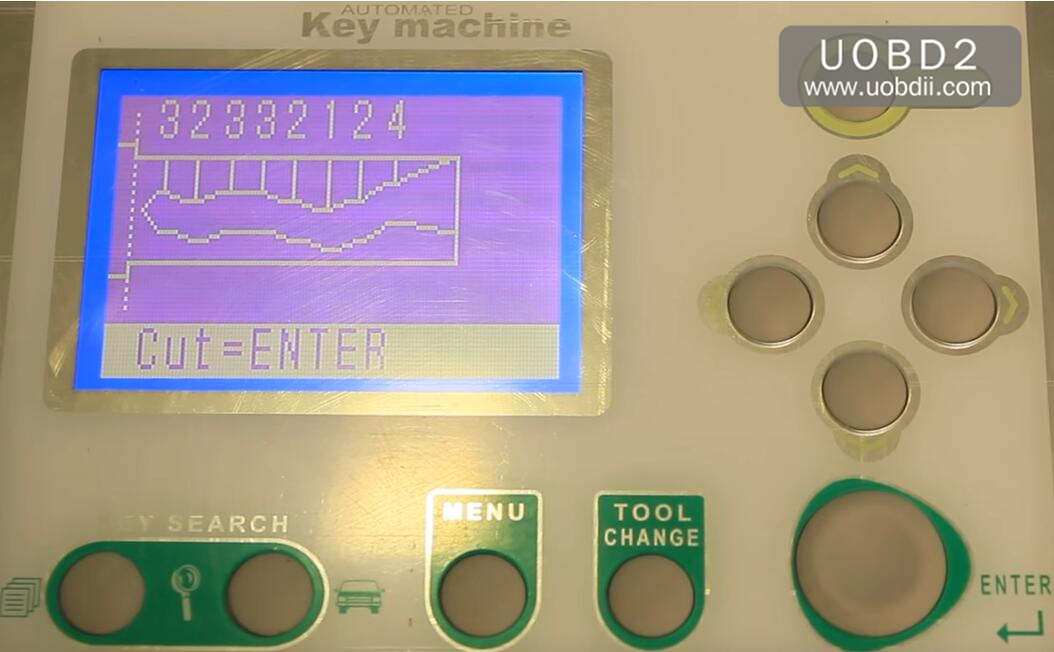

After decode, Automatic V8/X6 Key Cutting Machine menu will show you the key code,press “Enter” to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (8)

Select “Nearest” and enter to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (9)

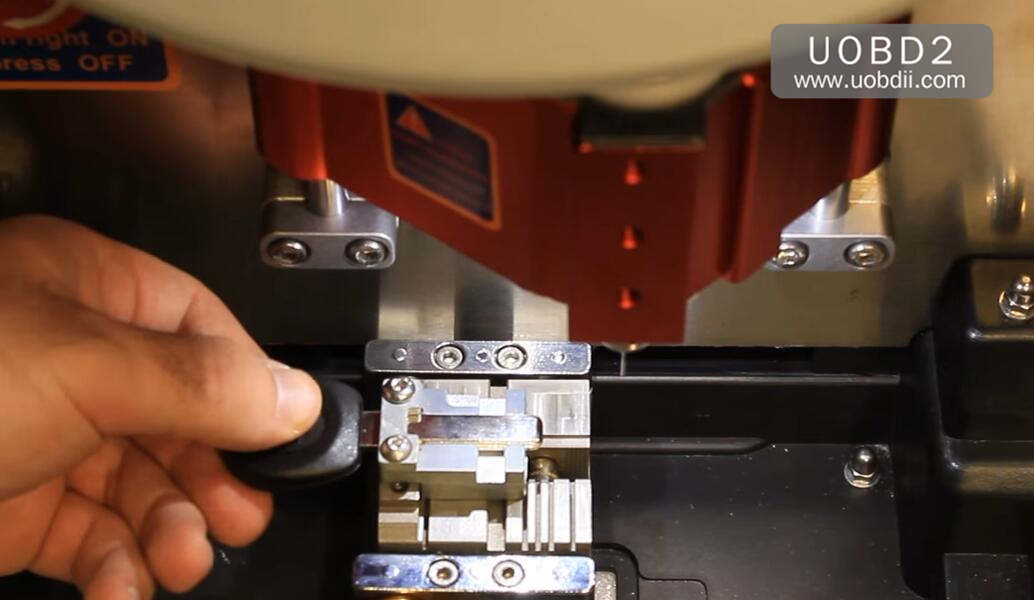

Remove original from clamp and put a new key on the clamp

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (9)

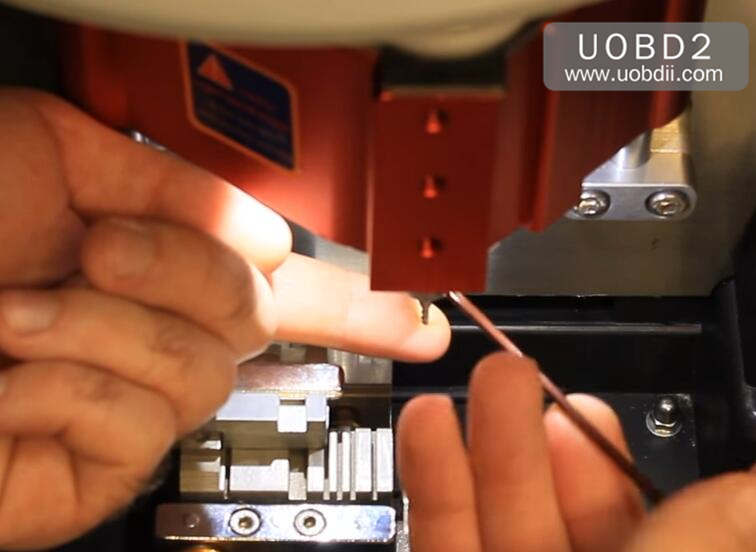

Remove probe and install cutter

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (11)

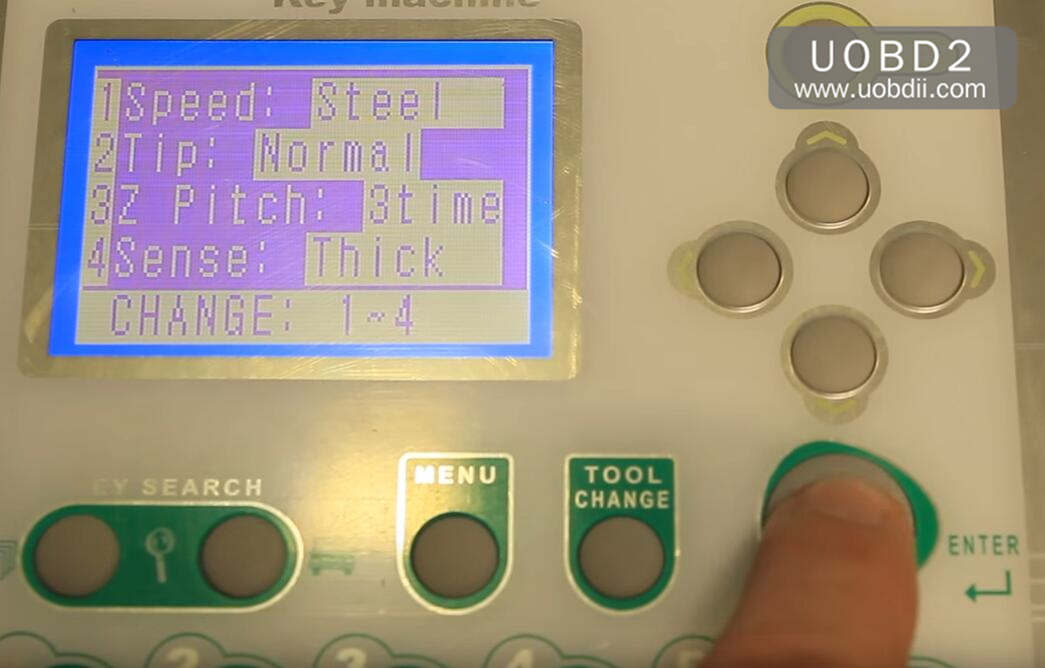

Select menu as below show,press “Enter” to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (12)

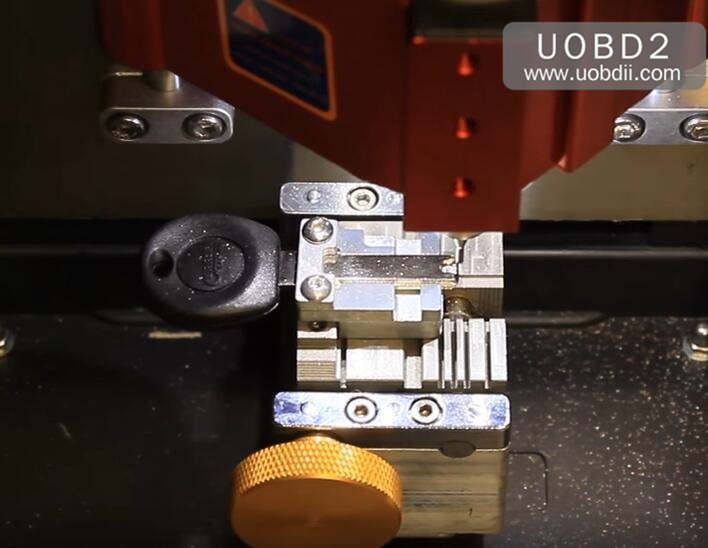

Now it will start cutting blank key

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (13) How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (14)

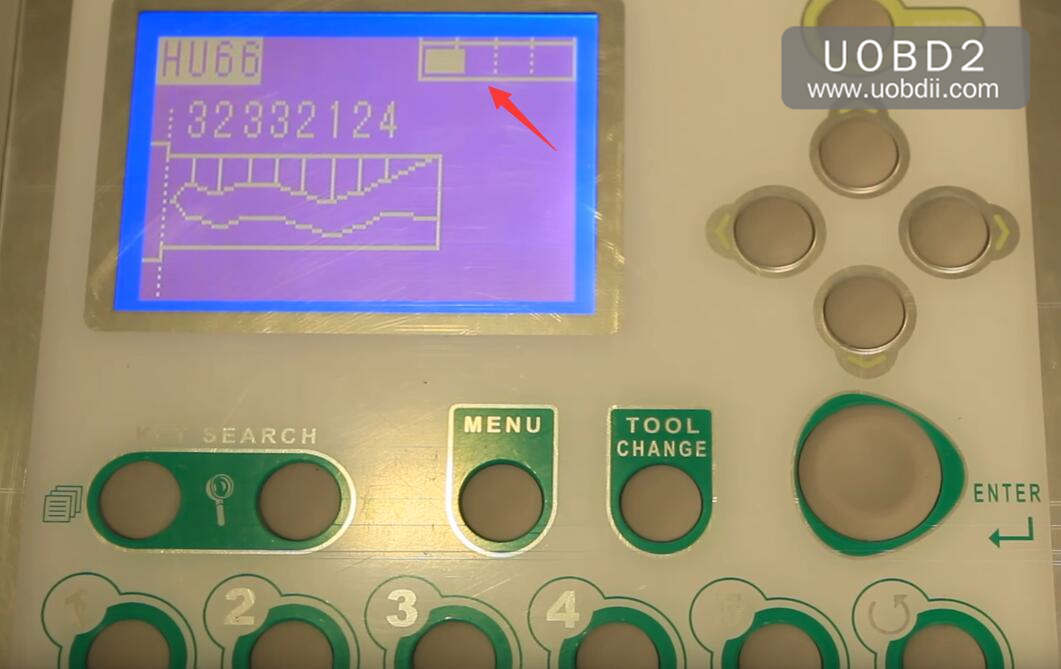

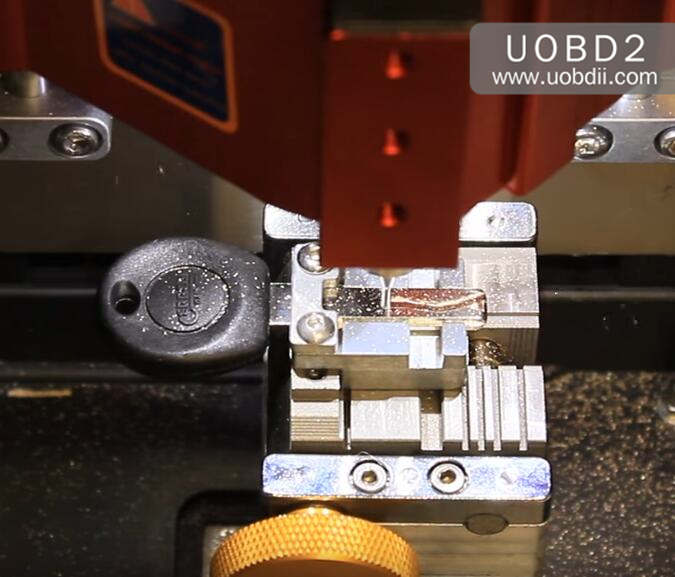

Please wait it will take about several minutes to complete cutting process

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (15)

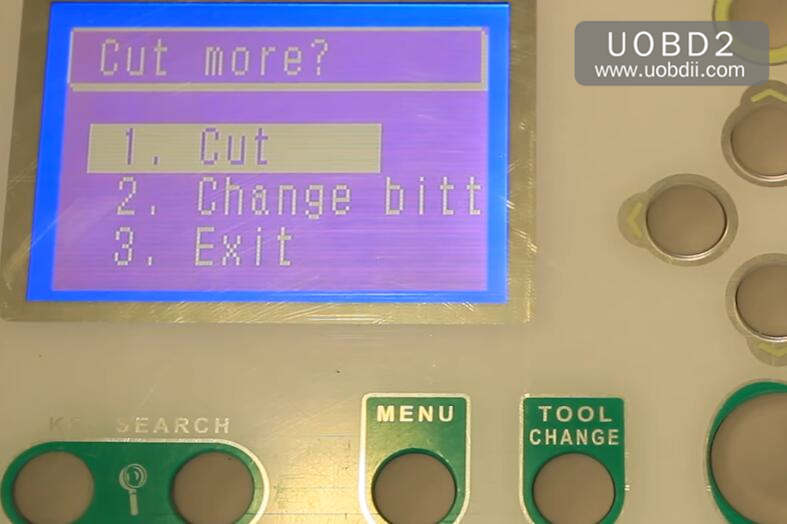

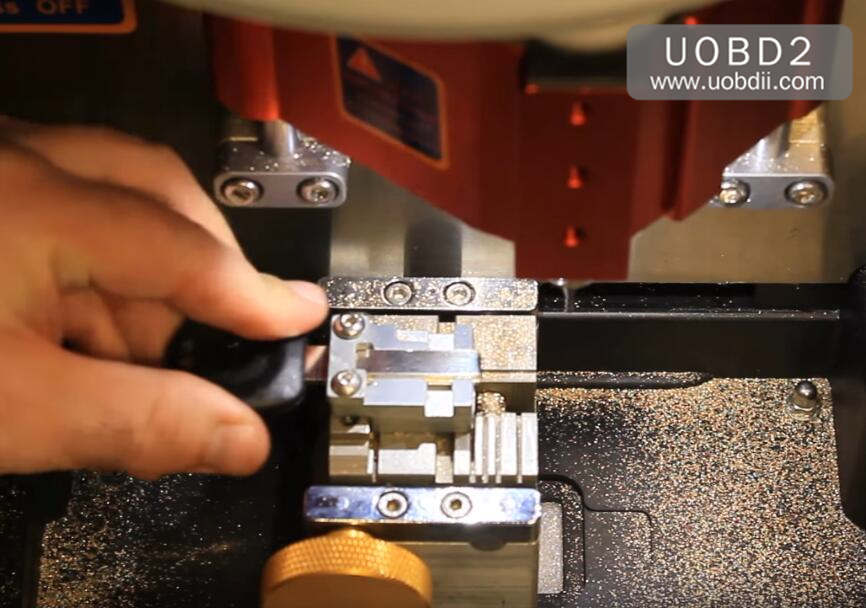

Now one side cutting completing,we need to cut the other side

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (16)

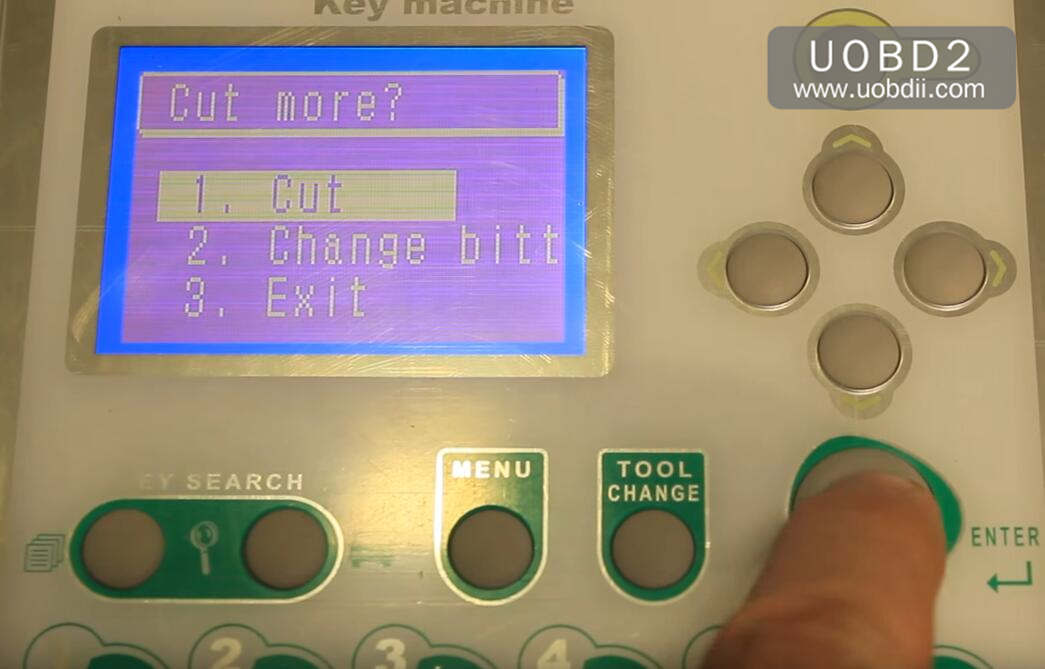

Press “Cut” to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (17)



Start cutting,please wait for proceed

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (18)

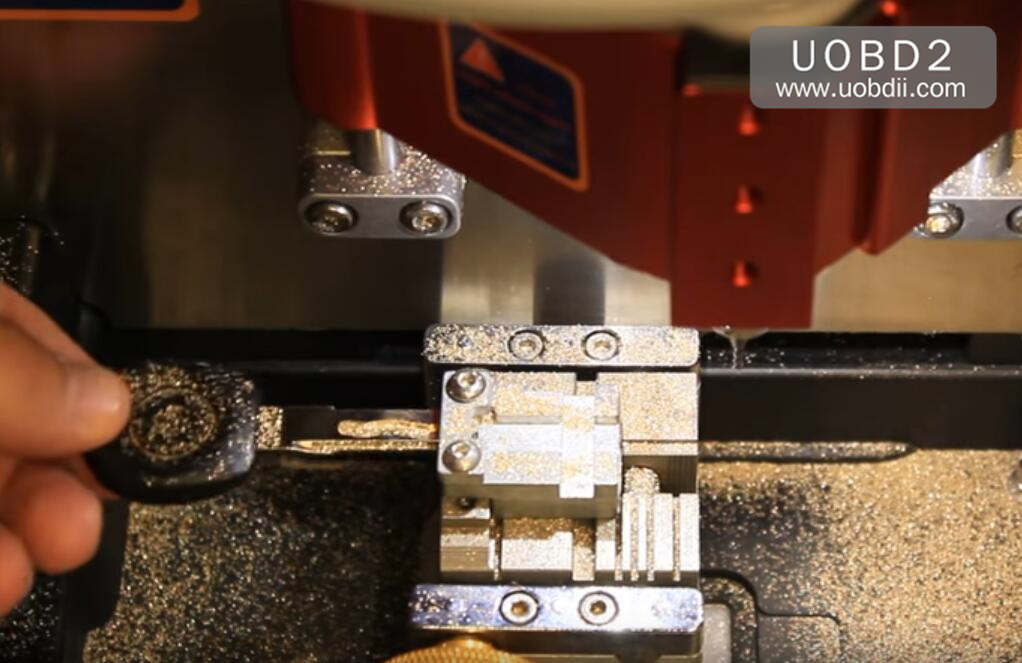

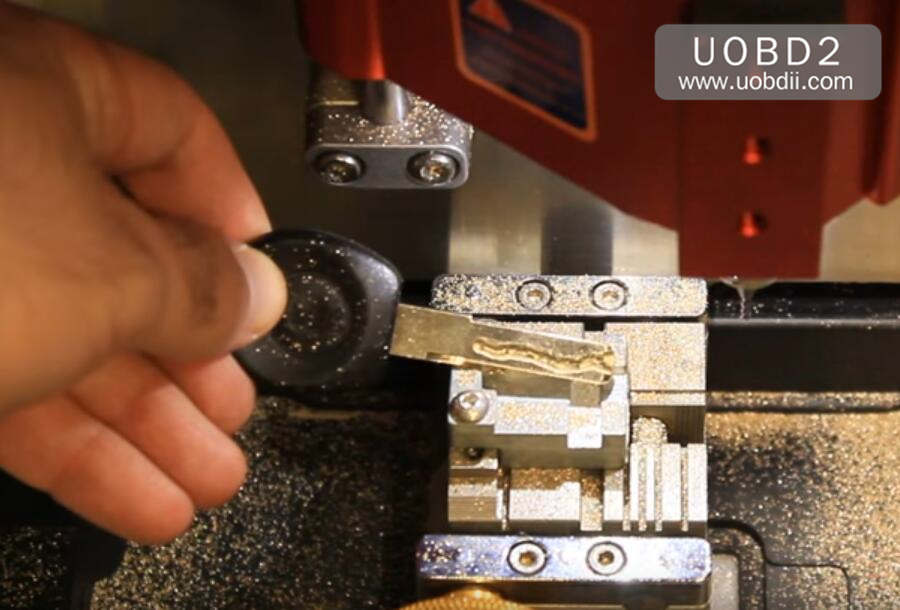

After both side cutting completing,remove key from clamp

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (19)



Automatic V8/X6 VW HU66 Key Cutting Completing

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (19)
