How V8/X6 Key Cutting Machine cut Peugeot HU83 without original key?

Automatic V8/X6 Key Cutting Machine can be used when all key lost and without original key. This is operation guide for V8/X6 Key Cutting Machine cut Peugeot HU83 without original key.

V8-X6-key-cutting-machine-cut-peugeot-HU83-1

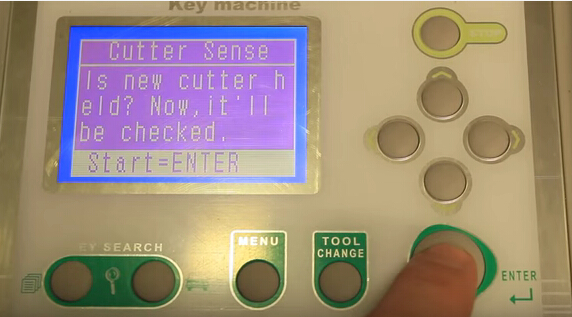

Step1. Start V8/X6 Key Cutting Machine, screen will show “AUTOMOBILE KEY CUTTING SYSTEM”. Press “TOOL CHANGE” button then it will go to “Cutter Sense”, press “Enter” button.

8-X6-key-cutting-machine-cut-peugeot-HU83-2 V8-X6-key-cutting-machine-cut-peugeot-HU83-3

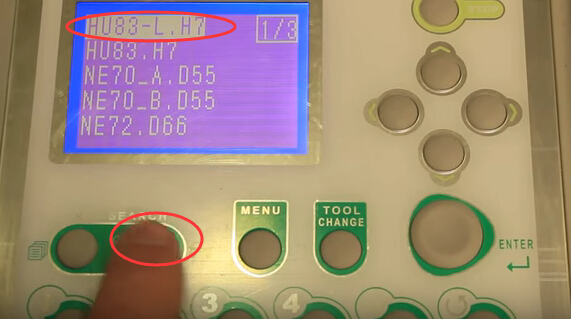

Step2. Choose “HU83-L, H7” and press “Key Search” button. Choose “SILCA” then press “Enter” button.

V8-X6-key-cutting-machine-cut-peugeot-HU83-5 V8-X6-key-cutting-machine-cut-peugeot-HU83-6

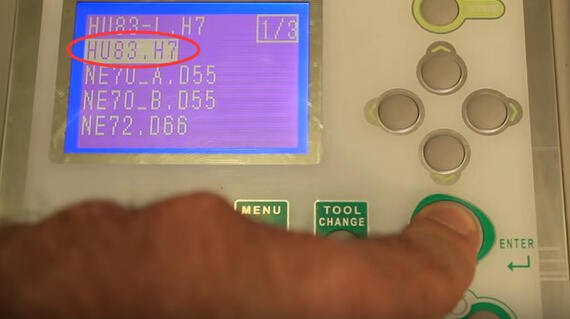

Step3. Choose “PEUGEOT” from car list and press “Enter” button. Choose “HU83, H7” then “Enter” button. V8/X6 key cutting machine will show “HU83, H7 is selected”, just press “Enter” button to go on.

V8-X6-key-cutting-machine-cut-peugeot-HU83-7 V8-X6-key-cutting-machine-cut-peugeot-HU83-8 V8-X6-key-cutting-machine-cut-peugeot-HU83-9

Step4. Choose “Cut” and press “Enter” button. Input key code and press “Enter”.

V8-X6-key-cutting-machine-cut-peugeot-HU83-10

V8-X6-key-cutting-machine-cut-peugeot-HU83-11

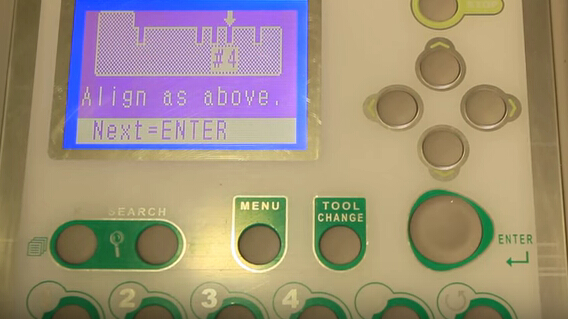

Step5. Then it will show you the right position to put the key blade, just align the blade as picture shows, then tighten the clamp and press “Enter” button.

V8-X6-key-cutting-machine-cut-peugeot-HU83-12 V8-X6-key-cutting-machine-cut-peugeot-HU83-13 V8-X6-key-cutting-machine-cut-peugeot-HU83-14

Step6. Press “4” button to choose “Thick”, press “Enter” button. Now the machine will start key cutting, wait a minute. Finally Automatic V8/X6 Key Cutter  successfully cut a new Peugeot HU83 key without original key.

V8-X6-key-cutting-machine-cut-peugeot-HU83-15

V8-X6-key-cutting-machine-cut-peugeot-HU83-16 V8-X6-key-cutting-machine-cut-peugeot-HU83-17 V8-X6-key-cutting-machine-cut-peugeot-HU83-18
