Yamaha R15 Key Cutting by Xhorse Dolphin XP005 Machine

This instruction show you guide on how to use Xhorse Dolphin XP005 and VVDI Key Tool Max to cutting key for Yamaha R15.

Note:Here VVDI Key Tool only for cutting operations.

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-1



Procedures:
Before operation,please pairing your Xhorse Dolphin XP005 to VVDI Key Tool Max

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-2

Select “YAMAHA-R15”

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-3

Install Clamp M2 and put working key on,then align it to position

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-4 Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-5



Decode key

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-6 Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-7



If it is all key lost situation,you can use Lishi tool to do decode

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-8

After decoding completly,put R15 blank key on M2 clamp,then press “Cutting Key”

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-9

Set low speed and 3 cutting times…

And recommend to use 1.5mm

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-10 Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-11

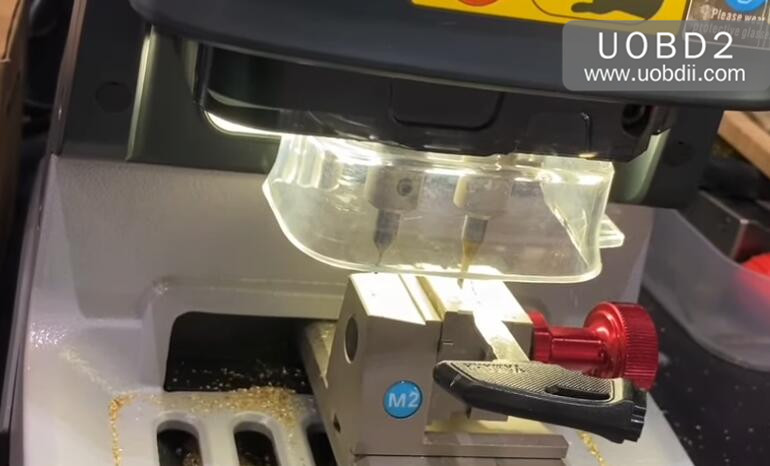

One side cutting successfuly,now change key to another side for cutting

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-12 Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-13

Test new key

Yamaha-R15-Key-Cutting-by-Xhorse-Dolphin-XP005-Machine-14
