How to Use SEC-E9 Cut Volkswagen Bora Keys

SEC-E9 Key Cutting Machine is a powerful key cutting machine.It is available for car,turck,motocycle,house key,dimple & tubular key.And in this article,i will show you step-by-step guide on how to use SEC-E9 to cut Volkswagen Bora Keys.



Step 1:Enter key data of Volkswagen Bora Keys:

Method 1:By select car manufacturer,brand and year.

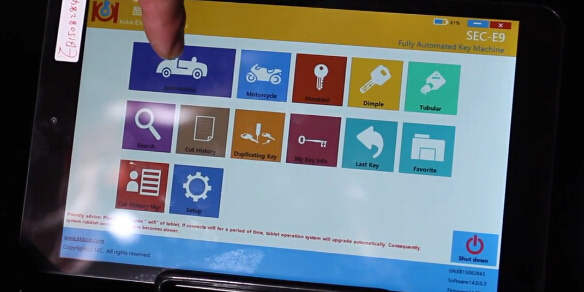

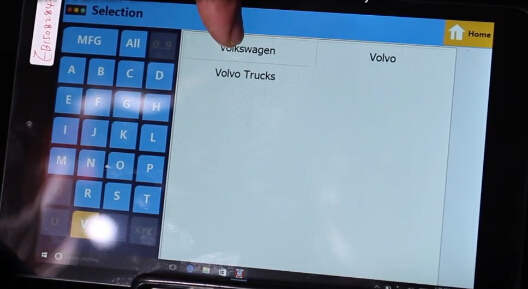

Click “Automobile” button and select “Volkswagen”–>”Bora”–>”back”–>”2003~[6-6]” to enter key data.

SEC-E9 Cut Volkswagen Bora Keys SEC-E9 Cut Volkswagen Bora Keys  (2) SEC-E9 Cut Volkswagen Bora Keys  (3)



Method 2:Input key blank number

Click “Search” button input “H-U-6-6” and select “silca” “HU66(909)[8]” to enter key data.

SEC-E9 Cut Volkswagen Bora Keys  (4) SEC-E9 Cut Volkswagen Bora Keys  (5) SEC-E9 Cut Volkswagen Bora Keys  (6)

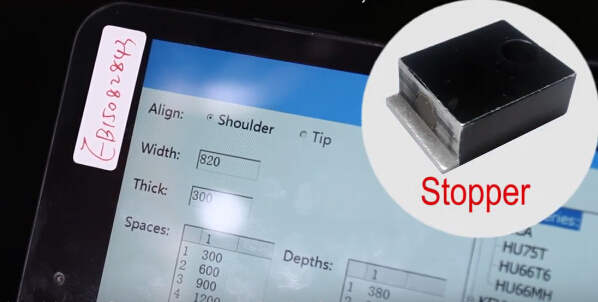

You can click “Info” button to see the key is aligned by “Shoulder”

SEC-E9 Cut Volkswagen Bora Keys  (7)

You should use Stopper to help fix the key to correct position when key is aligned by “Shoulder”

SEC-E9 Cut Volkswagen Bora Keys  (7)



Step 2:Two ways to get key numbers of Volkswagen Bora keys in SEC-E9

Method 1:Decoding original key

Press “Decode” button to enter decoding page

SEC-E9 Cut Volkswagen Bora Keys  (9)

Select the most right blue icon as sense key location and “Round off”

SEC-E9 Cut Volkswagen Bora Keys  (10) SEC-E9 Cut Volkswagen Bora Keys  (11) SEC-E9 Cut Volkswagen Bora Keys  (12)



Check original key can open cylinder

SEC-E9 Cut Volkswagen Bora Keys  (13)

Use the stopper to help you fix the original key in the correct position

SEC-E9 Cut Volkswagen Bora Keys  (14)

Place a key blank as shown in the below figure.

SEC-E9 Cut Volkswagen Bora Keys  (15) SEC-E9 Cut Volkswagen Bora Keys  (16)



When cutting laser key,you should put it in the lower storey.

SEC-E9 Cut Volkswagen Bora Keys  (17)

Press “Decode” button to start decoding original key and get the key numbers.

SEC-E9 Cut Volkswagen Bora Keys  (18)



Method 2:By input key number directly

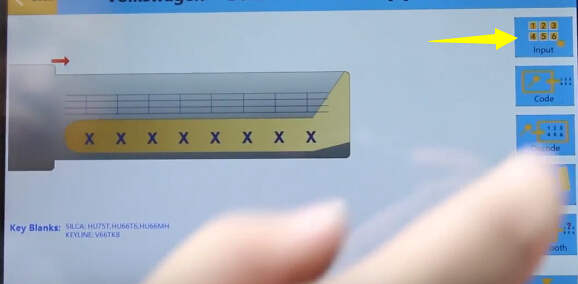

Click “Input” button and input the key numbers you get from other ways,such as cylinder,lishi tool,or InstaCode,etc

SEC-E9 Cut Volkswagen Bora Keys  (19)

Step 3:Cut a New Volkswagen Bora Key

Press “Cut” button to enter cutting page.Select “Nkl-silver” as speed and the most right blue icon as sense key location.

SEC-E9 Cut Volkswagen Bora Keys  (20) SEC-E9 Cut Volkswagen Bora Keys  (21) SEC-E9 Cut Volkswagen Bora Keys  (22)

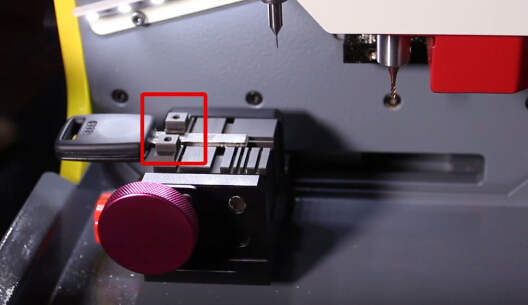

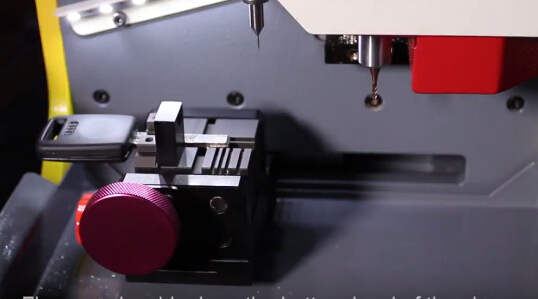

Fix a new key blank on the bottom level of the clamp.Please pay attention to the key postion.

SEC-E9 Cut Volkswagen Bora Keys  (23) SEC-E9 Cut Volkswagen Bora Keys  (24) SEC-E9 Cut Volkswagen Bora Keys  (25)



Press “cut” button to start cutting a new key.

Please remember to close the safe cover.

SEC-E9 Cut Volkswagen Bora Keys  (26) SEC-E9 Cut Volkswagen Bora Keys  (27)



Now cutting starting…wait…

SEC-E9 Cut Volkswagen Bora Keys  (28)

Cutting is done.Open the safe cover.

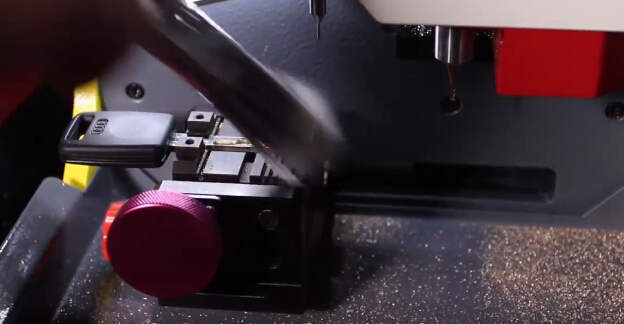

Clean the clamp & the new key.Take out the new key

SEC-E9 Cut Volkswagen Bora Keys  (29)

Fix the other side of the new key blank on the bottom level of the clamp

After cutting done,try it!
