MB FBS3 BGA KeylessGo Key assembly process is available in this article, it shares the same procedure as that of Xhorse VVDI Benz smart key shell 3 button.

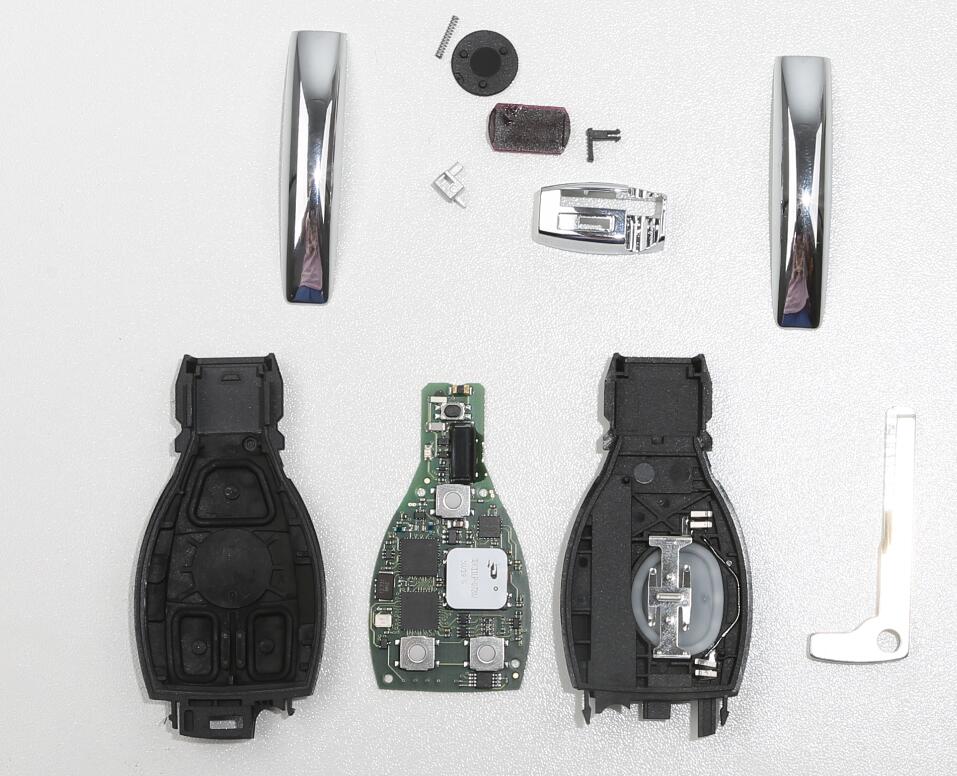

MB FBS3 BGA KeylessGo Key is taken apart, and all parts are here:
Next is on how to put these parts together:
- Removethe cover and install the battery.

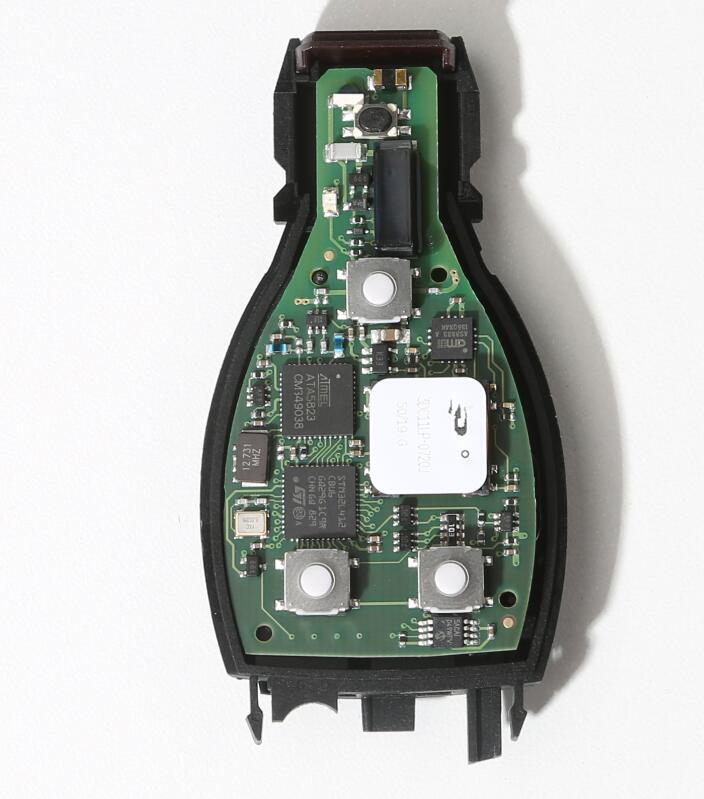

- Put into the CG MB FBS3 BGA KeylessGo Keypcb.

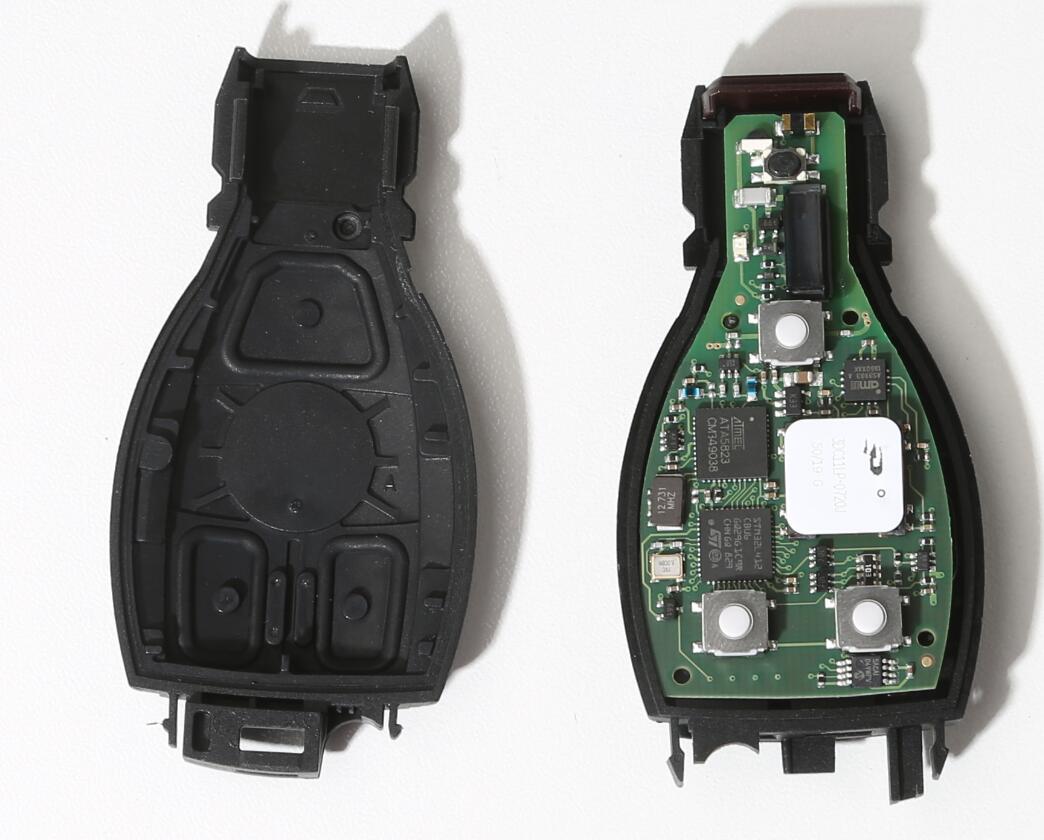

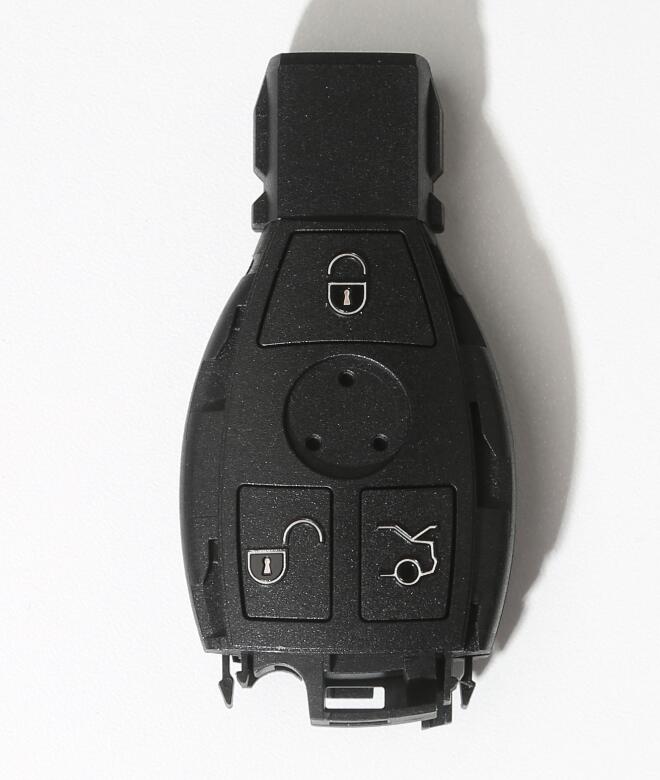

- Close the back cover.

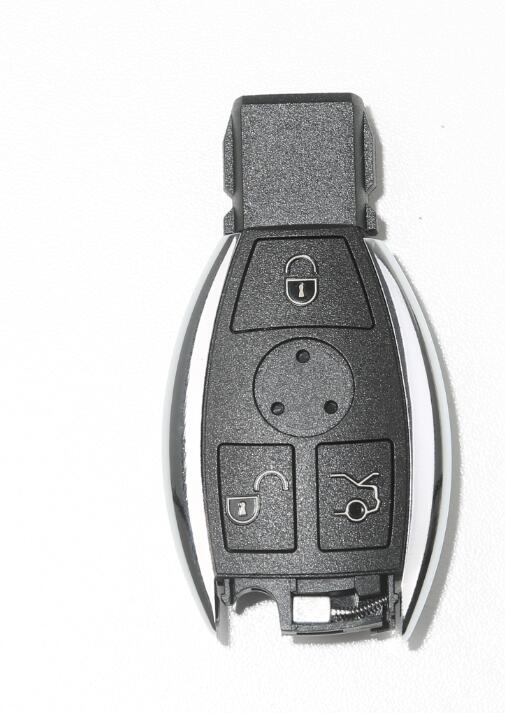

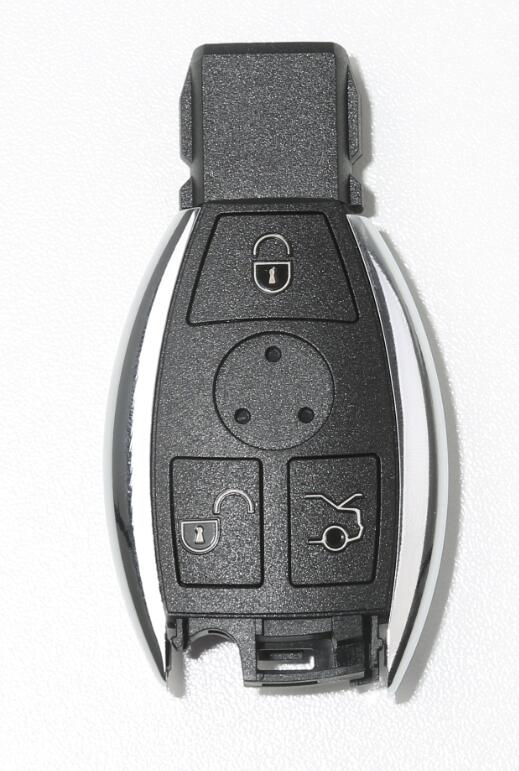

- Buckle the metal edge.

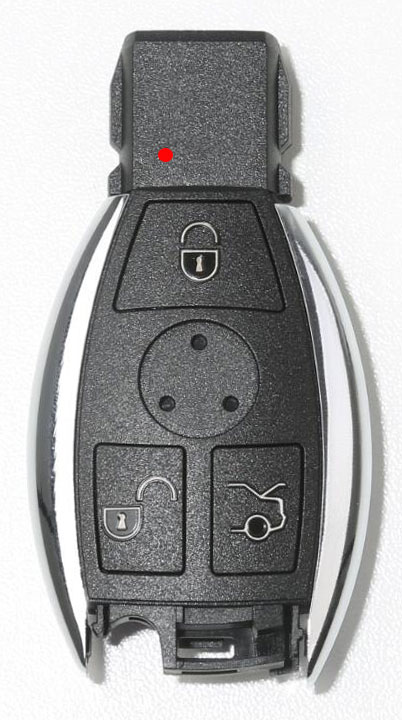

- Match the key and test ifthe key works. Press the remote control button to see if the light is on.
- Install the small key clip and spring.

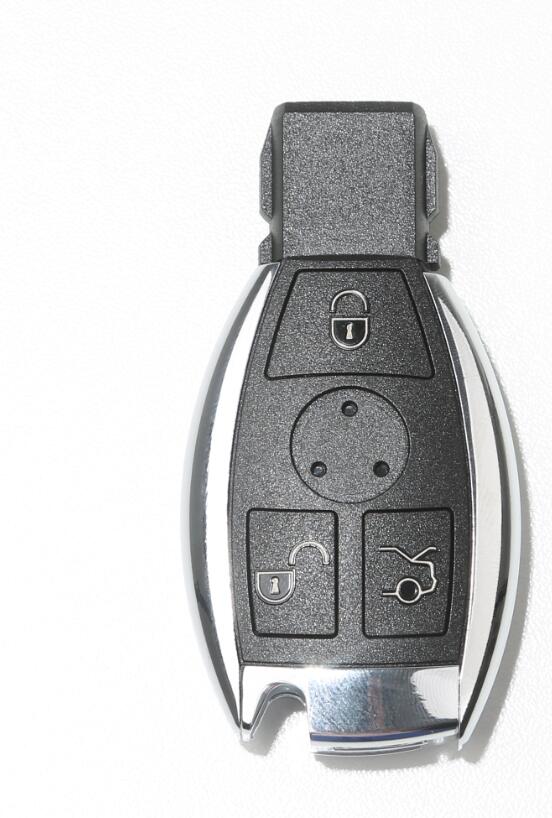

- Fit the tail.

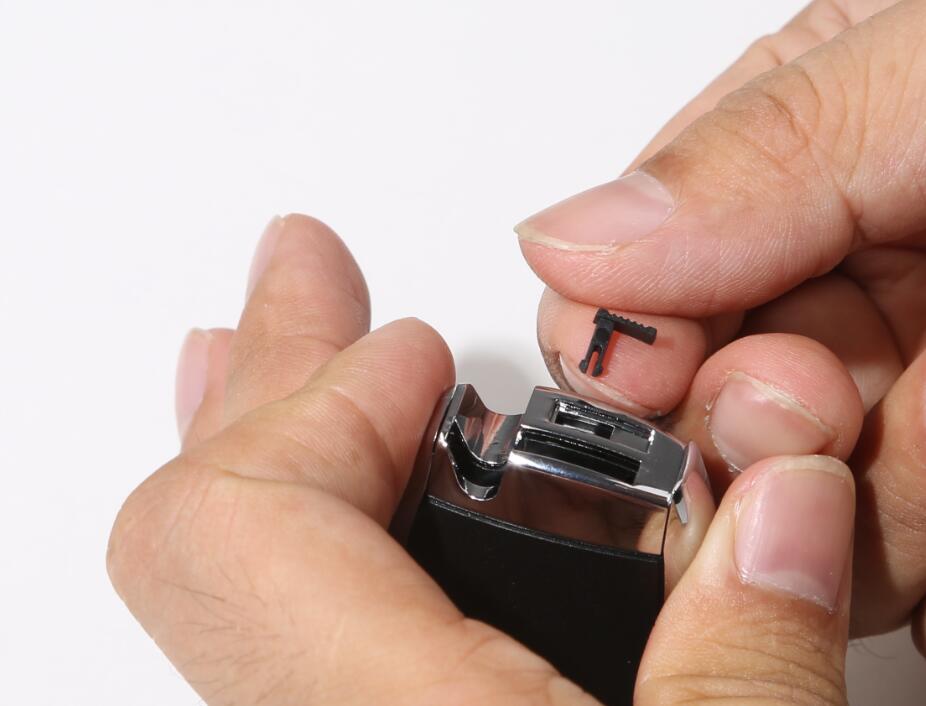

- Buckle the plastic card.

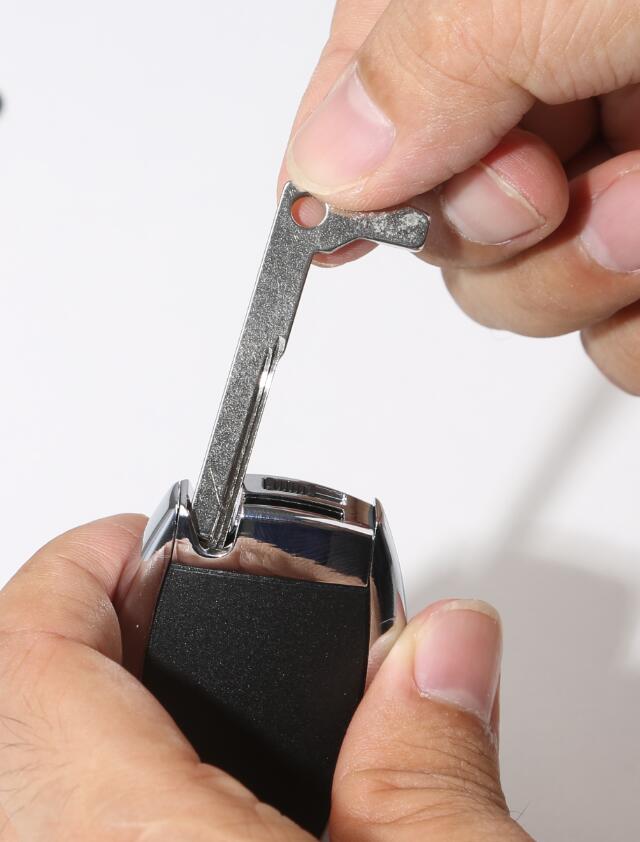

- Install the small key.

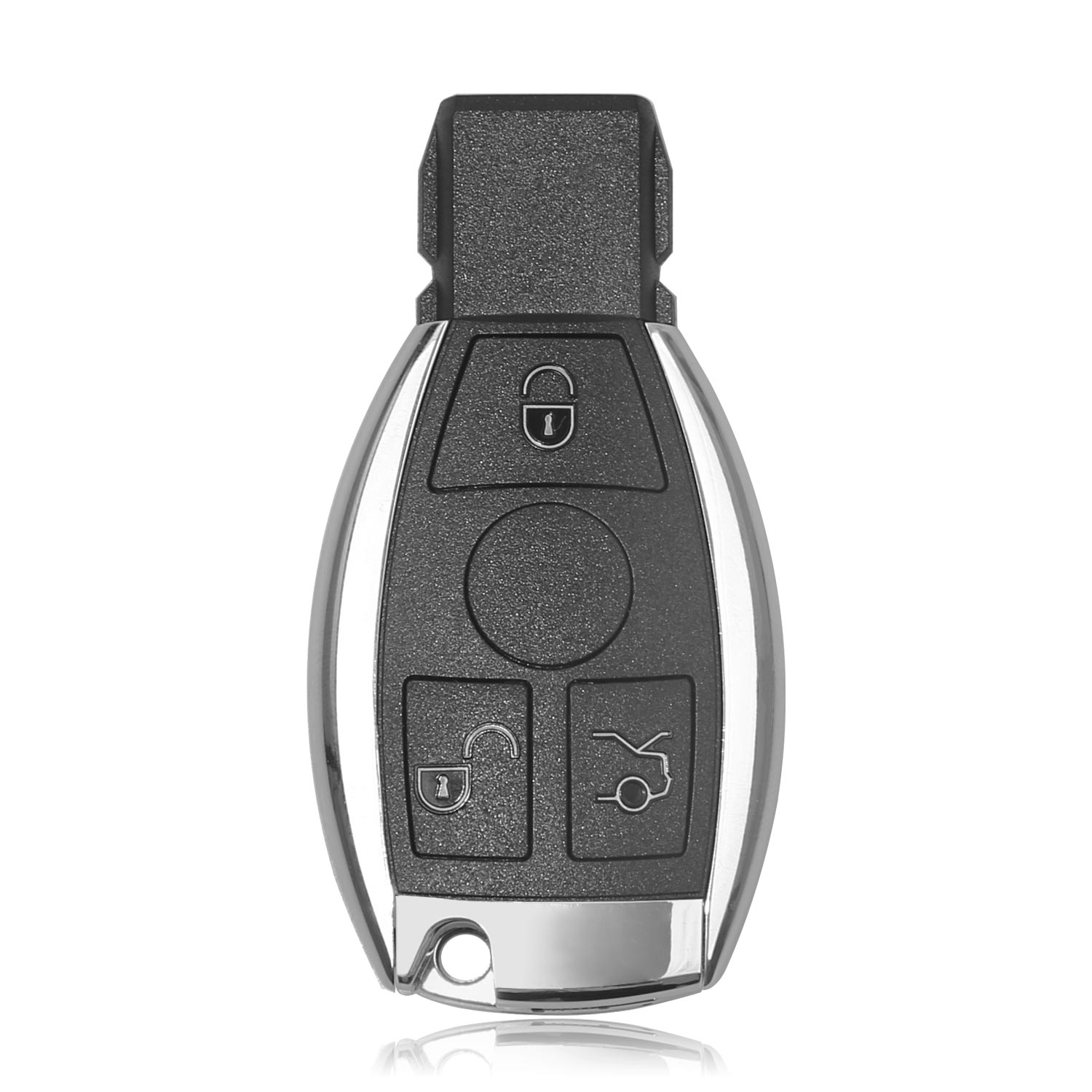

- Assembly the key successfully.
