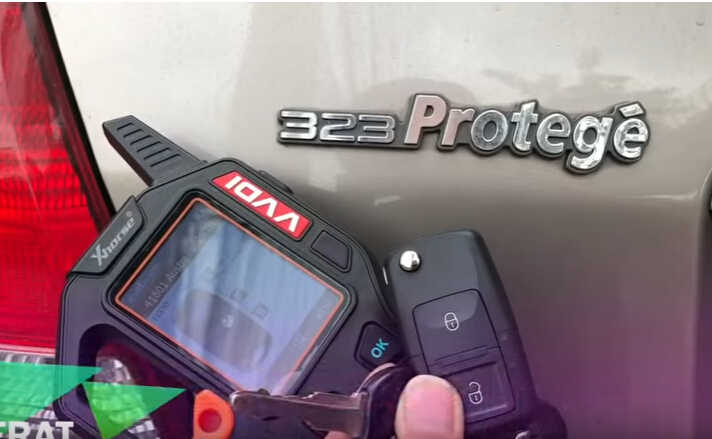

How to Use VVDI Key Tool Program Remote for Mazda 323 Protege

Here keycuttingmachine want to share the guide on how to use VVDI Key Tool programmer to generate and program remote key for Mazda 323 Protege.Hope it helps!

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (1)

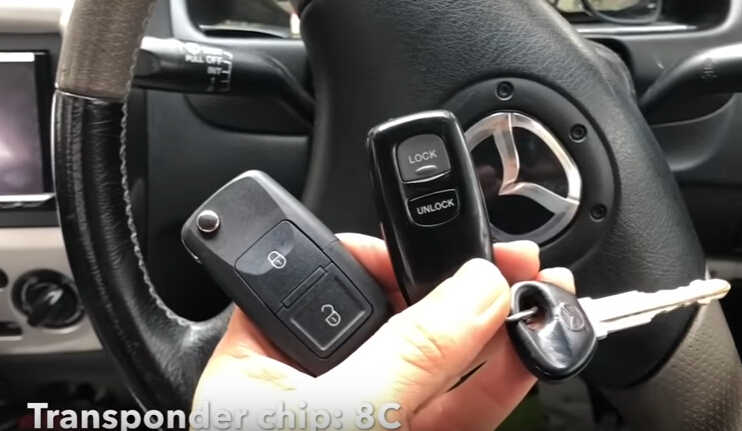

Transponder chip:8C

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (2)

Procedures:

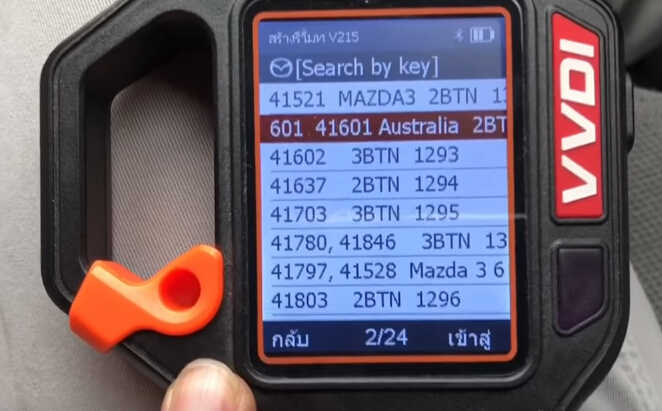

Enter the VVDI Key Tool menu to select “Search by key”à1292 40601 Australia 2BT

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (3)

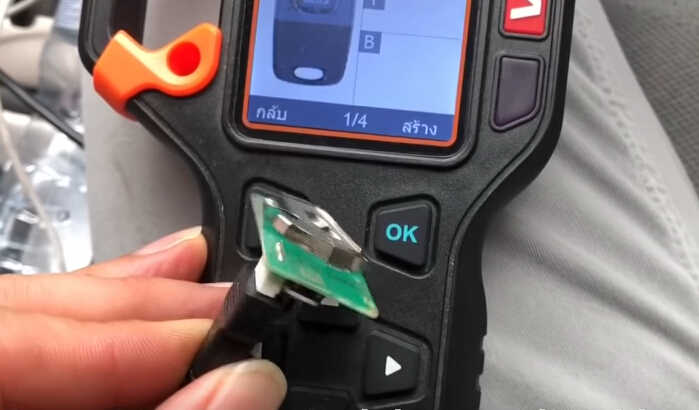

Connect remote module to VVDI cable

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (4)

Press[Gen] to make remote

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (5)

Burn successful

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (6)

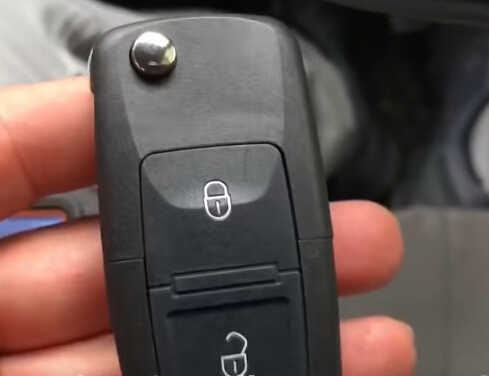

Fill battery then install to remote shell

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (7)

Program remote by manual

1.Open driver side door

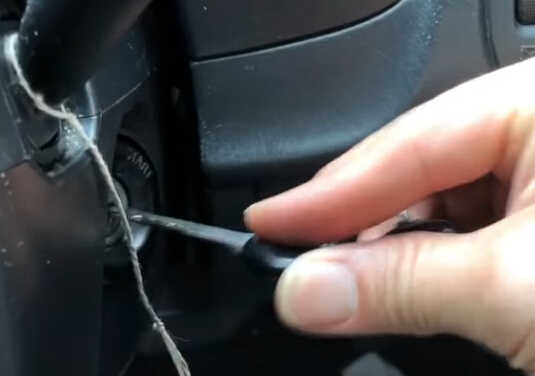

2.Turn the ignition on and off 3 time

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (8)

3.Close and Open driver door 3 times (door cycle 1 time)

4.Press unlock button 2 times (door cycle 1 time)

VVDI Key Tool Generate & Program Remote for Mazda 323 Protege (8)

5.Close driver door (door cycle 2 times)

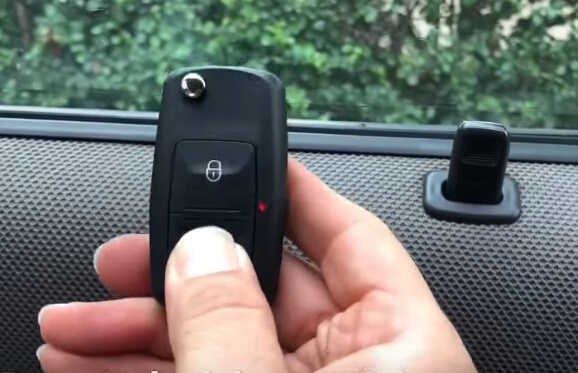

Done! Now,test the remote.
