How to Use Autel IM508 Add New Smart Remote for Suzuki Swift 2018

In this test report,keycuttingmacine.org will show you the procedures on how to use Autel IM508 programmer to add new smart key and remote for Suzuki Swift 2018.

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (1)

Procedures:

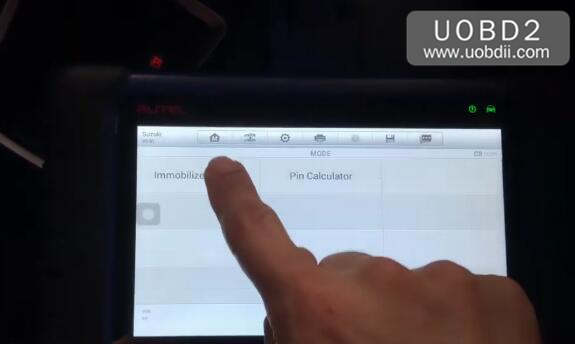

Turn the igniiton,connect Autel IM508 to Suzuki Swift,then select “IMMO”–>”SUZUKI”–>”System”–>”Selection”–>”Immobilizer System”

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (2)

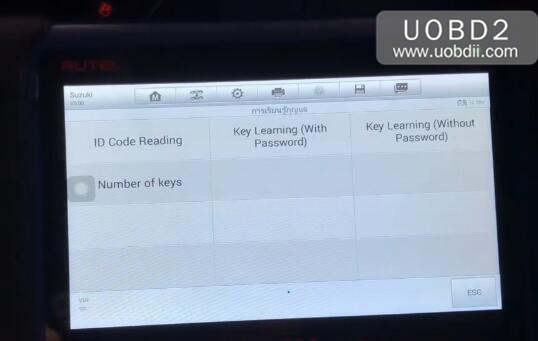

After vehicle communication establishing,select “Type 2″–>”Key Learning (Without Password)”

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (3)

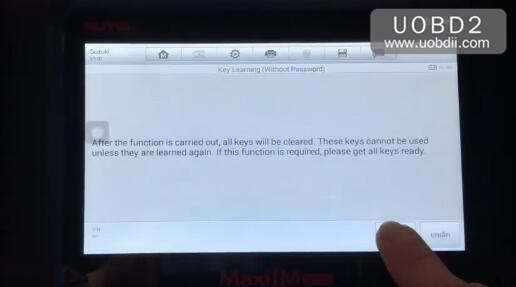

Then select “Card”,and it will prompt with massage:

After the function is carried out,all keys will be cleared.There keys can not be used unless they are learned again.If this function is required,please get all keys ready.Click “OK” to continue

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (4)

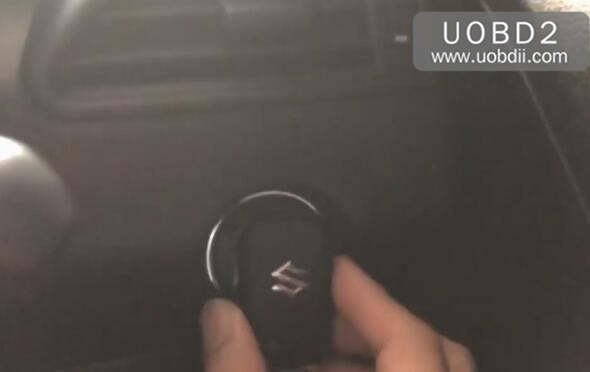

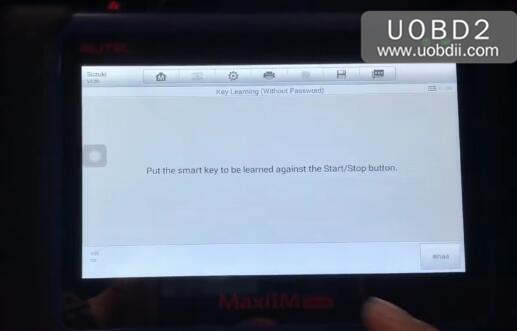

Put the smart key to be learned against the Start/Stop button,then press “OK” to continue

Note:Put the key Suzuki logo side out

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (5) Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (6)

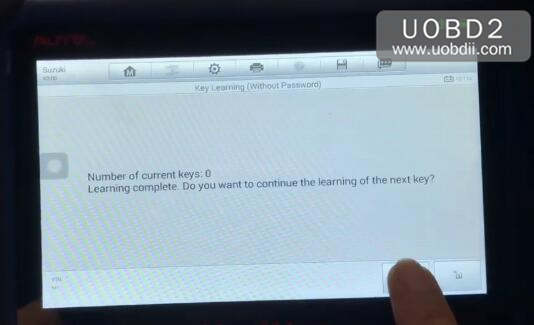

Number of current key:0

Click “OK”

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (7)

Put the 1st smart key to be learned against the Start/Stop button,then press “OK”

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (7)

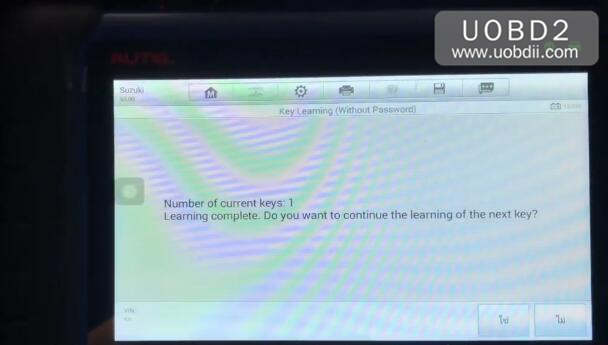

Now you will find the key number is 1

And for next key learning,just press “OK” to add more key

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (9)

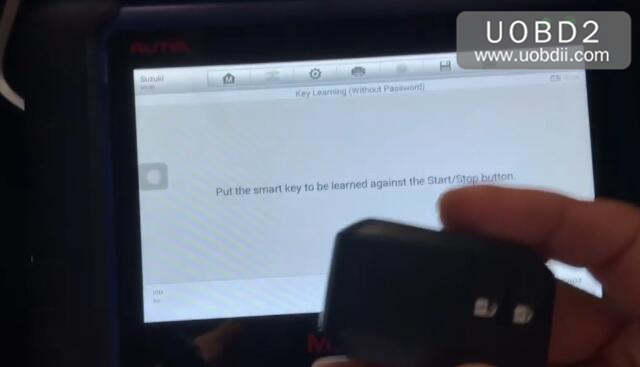

Put the 2nd smart key to the Start/Stop button,then press “OK”

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (10)

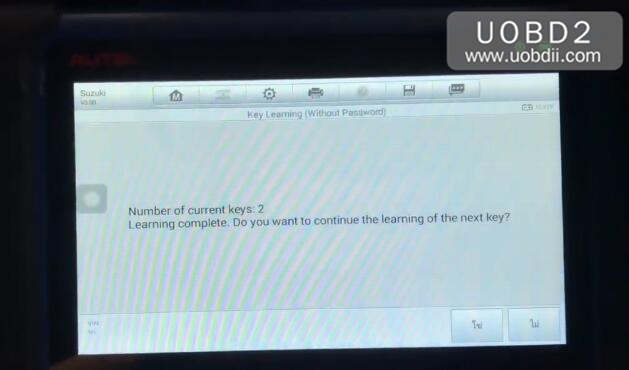

Now number of keys:2

Autel IM

Press “Finish” button to exit.

Learning completed

Autel IM508 Add New Smart Remote for Suzuki Swift 2018 (12)

Test key on Suzuki Swift.
