Guide: VVDI 2 BMW read the ISN from MSD and MSV ECUs and more

VVDI 2 BMW V4.9.0 is able to read the ISN from MSD and MSV ECUs incl. MSV80, MSV801, MSD80, MSV801, MSV802, MSV812, MSV851, MEVD17xx -E Series, MEV17N46 / ME17N45 – E series, MEVD17xx – F series.

Guide:

  1. Open VVDI 2 BMW V4.9.0, click on “Key learn” then “ECU ISN”.

VVDI 2 BMW V4.9.0 is able to read the ISN from MSD and MSV ECUs incl. MSV80, MSV801, MSD80, MSV801, MSV802, MSV812, MSV851, MEVD17xx -E Series, MEV17N46 / ME17N45 - E series, MEVD17xx - F series.

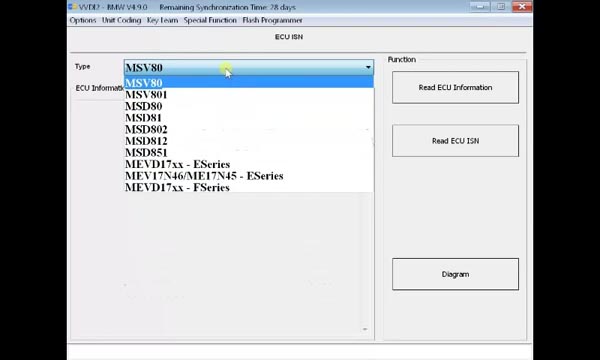

  1. Select type, i.e MSV80.

vvdi2-bmw-isn-from-msv80-and-mevd17-02

  1. Click on “Read ECU Information” and get VIN, type, hardware number, software number, ZB number and type number etc.

vvdi2-bmw-isn-from-msv80-and-mevd17-02

  1. Click on “Read ECU ISN”, then get message ” Warning: you are starting to read ECU ISN, we strongly recommend you connect extra power to car! Read ECU ISN require about 6-8 minutes.

Continue? Click on “Yes” to continue.

vvdi2-bmw-isn-from-msv80-and-mevd17-04

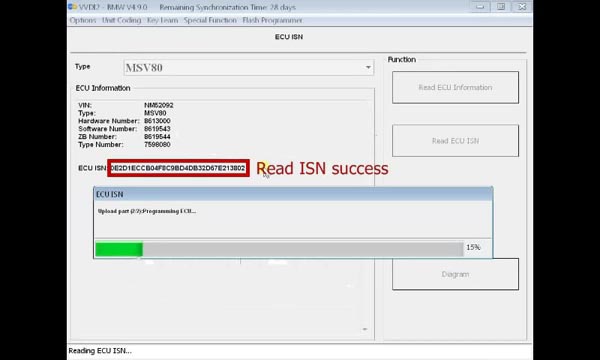

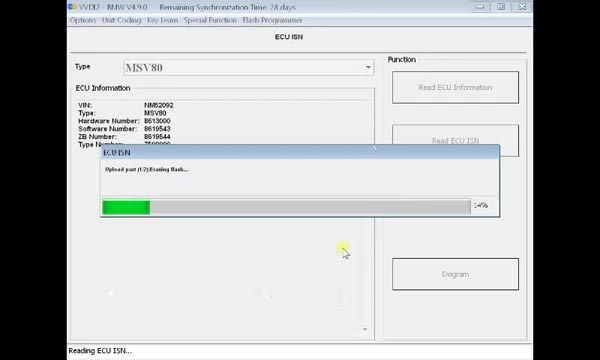

  1. Waiting…until VVDI2 BMW read out ISN successfully.

vvdi2-bmw-isn-from-msv80-and-mevd17-05 vvdi2-bmw-isn-from-msv80-and-mevd17-06 vvdi2-bmw-isn-from-msv80-and-mevd17-07

Done.
