AURO OtoSys IM100 Volvo 2010-2016 Key Learning: Confirmed!

AURO Otosys IM100 is verified to work with VOLVO immobilizer from the year 2010 to 2016.

It’s second to Lonsdor K518ise universal key programming tool that support VOLVO.



Step 1: learn keys

AURO Otosys im100 tested with Volvo immo…

otosys-im100-volvo-key-programming-1 otosys-im100-volvo-key-programming-2 otosys-im100-volvo-key-programming-3 otosys-im100-volvo-key-programming-4 otosys-im100-volvo-key-programming-5 otosys-im100-volvo-key-programming-6

Otosys IM100 Volvo car list:

Volvo S60, S80, V40, V60, V70, XC60, XC70

semi-smart keys 2010-2016

Keyless CAN system



Auro IM100 begins to program new semi-smartkeys to Volvo when all keys are lost

otosys-im100-volvo-key-programming-7 otosys-im100-volvo-key-programming-8



If you want to continue to performing this function, there must be one key!

The original key, if cleared successfully, needs to be learned again

Please verify the type of the key first

Ignition off

Learned keys: 2

otosys-im100-volvo-key-programming-9

Step 2: decrypt the immo & clear all keys

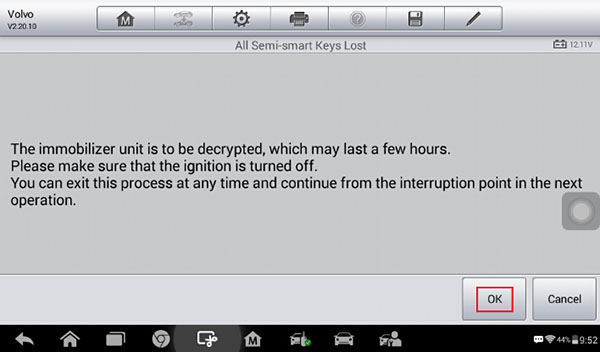

The immobilizer unit is to be decrypted, which may last a few hours.

Please make sure that the ignition is turned off

You can exit this process at any time and continue from the interruption point in the next operation

otosys-im100-volvo-key-programming-10

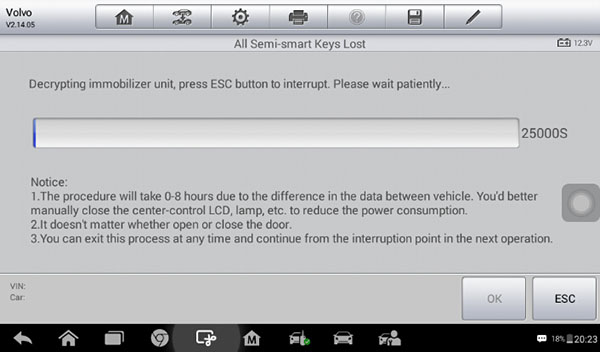

Decrypting the immobilizer unit…

The procedure will take 0-8 hours due to the difference between vehicles.

You’d better manually close the center-control LCD, lamp, etc. Toreduce the power consumption

It doesn’t matter whether the door is opened or closed

You can exit this process at any time and continue from the interruption point in the next operation

otosys-im100-volvo-key-programming-11

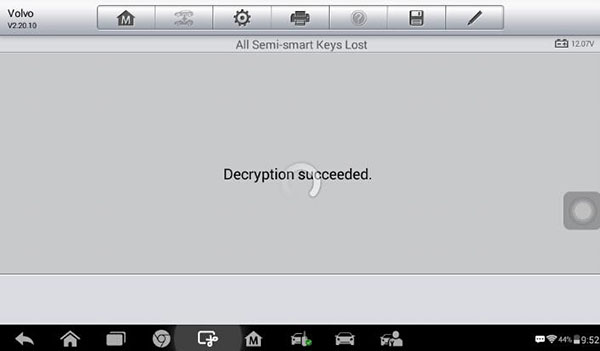

Decrytion success

otosys-im100-volvo-key-programming-12

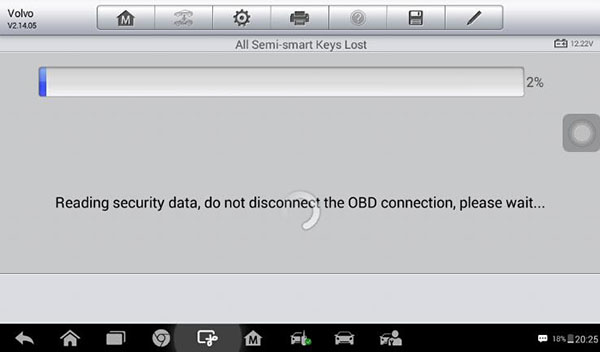

Otosys im100 is reading security data

Don’t disconnect the OBD connection

otosys-im100-volvo-key-programming-13

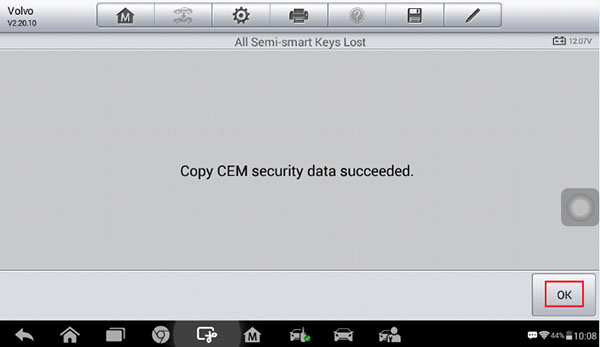

Copy CEM security data successfully

otosys-im100-volvo-key-programming-14

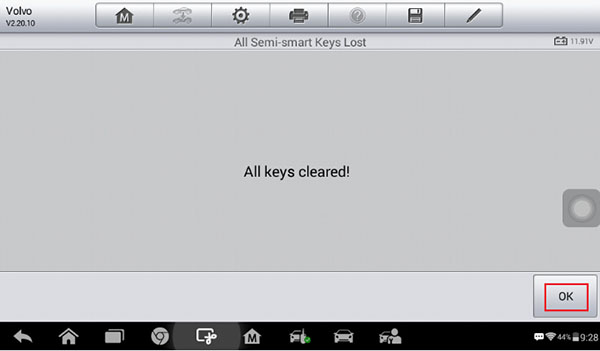

All key cleared! Learned keys: 0

otosys-im100-volvo-key-programming-15 otosys-im100-volvo-key-programming-16



Step 3: learn keys

Key learning success

otosys-im100-volvo-key-programming-17

Ignition off

Remove the key from the key slot

otosys-im100-volvo-key-programming-18

Learned keys: 4

otosys-im100-volvo-key-programming-19
