In this instruction,i will show you guide on how to use 368A key cutting machine to cut Honda laser key.
Put original Honda laser key on the clamp
Put the blank key on the left clamp
So what are you going to do is there is a knob on the side of the machine that actually locks the up and down.Drop it down just until touch key
Now control the knob slowly to guide the tracer,then the cutter will follow the original key to cut new key
After then remove the key you cut just to check
And you need to cut the other side
After both side cut
Defu 368A vertical key machine is a very cheap machine, but does cut most keys well with clamp addons for tibbe etc.
DOES NOT DO “all keys lost”
Ok for doing double sided flat keys buy a universal key clamp and cut it up as in picture 1. (universal clamp won’t do these keys)
drill 2.5 mm holes for clamp screws and use 3mm tap to run threads picture 2.
cut some shims from the supplied steel shims picture 3.
Pictures 4 and 5 perfect working key
Brilliant machine for the money
Attach DEFU Defu 368A key cutting machine working platform.
Making Double sides Flat Keys by Defu 386 Vertical Key Machine
Credits to @ROD-BENDERS poster (cartechnology.co.uk forum) for his experience sharing.
I think you are interested in where to get the cheapest and working DEFU 368A?
You can go to here:
$169 free shipping on sale.
The 368A key cutting machine is really good because you can only spend a few dollars buying this and you will pay back very quickly.
Of course, it will not compete with Xhorse Condor XC MINI key cutting machine, because it is the manual machine that designed to duplicate/cut laser keys for Honda/BMW/ Volkswagen etc car brands.
Top 8 features of the inexpensive machine:
- This machine is very good for the value. US$79 in uobd2.
- Extremely light weight: 10kg (Volume weight)
- Multi functional, equipped with horizontal feeding movable handle
- The cover is made of ABS material, the surface with high hardness, good chemical resistance, heat and corrosion resistance and impact strength.
- The key blade is made of copper and processed by vacuum heat. It becomes more resilient and easy to cut.
- The plastic parts are assembled without gaps, which is connected by split line and looks perfect.
- Multifunctional steel fixture with dark key duplication service pitch line and cylinder type key assembly function (multifunctional clamp), can copy various hollowness type,wave type,cylindricalkey and key for multi lock and composite bead keys and some car keys
- With hardened ball bearing slide mechanism.
368A key cutting machine operation video
368A key Duplicate Machine has two buttons on the side, one is the light button and the other is the power button (start cut key by pressing the button)

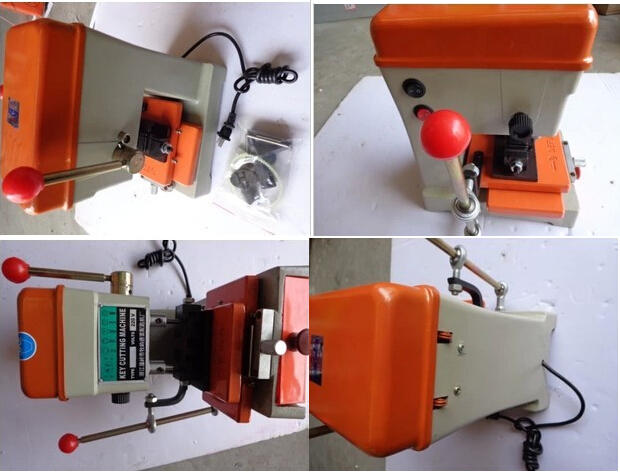

368A Key Copy Cutting Machine Parameters:
Dimension size:30 *21*35cm
No Built-in battery
Plug Type: UK.USA.BR.CN.EU etc
Power Supply: A/C (alternating current)
Comes in Wooden box
Components, accessories etc
368A Key Copy Cutting Machine User Manual
