How to Use V8/X6 Key Cutting Machine to Cut New Key for VW HU66

In this article,auto key cutting machine blog will show you how to use V8/X6 key cutting machine to cut new key for VOLKSWAG HU66.



Procedures:

Install VW HU66 Fixture

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (1)

Input original key on the HU66 clamp

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (2)

Use “Key Search” button to select key type—>VOLKSWAG

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (3)

Select “HU66.H8”

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (4)

Select “Decode”

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (5)

Press “Enter” button to start decode

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (6) How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (7)



After decode, Automatic V8/X6 Key Cutting Machine menu will show you the key code,press “Enter” to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (8)

Select “Nearest” and enter to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (9)

Remove original from clamp and put a new key on the clamp

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (9)

Remove probe and install cutter

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (11)

Select menu as below show,press “Enter” to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (12)

Now it will start cutting blank key

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (13) How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (14)



Please wait it will take about several minutes to complete cutting process

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (15)

Now one side cutting completing,we need to cut the other side

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (16)





Press “Cut” to continue

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (17)



Start cutting,please wait for proceed

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (18)



After both side cutting completing,remove key from clamp

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (19)



Automatic V8/X6 VW HU66 Key Cutting Completing

How to Use V8X6 Key Cutting Machine to Cut New Key for VW HU66 (19)



Free download V8/X6 key cutting machine key profile data

Free download V8/X6 key cutting machine key profile data when your software vanished and so I reinstall but now I have no key profile data

Image:

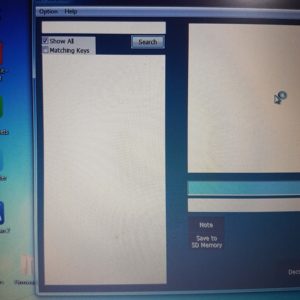

software vanished and no key profile data

V8-X6 key-cutting-machine-no-key-file



Download link:

key master

http://www.mediafire.com/file/z8j9l55oacrubc4/KeyMaster.zip/file

V8-X6 key-cutting-machine-key-file-download-1



PL2303_Prolific_GPS_AllInOne_1013

http://www.mediafire.com/file/fhl5pbm224o0hod/PL2303_Prolific_GPS_AllInOne_1013.exe/file

V8-X6 key-cutting-machine-key-file-download-2

x6 database

http://www.mediafire.com/file/gadyijiibg3huuz/X6+data+base.zip

V8-X6 key-cutting-machine-key-file-download-3

Pros and cons:

Pros:

1.Cutting from code, can be used with the keyless condition

2.It is a very light use machine (17.4KG), can be used inside cars

3.The battery seems to last pretty good.  Have rechargeable battery inside so you can use it without power

4.Upgradable database (2013V for free, pay for 2014V or newer)

5.Does the same as the Miracle A5 but a lot cheaper to buy. Menu is exactly same as Miracle A5.

6.Can work and run off laptop connected with USB cable.

7.Full working with all keys, even with VAG key, use it with PC and extra software (codemaster)

8.Need decoder, iteasy to find new one made your own. X6 has a quick release slide catch, carbide cutter and plotter, bothcan be easily purchased.

9.It comes with 2 spare belts and spare cutters and plotters.

10.The X sensor controls left to right, the Y sensor in and out and Z sensor up and down.

11.If you want a nice looking key and if you don’t want to go through cutters, X6 is a good starter machine

12.Got X6 and cut a tibbe key with the adaptor with very good results.

13.X6 Machine use their own firmware, it is not a copy

Cons:

1.The only fault so far is it will not decode VA2 or HU83 keys. Will cut them perfect if you input code but no decode.

2.The power supply was poor, but easily replaced and purchased

3.Speed was set to very slow

4.It wont decode the va2/va6 key with the 1234q5678h series

5.The direction is not like the common motor in the market



Tech support: http://www.uobdii.com/wholesale/newest-automatic-v8-x6-key-cutting-machine.html

which key cutting machine is the best

Here are key cutting machines talked a lot: Xhorse Condor, Miracle A7, Viper machine, Ninja laser & x6 key cutter

so, which one is the best?

condor xc-mini is a good budget machine , more suited to the workshop than mobile due to size and weight. it has some bugs , some issues and some gaps , but the quick and easy update for lifetime plus wonderful function are the scoring points. this for what it costs, on the whole a decent machine for the money.

condor-xc-mini-master-key-cutting-machine-1

miracle A7 s a reliable machine , has a few bugs but reliable as a light use machine , ideal mobile on a van and space saving .

korea-miracle-a7-key-cutting-machine-update-1
Viper is a heavy machine and can play up in cold , but is a great heavy duty machine that will give a lifetime of reliable use and receives lifetime updates and as Silca is normally up to date.

Ninja laser – excellent machine , nothing better for me on sx9 keys , laguna 3 , megane 3 , new clio cards using 1234Q5678H series and decoding and cutting clio 3 keys , fast reliable cutting that allows you to pick various styles of cut as well as adjust to half cuts etc , the software can take getting used to due to the functions available on it , adds cylinder keys to your services too , its a well built machine that is like silca updated for life free.

So, Condor mini vs Miracle A7 vs X6 key cutter vs Viper machine vs Ninja laser:
Most key cutting machines will cut a tibbe key on a clamp , but none will in my view cut a perfect tibbe key , a stand alone option will always cut a better key and far quicker too .

I have all of the above machines , so have hands on and regular experience with each machine and use them all , i like them all over the next for certain functions and all do different jobs for me , viper will always be my baby as it was my first , but ninja laser is catching it up fast my only gripe is viper is 30 second boot time , ninja laser is 4 minutes to boot up , but these 2 are in a league of their own
condor xc-mini key machine is a far superior machine to the x6 key cutter, the x6 is a starter machine for very light use and build quality is poor in comparison , i had an x6 to play with for a few months , i wouldn’t buy one having gone hands on with it , condor will last longer and be more reliable of the 2 , its at least being supported and updated which is a big plus and is a far superior build quality to the x6 which at best is a hobby or starter machine .
it isn’t always 100% accurate , but the find biting function on condor is useful if you don’t have instacode to hand , and is a useful addition that makes the condor more useful.

Below is what i tested with Condor machine.

Do Toyota TOY43 all key lost, save you a lot of time
Cut Suzuki, Mazda (key tooth in ignition lock more than door lock) all key lost, simply by enter the key code
Do Hyundai, Kia, Peugeot, and Citroen all key lost, directly program keys
HU101 works fine, HU92 works fine.
HU66 OK, have to do two passes on each side to get the key to work, same with hu100.
Fix the problem that other key cutting machines cut domestic Honda key not accurately.

But it is a pity that there is no solution for Renault emergency bladeyet.

Condor xc-mini vs Miracle A7 vs V8/X6 key cutting machine

How to choose a key cutting machine for a good price and good quality? Here is something you need to know before you decide to buy a key cutter.

Condor xc-mini is a good budget machine , more suited to the workshop than mobile due to size and weight. it has some bugs , some issues and some gaps , but the quick and easy update for lifetime plus wonderful function are the scoring points. this for what it costs, on the whole a decent machine for the money.

Miracle A7 is a reliable machine , has a few bugs but reliable as a light use machine , ideal mobile on a van and space saving .

Viper is a heavy machine and can play up in cold , but is a great heavy duty machine that will give a lifetime of reliable use and receives lifetime updates and as Silca is normally up to date.

Ninja laser – excellent machine , nothing better for me on sx9 keys , laguna 3 , megane 3 , new clio cards using 1234Q5678H series and decoding and cutting clio 3 keys , fast reliable cutting that allows you to pick various styles of cut as well as adjust to half cuts etc , the software can take getting used to due to the functions available on it , adds cylinder keys to your services too , its a well built machine that is like silca updated for life free.

Most will cut a tibbe key on a clamp , but none will in my view cut a perfect tibbe key , a stand alone option will always cut a better key and far quicker too

V8/X6 key cutting machine is a starter machine for very light use and build quality is poor in comparison , i had an x6 to play with for a few months , condor will last longer and be more reliable of the 2 , its at least being supported and updated which is a big plus and is a far superior build quality to the x6 which at best is a hobby or starter machine .

It isn’t always 100% accurate , but the find biting function on Condor is useful if you don’t have instacode to hand , and is a useful addition that makes the Condor more useful. Actually, Condor mini wins in most aspect!

Anyone bought Condor XC-Mini key cutting machine?

I have found something good about key cutting machines, including Xhorse Condor xc mini, Miracle A7, Viper, Ninja laser, V8/X6 key cutters. This post would help you to buy a good key cutting machine, most suitable for anyone in need.

I have found something good about key cutting machines, including Xhorse Condor xc mini, Miracle A7, Viper, Ninja laser, V8/X6 key cutters. This post would help you to buy a good key cutting machine, most suitable for anyone in need.

First, you need to know- How much difference of Condor xc-mini vs Miracle A7 vs Viper vs Ninja laser vs V8/X6

Condor xc-mini is a good budget machine , more suited to the workshop than mobile due to size and weight. it has some bugs , some issues and some gaps , but the quick and easy update for lifetime plus wonderful function are the scoring points. this for what it costs, on the whole a decent machine for the money.

bmw-hu92-turbo-decoder-condor-xc-mini-10

A useful tip with details: http://www.uobdii.com/wholesale/condor-ikeycutter-manually-key-cutting-machine.html

 Miracle A7 is a reliable machine , has a few bugs but reliable as a light use machine , ideal mobile on a van and space saving .

korea-miracle-a7-key-cutting-machine-update-1

 Viper is a heavy machine and can play up in cold , but is a great heavy duty machine that will give a lifetime of reliable use and receives lifetime updates and as Silca is normally up to date.



 Ninja laser – excellent machine , nothing better for me on sx9 keys , laguna 3 , megane 3 , new clio cards using 1234Q5678H series and decoding and cutting clio 3 keys , fast reliable cutting that allows you to pick various styles of cut as well as adjust to half cuts etc , the software can take getting used to due to the functions available on it , adds cylinder keys to your services too , its a well built machine that is like silca updated for life free.

Most will cut a tibbe key on a clamp , but none will in my view cut a perfect tibbe key , a stand alone option will always cut a better key and far quicker too.

 V8/X6 key cutting machine is a starter machine for very light use and build quality is poor in comparison , i had an x6 to play with for a few months , condor will last longer and be more reliable of the 2 , its at least being supported and updated which is a big plus and is a far superior build quality to the x6 which at best is a hobby or starter machine .

automatic-v8-key-cutting-machine-1

It isn’t always 100% accurate , but the find biting function on Condor is useful if you don’t have instacode to hand , and is a useful addition that makes the Condor more useful.

More: SEC-E9 vs Condor XC-mini vs Automatic V8/X6 vs Slica Key cutting machine:

http://www.keycuttingmachine.org/sec-e9-vs-condor-xc-mini-vs-automatic-v8x6-vs-slica-key-cutting-machine/



Then, Condor XC-MINI Key Cutting Machine Reviews… Here you go.



1.Cut New GM, Coverlet, HU100, PSA Peugeot, Citroen VAT2 key, XC-MINI makes job easier

2.Do Toyota TOY43 all key lost, save you a lot of time

3.Cut Suzuki, Mazda (key tooth in ignition lock more than door lock) all key lost, simply by enter the key code

4.Do Hyundai, Kia, Peugeot, and Citroen all key lost, directly program keys

5.HU101 works fine, HU92 works fine.

6.HU66 OK, have to do two passes on each side to get the key to work, same with hu100.

7.Fix the problem that other key cutting machines cut domestic Honda key not accurately

But it is a pity that there is no solution for Renault emergency blade yet

8.Clio 2 series with m1 clamp all is ok perfect..

9.Panda mj year 2005 cut key ok ..

Needs improves:

1.No built-in battery

2.Solution for Renault emergency blade

3.Condor XC-MINI decode HU83



Automatic V8/X6 vs Slica Key cutting machine

As for automotive key cutting machines, which one is the best choice for locksmiths? SEC-E9 or Condor XC-mini or Automatic V8/X6 or Slica key cutter? Key cutting machine UOBD2…Here you go.

As for automotive key cutting machines, which one is the best choice for locksmiths?  Automatic V8/X6 or Slica key cutter? Key cutting machine UOBD2…Here you go.

Q: Can the SEC-E9 machine cut household keys?

A: definitely yes!

Q:SEC-E9 support the moto key?

A: Yes, SEC-E9 can cut motorbike keys without issues

Automated V8/X6 key cutting machine vs. Slica car Key cutter

Here are some differences between original Automated V8/X6 key cutting machine and Slica car Key cutting machine.

1- Optional version
Automated V8/X6 has two versions (basic version: V8; full version: X6)

Slica doesn’t have optional versions to choose
2- Competitive price
V8/X6 key cutting machine price ($1,159.00) is kind of cheaper, only 90% of Slica brand, while the function is much better than slica’s.

3- Convenient to work outside
Most key cutting machines need to work with power adapter. Then they will have the area usage limitation; most only can work in door.  X6 key cutter with light weight and portable, battery-powered DC electrical impulse, which is very suitable to go out to work. You can use it work in your car.

4- Wide potential market
Latest X6 version can work on many new and different keys for different cars in the market. Can meet the various needs for key cutting of different customers from worldwide.

5- Powerful function
1) X6 key cutting machine supports making new key without original keys:

*** 3 situations to use Automated X6 ***

*** when you have the original key and make a new key:
When you start this machine, you will see the menu, just follow the menu prompt to enter the number to read key teeth step by step. Then you will get the new key
*** when you lost all keys.
When you lost all original keys, enter the appropriate number of head lock, then follow the menu prompt to make new key.

*** when mainly used have the key with keyless lost data with the key.

2) X6 does both external milling and vertical milling.

3) X6 makes almost all kinds of keys with only one machine!



**** CONLUSION ****

Automatic V8/X6 key cutting machine performs much better than Slica car key cutter. As X6 definitely is one of the best cornerstones of the locksmith trade. When you purchase a high-level machine you are either increasing your efficiency by being able to cut a higher volume of keys and/or cut keys faster; or you are increasing your market by being able to cut a new type of key.



How to cut TOY48 key blank using V8/ X6 Key Cutting Machine?

If you want a detailed guide to cut TOY48 key blank then here is right for you! This blog is a guide for using Automatic V8/ X6 Key Cutting Machine to cut TOY48 L55 key blank.

If you want a detailed guide to cut TOY48 key blank then here is right for you! This blog is a guide for using Automatic V8/ X6 Key Cutting Machine to cut TOY48 L55 key blank.

v8-x6-key-cutting-machine-cut-TOY48-key-blank-1

Step1. First change machine cutter to probe because we are going to decode the original key and later decode the new key to see if they are same.

Start V8/ X6 Key Cutting Machine, put the original key on clamp then tighten, press the Key Search button as following picture shows:

v8-x6-key-cutting-machine-cut-TOY48-key-blank-2



Step2. Choose “SILCA” then “TOY48.L55”

v8-x6-key-cutting-machine-cut-TOY48-key-blank-3

Choose “Decode”, we start to decode the original key.

v8-x6-key-cutting-machine-cut-TOY48-key-blank-4 v8-x6-key-cutting-machine-cut-TOY48-key-blank-5

Step3. Now we get the key cut code and take it down.

v8-x6-key-cutting-machine-cut-TOY48-key-blank-6

After that remove the original key and put the new key on clamp to tighten. Then change the probe back to cutter.

v8-x6-key-cutting-machine-cut-TOY48-key-blank-7

Step4. Choose “Direct Copy”

v8-x6-key-cutting-machine-cut-TOY48-key-blank-8

Press the Button 3 to set “Z Pitch: 2time”. So setting should be “Speed: Default; Tip: Nosed; Z Pitch: 2time; Sense: Auto”. And then key cutting starts.

v8-x6-key-cutting-machine-cut-TOY48-key-blank-9

Step5. After one side key blade cutting finish, we turn the key opposite side to continue cut. Setting is same as the step4. Wait and both two sides of key blade are cut.

v8-x6-key-cutting-machine-cut-TOY48-key-blank-10

Now we change the cutter to probe. Back to the main menu and choose “Decode” to prove whether the new key cut code is same as the original one.

Yes. The new TOY48 key share the same cut code with the original one! It means X6 Key Cutting Machine duplicate new TOY48 L55 key successfully!

v8-x6-key-cutting-machine-cut-TOY48-key-blank-11

How V8/X6 Key Cutting Machine Cut Mercedes Benz HU64 Key?

This blog will guide you how to use Automatic V8/X6 Key Cutting Machine and an original HU64 key to cut a new Mercedes Benz HU64 key just 3 steps!

This blog will guide you how to use Automatic V8/X6 Key Cutting Machine and an original HU64 key to cut a new Mercedes Benz HU64 key just 3 steps!



Before cutting, please make sure all following things prepared:

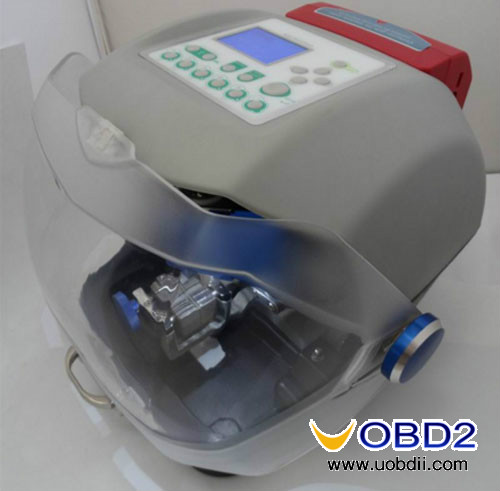

  1. V8/X6 Key Cutting Machine

automatic-v8-key-cutting-machine-1

  1. BENZ HU64 Clamp (Fixture)

benz-hu64-clamp-fixture-2 v8-x6-key-cutting-machine-cut-mercedes-hu64-3



  1. Mercedes HU64 key blank blade

This is the original Benz HU64 key

v8-x6-key-cutting-machine-cut-mercedes-hu64-4

Now you can start cutting!

Step1. Put the BENZ HU64 fixture to fix the machine’s clamp and tighten the clamp. Insert the original HU64 key into this fixture.

v8-x6-key-cutting-machine-cut-mercedes-hu64-5

Start X6 Key Cutting Machine, press the Key Search button.

v8-x6-key-cutting-machine-cut-mercedes-hu64-6

Choose “SILCA” then “Mercedes” then “HU64”.

v8-x6-key-cutting-machine-cut-mercedes-hu64-7 v8-x6-key-cutting-machine-cut-mercedes-hu64-8Step2. Select “Decode” function. Tips will remind you to change the cutter to decoder. Next set “Sense: Thick”.

v8-x6-key-cutting-machine-cut-mercedes-hu64-9After decode, V8 Key Cutting Machine will show you the key code as below:

v8-x6-key-cutting-machine-cut-mercedes-hu64-10Step3. Press Enter button and choose “Nearest” on Bitting Analysis menu.

v8-x6-key-cutting-machine-cut-mercedes-hu64-11

Plug out the original key and insert the new HU64 key blade into the fixture.

v8-x6-key-cutting-machine-cut-mercedes-hu64-12

Now press Enter button to start cutting and follow tips, Automatic V8/X6 Key Cutting Machine will cut a new Mercedes HU64 key in several minutes!



Article from UOBD2 Blog Site:How V8/X6 Key Cutting Machine Cut Mercedes Benz HU64 Key?

Difference between CONDOR XC-MINI And Automatic V8/X6

Many locksmiths today are discussing two cheap Chinese key cutting machines: Xhorse IKeycutter CONDOR XC-MINI and Automatic V8/X6. Condor is introduced to …

Many locksmiths today are discussing two cheap Chinese key cutting machines: Xhorse IKeycutter CONDOR XC-MINI and Automatic V8/X6. Condor is introduced to some car forums and X6 is updated to latest 2015 version. To help customers find out the pros and cons of the two tools,

IKEYCUTTER CONDOR XC-MINI key cutting machine

automatic-v8-x6-3 ikeycutter-condor-xc-mini-1

1) It supports powerful locksmith functions, like all key lost, copy new key for worldwide brand cars such as Audi, Jeep, Porsche, Ford, BMW and so on.

2) It support powerful locksmith functions, like

3) It support more languages than V8/X6, Portuguese, Spanish, French, Germany, Russian, , Czech, Arabic, Turkish, Dutch, Polish, Bulgarian, Norway, Slovakia, Italian, English, Chinese

4) Its software supports update online lifetime



Automatic V8/X6 key cutting machine

ikeycutter-condor-xc-mini-2

1) It tests ok that Automatic v8/x6 and can cut an nsn14 and a hu66 so far and all working fine.

2) It is a lot cheaper than Condor XC-MINI.

3) It Only has English version

4) It can do 5-6 eeprom jobs.

5) It weights only 17.4KG while XC-MINI weights 21KG

6) The only fault so far is it will not decode VA2 or HU83 keys, Will cut them perfect if you input code but no decode. Have it working and running off laptop connected with USB cable.

7) When there is a key, simply follow the steps to enter the number or read key teeth tooth number, you can make a new key. When a key is lost, just follow the prompts, enter the appropriate number of head lock, you can make a new key, very easy to use.



More details about these two products please visit:

CONDOR XC-MINI:

http://www.uobdii.com/wholesale/ikeycutter-condor-xc-mini.html

Automatic V8/X6:

http://www.uobdii.com/wholesale/newest-automatic-v8-x6-key-cutting-machine.html

Save
