How to use Xhorse Dolphin XP-005 Cut Key

How to use Xhorse Dolphin XP-005 Cut Key ? It is easy, Xhorse XP-005 is with database, work with iOS and Android system device via Xhorse App. Here is the tutorial show you how to use dolphin XP-005 cut a key.

xhorse dolphin xp-005 cut key

Part 1:

1.Open Xhorse App >>Device Information >>Machine Calibration>>Height Level Adjustment of Cutter.

xhorse-dolphin-xp005-cut-key-1

xhorse-dolphin-xp005-cut-key-2 2.Install and tighten the clamp M1, do not put any key on the clamp .

3.Turn the cutter tightening wrench to fix the cutter and the probe, as shown in the picture of the app.

xhorse-dolphin-xp005-cut-key-3

4.Click on “Continue”in Xhorse app to the step of height level adjustment.

xhorse-dolphin-xp005-cut-key-4

5.Unscrew the probe tightening wrench, adjust it to the same level as the cutter, then turn the tightening wrench to fix the probe.

6.Click on “Continue”.

7.Adjustment finished.

Part 2:

1.Clamp Calibration >>Clamp M1

2.Put a Hon66 key blank on the clamp M1, then turn the key tightening knob to fix it.

xhorse-dolphin-xp005-cut-key-5

3.Click on “Continue”.

4.Calibration finished.

Part 3:

1.Clamp Calibration>>Clamp M2

2.Install clamp M2 (no key on the clamp) and rotate side A upward.

xhorse-xp005-cut-key

3.Rotate side B upward, click on “Continue”, calibration finished.

4.Rotate side C upward, click on “Continue”, calibration finished.

5.Rotate side D upward, click on “Continue”, calibration finished.

xhorse-xp-005-cut-key

Part 4:

1.Rotate side A upward, put the original key on clamp M2 and tighten it.

xhorse-dolphin-xp005-cut-key-6

2.Xhorse APP>>KeyDuplication>>Single Track External>>Top Align>>Clamp M2-A>>Key Learning

xhorse-dolphin-xp005-cut-key-7

3.After one side of key learning, uninstall the original key and install a new key.

4.Key cutting continues…Key cutting finished.

5.Uninstall the new key and install the original key (unlearned side upward). Key learning…Key learning finished.

6.Uninstall the original key and install the new key (uncut side upward). Key cutting continues…Key cutting finished.

xhorse-dolphin-xp005-cut-key-8

xhorse-dolphin-xp005-cut-key-9

7.Uninstall the new key and verify it in your car.

Source: https://blog.uobdii.com/xhorse-dolphin-xp-005-key-cutting-tutorials/

How to select Mercedes Benz HU64 key blade depth by Dolphin XP005

How to select Mercedes Benz HU64 key blade depth?

There are three option in Xhorse dolphin database which express different kinds of HU64 key blank ( Enter ” Cut by bitting” -> HU64). Image 1 shows the keys with the same depth number displayed in three different options).

how-to-distinguish-different-hu64-key-blank-01

Analysis:

Observe the red box in the figure, where the values are 580,450,380
These three values indicate the distance between the 10th depth and the top of the key.
Judging by the distance in front of the owner’s key. In addition, the further the distance, the minimum the slope at the top of the key; the closer the distance, the maximum the slope. HU64 has the minimum slope, HU64-2 has the medium slope, and HU64-3 has the maximum slope.

Let’s go to cut HU64, HU64-2, HU64-3 Key Blank using Xhorse Dolphin:

  1. In your phone, go to Google Store (for Android) or APP Store (for IOS) to search “Xhorse” to download and install. Details at: Xhorse DolphinUser Manual(Page 10 – 13)
  2. Turn on the Bluetooth connection.

how-to-distinguish-different-hu64-key-blank-02

  1. Select “Cut by bitting”.

how-to-distinguish-different-hu64-key-blank-03

  1. To cut

1) Select “HU64” -> M2-B Clamp type to align -> cutting depth-> input the depth -> cutting -> done.

how-to-distinguish-different-hu64-key-blank-04 how-to-distinguish-different-hu64-key-blank-05 how-to-distinguish-different-hu64-key-blank-06 how-to-distinguish-different-hu64-key-blank-07  how-to-distinguish-different-hu64-key-blank-09

2). Select “HU64-2” -> M2-B Clamp type to align -> cutting depth-> input the depth -> cutting -> done.

how-to-distinguish-different-hu64-key-blank-08

3). Select “HU64-3” -> M2-B Clamp type to align -> cutting depth-> input the depth -> cutting -> done.

how-to-distinguish-different-hu64-key-blank-11

Look at the image of original Hu64 key vs the new key blank hu64 / hu64-2 /hu64-3,

as you can see the top of HU64-3 has the maximum slope and HU64 has the minimum slope.

how-to-distinguish-different-hu64-key-blank-12

Good to know: M2 clamp is packed together with Xhorse Dolphin XP-005 Automatic Key Cutting Machine. It doesn’t need to buy additionally.

how-to-distinguish-different-hu64-key-blank-13



Xhorse Dolphin Decode HU92 Laser Key by Photo Scan Function

In this instruction,keycuttingmachine blog will show you guide on how to use Xhorse Dolphin Machine photo scan function to decode HU92 laserkey.



Run Xhorse app on your mobile phone

Enter “Vehicle Database” or “Cut by Bitting” option

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-1

Select proper model and key blank

BMW–>330

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-2 Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-3



Press “OK” to cotinue

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-4

Click on “Decode key”

Select “Learn key via photo” to continue

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-5

Take a photo of the original key or use photos from album

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-6

Please move key blade align the picture

Rotate and zoom in the photo,adjust photo the align line.

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-7

Top align keys,top position align at green line

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-8

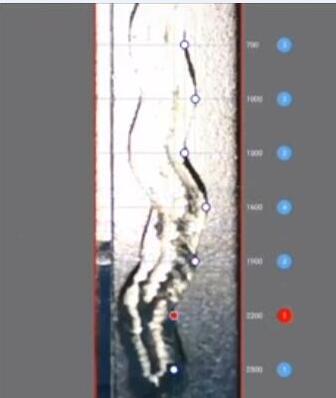

Move the white point to the current bitting overlap with green line position

Adjust each bitting position one by one

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-9

After the,click “Next” to decode key,it will show the key code on Xhorse app and ready for cutting.

Dolphin-Decode-HU92-Laser-Key-by-Photo-Scan-Function-10

http://www.uobdii.com/wholesale/xhorse-condor-dolphin-key-cutting-machine.html

Xhorse Dolphin XP005 and XP007 – What’s the different?

Here, we’ll talk about the difference between XP-005 and XP-007 Xhorse dolphin key cutting machines.

Xp005 is automatic machine working with phone app. it’s good machine ,fast n easy on the job.

xp007 is manual and has limitations. relies on your skill of locksmithing or requires keymoulds for all key lost situation.but it’s also good for cloning keys.

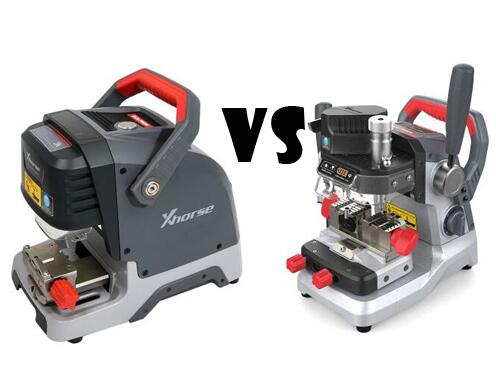

Xhorse Dolphin XP005 vs. XP007 Key Cutting Machine

Overally, xp005 and xp 007 are both good tools that a locksmith should have. if you are a learning locksmith start with xp005 its good for learning

Attachment: Specification Dolphin XP005 and XP007

Key cutting machine Dolphin XP-007 Dolphin XP-005
Working temperature: 0~50℃ 0~50℃
Working Humidity: 10%~90% 10%~90%
Battery capacity: 64.75 w.h 64.75 w.h
Motor Rotation Speed: Highest: 13000 RPM;

switch 1: 7000 RPM;

switch 2: 10000 RPM

10000-13000RPM



Machine Dimension: 282×246.5x355mm 315x218x270mm
Package Dimension: 365x325x350mm 510x315x345mm
Travel of spindle 25mm  –
Table travel transverse: 36m
portrait: 48mm
 –
Net Weight: 11.55KG 15kg
Gross Weight: 14KG 18kg



Automobile Key Cutting Machine Reviews from Forum

Here, have collected answers under a post about ” What kinds of key cutting machine do you use?”



James Kennedy Triton



Fórizs Józsi Xhorse condor Mini , silca 2000 and some cheap chinese cutters



Óðinn Sigurðsson Silca Unocode 299 and 399, Silca Triax, Silca Idea, Miracle 9 and then a few copiers


Robert N. Simmons Jr. Rytan 256, Framon 2, XHorse Mini Condor Plus, Scotsman in the truck.


Jorge Aguilar XHorse Dolphin


Марин Узунов Miracle A9


Heriberto Padilla Xhorse dolphin



Aylin Cherkez Xhorse dolphin



Joe Taylor Maurice plus mini and sec 9



Jeremy Causey Xhorse condor xc-009, dolphin xp-007 and dolphin xp-005 all cordless great for mobile service no need for a heavy duty power inverter if you have a van

its portable no need to plug it in that’s the main difference other than the touchscreen other then that they do everything else the same



Ignat Ignatov Gymkhana 994



Dan Florko 2- itl959c ‘s
Matrix retro
KD50
Rytan
Silca
Delta fo (tibbe)
Scotsman
And more to come soon





Conclusion:

The most popular is Xhorse key cutting machine

Top 1 xhorse key machine is the Dolphin

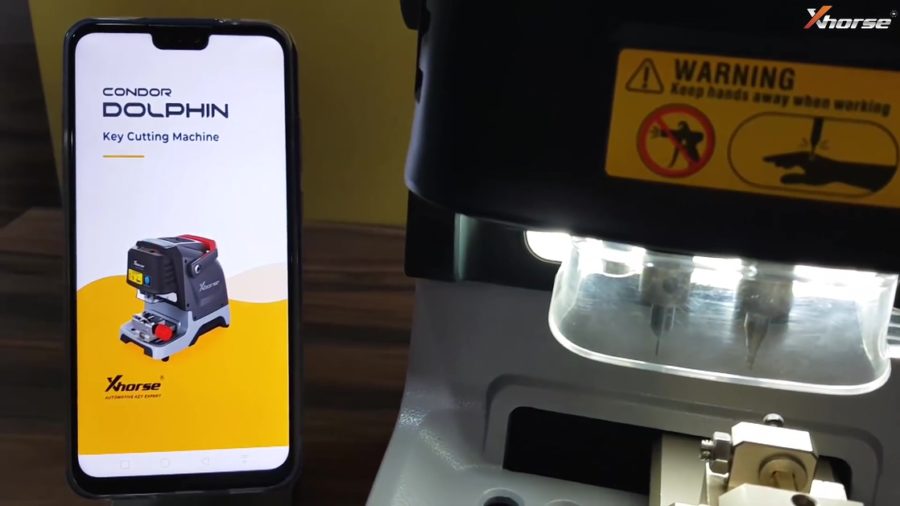

xhorse_dolphin_key_cutting_machine

source: http://www.uobdii.com/wholesale/xhorse-condor-dolphin-key-cutting-machine.html

DOLPHIN is the latest portable automatic key cutting machine with a built-in battery inside.

It has all the capabilities of Condor XC Mini.

Dolphin works on mobile phone application via bluetooth connection. There is no touchscreen, instead you interface with the machine via the mobile phone or tablet.

M1/M2 Jaws included.

M3 Jaw – optional purchase.



Specifications:

Working temperature: -10~50℃

Working Humidity: 10%~90%

Battery capacity: 64.75w.h

Standby power: 15W

Motor Rotation Speed: 10000-13000 RPM

USB Port: USB2.0

Machine Dimension: 315x218x270mm

Net Weight: 15KG

Gross Weight: 18KG

POWER: 100W



POWER PARAMETER: 12-24V

MOTOR TORQUE: 0.15Nm

Features:

Precision Production: All aluminum body structure, Manufactured by Germany-made DMG CNC machine

Data Richness: Provide rich vehicle data, blank key data, the best tool of all key lost.

Built-in Lithium Battery: Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.

Clamps: Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single-sided house-keys (duplication only).

One year warranty

Intelligent Control: Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.

High Efficiency Cutting: Use American famous brushless motor and screw rod, high efficiency and stability, create high precision cutting quality.

Online Update: Provide free software upgrade service, software function and database.





Accessories:

M1 Clamp – included

M2 Clamp – included

M3 Clamp (optional)

Xhorse Doliphin Duplicate Honda Key in 5 Minutes

This is a feedback by a real Xhorse Dolphin XP005 machine user on Honda key cutting.

Build connection between mobile phone and Dolphin XP005,then select “Honda” and duplication function.Put the original key on the clamp to get the key code number

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (1) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (2) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (3)

When decoding completing,remove the original key from Dolphin xp005 and put new key on the clamp

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (4)

The press “Cut” button to start cutting work

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (5) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (6) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (7)



After first side cutting work complete,just put it on the other side to cut

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (8)

After then test it on the door lock

Xhorse Doliphin Duplicate Honda Key in 5 Minutes (9) Xhorse Doliphin Duplicate Honda Key in 5 Minutes (10)



Done!

http://www.uobdii.com/wholesale/xhorse-condor-dolphin-key-cutting-machine.html

Customer Feedback on Xhorse Condor Dolphin & Condor Mini Plus

Here are some collection on real customers feedback Xhorse Condor Dolphin and Condor Mini Plus car key cutting machine.

Akos Subecz: Nice to have it on job site, but if you want to use it daily, it will be your worst nightmare. 3x slower than other machines because the small motor, so you cut 2 times less keys as with other machine. More difficult to change tracer and cutter because smaller spaces, the jaw you need to change with allen key not with fast release handle. And probably you use the phone app, you get a call as you try to cut, takes extra time, so for first machine i dont recommend, for a backup and carry on i recommend it highly.

Akos Subecz: i have a Condor Mini as a main machine, it works really good for me. Of course i have manual cutters as well.

David Sánchez M: the best!!

Bobb Keil: I love it. I’m testing it before it goes out on it’s own. So far it’s pretty well built and cuts great

Adam Goldhawk: I have it and I like it no problems here

Hsen: Condor XC-Dolphin key cutting machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without an operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.

Ruslan Yanchevskiy: Finally I got my Dolphin machine here. Looks and works good so far. Now my XC-mini got sister and Xhorse family is growing

My XC-mini doesn’t like the cold, you need to use the hair dryer to lubrication the lubrication. This one works without a problem.

“vedro c boltami” works great in offline mode. But to connect to this pour, you have to go to the “location” on your device, otherwise you can’t connect it. It’s all the same as the internet of all key lost, to cut the key on the code.

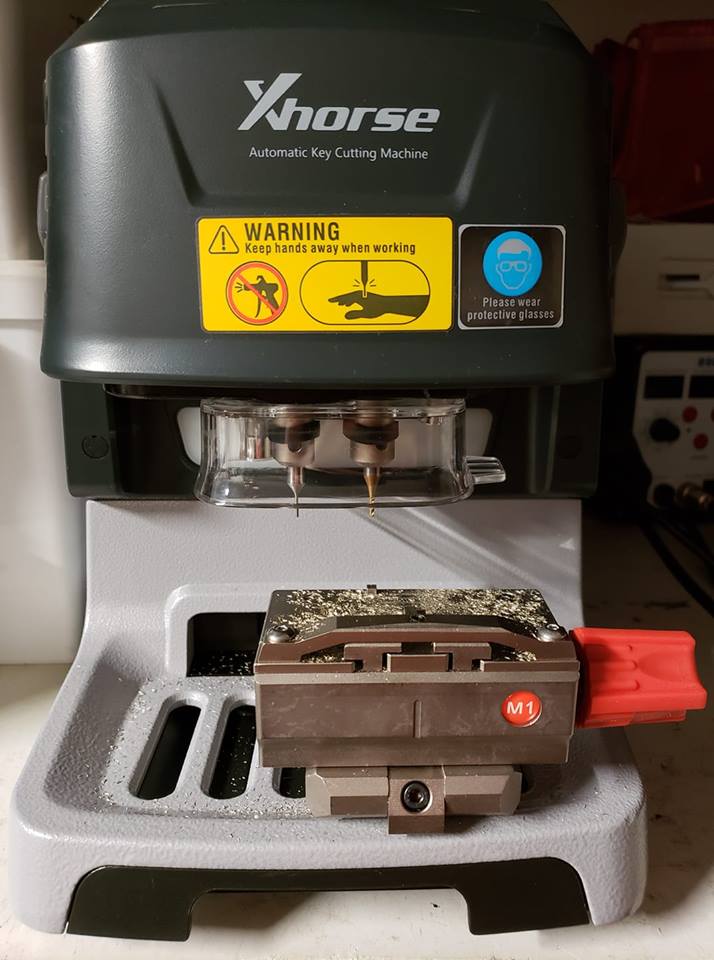

Condor-Dolphin-key-cutting-machine

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin

This instruction show you the guide on how to use Xhorse Dolphin key cutting machine to cutting new key for Hyundai Verna all key lost.



Procedures:

Build connection between Xhorse Dolphin and your mobile phone by Bluetooth

Then enter menu to select “All Key Lost”à”Hyundai”



Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (1) Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (2)

Input the lock code:85459,then press “QUERY”

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (3)

Follow the instruction to put blank on the clamp,then press “OK” to continue

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (4)

Then press “Cutting key”,then press “Continue”

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (5)

Now Xhorse Condor Dolphin will start key cutting work

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (5) Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (7) Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (8) Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (9)



Press “OK” to continue

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (10)

And now cutting other side

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (11)

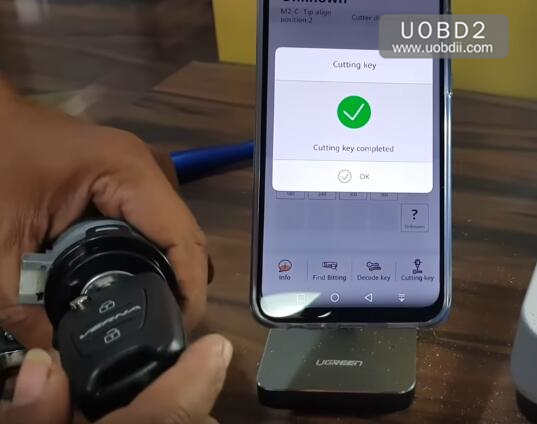

After both side have been cut,test the key on the lock

Hyundai Verna All Key Lost Cutting by Xhorse Dolphin (12)

Done!

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike

This article show a guide on how to use Xhorse iKeycutter Dolphin cut key for SUZUKI ACCESS bike.And if you want to know more Dolphin key cutting projects,check here:Xhorse Dophin Key Cutting Tests.





Procedures:

Build connection between Xhose Dolphin and your mobile by Bluetooth,then seelct

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (1)



Select [Suzuki]

Input 2153,the press “QUERY” button to continue

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (2) How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (3)



Select [NI02T]

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (4)

Follow the screen operation,then click [OK] to continue

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (5) How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (6)



Press [Cutting Key] to continue

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (7)

Cuttting depth (recommend use default value),press [Continue] button

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (8)

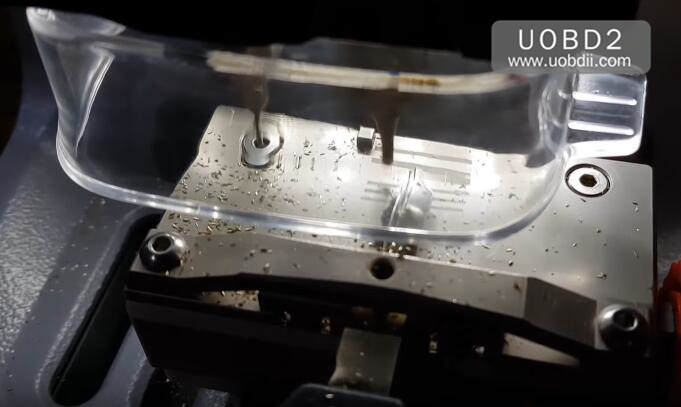

Now Xhorse iKeycutter Dolphin will start cutting work,you need wait process…

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (9) How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (10)



Cutting key completed

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (11)

Now test key on the lock

How to Use Xhorse Dophin Cut Key for SUZUKI Access Bike (12)

Done!
