How to Use Xhorse Condor Dolphin Cut Honda HON66 Key

In this instruction,I will show you the procedures on how to use Xhorse Condor Dolphin Key Cutting machine to cut key for Honda HON66.



Related Contents:

Honda Acura HON66 key cutting guide with Condor XC-MINI

How to use HON66 key cutting machine for Honda all key lost

How to use SEC-E9 to cut HON66 key by search key blank?

Hon66 Key Cutting by X-horse Condor XC-MINI Master



Procedures:

Build connection between Condor Dolphin and your mobile by bluetooth

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (1)

Select “All Key Lost”

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (2)

Honda

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (3)

Input “K730”,then press [QUERY]

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (4)

Select “HON66EHP”

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (5)

Install clamp M2-A

Clear metal fillings and use your finger to press the blank key on the clamp and make sure it is flat.Then press [OK] to continue

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (6)

Press [Cutting Key] to continue

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (7)

Follow the instruction,then press [Continue]

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (8)

Then Condor Dolphin will start cutting work.

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (9) How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (10) How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (11)



Cutting process finishing

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (12)

Now you can test it on the lock.

How to Use Xhorse Condor Dolphin Cut Honda HON66 Key (13)

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting

Here keycuttingmachine.org share the testing on how to use Xhorse Condor Dolphin to cutting key for Honda Activa 5G key.

Procedures:

Build connection between your mobile phone and Xhorse Condor Dolphin

Then select “Vehicle Database”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (1)

Select “Honda (Cycles)”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (2)

Select Honda 5G

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (3)

Follow the software instruction,then click “OK” to continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (4)

Select “Decode Key”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (5)

Click “Continue”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (6)

Now the Condor Dolphin will start decoding key for Honda Activa 5G

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (7)

Decode key success

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (8)

Select “Find Bitting”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (9)

Code and Bitting show as below

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (10)

Put a new blank key on the clamp

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (11)

Select “All Key Lost”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (12)

Select “Honda (Cycles)”,then enter the code:XE14 and click “Query”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (13)

Select “OK” to continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (14)

Select “Cutting Key”

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (15)

Continue

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (16)

Now Dolphin machine will start cutting key

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (17)

Honda Activa 5G Key cutting finishing

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (18)

Test the new key on the lock,work fine!

Xhorse Condor Dolphin Test on Honda Activa 5G Key Cutting (19)

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key

Here keycuttingmachine.org share the guide on how to use newest Xhorse Dolphin key cutting machine to cut keys for Mahindra Xylo.

Here keycuttingmachine.org share the guide on how to use newest Xhorse Dolphin key cutting machine to cut keys for Mahindra Xylo.



Procedures:

Run Xhorse App,then build connection to Xhorse Condor Dolphin Machine.

Select “Vehicle Database”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (1)

Select “Mahindra”à”XYLO&CORP10”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (2) How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (3)



Then follow the screen operations:

M2-C Clamp Tip align position

Key fixed Clear metal fillings and use your finger to press the blank key on the clamp and make sure it is flat.

Then click “OK” to continue

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (4)

Press “Decode”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (5)

Follow the screen prompt,then press “Continue”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (6)

Now Dolphin machine will start decoding key,please wait for processing

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (7)

Decode key success,press “OK” to continue

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (8)

Press “Find Biting”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (9)

Code:1166

Biting:3443353122

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (10)

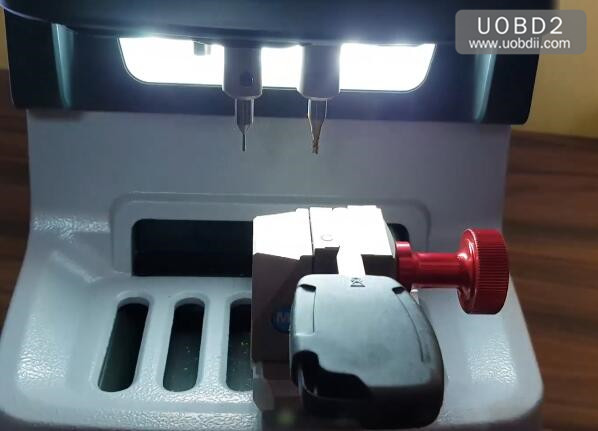

Put a new blank key on the clamp

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (11)

Select “All Key Lost”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (12)

Select “Mahindra”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (13)

Then input the code “1166”,then press “QUERY” to continue

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (14)

It will prompt you to choose Clamp M2-C,then follow the prompt massage,press “OK” to continue

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (4)

Press “Cutting Key”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (15)

M2-C Clamp Tip align position 1

Cutting dephth(recommend use default value),then click “Continue”

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (16)

Xhorse Dolphin start cutting key,please wait process completing

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (17)

Cutting key completed

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (18)

Now we need to cut the other side of blank key,turn the key with blank side on clamp

Then press the “OK” on the screen.

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (19)

And press “Cutting key”,and click continue to start cutting

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (20)

After cutting key completing,now you can test the key.

How to Use Xhorse Dolphin Cut Mahindra Xylo HU101 Key (21)

Done!

More Dolphin information please check here:

http://www.uobdii.com/wholesale/xhorse-condor-dolphin-key-cutting-machine.html

Xhorse CONDOR MINI Plus VS CONDOR MINI Vs CONDOR Dolphin

Topic: Xhorse CONDOR MINI Plus VS CONDOR MINI Vs CONDOR Dolphin.

uobdii.com engineer and Xhorse Manger conclude the advantages and disadvantage of three key cutting machines. And Focus on their target users and working environment.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-00



Part 1: Xhorse CONDOR XC-MINI Plus is way better than CONDOR XC-MINI.

1.Has brand new internal PCB.

2.The adjustable screen comes with 3 specifications, which allows the user to adjust the screen to the appropriate height and prevent the problem of reflection in the sun.

3.The cutting chips protection cover is added to prevent the key debris from entering the inside of the machine, and the short circuit is avoided after the power is turned on (the position of the Condor Mini protection cover is open and cannot be guaranteed)

4.Has bigger dust cover and larger bottom tray, which is more secure than CONDOR XC-MINI.

5.There is an opening at the bottom of the device, and there is also a receiving tray for receiving debris, which increases the protection mechanism and prolongs the service life of the device.

Seeing is believing, please look at the following images:

Group 1 . adjustable screen VS unmovable screen

Image 1: Xhorse Condor Mini plus : with adjustable screen.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-01



Image 2: Xhorse Condor Mini comes with unmovable screen.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-02



Group 2: cutting chips protection cover Yes & No

Image 3: Condor Mini plus has cutting chips protection cover.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-03

Image 4: Xhorse Condor Mini doesn’t have cutting chips protection cover, the hands can reach in.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-04



Group 3: larger tray VS smaller tray.

Image 5: Condor Mini plus has larger tray.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-05



Image 6: Condor Mini has smaller tray.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-06



Image 7: The gap between the movable part and the Condor MINI machine is large

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-07



Part 2: CONDOR MINI Plus VS CONDOR Dolphin

CONDOR MINI Plus wins Condor Dolphin in:

1.a longer mechanical life

2.more accurate key cutting

3.with 3 million electric shocks, CONDOR MINI Plus has bigger power.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-08

Image 8: Has cut 75190 keys continually



Condor Dolphin features:

1.No display screen

2.Match key via APP running with a Android /IOS phone or PAD.



Condor Dolphin Pros:

1.Cheaper price than CONDOR MINI Plus (Price for reference: Condor Dolphin $1,950, CONDOR MINI Plus $3,099)

2.Lighter weight and easy to take when going out to cut the keys.



3.Share as the same Clamp as CONDOR MINI Plus.



4.Support all keys lost: you can connect APP to check, the database of all keys lost is as the same as CONDOR MINI Plus. Note: please ensure the network is connected.



5.Dolphin has built-in lithium battery that can be fully charged in 3 hours. When the battery is full, it can cut 20 keys continuously, if not cut key, it has long standby time.



Condor Dolphin use note:

The protective cover is small, to prevent debris from flying upwards, there is a need to bring goggles.

xhorse-condor-mini-plus-vs-condor-mini-vs-condor-dolphin-09

Image 9: the left one is CONDOR Dolphin, the right one is CONDOR MINI Plus.

Xhorse Condor key cutting machine tech support is offered by www.uobdii.com

Xhorse Dolphin Key Cutting Machine Calibration Guide

Here keycuttingmachine.org share the guide on how to use calibrate position for Xhorse Dolphin key cutting machine.



Part 1:Height Level Adjustment

Part 2:Cutting Calibration

Part 3:Clamp Calibration M1 & M2



Preparations:

Run the Xhorse APP (Xhorse APP Download & Installation)

Xhorse Dolphin Key Cutting Machine Calibration Guide (1)

Click “Select” button

Xhorse Dolphin Key Cutting Machine Calibration Guide (2)

Turn on Bluetooth to build connection to Xhorse Condor Dolphin machine.(Dolphin machine must be power on,and turn on bluetooth)

Note:If it is your first time to use,please register it firstly.

After connection built,Dolphin will show the “READY” state

Xhorse Dolphin Key Cutting Machine Calibration Guide (4)

Select “Machine Parameter”

Xhorse Dolphin Key Cutting Machine Calibration Guide (5)



Part 1:Height Level

Select “Height Level Adjustment”

Xhorse Dolphin Key Cutting Machine Calibration Guide (6)

Tip:

1.Install and tighten Clamp M1.There is no need to put any key on the clamp.

2.Cutter lever needs to be adjusted every time after changing the probe and the cutter

3.The length of the A position should be less than 2cm.

4.After the fixed installation of the probe and the cutter,the end tip of the probe needs to be lower than the cutter’s(Shown as left)

Xhorse Dolphin Key Cutting Machine Calibration Guide (7)

Open the cover,and install and tighten tracer probe and milling cutter.

Xhorse Dolphin Key Cutting Machine Calibration Guide (8) Xhorse Dolphin Key Cutting Machine Calibration Guide (9)



Install and tighten Clamp M1

Xhorse Dolphin Key Cutting Machine Calibration Guide (10)

Click “Start” button to continue

Xhorse Dolphin Key Cutting Machine Calibration Guide (11)

Height level adjustment in process….

Now,it will start calibrating automatically

Xhorse Dolphin Key Cutting Machine Calibration Guide (12)

Then it will show below massage:

Height level adjustment first step complete.

Please continue for next step.

Click “Continue” button

Xhorse Dolphin Key Cutting Machine Calibration Guide (13)

Afte the cutter couch the surface of the Clamp and stabilize,lower the tip of the Probe to the surface of the clamp

Fasten the probe

Xhorse Dolphin Key Cutting Machine Calibration Guide (14)

Now you need to loosen the tracer probe,and adjust it to touch clamp M1,then tighten it.

Click “Continue”

Xhorse Dolphin Key Cutting Machine Calibration Guide (15)

Height level adjustment in process…

Wait for process complete.

After height level adjustment,please setting cutter diameter again,click “OK”

Xhorse Dolphin Key Cutting Machine Calibration Guide (16)

Select current cutter diameter “2.5mm”,click”Setting cutter diameter”

Xhorse Dolphin Key Cutting Machine Calibration Guide (17)

Setting cutter diameter success,click “OK” to continue

Xhorse Dolphin Key Cutting Machine Calibration Guide (18)

Height level adjustment completed



Part 2:Cutting Calibration

Back to “Machine Parameter” to select “Cutting Calibration”

Xhorse Dolphin Key Cutting Machine Calibration Guide (19)

This function can cut a blank key,mainly for calibration

Before accessing this function,please confirm that the “Height Level Adjustment of Cutter” is completed.

Install and fasten Clamp M1

Clamp a blank key HON66 on the Clamp M1,then line the key up with the first location jaw,and fasten.

Xhorse Dolphin Key Cutting Machine Calibration Guide (20) Xhorse Dolphin Key Cutting Machine Calibration Guide (21) Xhorse Dolphin Key Cutting Machine Calibration Guide (22)



Click “Start” to continue

Xhorse Dolphin Key Cutting Machine Calibration Guide (23)

Cutting calibration in process…

Xhorse Dolphin Key Cutting Machine Calibration Guide (24) Xhorse Dolphin Key Cutting Machine Calibration Guide (25) Xhorse Dolphin Key Cutting Machine Calibration Guide (26)



Cutting calibration first step complete,please click “Continue”

Xhorse Dolphin Key Cutting Machine Calibration Guide (27)

Please use the brush to clean up the clamp cutting spot,the probe and the cutter.And make sure that there is no metal left over.

Then click “Continue”

Xhorse Dolphin Key Cutting Machine Calibration Guide (28)

Cutting calibration in process…

Xhorse Dolphin Key Cutting Machine Calibration Guide (29) Xhorse Dolphin Key Cutting Machine Calibration Guide (30)



Xhorse Dolphin Machine Cutting calibration complete

Xhorse Dolphin Key Cutting Machine Calibration Guide (31)



Part 3: Clamp Calibration M1 & M2

Return  “Machine Parameter”,then select “Clamp Calibration”

Xhorse Dolphin Key Cutting Machine Calibration Guide (32)

Select “M1 Clamp”

Xhorse Dolphin Key Cutting Machine Calibration Guide (33)

Tip:Before use this function,please make sure already done “height level adjustment”.Please insert new HON66 key blank and tighten the clamp,then click “Start” to continue

Xhorse Dolphin Key Cutting Machine Calibration Guide (34)

Calmp M1 calibration in process…

Xhorse Dolphin Key Cutting Machine Calibration Guide (35) Xhorse Dolphin Key Cutting Machine Calibration Guide (36)



M1 calibration ok

Xhorse Dolphin Key Cutting Machine Calibration Guide (37)

Select “M2 clamp”

Xhorse Dolphin Key Cutting Machine Calibration Guide (38)

Remove M1 Clamp,and install M2 clamp

Xhorse Dolphin Key Cutting Machine Calibration Guide (39)

Tip:Before use this function,please make sure already done “height level adjust”.Don’t insert key blank and please rotate M2 to side A(side A is upwards)

Xhorse Dolphin Key Cutting Machine Calibration Guide (40)

After side A calibration complete,you need to repeat the procedures to calibrate side B,side C and side D.

Side B

Xhorse Dolphin Key Cutting Machine Calibration Guide (41)

Side C

Xhorse Dolphin Key Cutting Machine Calibration Guide (42)

Side D

Xhorse Dolphin Key Cutting Machine Calibration Guide (43)

Done!
