MIRACLE A7 key cutting machine Y sensor error (solved)

Here is the solution of how to solve MIRACLE A7 key cutting machine “Y sensor error” when it starts…

Here is the solution of how to solve MIRACLE A7 key cutting machine “Y sensor error” when it starts.

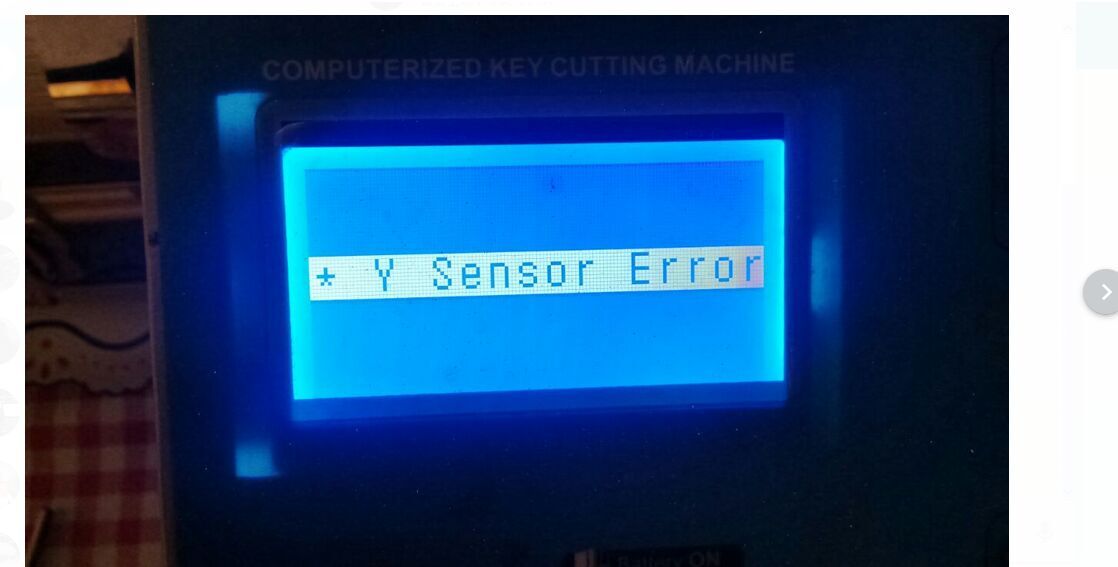

Error display:

miracle-a7-key-machine-y-sensor-error

solution by uobdii engineers:

A7 machine power off

Push the Y axis with great efforts, as much as you can

The copper pin is stuck in the track when the Y axis cannot be pushed anymore, so that the Y axis cannot go to the proper place



How to do Y- axis origin calibration:

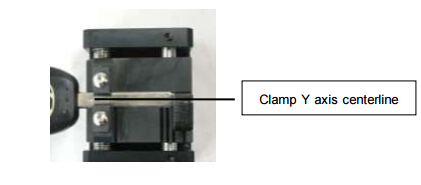

All keys are cut with origin to center of key in all “Miracle” key cutting machines. So the center of the key (the center of clamp (y-axis)) is set to the origin as seen in Fig below, and so precise set up of the center point, that is the center of Y-axis of the clamp is very important. If the midpoint value of Y-axis hasn’t been set up properly, key is cut being inclined to one side, which needs to be corrected by aligning the origin of Y-axis.



This step will not be needed in normal case because miracle-A7 calibrates automatically. The following explanation was given just for conceptual understanding on the calibration.

MIRACLE-A7-Y-sensor-user-manual (1)

Aligning Step by Step

MIRACLE-A7-Y-sensor-user-manual (2)

MIRACLE-A7

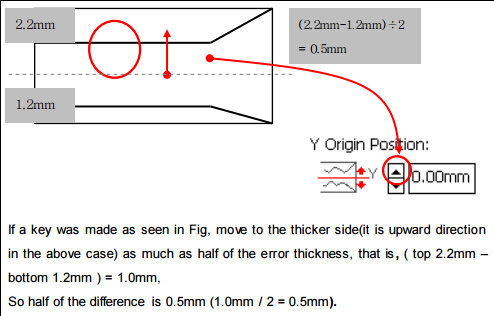

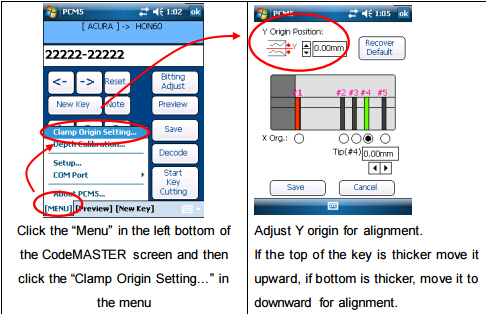

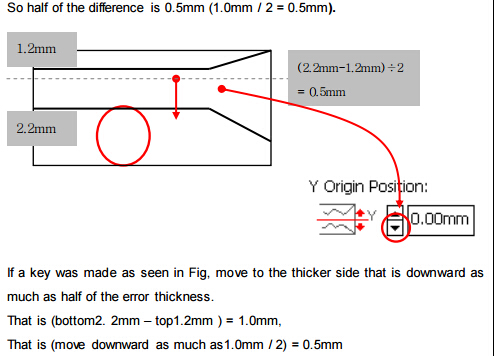

MIRACLE-A7-Y-sensor-user-manual (3) MIRACLE-A7-Y-sensor-user-manual (4) MIRACLE-A7-Y-sensor-user-manual (5) MIRACLE-A7-Y-sensor-user-manual (6)
