How to operate Xhorse IKeycutter CONDOR XC-MINI Key Cutting Machine

Hi everyone, how are you today ? Here we’d like to share with you :

Xhorse IKeycutter CONDOR XC-MINI Key Cutter Operating instructions

ikeycutter-condor-xc-mini-11-300x300

Please Kindly Attention:
Please initial device before use

1 Height Level Adjustment

ikeycutter-condor-mini-1-300x174

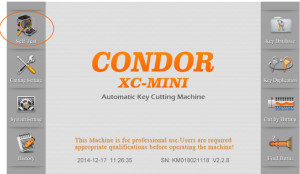

1)Enter the Main interface, Click on the Self Test

ikeycutter-condor-mini-2-300x174

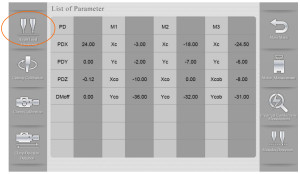

2)Click on Height Level Adjustment

ikeycutter-condor-mini-3-300x174

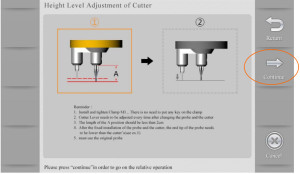

3)Follow the instructions on the screen, then click on the CONTINUE

ikeycutter-condor-mini-4-300x173

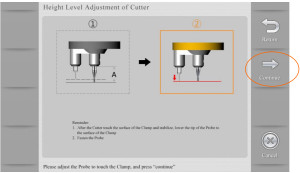

4)after the machine has stopped, follow the instructions on the screen till the tips of the
probe and the cutter are on the same horizontal level. Then click on CONTINUE. The
machine enters the Calibration Process

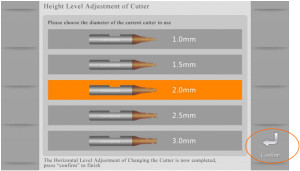

ikeycutter-condor-mini-5-300x171

5) After the machine has stopped, select the diameter of the current cutter in use, then
click on Confirm to finish

2 Clamp Calibration

ikeycutter-condor-mini-6-300x172

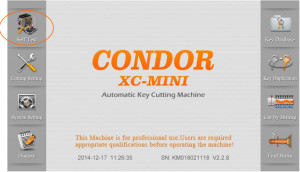

1)Enter the Main interface,Click on Self Test

ikeycutter-condor-mini-7-300x172

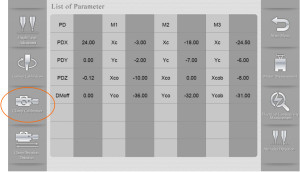

2)Enter Self Test interface, Click on Clamp Calibration

ikeycutter-condor-mini-8-300x173

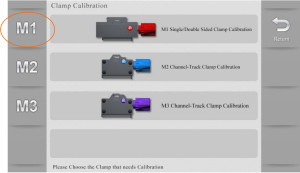

3)Enter Clamp Calibration, Click on M1 button

ikeycutter-condor-mini-9-300x170

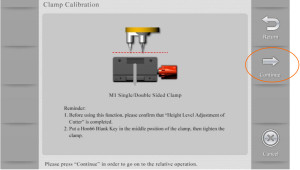

4)Follow the steps on the screen, then click on CONTINUE
5)Same methods to M2,M3 Clamp Calibration,do all steps fellow the screen

3 Cutting Calibration

ikeycutter-condor-mini-1-300x174

1)Enter the Main interface, Click on Self Test

ikeycutter-condor-mini-11-300x173

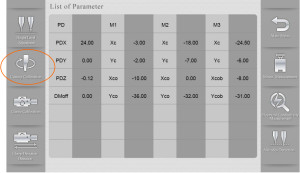

2)Enter Self Test interface, Click on Cutting Calibration

ikeycutter-condor-mini-12-300x172

3)Follow the steps on the screen, then click on CONTINUE, The Cutting Calibration in
Process

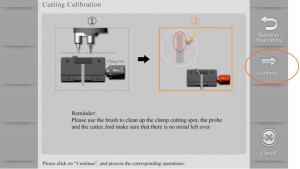

ikeycutter-condor-mini-13-300x169

4)Please use the brush to clean up the clamp cutting spot, the probe and the cutter. then
click on CONTINUE, Cutter Calibration Complete
