How to install CONDOR XC-MINI cutter and clamp

It is about how to install CONDOR XC-MINI Cutter and clamp. Hopes it helps.

Note: this post is for CONDOR XC-MINI auto key cutting machine from www.uobdii.com

ikeycutter-condor-xc-mini-master-series-automatic-key-cutting-machine-4

Step 1. Install the cutter

  1. Put the cutter into the cutter hole and to the top limit position, ensure the section of cutter and clamp lateral parallel
  2. Turn the CUTTER LOCK SCREWclockwise till the cutter is tightened.

how to install condor xc-mini cutter and clamp -1

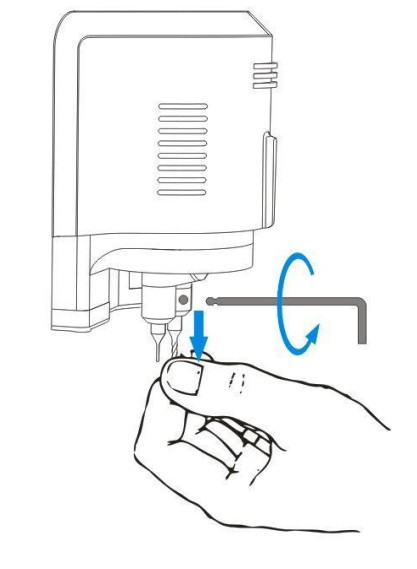

Step 2.Removethe Cutter

  1. Hold the cutter lightly, Turn the CUTTER LOCK SCREWcounterclockwise
  2. After the cutter loosen, remove it.

how to install condor xc-mini cutter and clamp -2

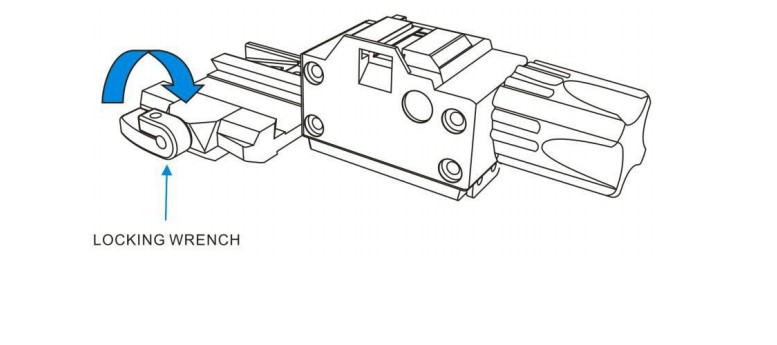

Step 3. Install the Clamp

  1. Turn the LOCKING WRENCH counterclockwise on the left side to loosen.
  2. Choose the clamp according to the key type, Push the clamp from the right side of the LAMP CARRIAGE to limit position
  3. Turn the LOCKING WRENCH clockwise to tighten the clamp.

how to install condor xc-mini cutter and clamp -3
