How-to guide: V8/X6 Key Cutting Machine cut Ford F021 key

This blog is a how-to guide for you to use Automatic V8/X6 Key Cutting Machine cut Ford F021 key. Now V8/X6 Key Cutting Machine best price only $1159 at UOBD2!



All things you need:

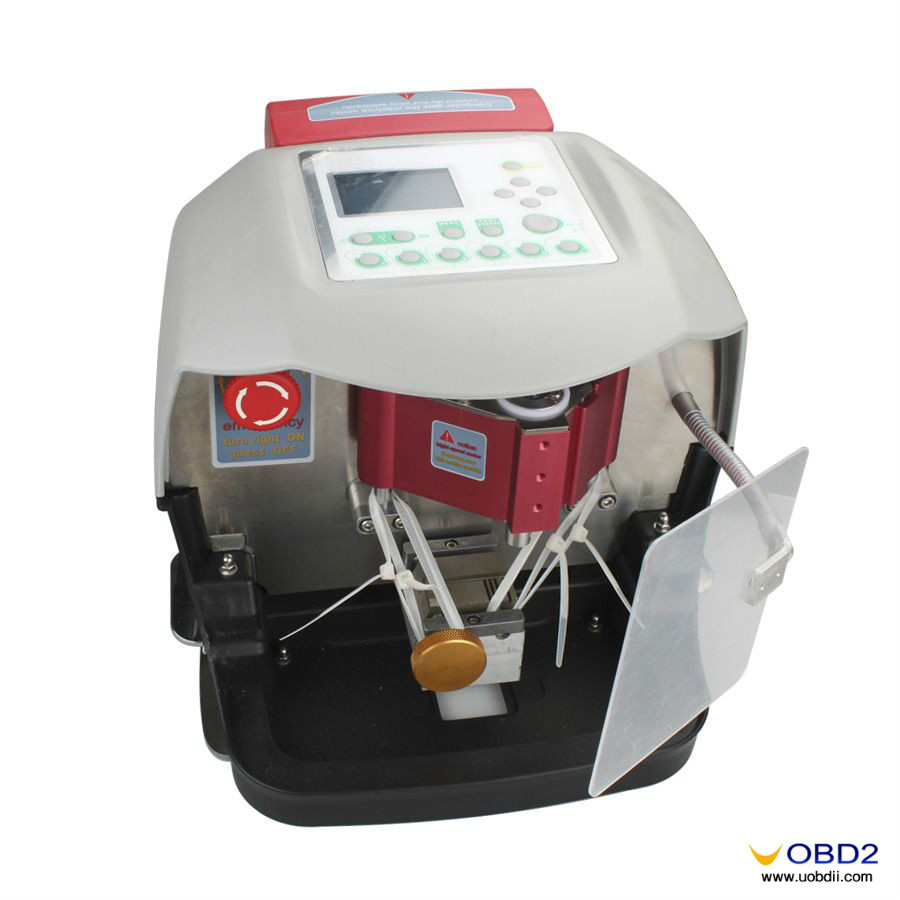

  1. V8/X6 Key Cutting Machine

automatic-v8-key-cutting-machine-1

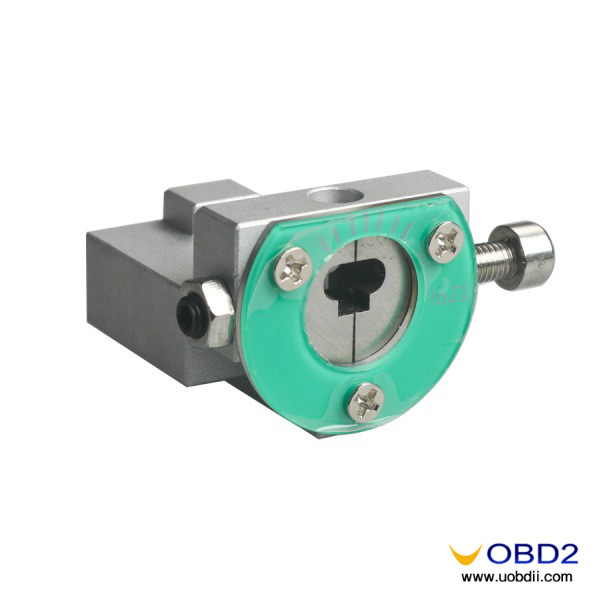

  1. Ford Mondeo F021 Fixture/Clamp

cnc-key-cutting-machine-fixture-for-ford-mondeo-2

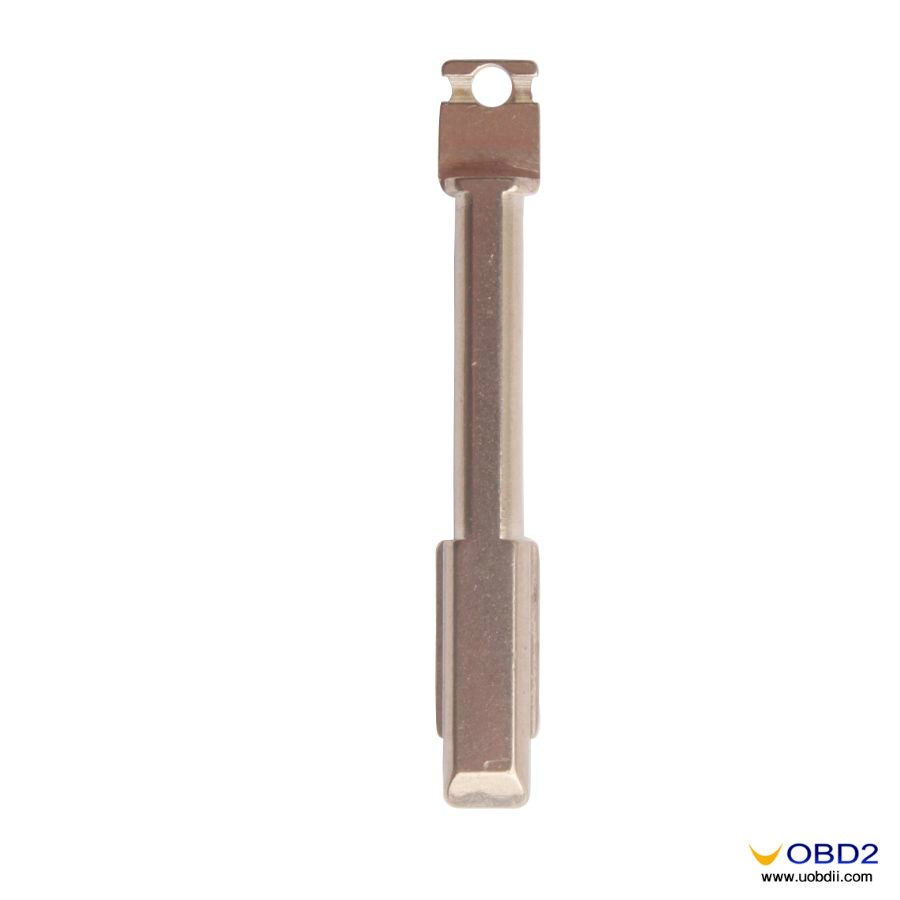

  1. Ford F021 key blank blade

ford-remote-key-blade-3

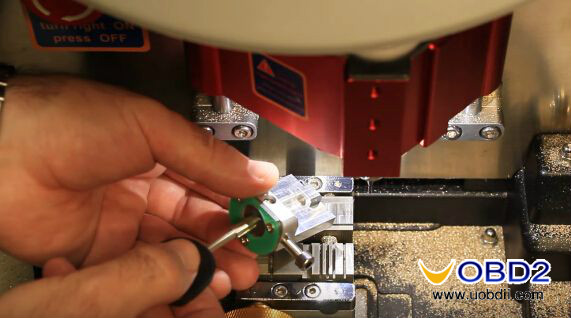

Step1. Insert and fix Ford F021 key blade in Ford Mondeo F021 Fixture.

v8-x6-key-cutting-machine-cut-ford-f021-key-4

Then use block to make this fixture fix the machine’s clamp.

v8-x6-key-cutting-machine-cut-ford-f021-key-5

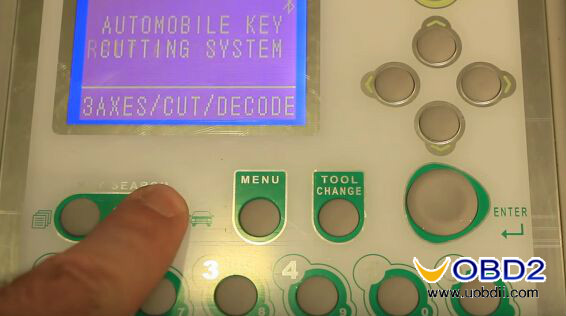

Step2. Start X6 Key Cutting Machine and make sure the cutter is equipped and ready to cut. Press “Key Search” button.

v8-x6-key-cutting-machine-cut-ford-f021-key-6

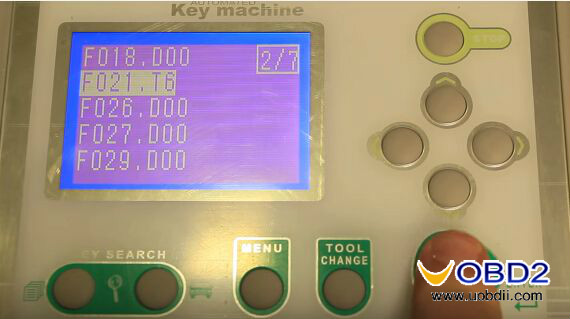

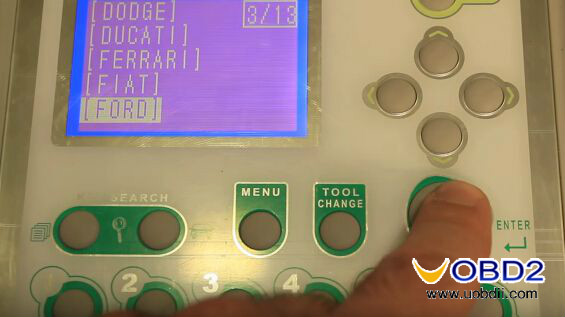

Choose “SILCA”→ “Ford”→ “F021.T6”.

v8-x6-key-cutting-machine-cut-ford-f021-key-7 v8-x6-key-cutting-machine-cut-ford-f021-key-8

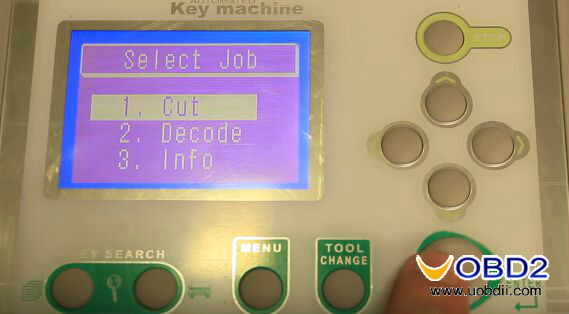

Step3. Select job: choose “Cut”.

v8-x6-key-cutting-machine-cut-ford-f021-key-9

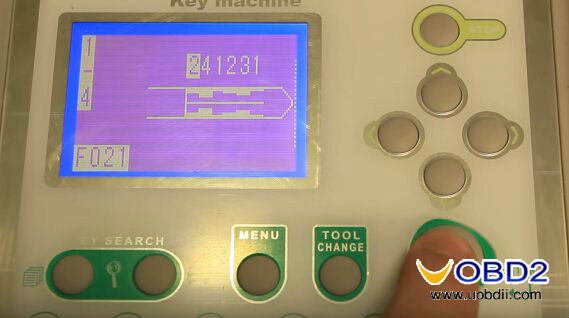

Input key cutting code.

v8-x6-key-cutting-machine-cut-ford-f021-key-10

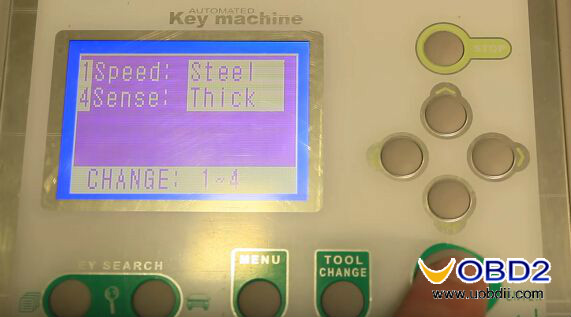

Set “Speed: Steel Sense: Thick”.

v8-x6-key-cutting-machine-cut-ford-f021-key-11

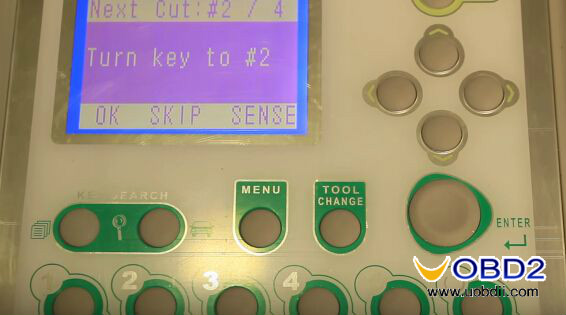

Step4. Now V8 Key Cutting Machine will start cutting. Following the tips turn the key blank to position “2”, then press “Enter” button to cut. Next is turn to position “3”→ position “4”→ position “2”→ position “3”→ position “4”.

v8-x6-key-cutting-machine-cut-ford-f021-key-12

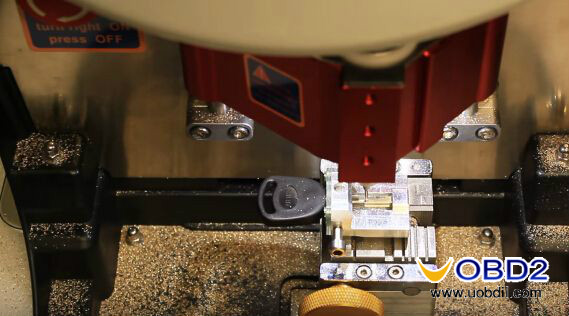

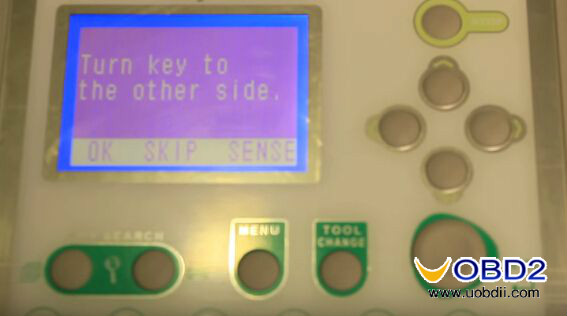

Step5. Turn Ford F021 key blade to the other side and continue to cut according to the order: turn the key blank to position “2”→ position “3”→ position “4”→ position “2”→ position “3”→ position “4”.

v8-x6-key-cutting-machine-cut-ford-f021-key-13 v8-x6-key-cutting-machine-cut-ford-f021-key-14

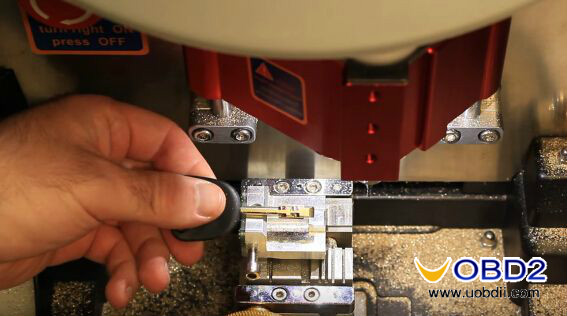

After several minutes cutting, Automatic V8/X6 Key Cutting Machine successfully cut a new Ford F021 key!

v8-x6-key-cutting-machine-cut-ford-f021-key-15
