How Condor XC-MINI key cutting machine cut Ford F038R blade?

This blog is about how use Condor XC-MINI key cutting machine to cut a new Ford F038R blade. The F038R key can be used on Ford Mustang, Mercury, Edge, Kuga, Lincoln and F150.

Condor-XC-MINI-cut-Ford-F038R-key-blade-1

How to cut a F038R key blade using Condor XC-MINI?

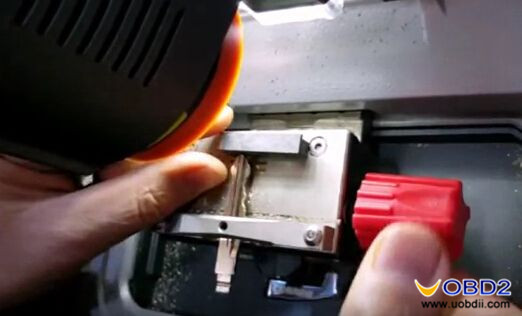

Use block to insert the original blade into M1 clamp at proper position. Tighten the clamp.

Condor-XC-MINI-cut-Ford-F038R-key-blade-2

Choose “Cut by Bitting” on main menu. Enter “F038R” and click the arrow button to confirm.

Condor-XC-MINI-cut-Ford-F038R-key-blade-3

Click “Key Decode” and arrow button to confirm. Now Condor XC-MINI Master will start decode the key.

Condor-XC-MINI-cut-Ford-F038R-key-blade-4

After that remove the original blade and insert the new one to tighten up.

Condor-XC-MINI-cut-Ford-F038R-key-blade-5

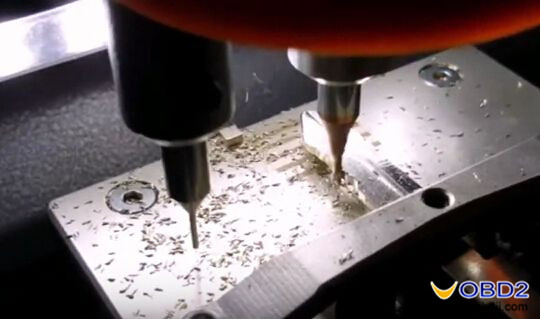

Click “Cut” to start key cutting.

Condor-XC-MINI-cut-Ford-F038R-key-blade-6

Wait a moment and key cutting done!

Condor-XC-MINI-cut-Ford-F038R-key-blade-7

In this way Condor XC-MINI successfully cut a F038R key for Ford vehicles!
