How to Calibrate Tubular Key Clamp for SEC-E9 Key Cutting Machine

This instruction show you guide on how to calibrate tubular key clamp for SEC-E9 key cutting machine.And i wrote SEC-E9 dimple key clamp calibration before,check it here if you need: How to Calibrate SEC-E9 Dimple Key Clamp



SEC-E9 Tubular Key Clamp Calibration:

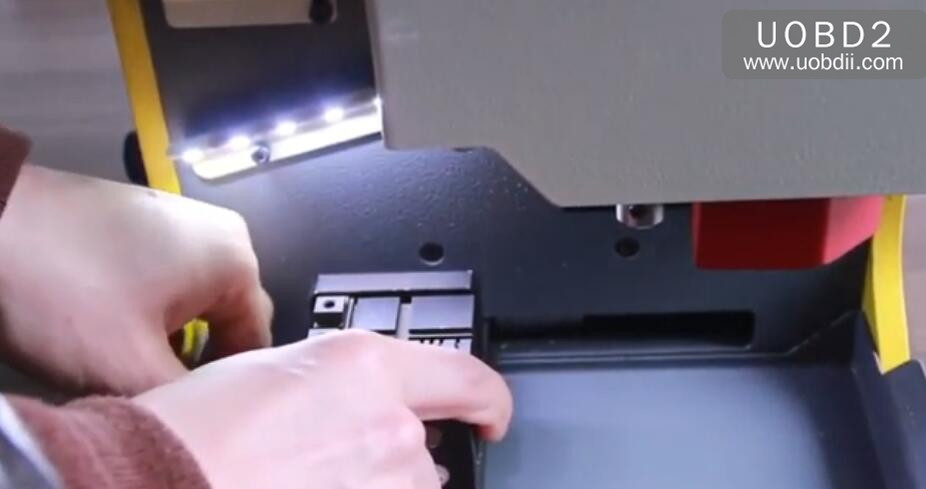

Install automobile key clamp on SEC-E9

Calibrate Tubular Key Clamp for SEC-E9 (1)

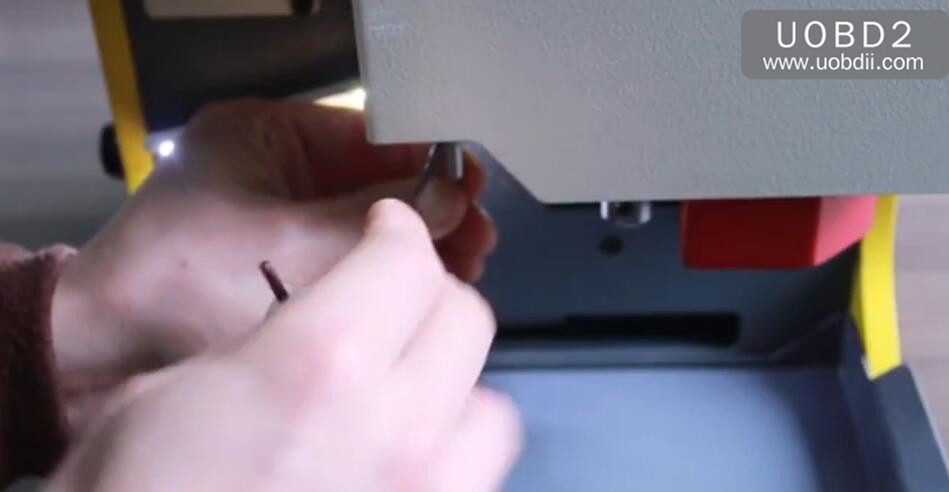

Insert two decoders into the machine

Calibrate Tubular Key Clamp for SEC-E9 (2) Calibrate Tubular Key Clamp for SEC-E9 (3)

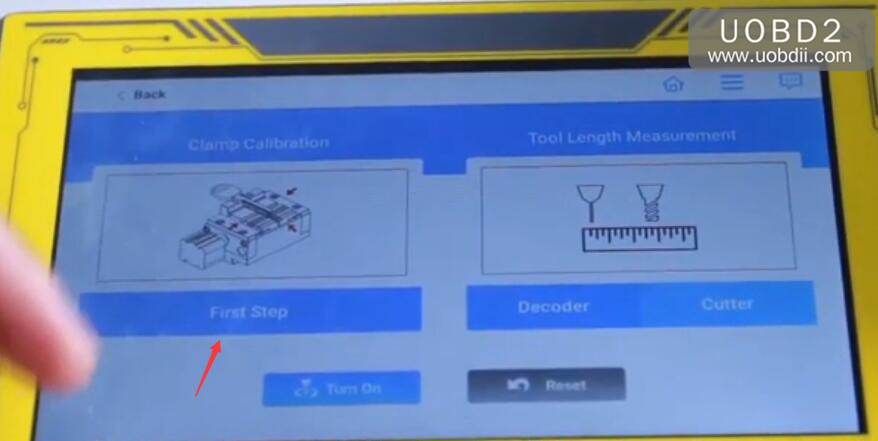

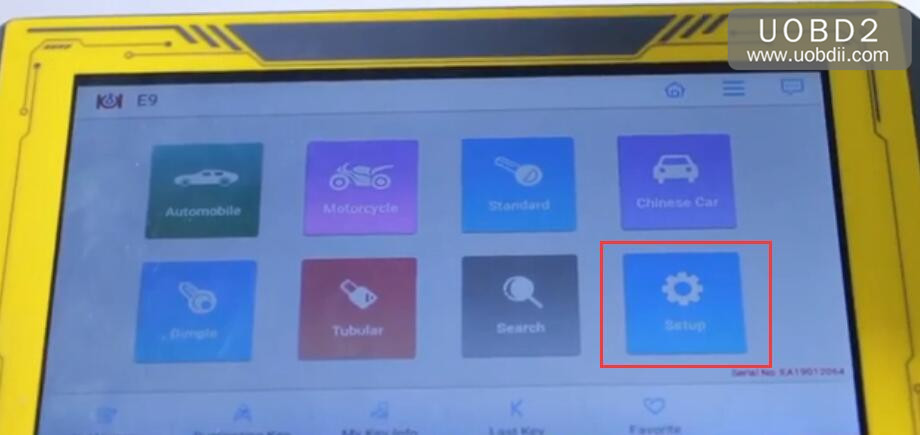

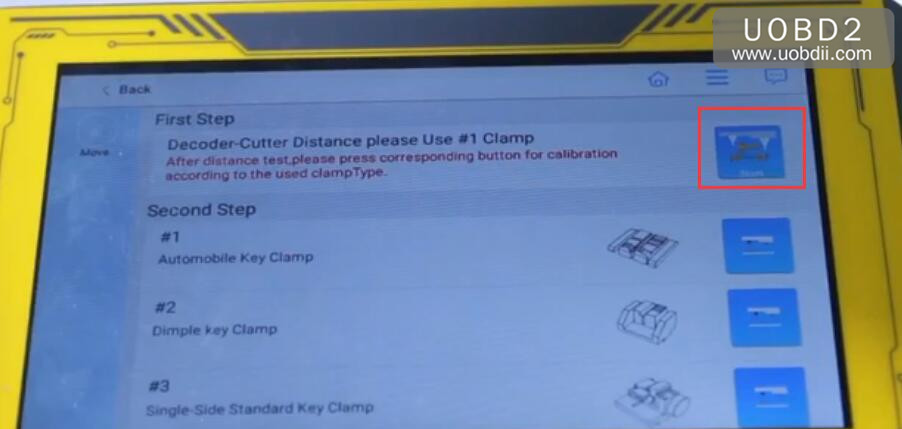

Press “Setup” and “First step” button to enter the “clamp calibration” interface

Calibrate Tubular Key Clamp for SEC-E9 (4) Calibrate Tubular Key Clamp for SEC-E9 (5) Calibrate Tubular Key Clamp for SEC-E9 (6)

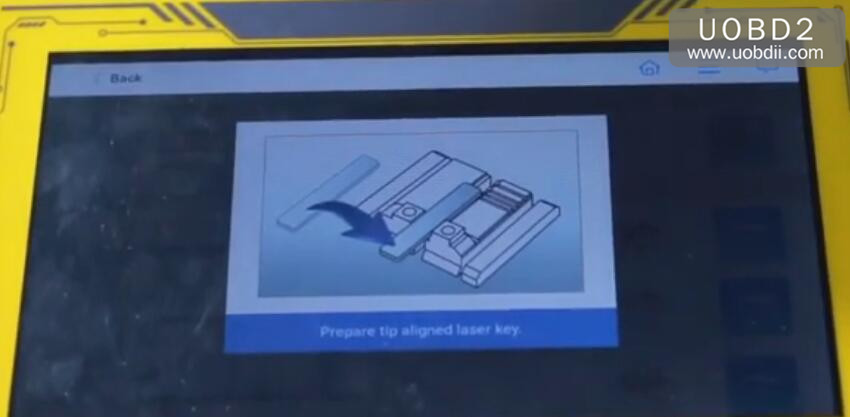

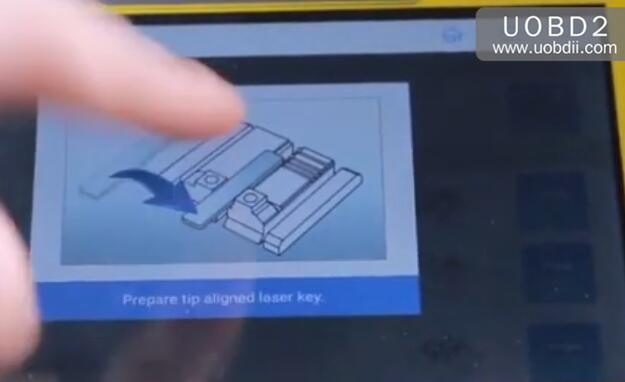

Prepare tip aligned laser key

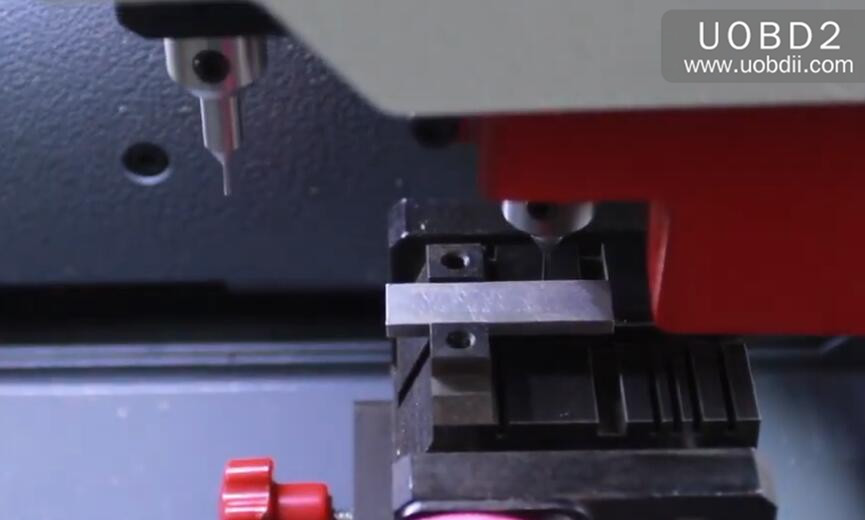

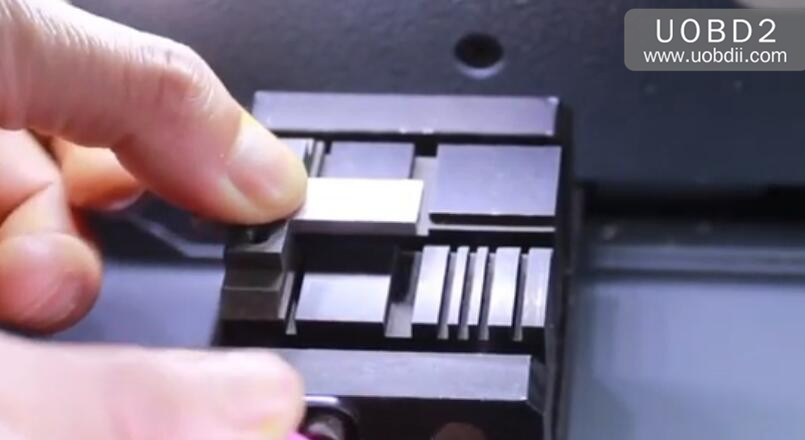

Fix calibration block on the top level of clamp and pay attention to the postion

Calibrate Tubular Key Clamp for SEC-E9 (7)

Calibrate Tubular Key Clamp for SEC-E9 (8)



Click picture to continue

Calibrate Tubular Key Clamp for SEC-E9 (9)

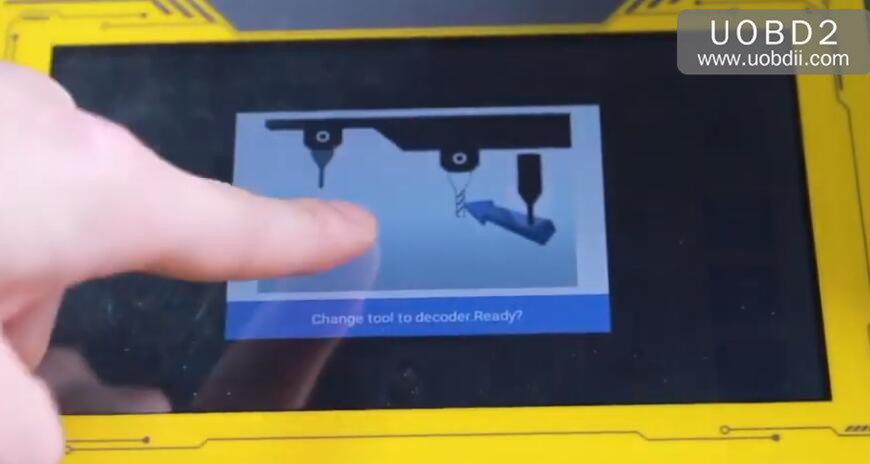

Now SEC-E9 Key Cutting Machine will start to calibrate

Calibrate Tubular Key Clamp for SEC-E9 (10)

Then click the picture to continue

Calibrate Tubular Key Clamp for SEC-E9 (11) Calibrate Tubular Key Clamp for SEC-E9 (12)



Take out automobile key clamp

Calibrate Tubular Key Clamp for SEC-E9 (13)

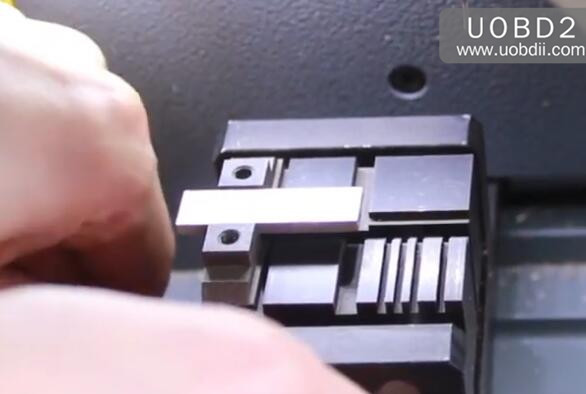

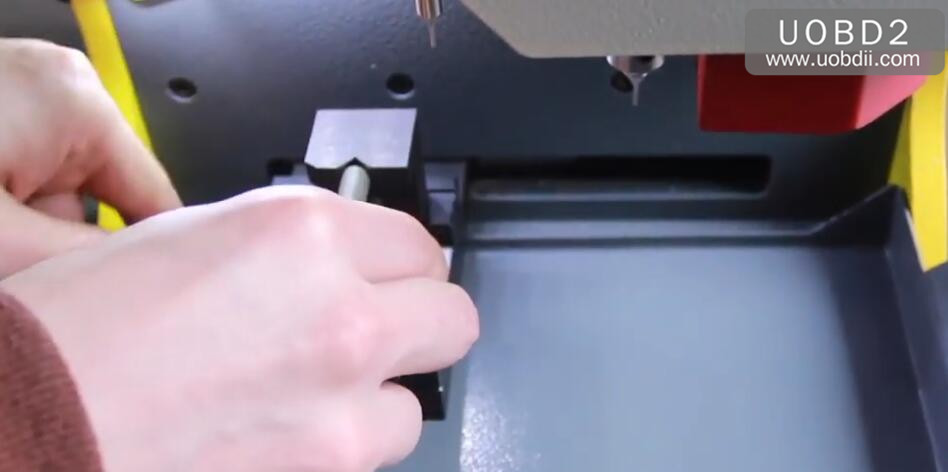

Install tubular key clamp

Calibrate Tubular Key Clamp for SEC-E9 (14)

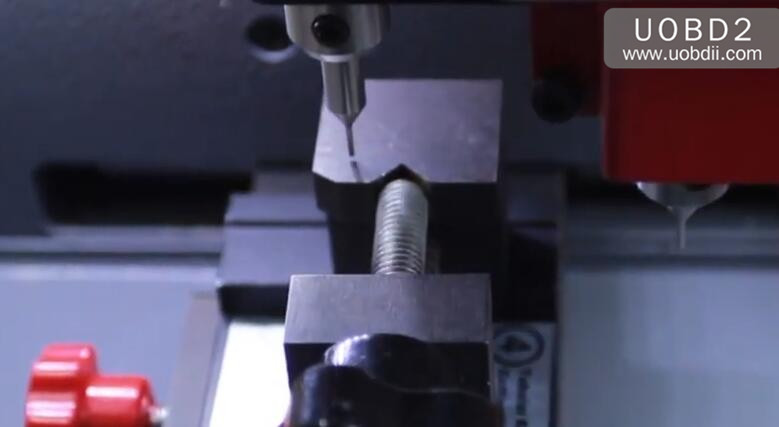

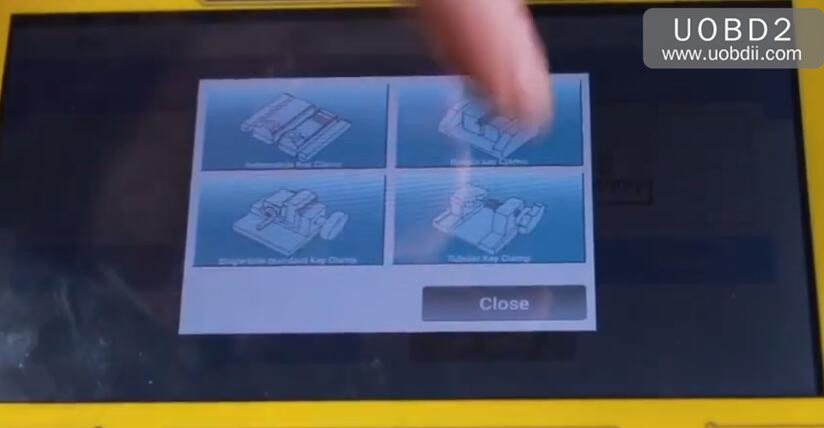

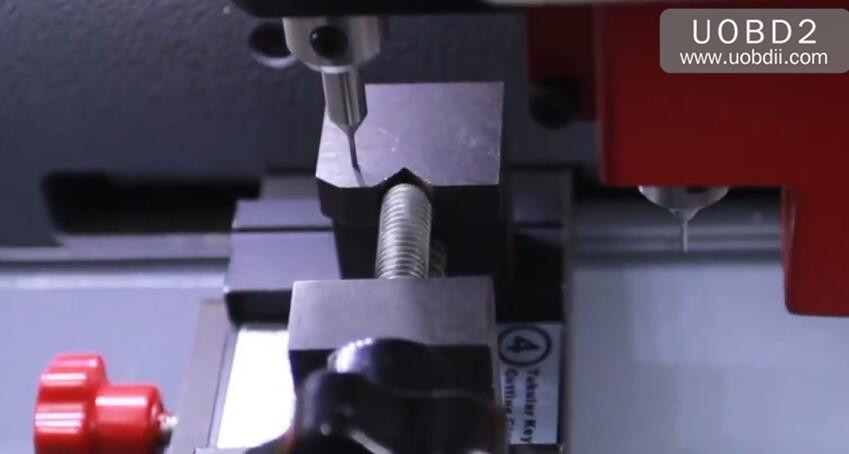

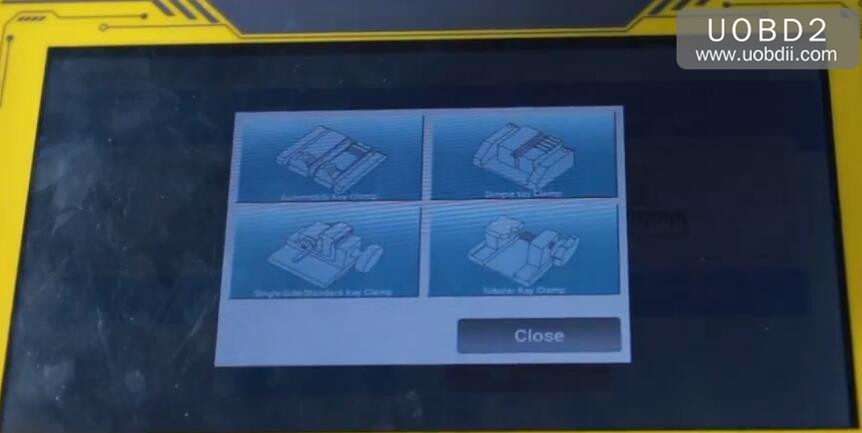

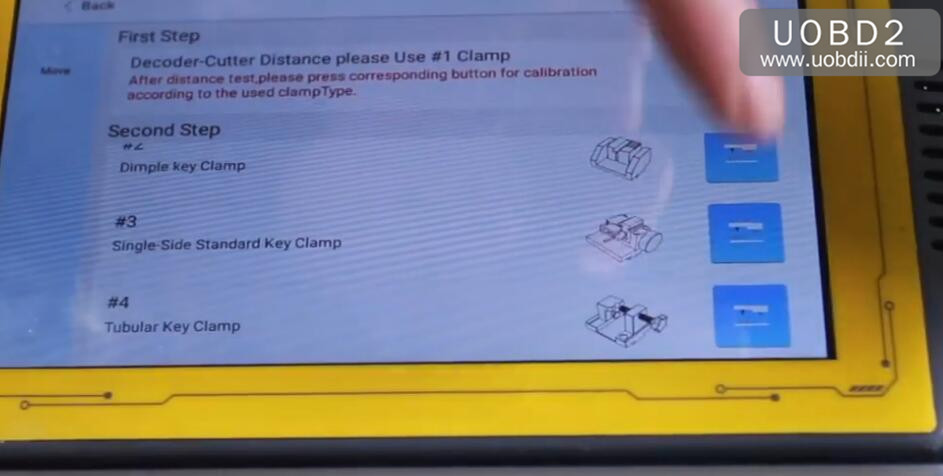

Press “Tubular key clamp”

Calibrate Tubular Key Clamp for SEC-E9 (15) Calibrate Tubular Key Clamp for SEC-E9 (16)

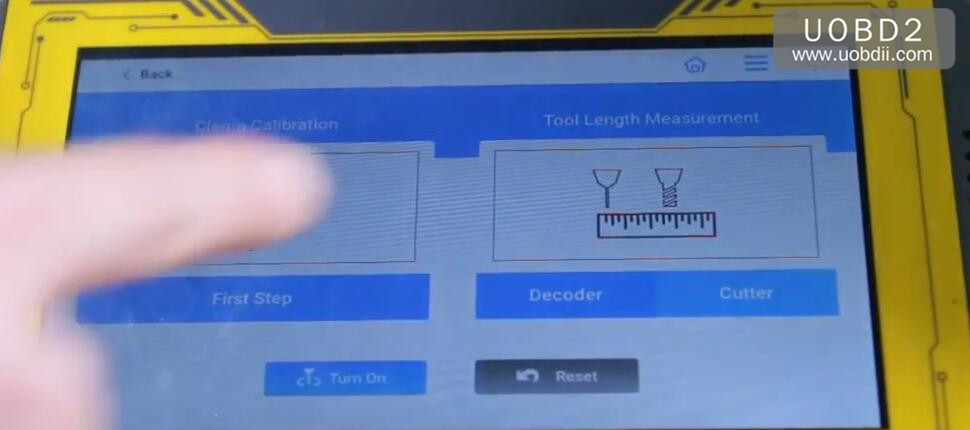

Back to press “Decoder” button and choose “Turbular key Clamp” to calibrate the decoder length

Calibrate Tubular Key Clamp for SEC-E9 (17) Calibrate Tubular Key Clamp for SEC-E9 (18)

Calibrate Tubular Key Clamp for SEC-E9 (19)

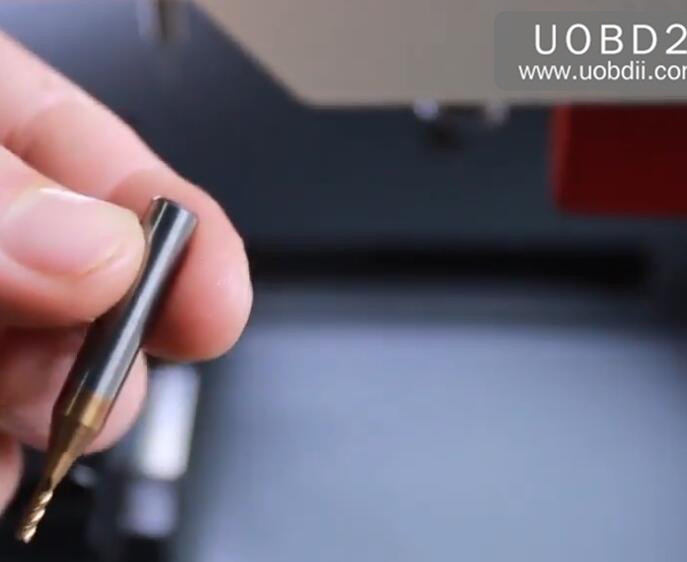

Remove the right decoder and insert a cutter

Calibrate Tubular Key Clamp for SEC-E9 (20) Calibrate Tubular Key Clamp for SEC-E9 (21) Calibrate Tubular Key Clamp for SEC-E9 (22)

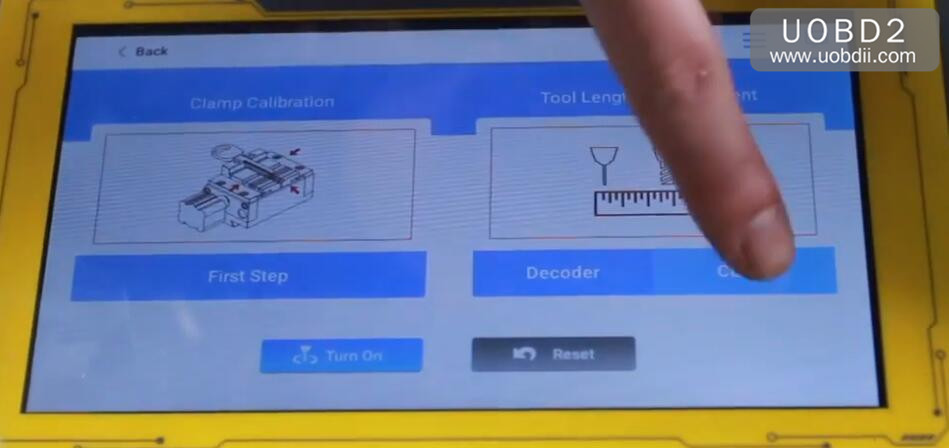

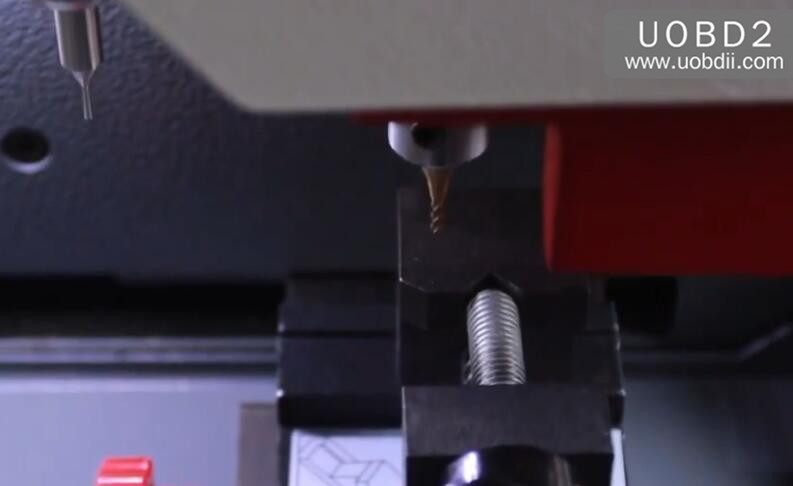

Pres “Cutter” button and choose “Tubular key clamp” to calibrate the cutter length

Calibrate Tubular Key Clamp for SEC-E9 (23) Calibrate Tubular Key Clamp for SEC-E9 (24) Calibrate Tubular Key Clamp for SEC-E9 (25)



Calibrate tubular key clamp done!
