Start with the difference between Xhorse universal remote wired style and wireless style, then VVDI key tool remote English version buying and using guide, end with the optional Xhorse universal remotes.
- Xhorse universal remote wired styleVS wireless style
Generally speaking, Xhorse universal remote(wireless and wire style) support generation or cloning by VVDI KET TOOL and VVDI2
1.Wireless remote support generation or cloning directly without cables, no need to disassemble remote cover.
2.The PCB of wireless style is different from the wire style, the wire remote style PCB with socket for cable connection programming remote.

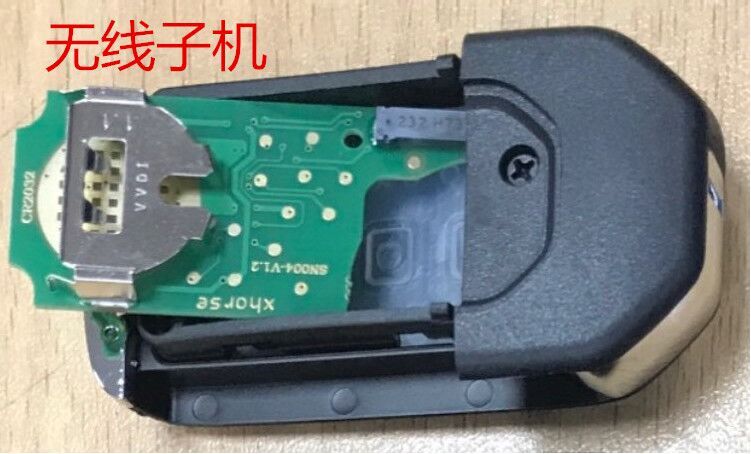

Attach Xhorse universal remote wireless style PCB

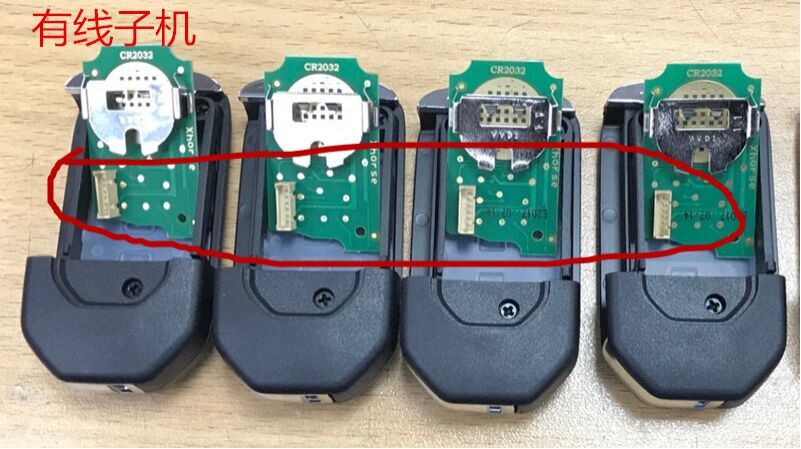

Attach Xhorse universal remote wired style PCB
- Xhorse remote English version buying and using guide
1).Please update VVDI key tool to latest firmware version 2.0.6 first [update software version 2.3.9](all different version released except India version)
2). can only be recognize when you generate remote.
NA /EU version key tool will show ” Firmware is too low” when you try code China remote.
3). PCB, cover …exactly this same
NA /EU version is pack into yellow envelope, not in transparent box
4). All NA version remotes can use for all overseas device(except
India(in)/Malaysia(ma)/China(ch) version),such as Europe(eu)/NorthAmerican(na) they can use same version remotes.
- optional Xhorse universal remotes
| Item No | Xhorse VVDI key tool remote pictures | Xhorse VVDI remote key name | Color | Package | Price (Free shipping) |
| SA1669-1 |  |
Volkswagen DS Style Universal Remote 3 Button | Black | 5pcs / lot | $39.99 |
| SA1674-1 |  |
XHORSE Toyota Universal Remote 3 Button | Black | 5pcs / lot | $49.99 |
| SA1682-1 |  |
Toyota Style Wireless Universal Remote 3 Button | Black | 5pcs / lot | $39.99 |
| SA1499-1 |  |
Volkswagen B5 style Remote 3 Button | Black,red, blue, green, yellow | 5pcs / lot | $34.99 |
| SA1500-1 |  |
A6L Q7 Style Universal Remote Key 3 Button | Black | 5pcs / lot | $39.99 |
| SA1670-1 |  |
DS Style Wireless Universal Remote 3 Button | Black | 5pcs / lot | $49.99 |
| DS Type Wireless Universal Remote Key 3 Buttons | Black | Individually Packaged | $12.99 | ||
| SA1671-1 |  |
Hyundai Style Remote 3 Button | Black | 5pcs / lot | $54.99 |
FYI. uobdii.com is available with both NA version VVDI KEY TOOL and EU version VVDI KEY TOOL.
