How to use SEC-E9 to cut HON66 key by search key blank?

Here comes the step-by-step guide on How to use SEC-E9 Key Cutting Machine to cut HON66 key by search key blank.

Procedure:

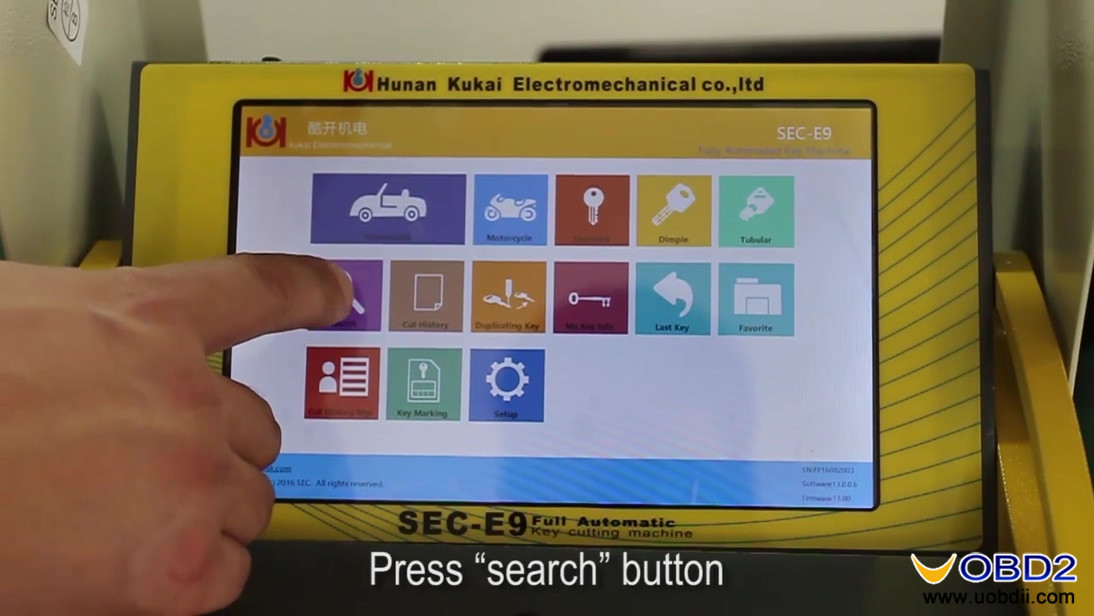

Press “Search button”

sec-e9-cut-hon66-key-01

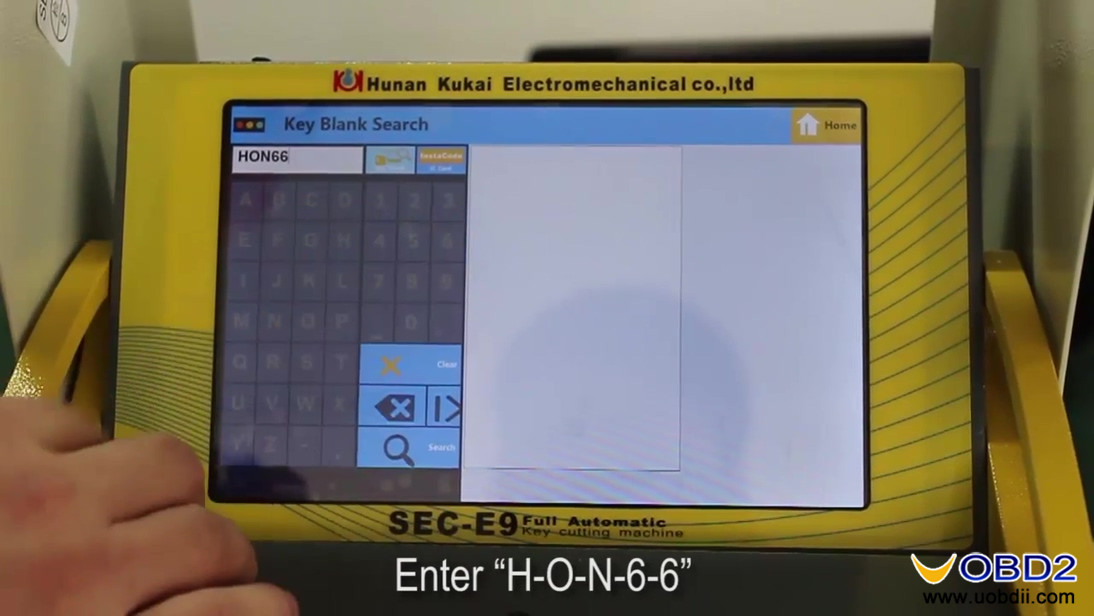

Enter “HON66”, press “Search” button.

sec-e9-cut-hon66-key-02

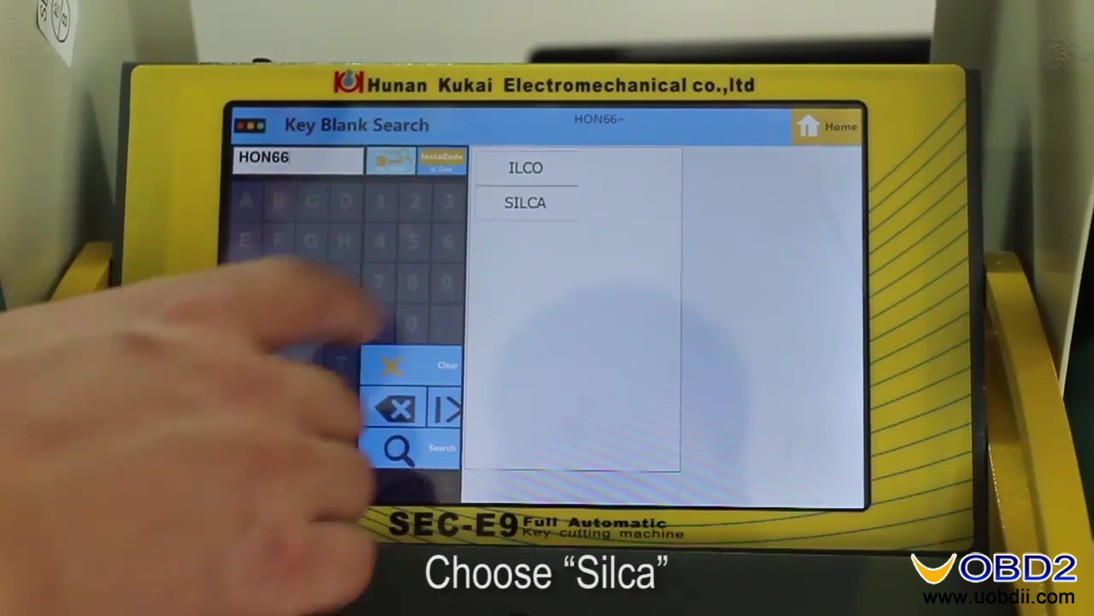

Choose “Silca”

sec-e9-cut-hon66-key-03

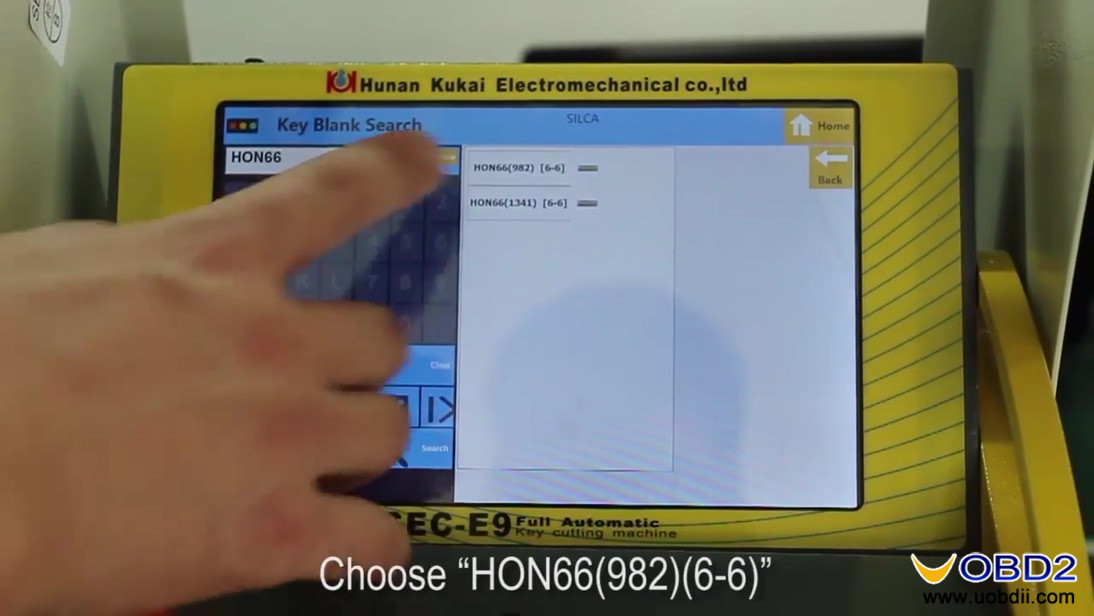

Choose “HON66(982)(6-6)

sec-e9-cut-hon66-key-04

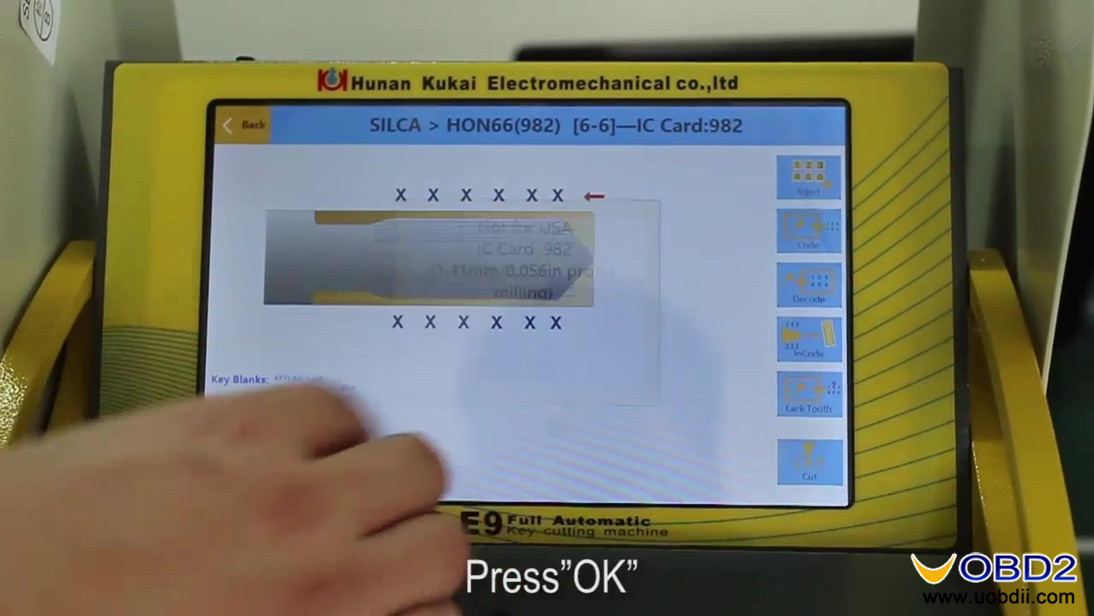

press “OK”

sec-e9-cut-hon66-key-05

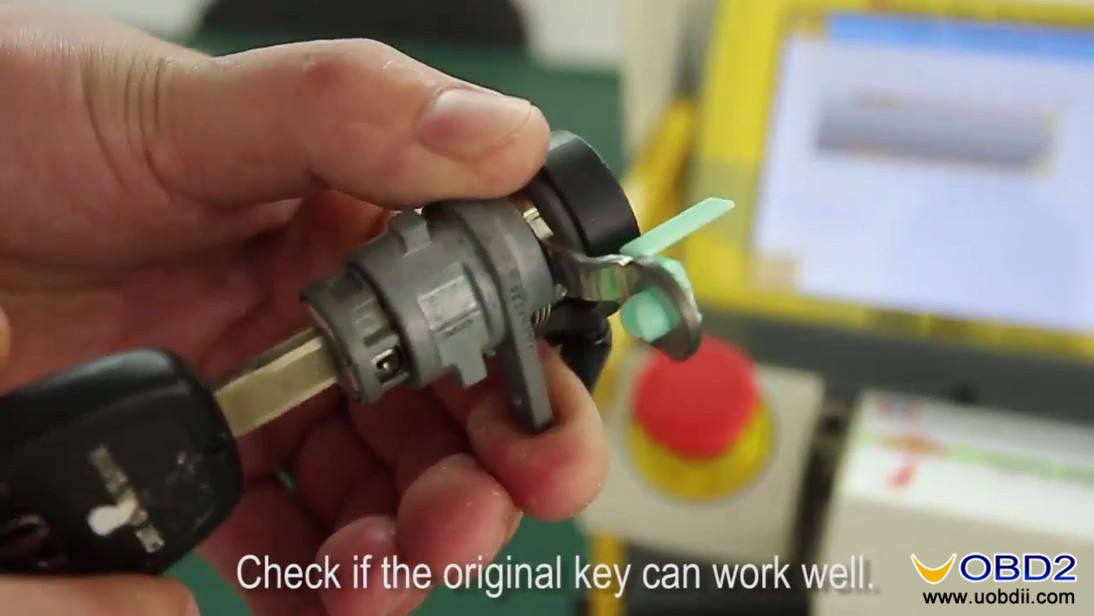

Check if the original key can work well.

sec-e9-cut-hon66-key-06

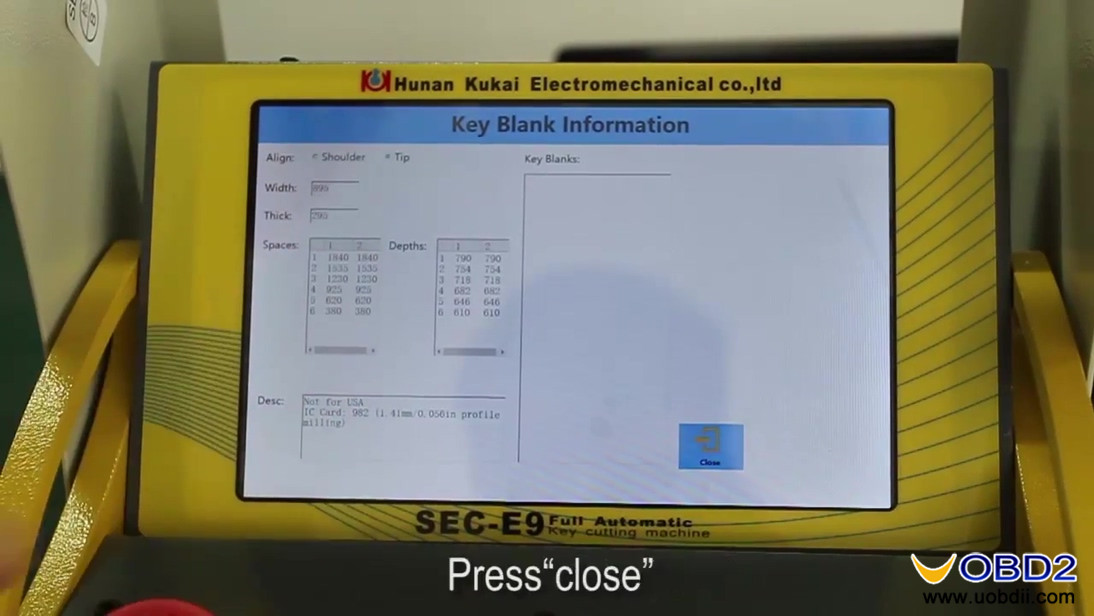

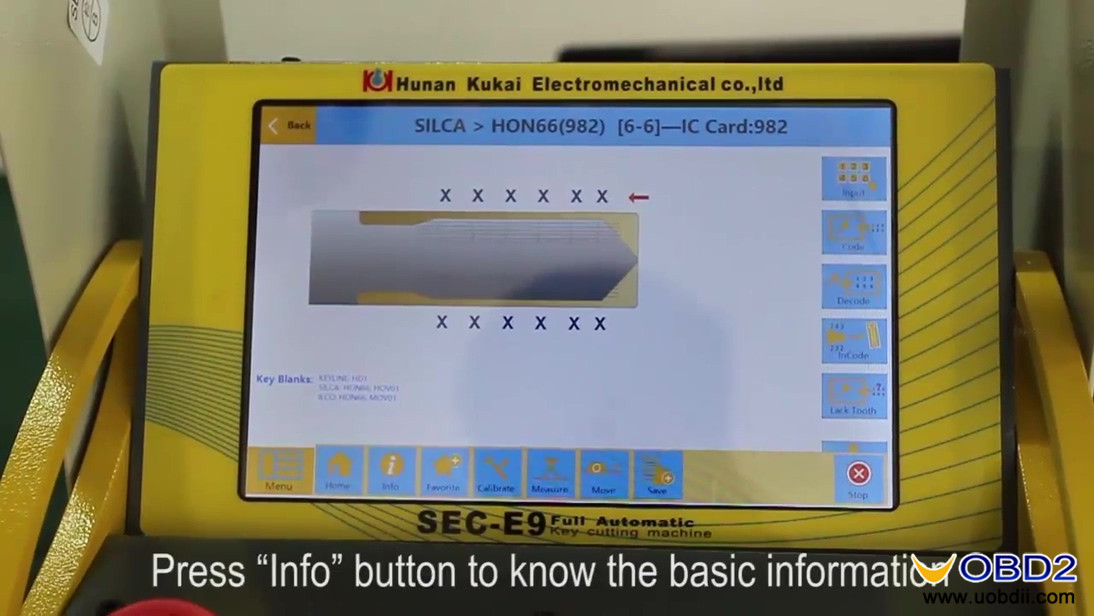

Press “Menu” button, then “Info” button to know the basic information, you see this key is guided by “Tip”, press close.

sec-e9-cut-hon66-key-07 sec-e9-cut-hon66-key-08

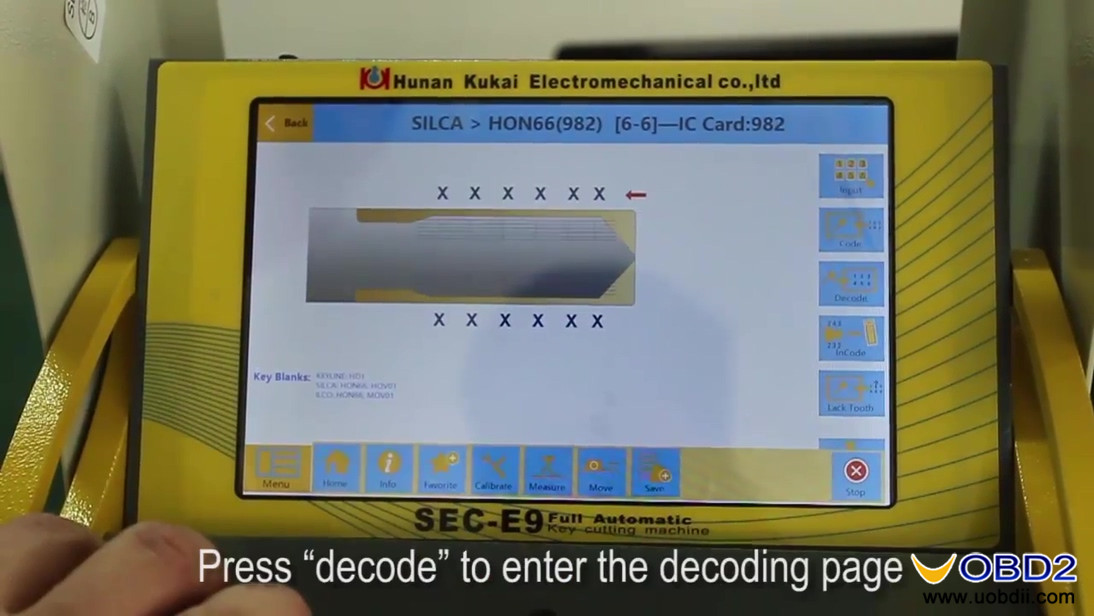

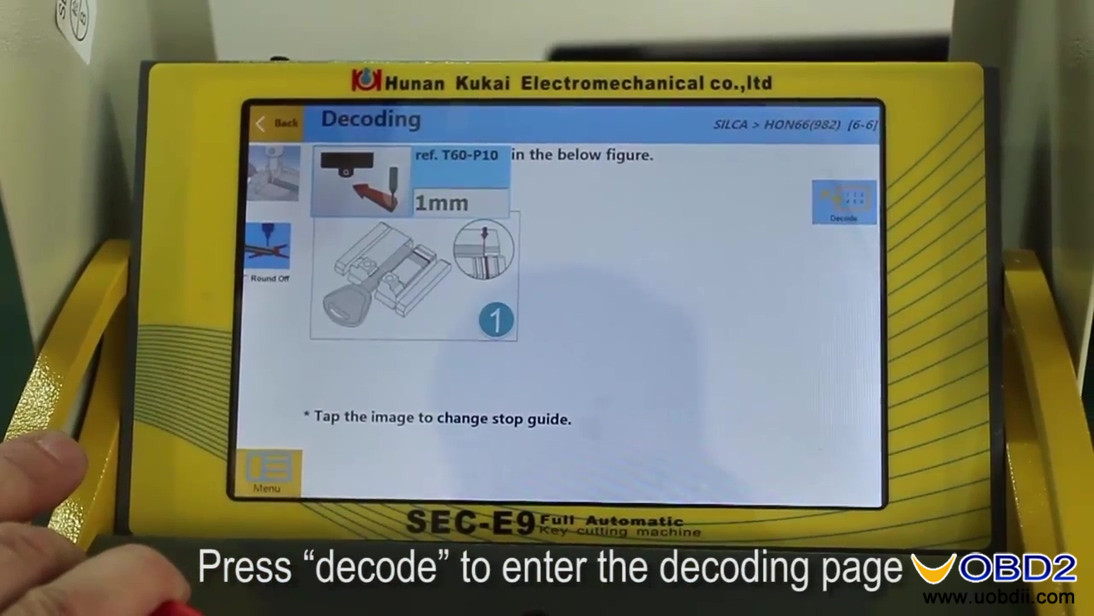

Press “Decode”

sec-e9-cut-hon66-key-09 sec-e9-cut-hon66-key-10

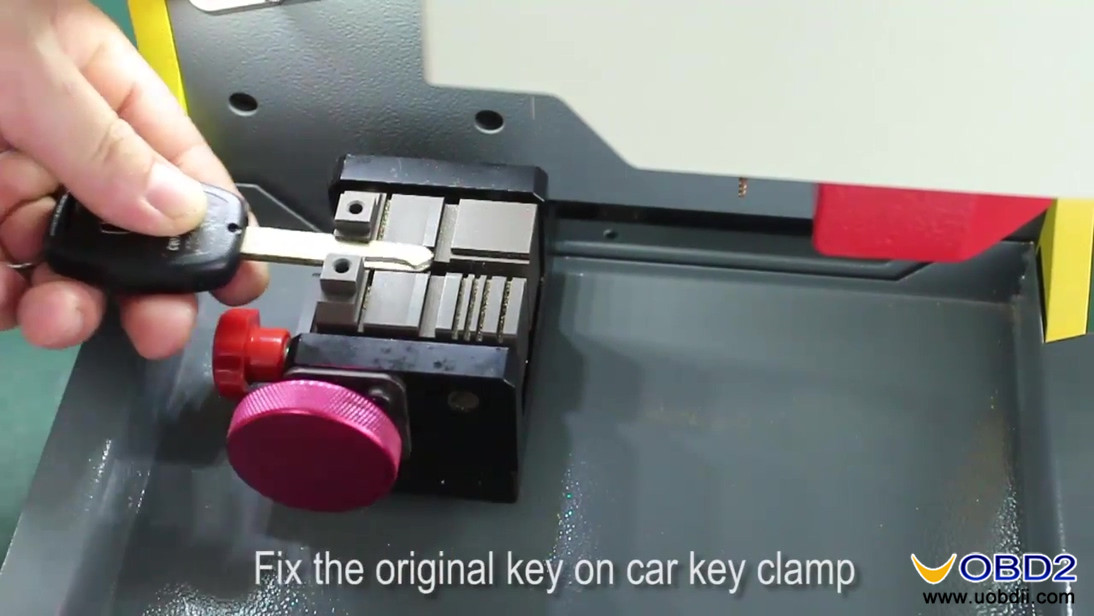

Fix the original key on the car key clamp.

sec-e9-cut-hon66-key-11

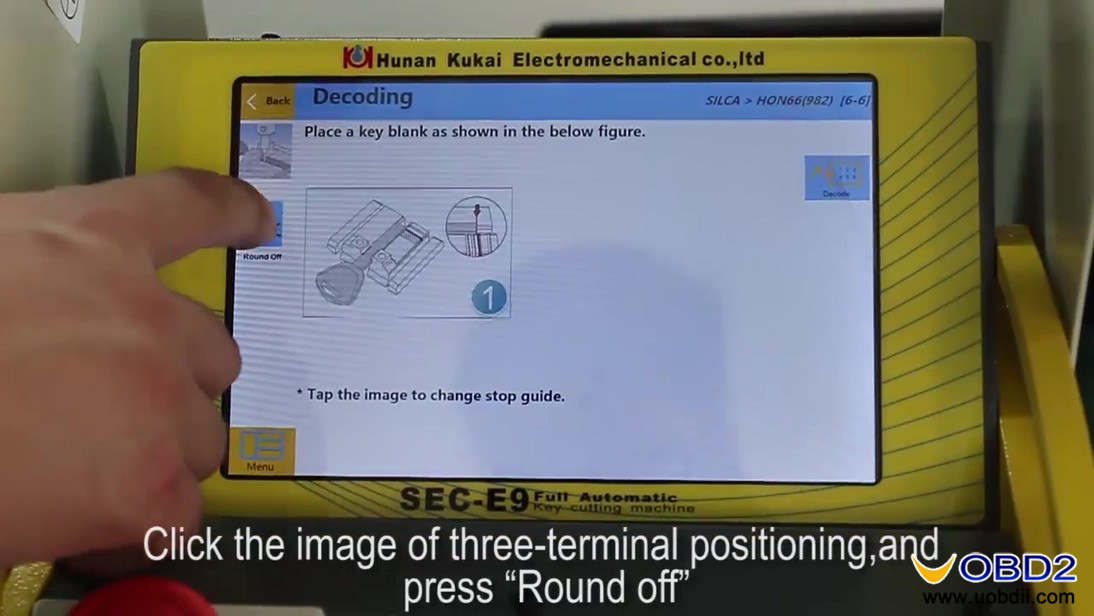

Click the image of three-terminal positioning, and press “Round off”. Note: the key should be fixed level.

sec-e9-cut-hon66-key-12 sec-e9-cut-hon66-key-13

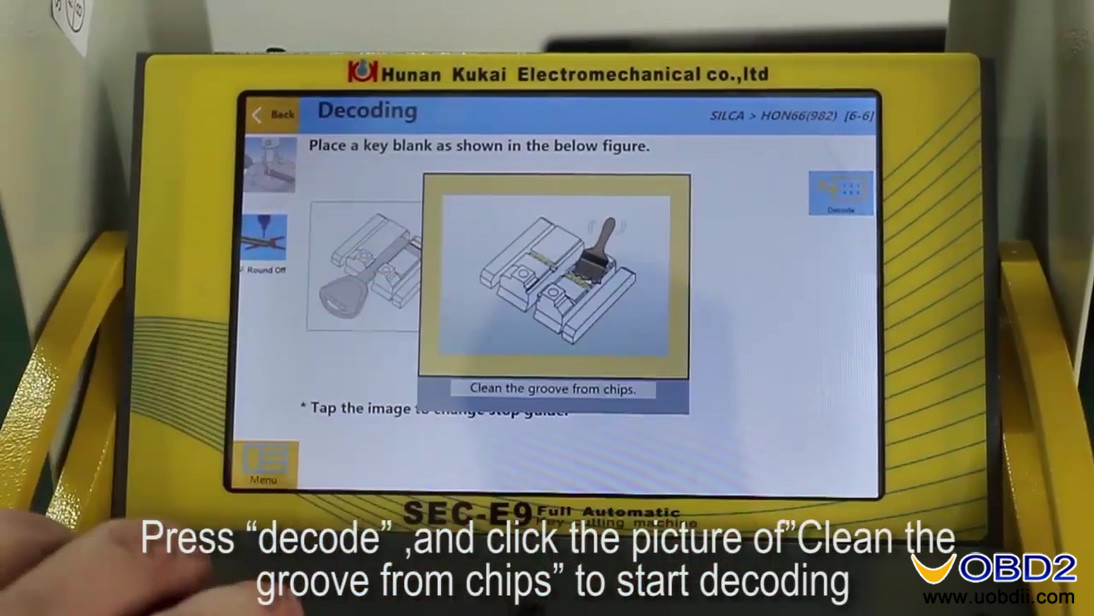

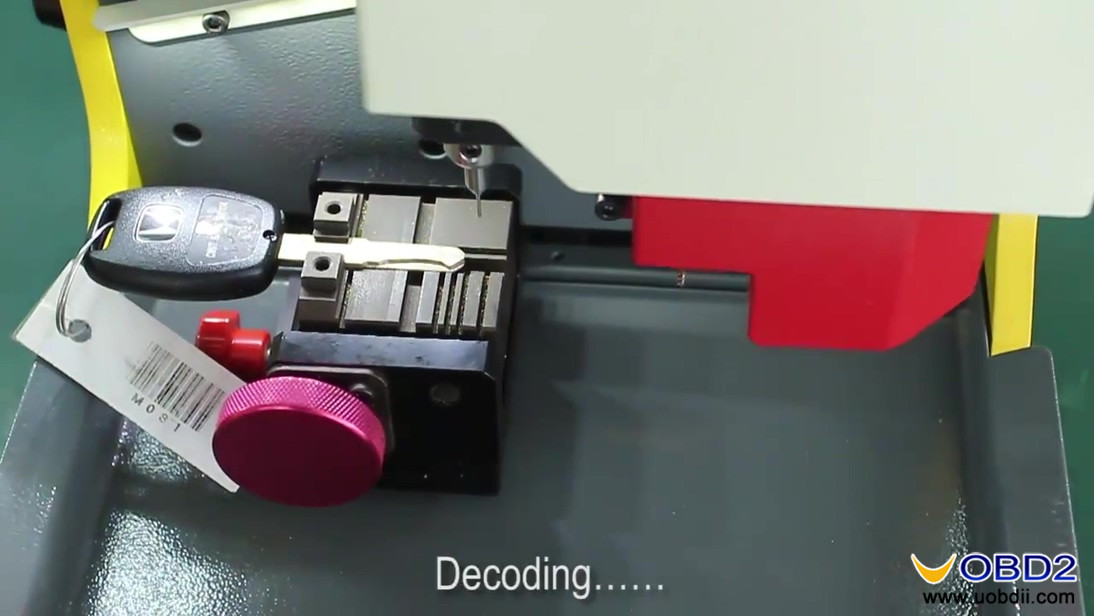

Press “Decode”, and click the picture of “Clean the groove from chips” to start decoding.

sec-e9-cut-hon66-key-14 sec-e9-cut-hon66-key-15

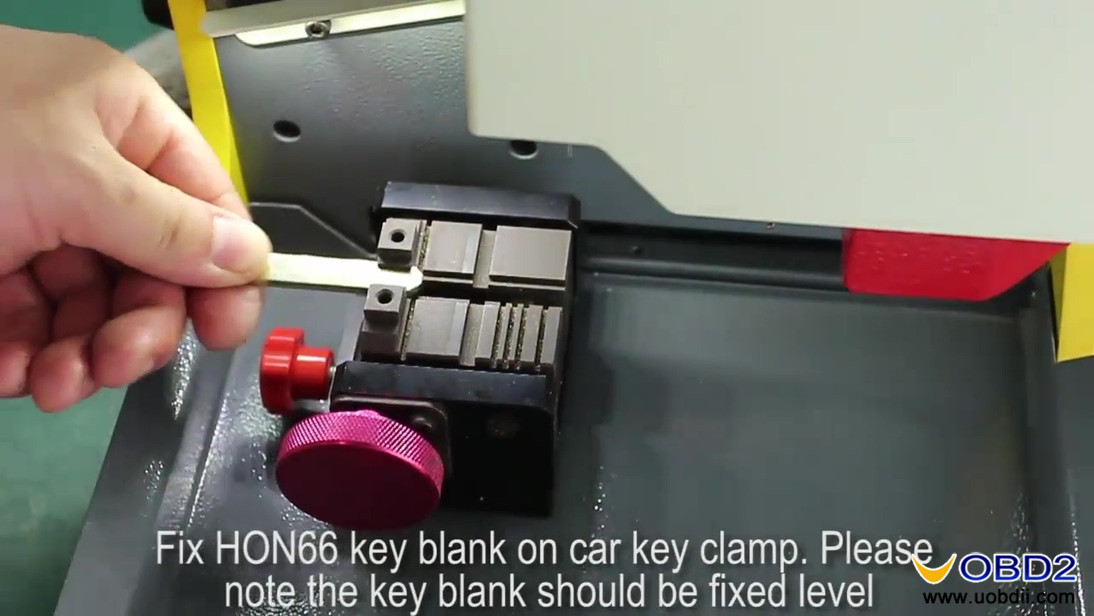

Take away the original key. Fix HON66 key blank in the car key clamp, Note: the key should be fixed level. Click “Cut” button.

sec-e9-cut-hon66-key-16

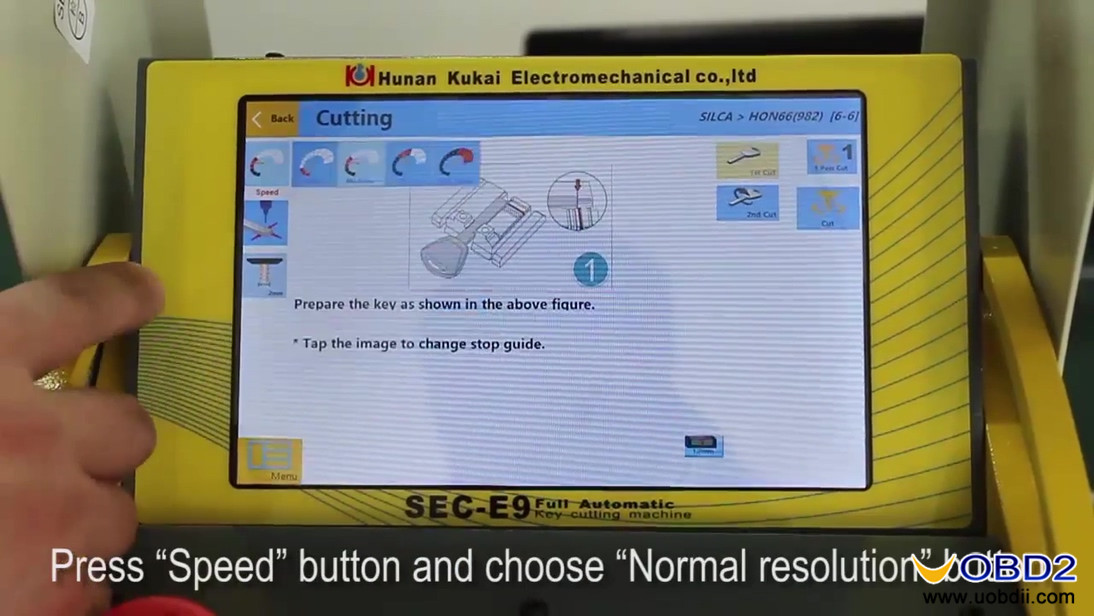

Press “Speed” and choose “Normal resolution” button.

sec-e9-cut-hon66-key-17

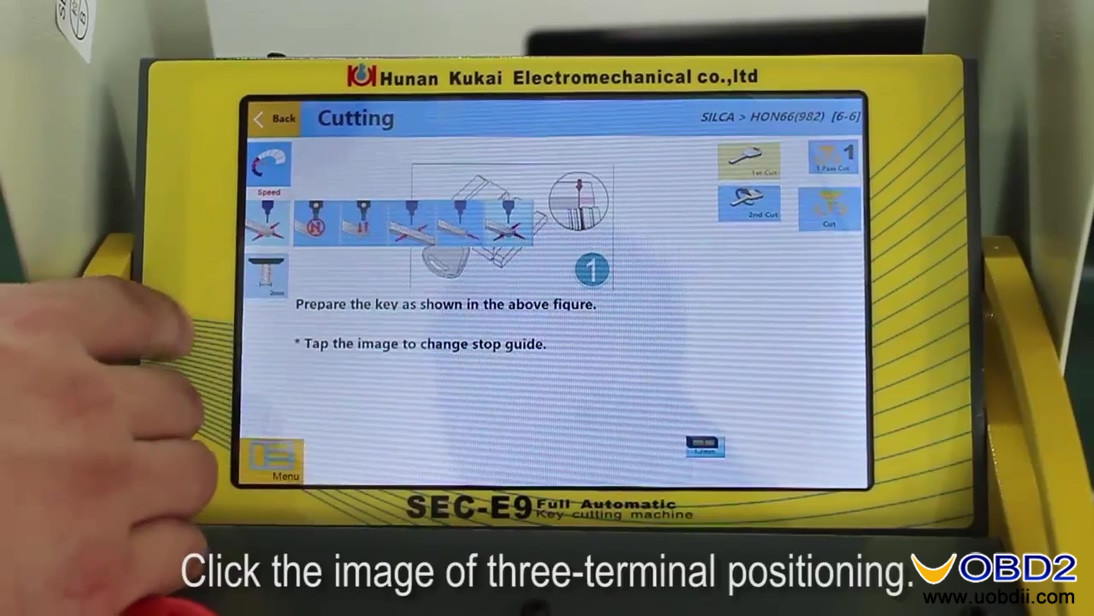

Click the image of three-terminal positioning.

sec-e9-cut-hon66-key-18

Press “Cut” button, please remember to close the safe gate.

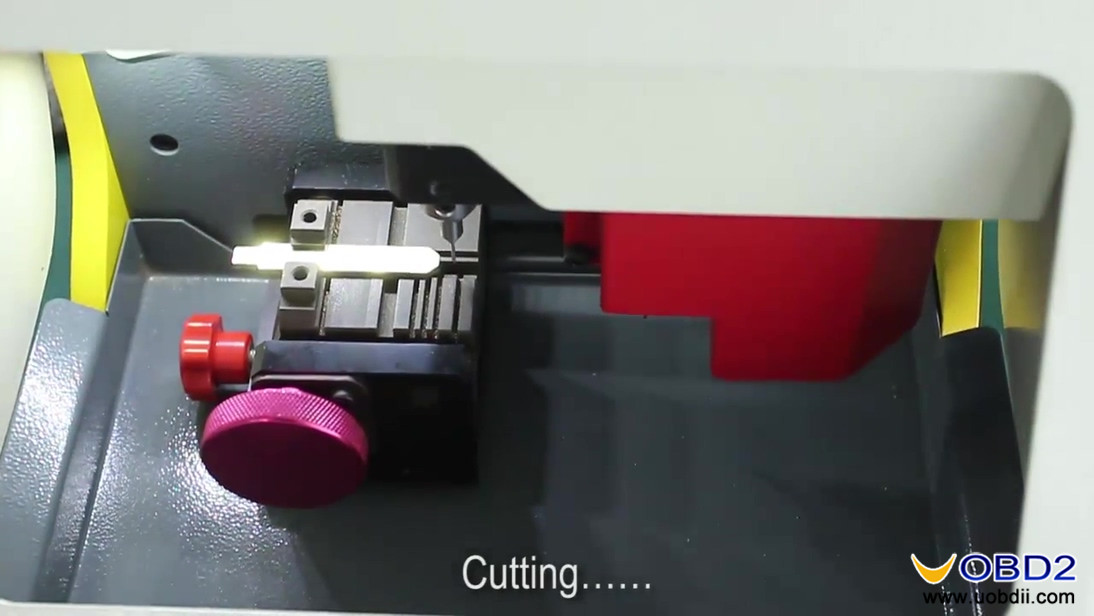

Cutting

sec-e9-cut-hon66-key-19

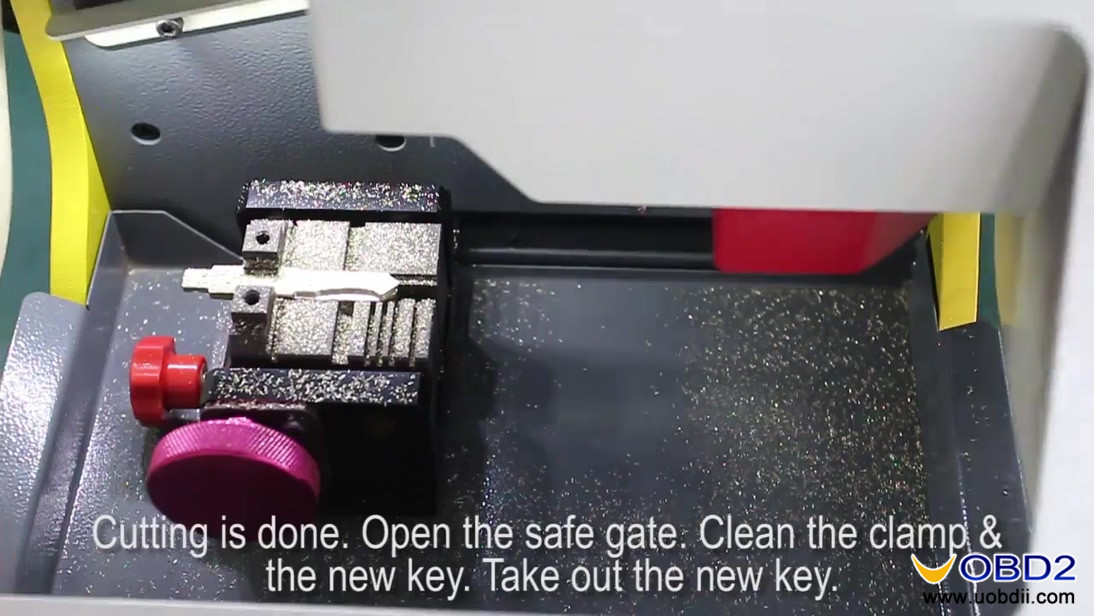

Cutting done. open the safe gate. Clean the clamp & the new key. Take out the new key.

Change the other side of the key blank on the car key clamp for cutting.

sec-e9-cut-hon66-key-20

Press “Cut” to start cutting, please remember to close the safe gate.

Cutting done. open the safe gate. Clean the clamp & the new key. Take out the new key.

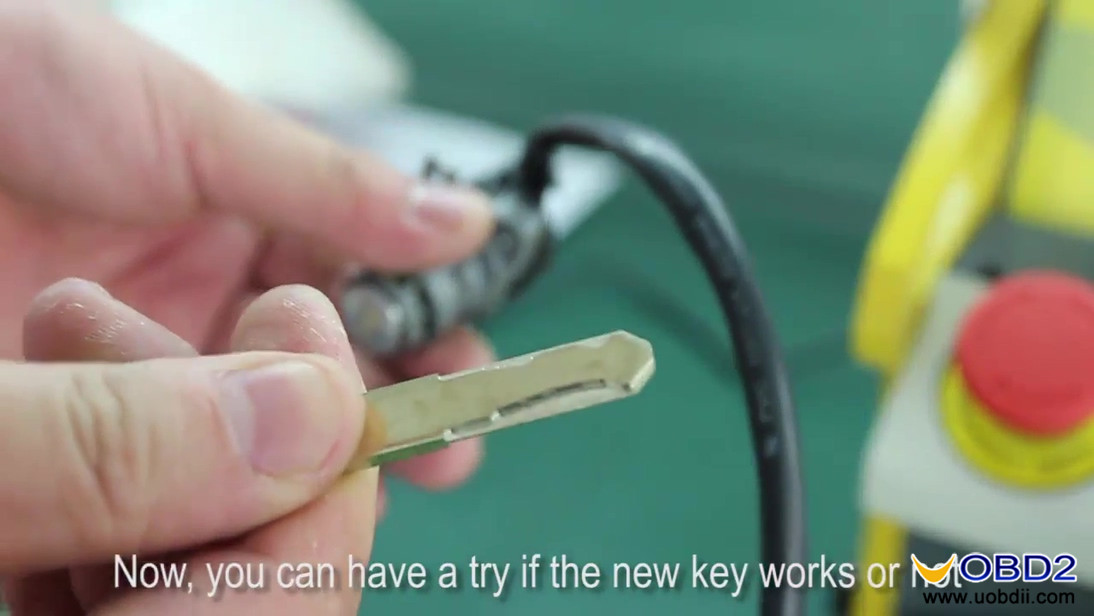

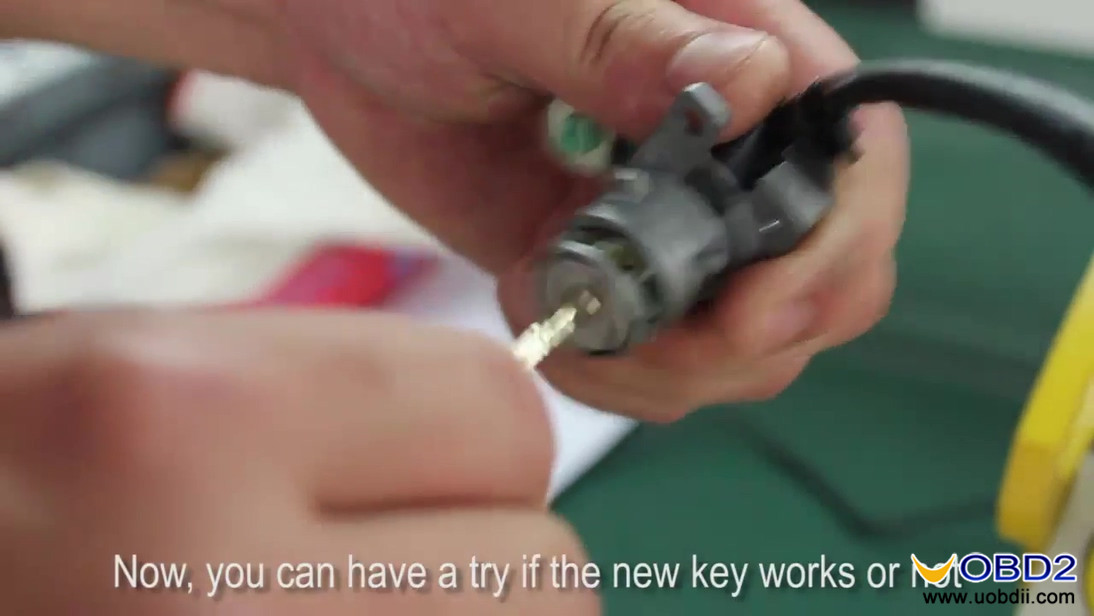

Now, you can have a try if the new key works or not.

sec-e9-cut-hon66-key-21 sec-e9-cut-hon66-key-22

sec-e9-cut-hon66-key-23

As you can see, it is easy to use SEC-E9 to cut HON66 key by search key blank.

Thanks.

Hope it helps.
