How to use Condor XC-MINI to cut Hyundai Key? (Step Guide)

As a powerful key cutting machine, Condor XC-MINI can surely cut Hyundai key. Here is operation guide for you to use Condor XC-MINI master series automatic key cutting machine to cut Hyundai Key.



firstly you need:iKeycutter CONDOR XC-MINI and a new key blade

Step1. Start CONDOR XC-MINI, click “Key Database”, choose “Hyundai” and click “Confirm” button.

condor-xc-mini-cut-Hyundai-key-1

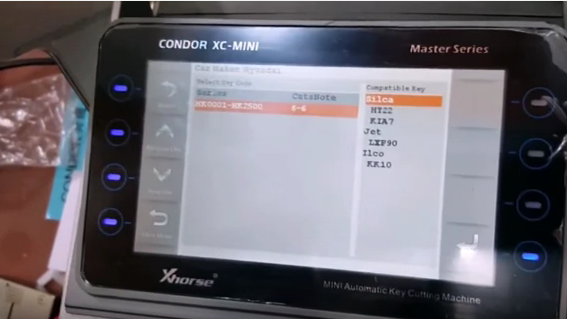

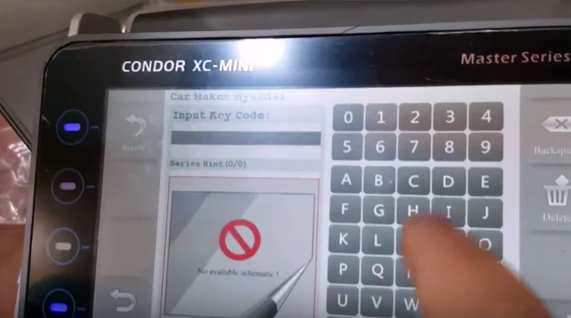

Step2. Input key code, XC-MINI will show you “Series”, “Cuts Note” and “Compatible Key”, click “Confirm” button.

condor-xc-mini-cut-Hyundai-key-2

condor-xc-mini-cut-Hyundai-key-3

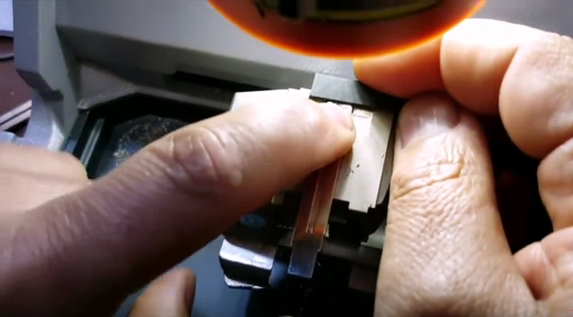

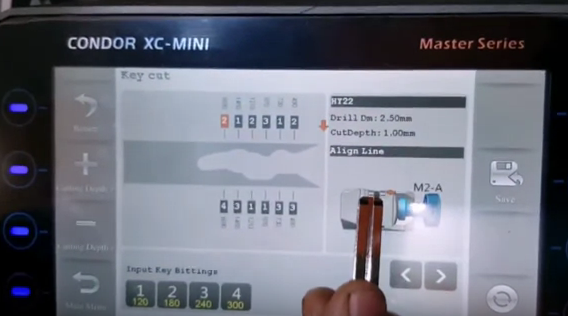

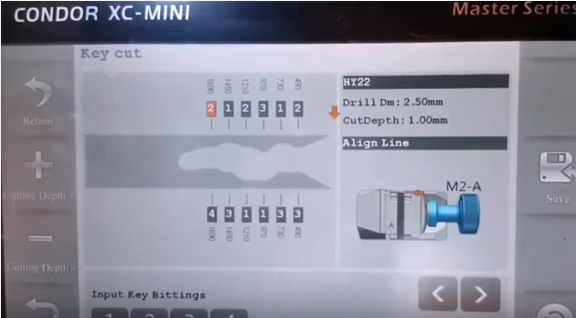

Step3. Now you can see the “Align Line” picture, so you can make the new key blade in right position.

condor-xc-mini-cut-Hyundai-key-4 condor-xc-mini-cut-Hyundai-key-5 condor-xc-mini-cut-Hyundai-key-6

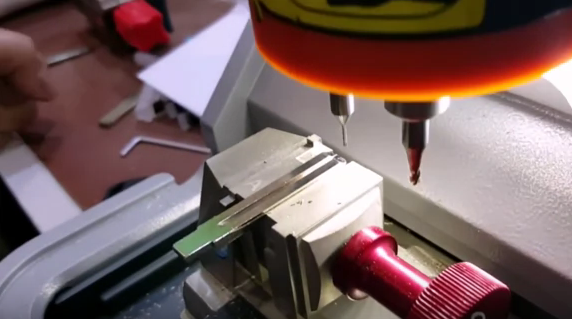

Step4. After that, tighten the key locking knob. Click “Cut” button to start key- cutting. Now you use XC-MINI to cut Hyundai key successfully.

condor-xc-mini-cut-Hyundai-key-7 condor-xc-mini-cut-Hyundai-key-8 condor-xc-mini-cut-Hyundai-key-9
